Product Description

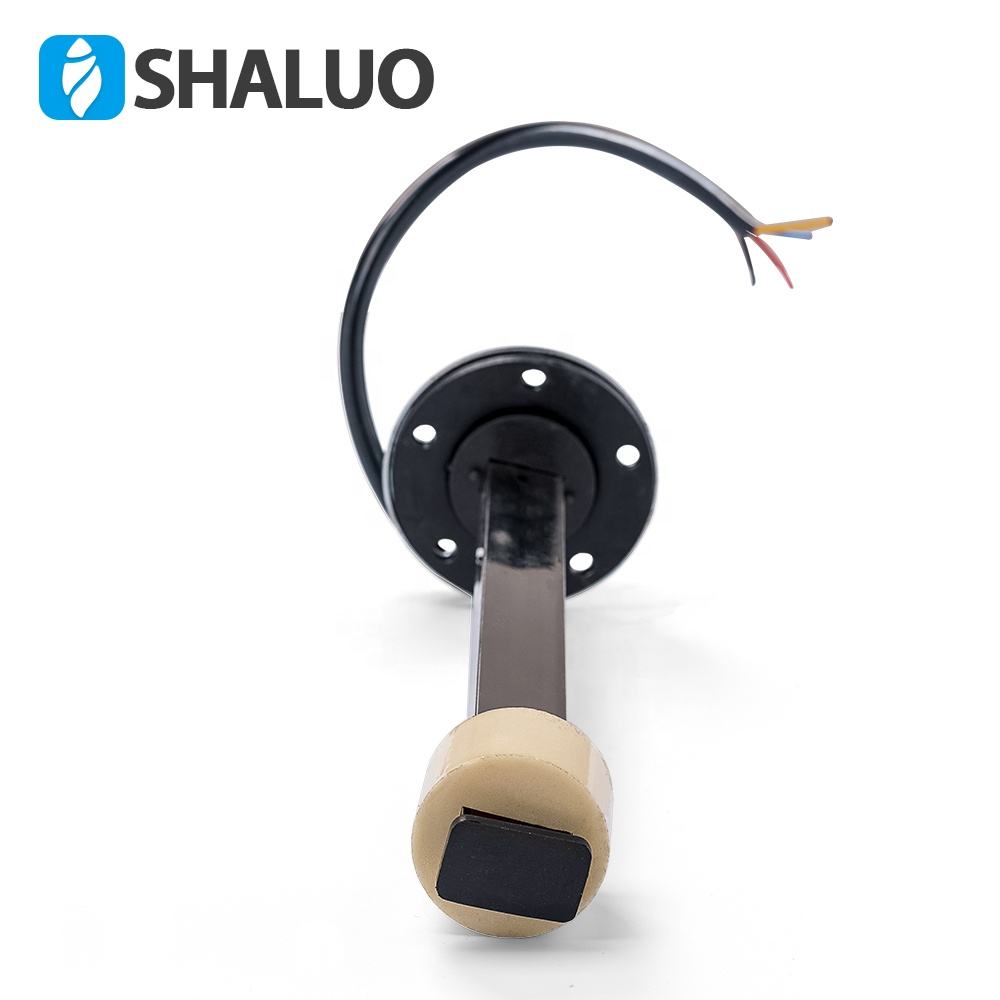

How to connect the wire?
Red line: signal line
Blackline : ground wire
Blue line: low alarm
Yellow line: high alarm
A.use range:
1, all kinds of vehicle oil level detection;
2, using a variety of industrial liquid detection.
Two.product features:
1, high detection precision, easy installation; corrosion resistance, wear resistance;
2, non contact measurement, safety and reliability, good seismic performance, impact resistance;
3, long service life.
Three.technical parameters
Range: can be customized according to user's fuel tank height;
Signal output: the output form of resistance (resistance range can be customized), output voltage, output current (0-5V): 4-20mA
Voltage range: DC5V-24V;
Detection accuracy: minimum level change detection 3mm;
Supporting instrument: pointer instrument, digital instrument, light display instrument, GPS etc..
Whole structure: column type
Installation method: top mounted
This sensor can also be used with the car oil monitor, GPS, etc.
| Fuel level sensor data | ||||||
| Guide pin position | 0 | 1/2 | 1 | |||
| Resistance | 106.7 | 33.5 | 6.7 | |||
