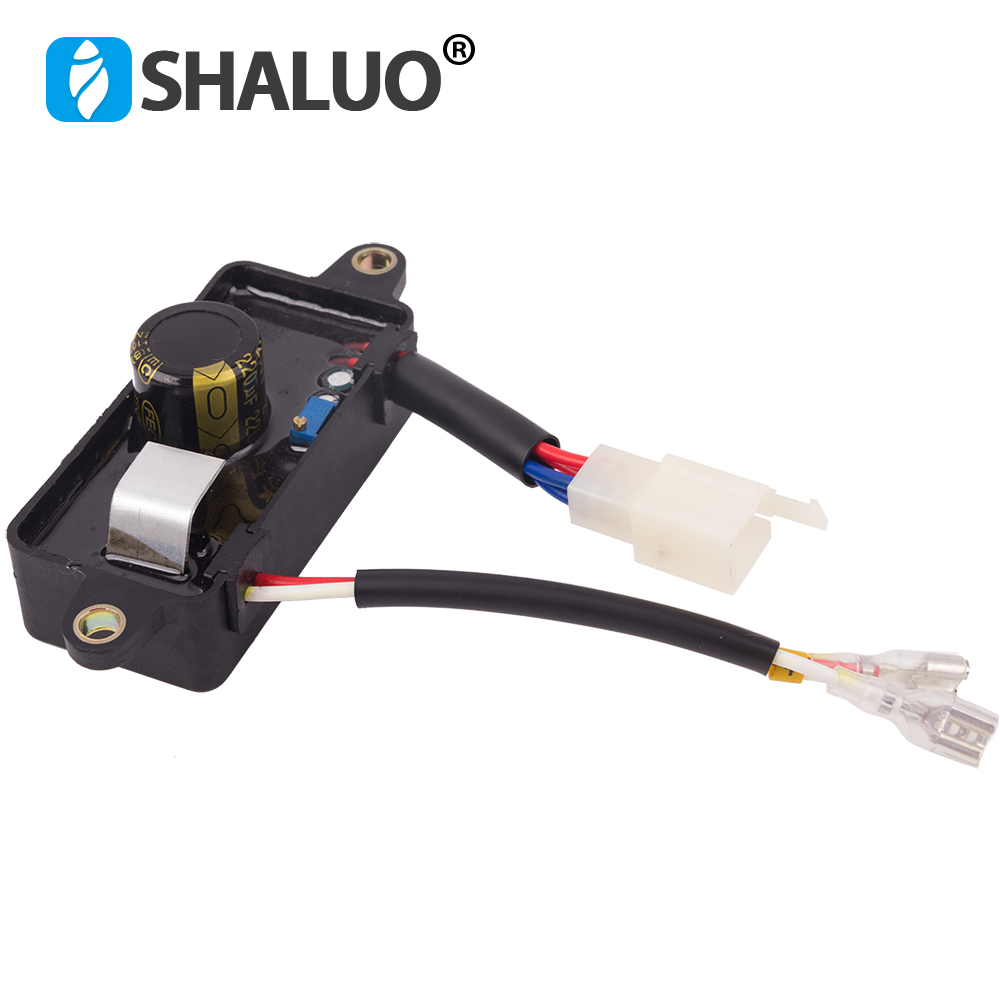

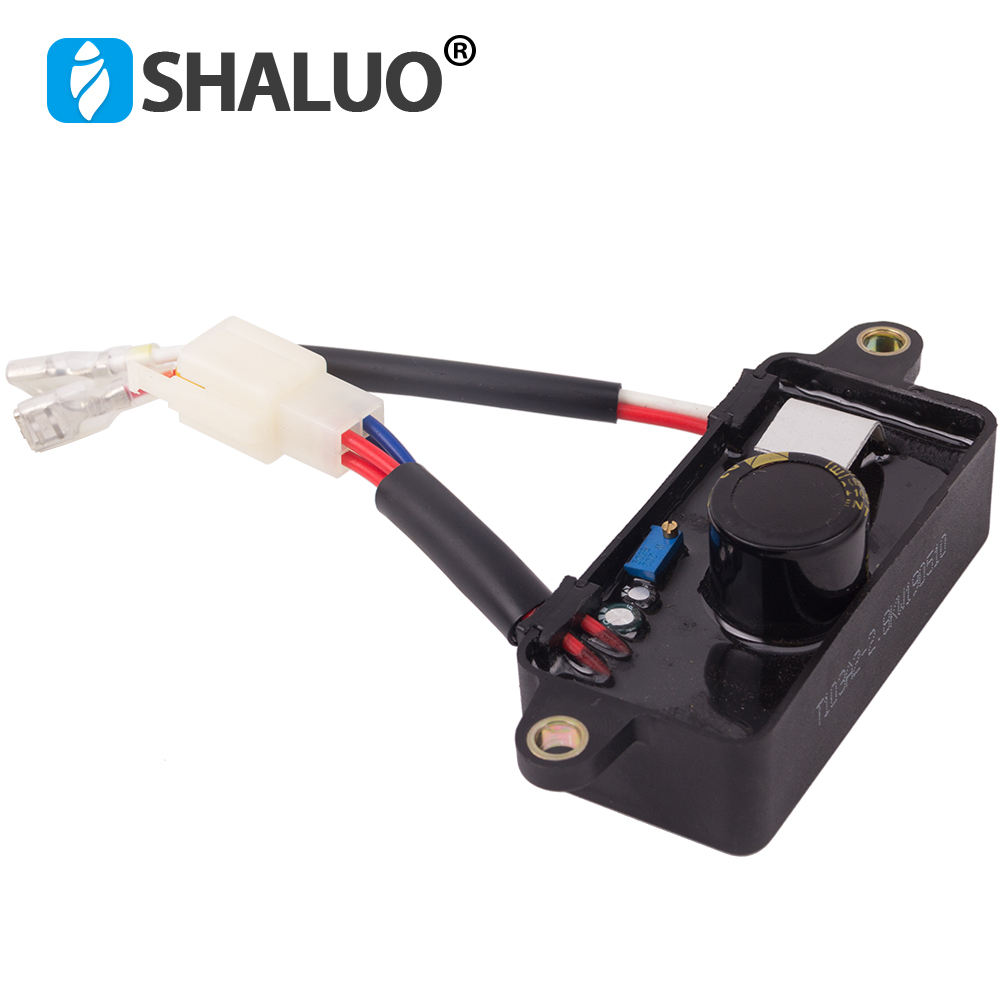

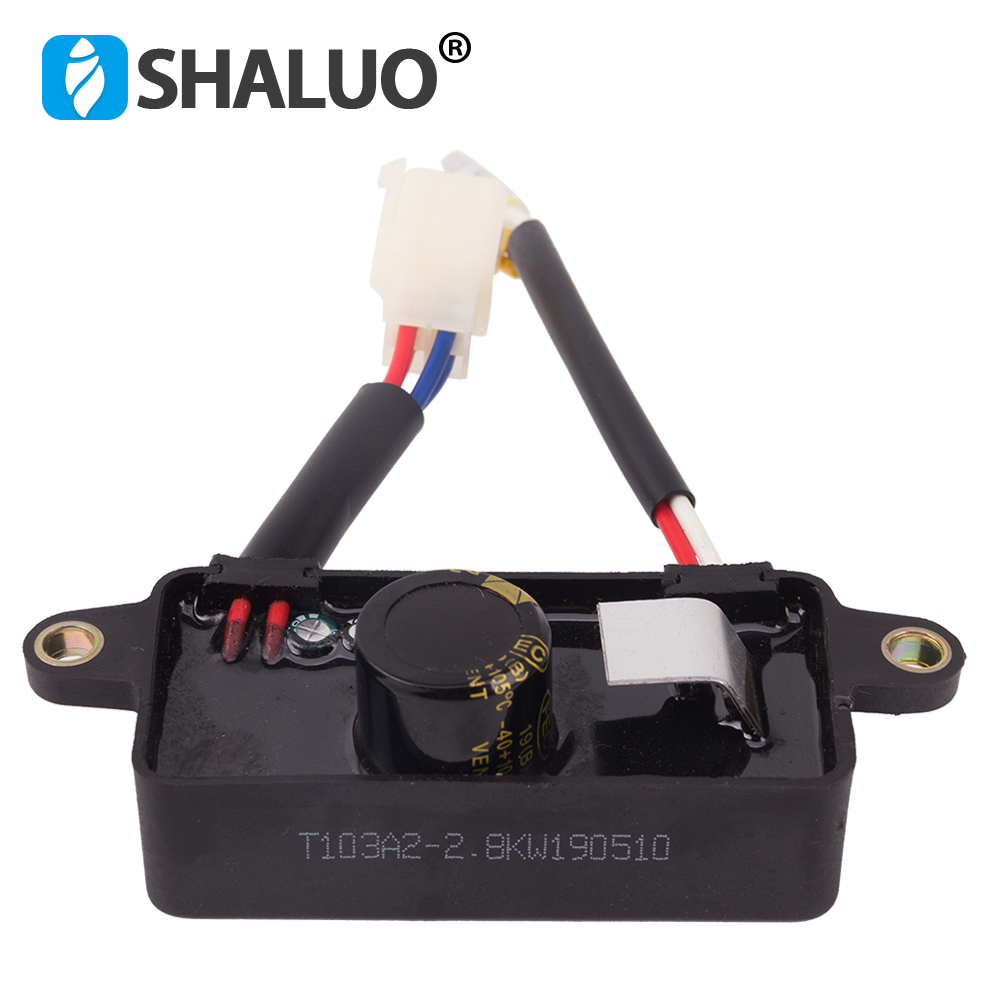

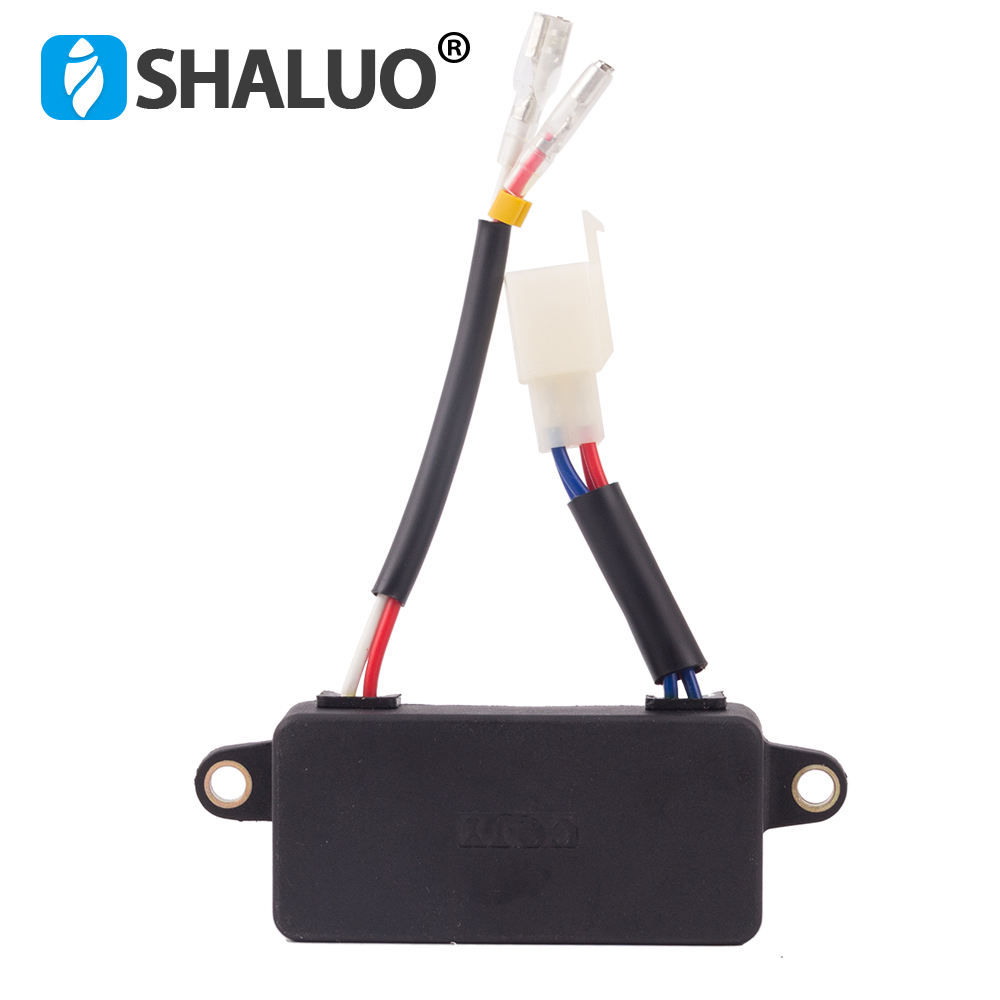

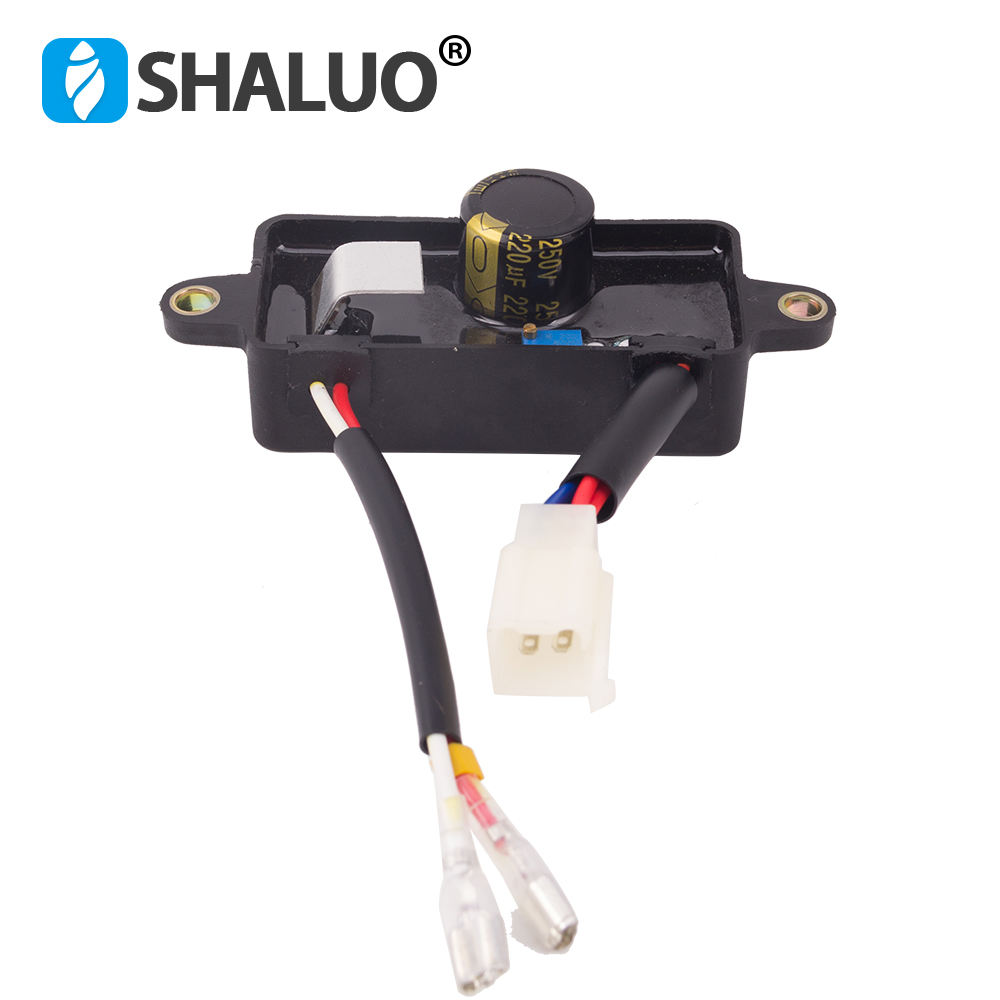

Product Description

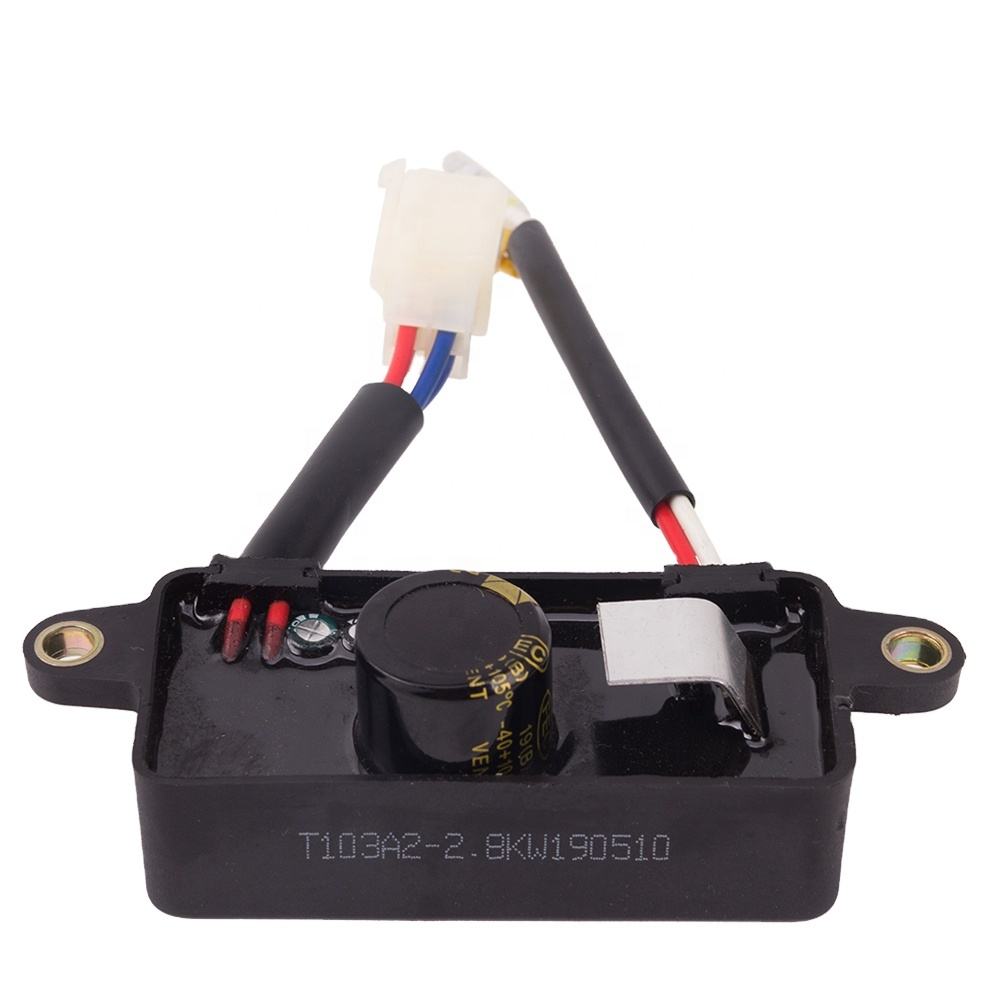

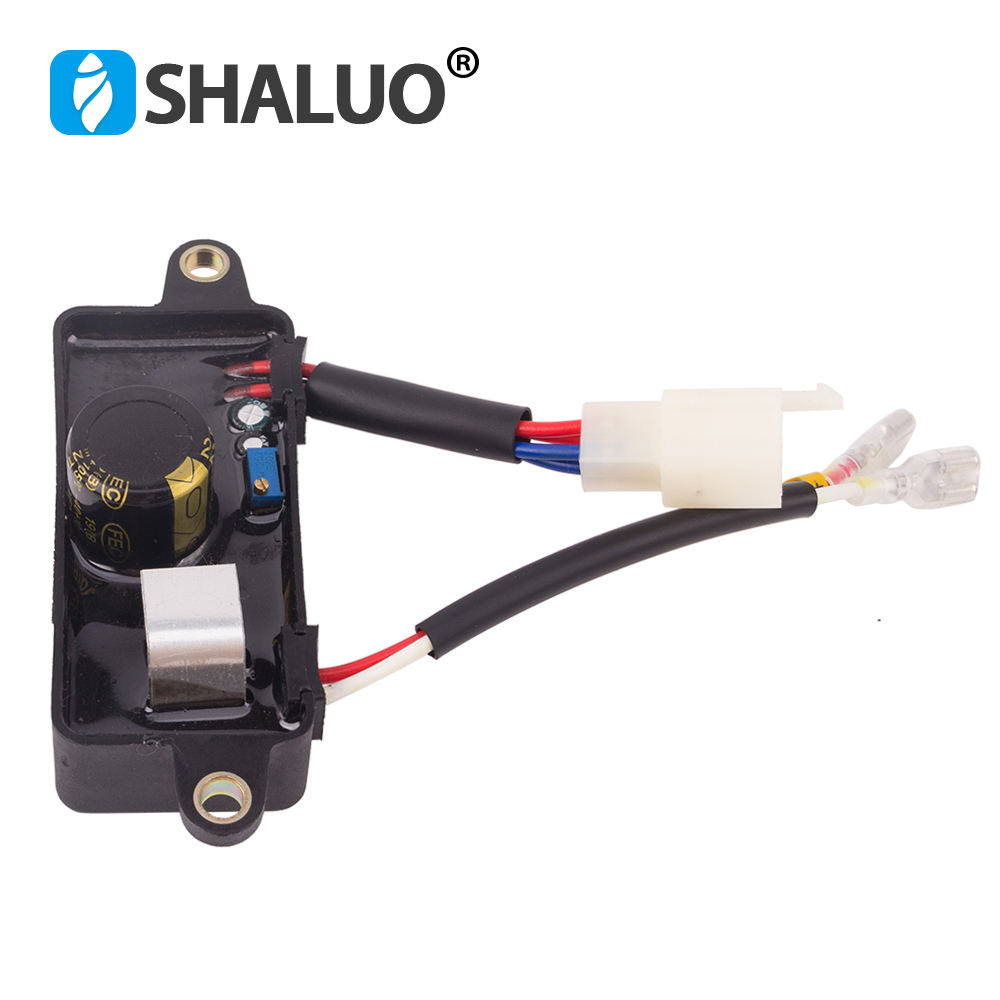

Suitable for gasoline generator 168 type 2~3kw
Features:
1. Voltage regulation rate <±1%
2. Full wave rectification
3. Single phase voltage detection
4. Output voltage can be adjusted
5. Resin seal moisture and shockproof
Product parameters:
Detection input: 16~25VAC 50HZ
Power input: 60-100VAC 50HZ
Output voltage: up to 100VDC (at 85V input)
Output current: continuous 2A
Voltage regulation rate: <±1% (engine speed variation is within 4%)
Voltage establishment: Remaining magnetic voltage of 2VAC or more at the power input terminal
Output voltage adjustment range: 115/230 ± 15%
Temperature stability: every °C change voltage drift 0.05%
110×40×33mm
50Hz/60Hz
Input: 70 ~ 80VAC
Output: 85VDC
Suitable for single-phase gasoline generators with excitation secondary windings
