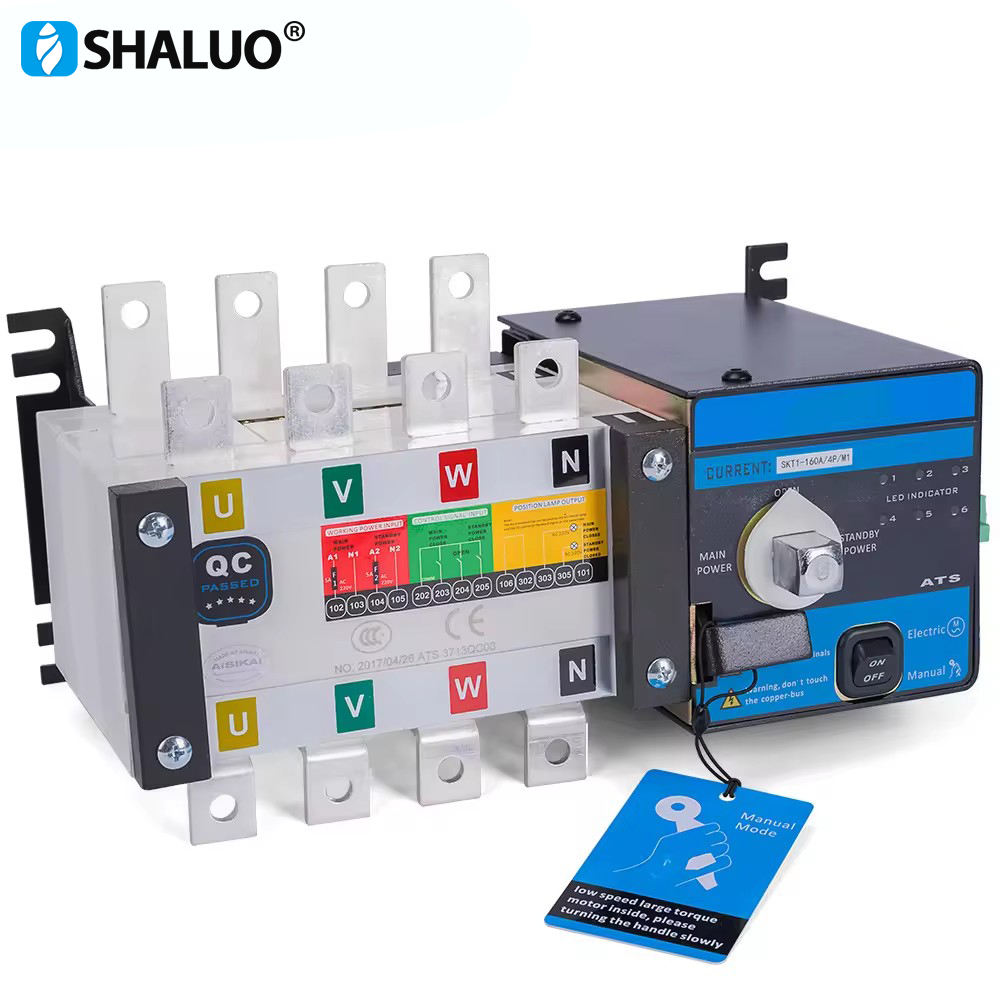

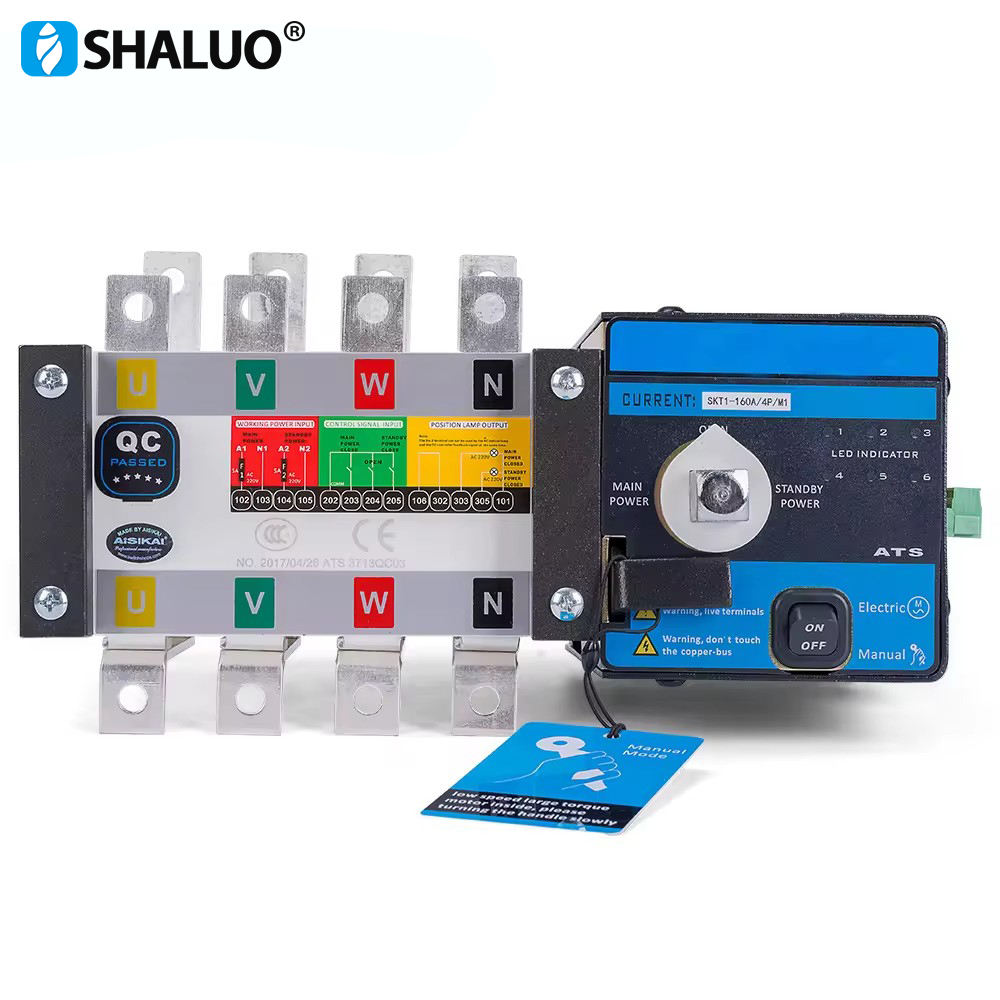

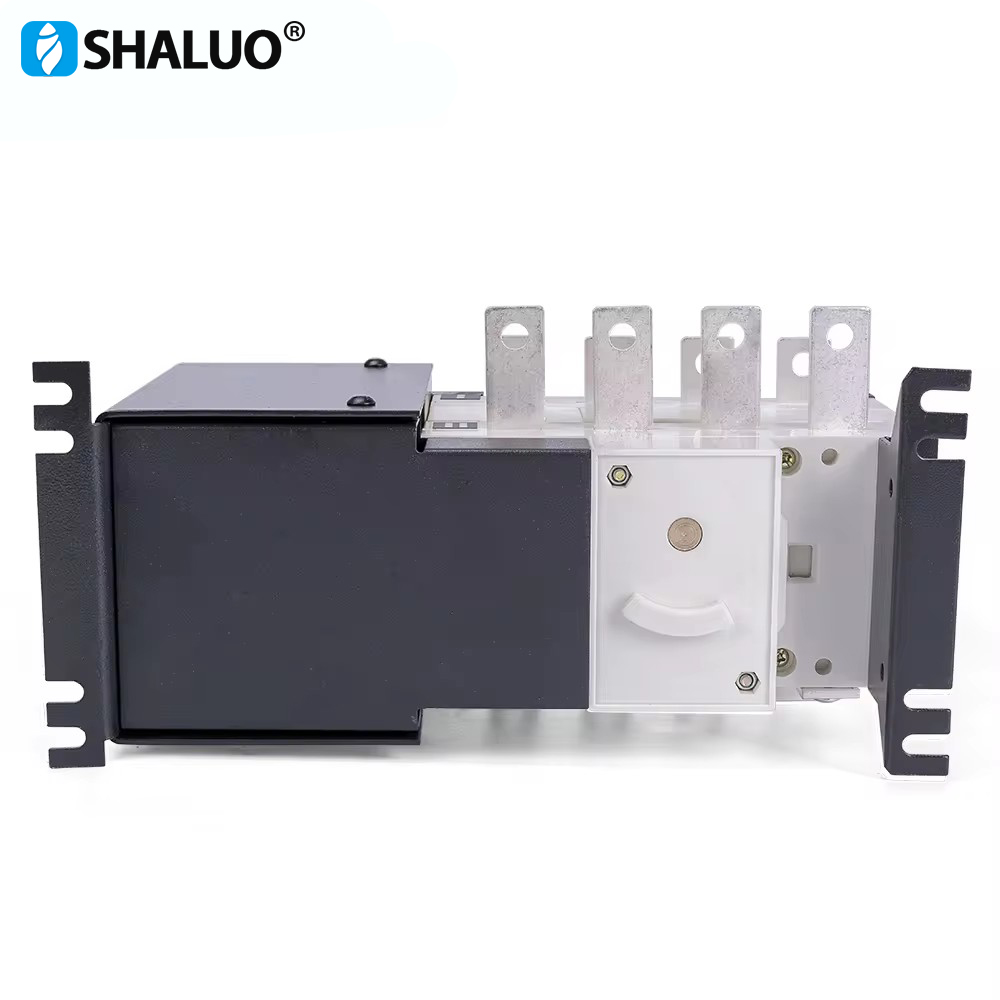

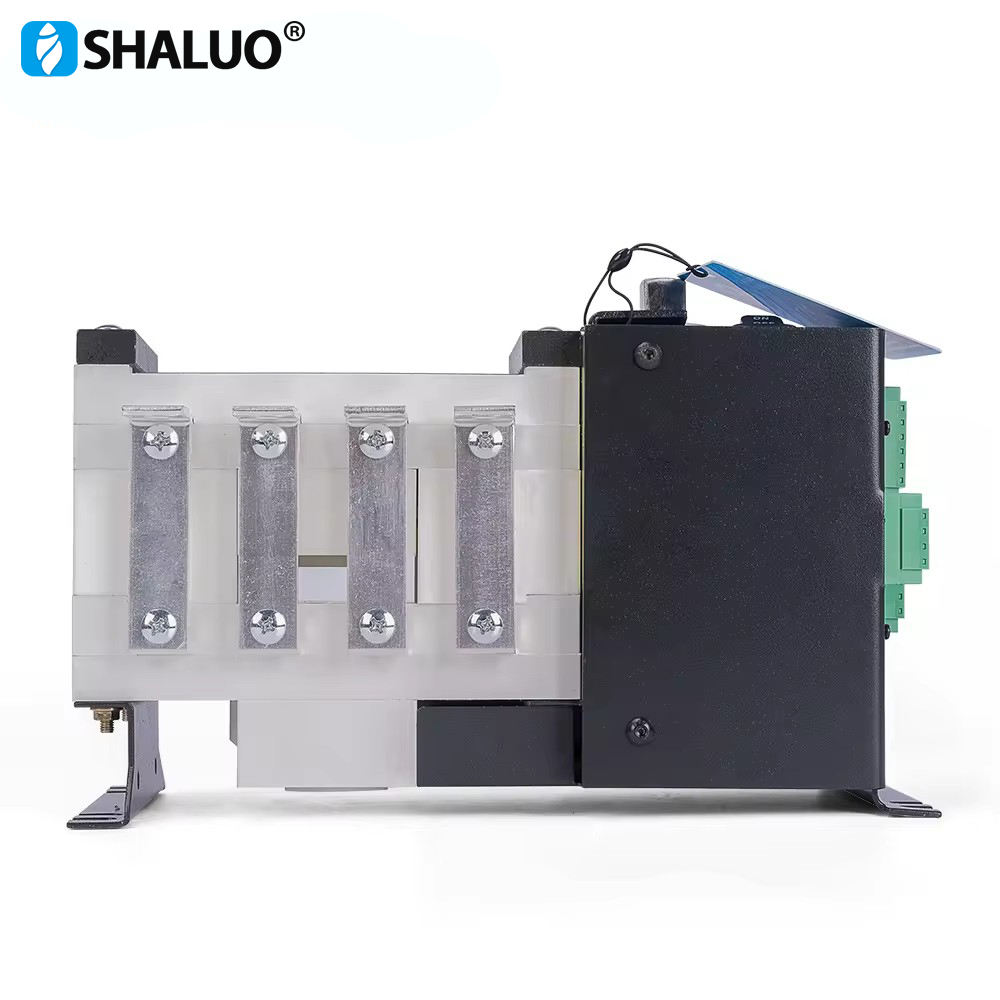

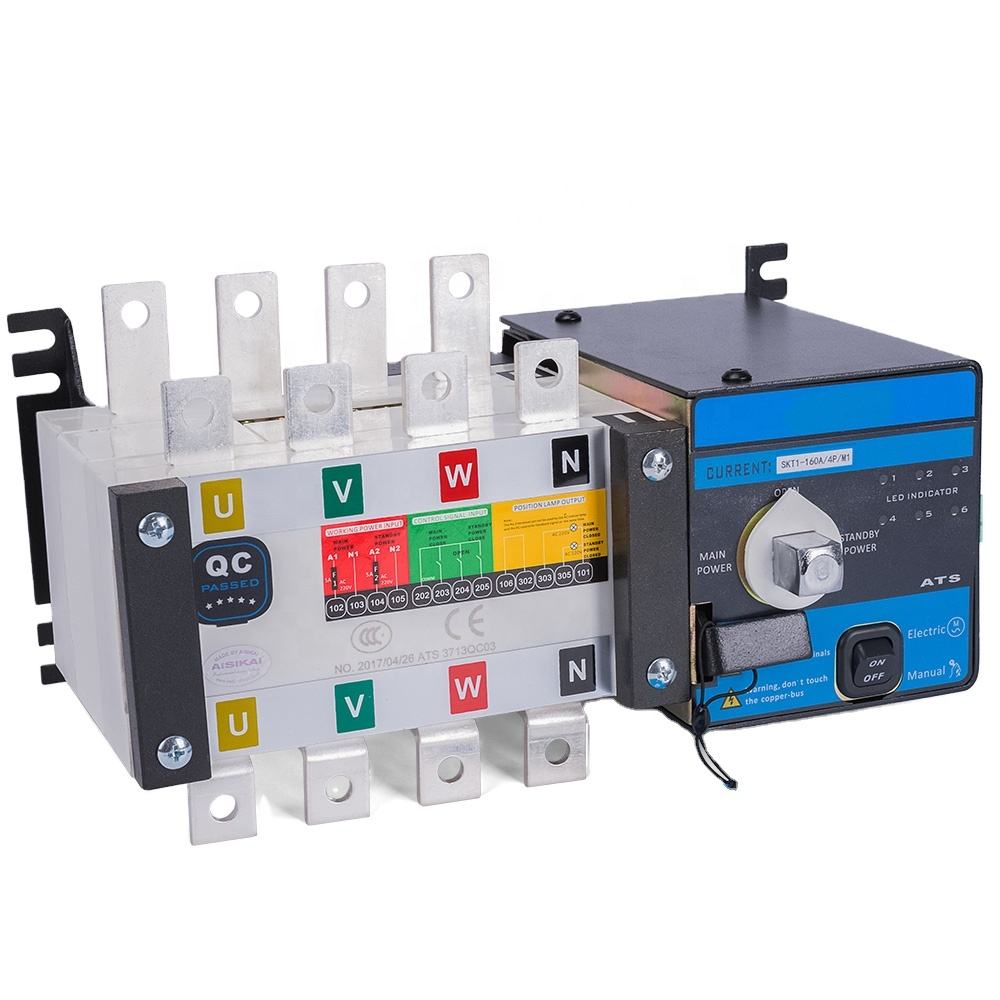

4P 160A ATS Controller Dual Power Diesel Generator Part Ac 3 Phase Automatic Transfer Switch for Generator

Availability:
Quantity:
Inquire Add to Basket

Product Description

Product Description

SKT series dual power automatic transfer switch is the most advanced third-generation product at present. The level is PC level, Use category AC-33A electrical transfer switch that can be operated frequently, Suitable for reliable conversion of two power supplies in 50/60Hz 10A-3200A low-voltage AC power distribution system. There are four working modes: automatic, electric, emergency manual and locking.

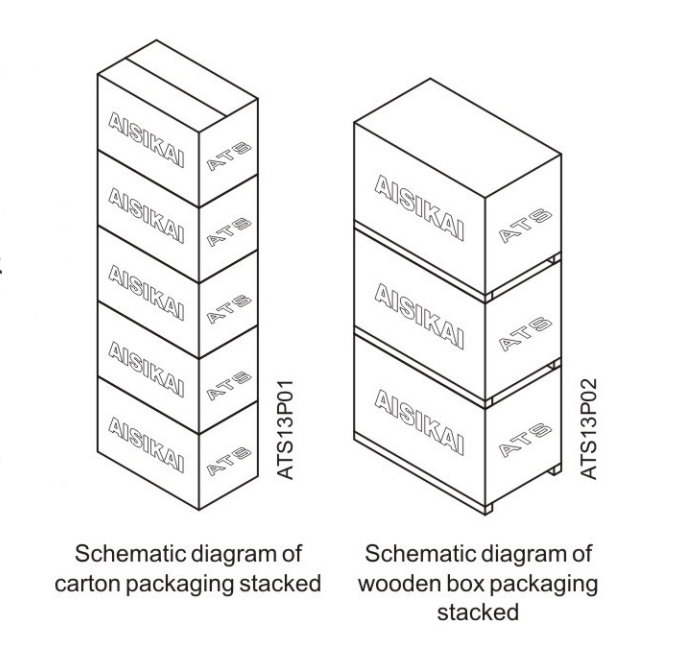

Temperature: -20 to +45°C, Altitude: less than 2000 meters, please reduce the rating if it exceeds 2000 meters; Pollution level: Level III; IP rating: IP20; IP rating: IP20; EU CE standard EN60947-6-1:2005EN 60947-1:2004 Packaging: 600A and below are packed in cartons, and 800A and above are packed in wooden boxes. Stacking: No more than 5 layers for 600A and below, no more than 3 layers for 800A and above.

Specification
Agreed themal CUent Ith
100A
125A
160A
250A
400A
630A
1000A
1600A







Rated insulation voltage Ui
750V
1000V

Rated impulse withstandvoltage Uimp
8KV
12KV

Rated voltage of theswitch copper Ue
AC440V
Rated work current le
100
125
160
250
400
630
1000
1600







Rated workcurrent le
10le
Rated connection capability
8le
Rated conditional short circuit current
100KA
70KA
100KA
120KA
80KA




Rated short-timewithstand current lS
7KA
9KA
13KA
26KA
26KA
50KA
55KA
55KA

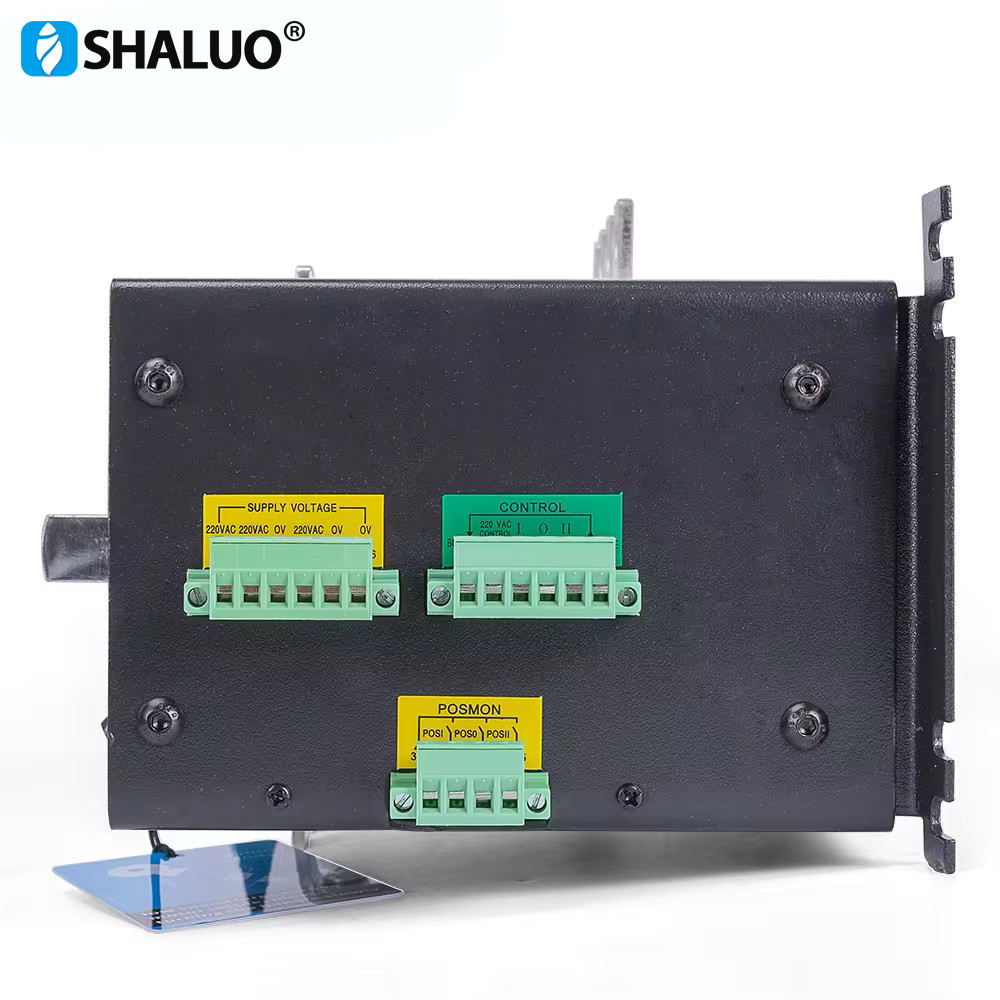

Electric control unit working voltage
Standard type:AC220V. AC110V,AC280V,AC380V, DC12V and DC24V may be custom-made as required.
Instructions
The use category of the standard type products is AC-33A and,ifused forAC-31Aand AC-35A, is all the same as AC-33A.
