Product Description
| Operating Voltage: | 12 or 24V DC | |||
| Nominal Operating Current: | 12V DC version: | 4.0A | ||
| 24V DC version: | 2.0A | |||
| Maximum Current: | 12V DC version: | 5.8A | ||
| 24V DC version: | 3.1A | |||
| ENVIRONMENTAL | ||||
| Operating Temperature: | -40 to +120°C (-40 to +200 °F) | |||
| Relative Humidity: | up to 100% | |||
| Vibration: | 20g, 20-500 Hz | |||
| Shock: | 20g @ 11 msec. | |||
| PHYSICAL | ||||
| Weight: | 4.75 lb. (2.2kg.) | |||

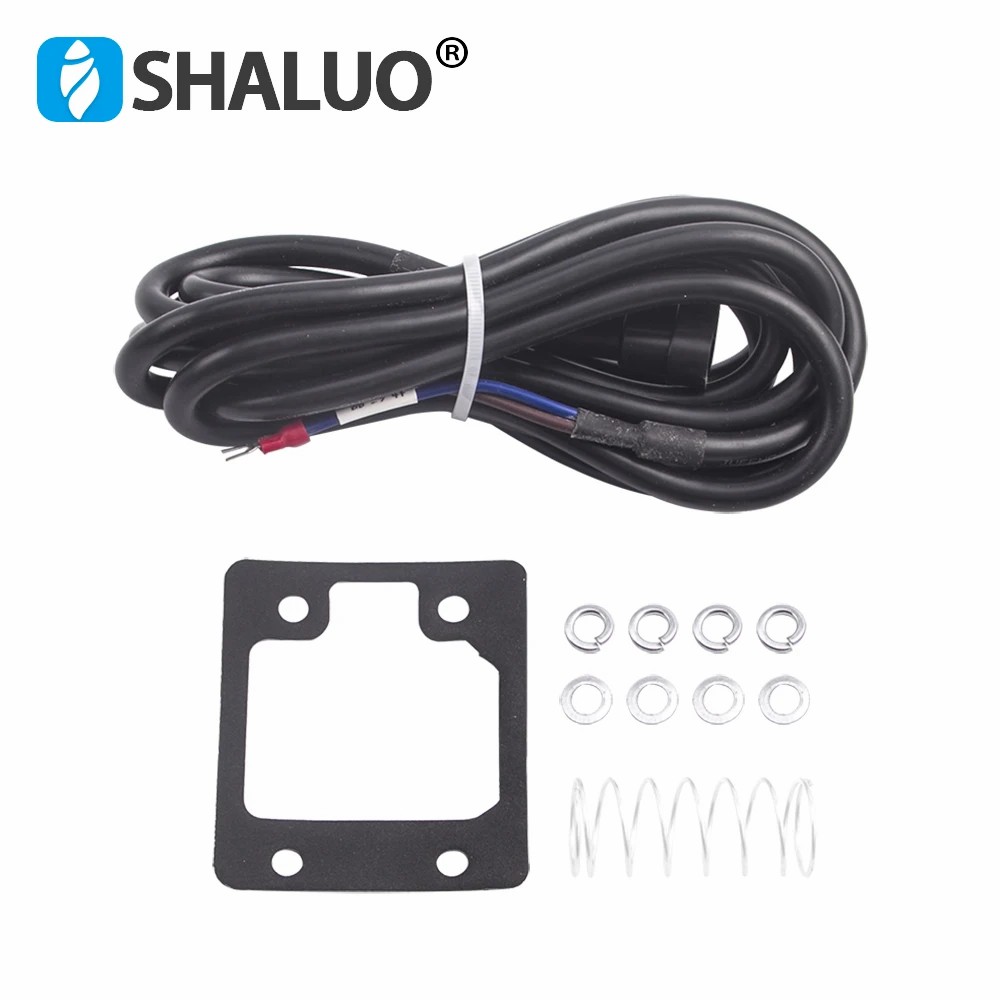

| Mounting: | Requires camshaft bearing retainer kit | |||
| P3000pump | KT275 | |||
| P7000 pump | KT276 | |||
| Mating Connector: | EC1300 | |||
| Mating Cable Harness: | CH1215 | |||
Fu'an Shaluo Electronics co.Ltd is a manufacturer of generator accessories, Our company has established a long term and stable business relationship with a number of domestic agents and retailers.
The professional person responsible for the quality of supervision and control in the entire process.
In order to get the superior quality we only use selected good element.
Aimed at enabling the production department to manufacture and assemble the product as efficiently as possible.
