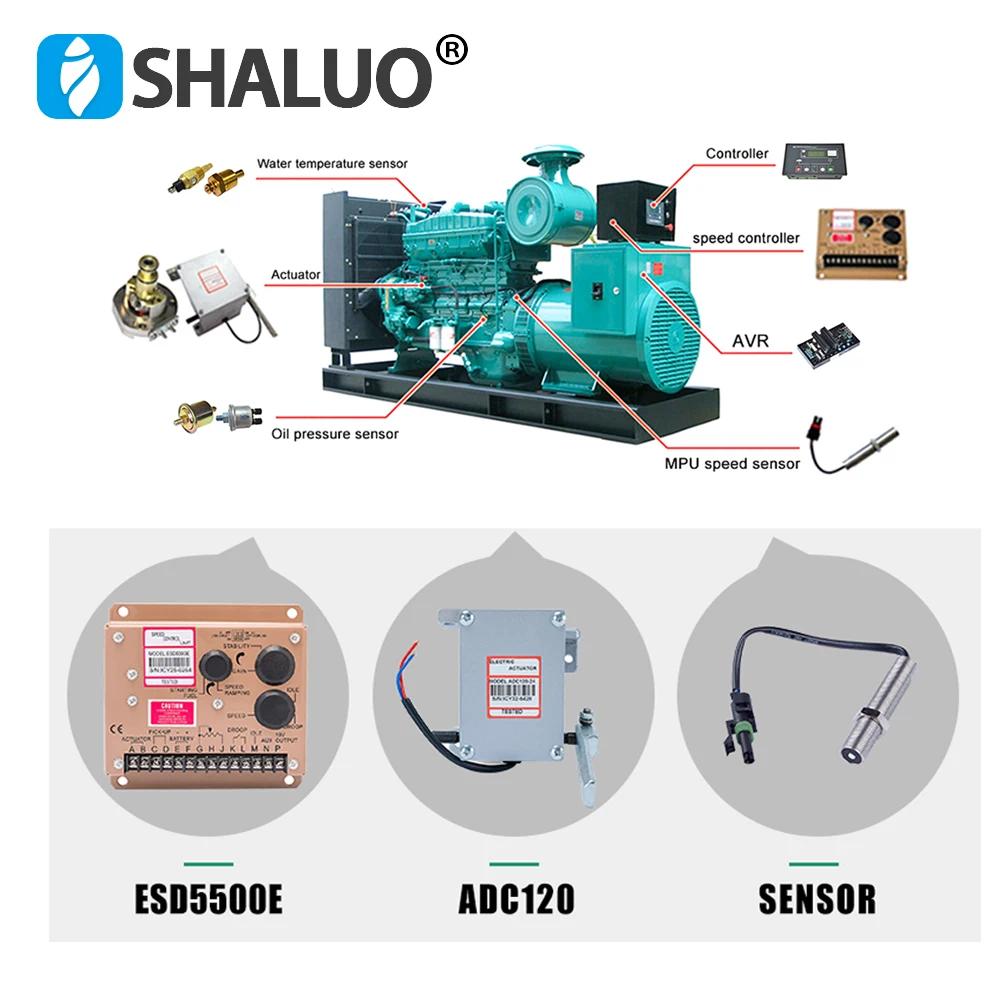

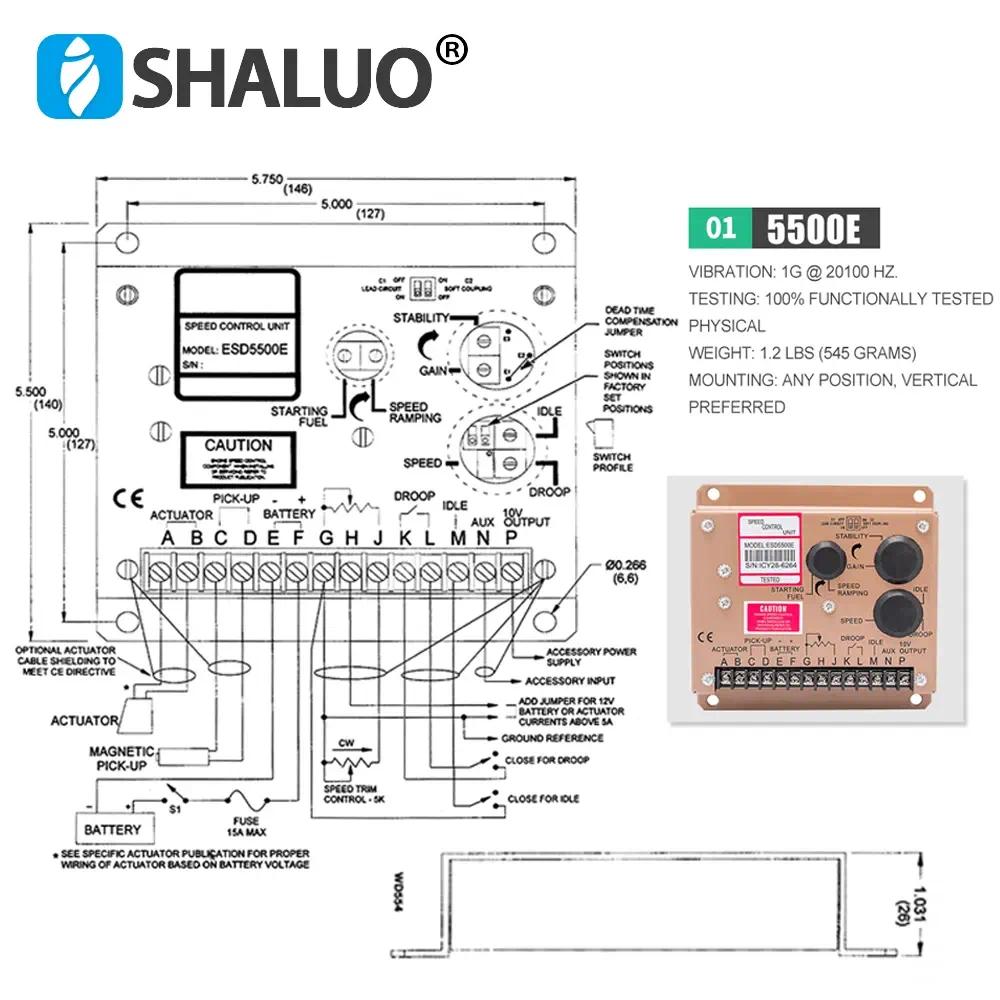

ADC120 12V 24V Generator Parts Speed Controller Governor Control Unit ESD5500E Generator Actuator Generator Speed Sensor

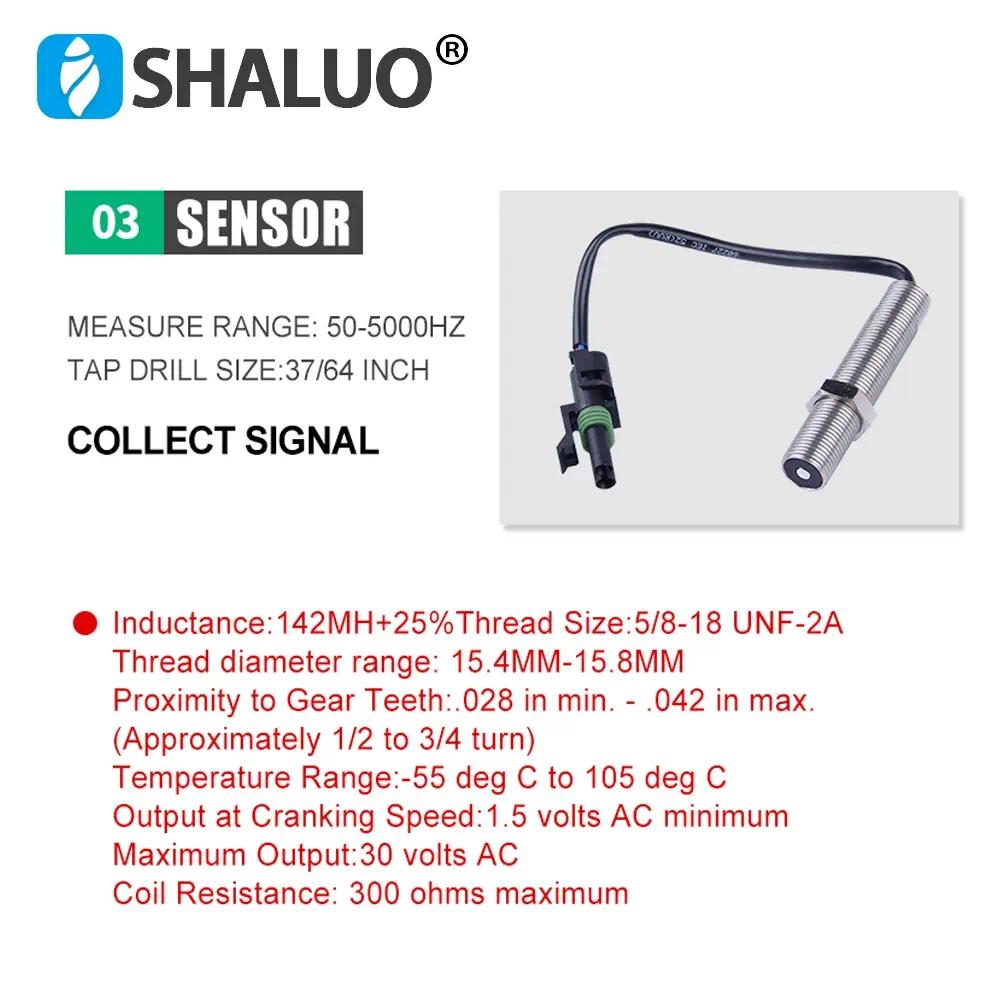

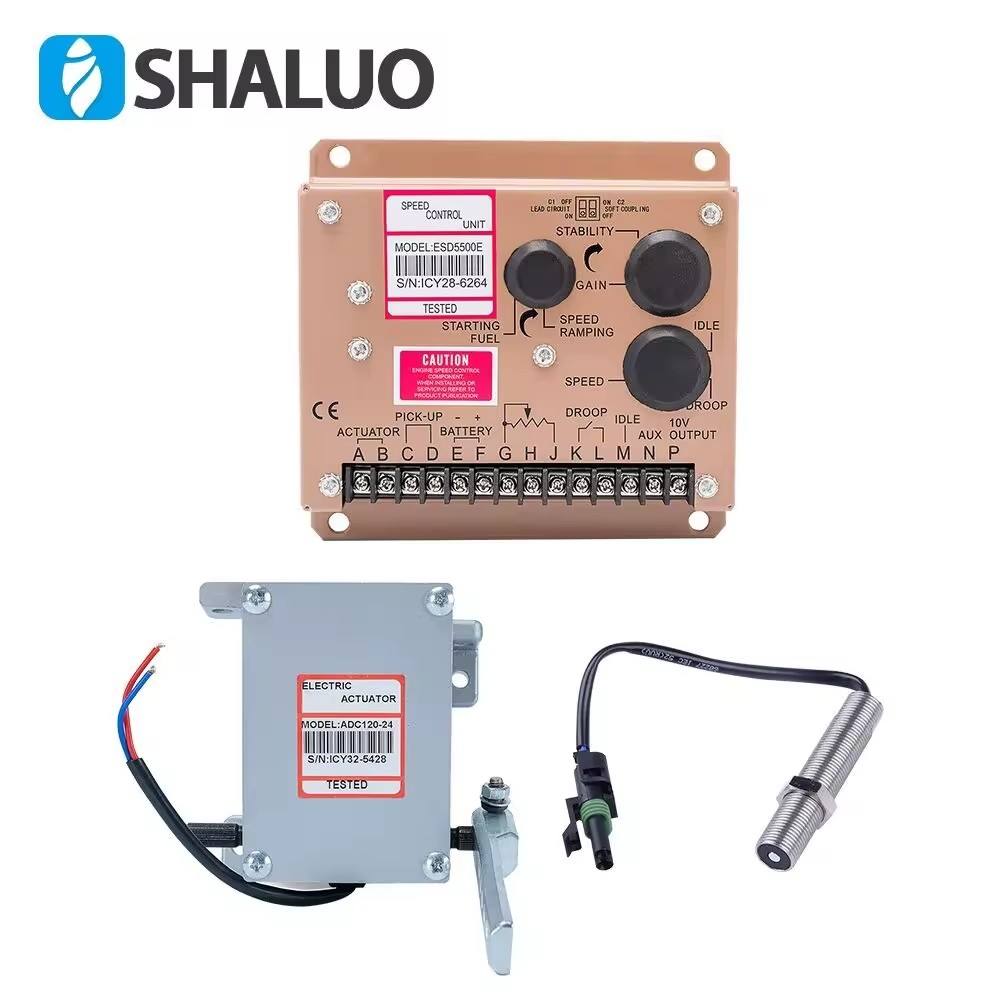

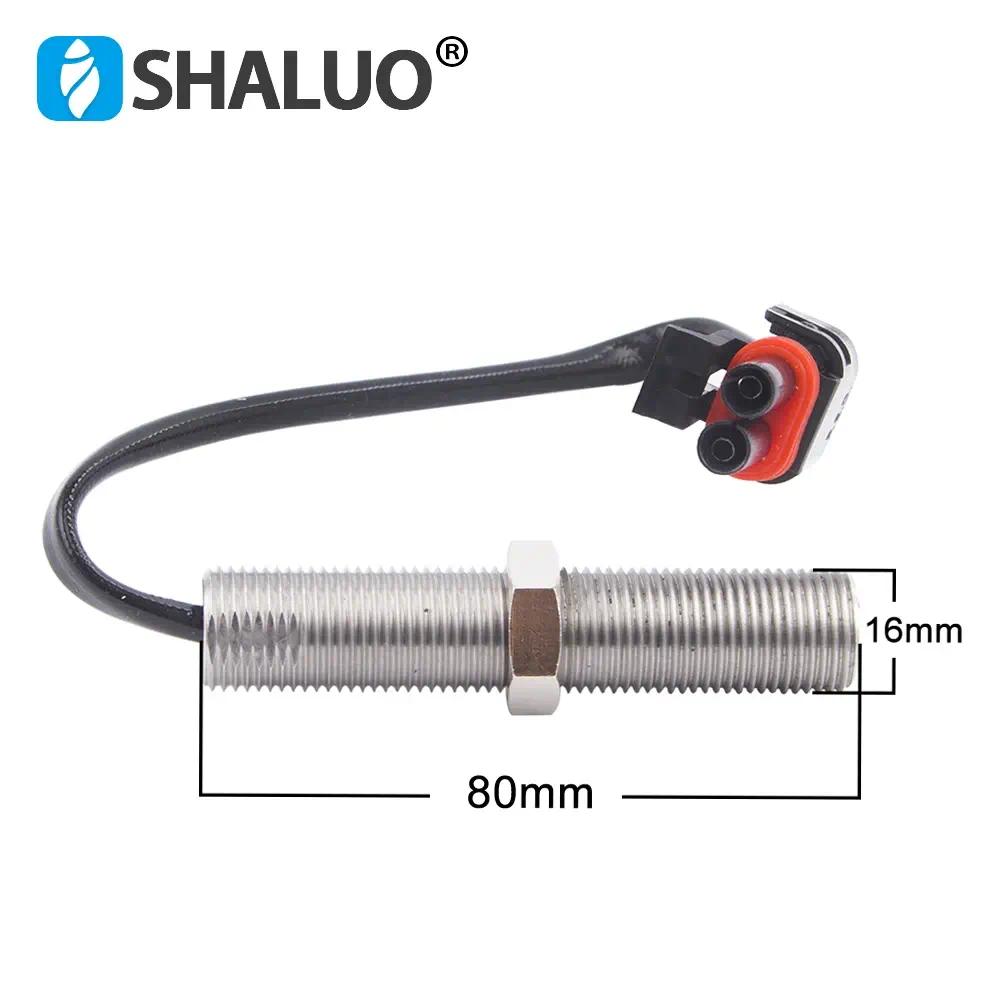

1PCS ADC120-12v(or ADC120-24V)+1PCS ESD5500E+1PCS 3034572 sensor=1set

good universal performance,longevity,stability.

PERFORMANCE:

Available Torque Max1.0Lb-ft(1.4Nm)

Maximum Operating Shaft Angular Travel 25± 1degree CW/CCW

POWER INPUT:

Operating voltage 12VDC

Normal Operating Current 2A at 12VDC

1A at 24VDC

Maximum CurrentContinuously Rated 6A at 12VDC

3 A at 24VDC

ENVIROMENTAL:

Temperature Range -54 to 95

Relative Humidity up to 100%

All Surface finishes Fungus proof and corrosion resistant

PHISICAL:

Weight 2.3 kg

Mounting Any position, electrical connector at the top preferred

RELIABILITY:

Vibration up to 20G @50-500 Hz

Testing 100% Tested

MATING HARDWARE

Connector Supplied With Actuator

Lever LE1500-2

Rod End Bearings(to attach a 12#20 HD linkage rod to lever) BR100(Right Hand)

BR101(Left Hand)

Wiring Harness ADC120 4ft. Harness supplied with actuator, other length available from Actuator

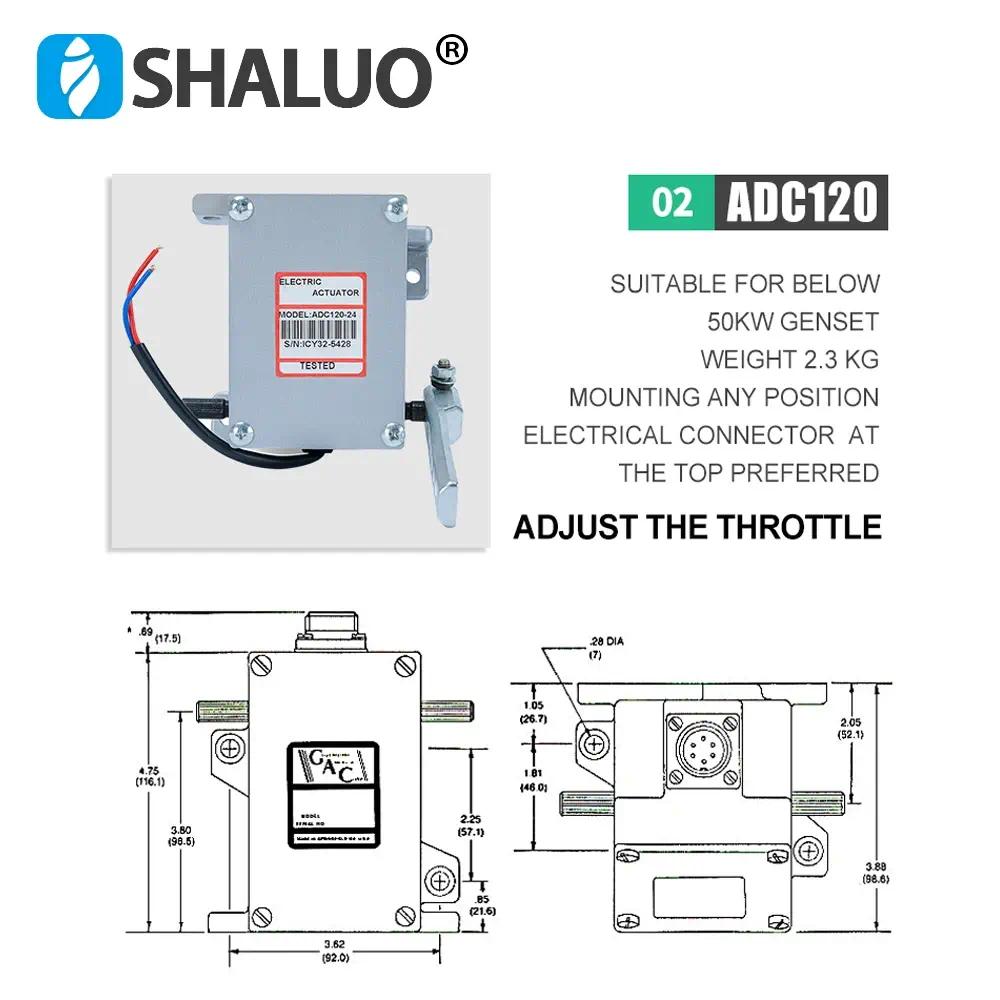

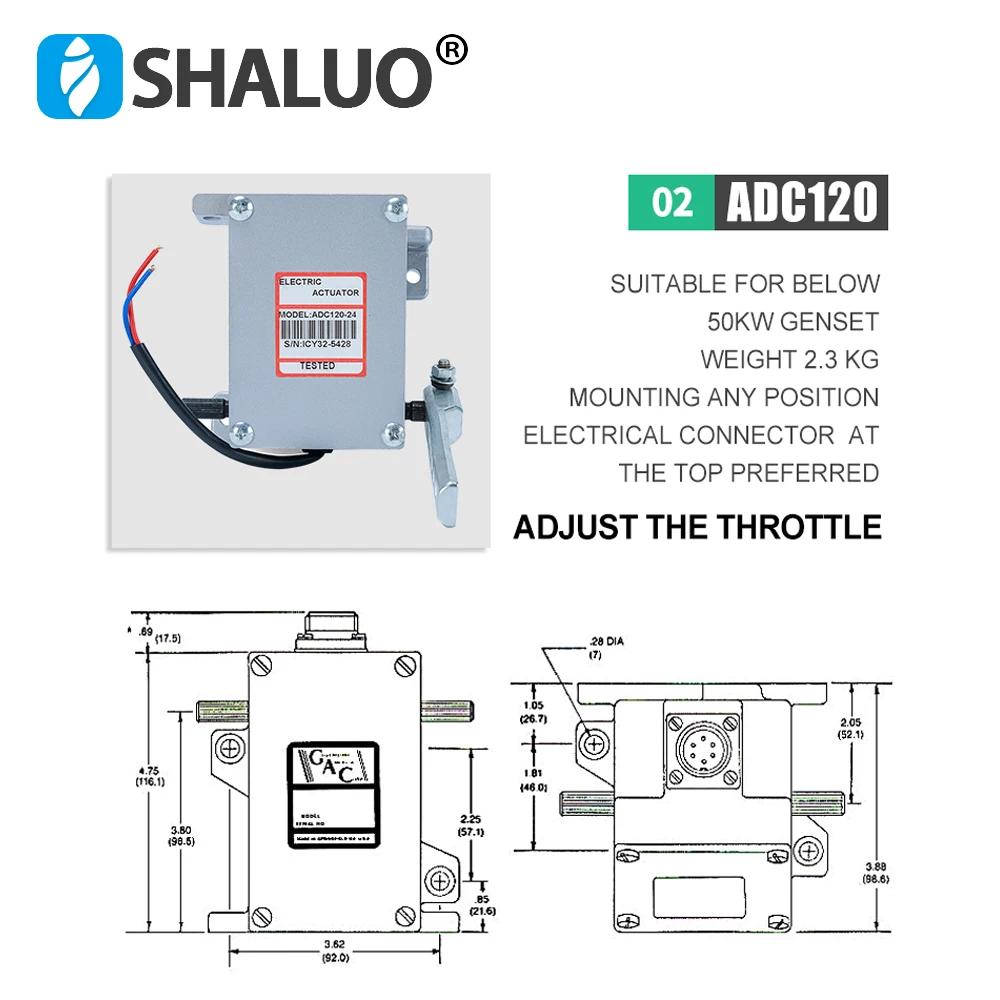

Actuator ADC120 12v/24v optional,Just leave a message to us.

The professional person responsible for the quality of supervision and control in the entire process.

In order to get the superior quality we only use selected good element.

Aimed at enabling the production department to manufacture and assemble the product as efficiently as possible.
