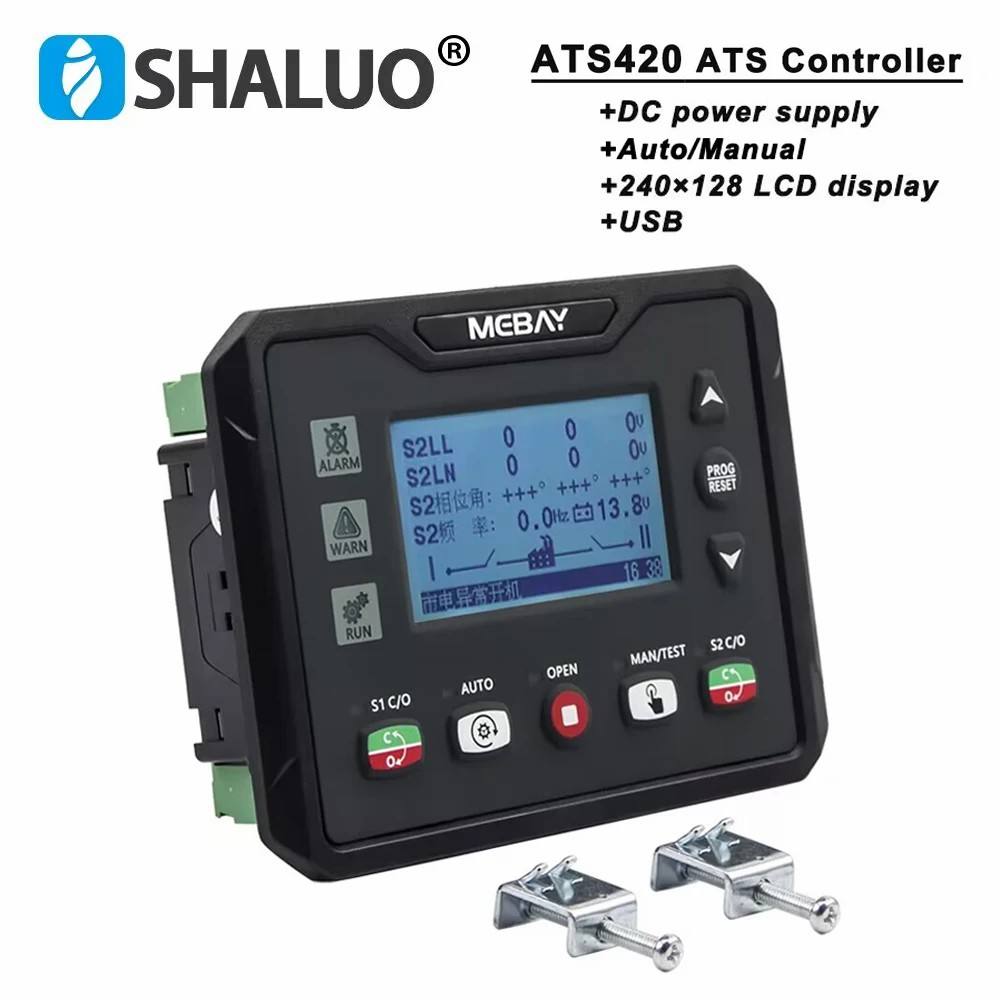

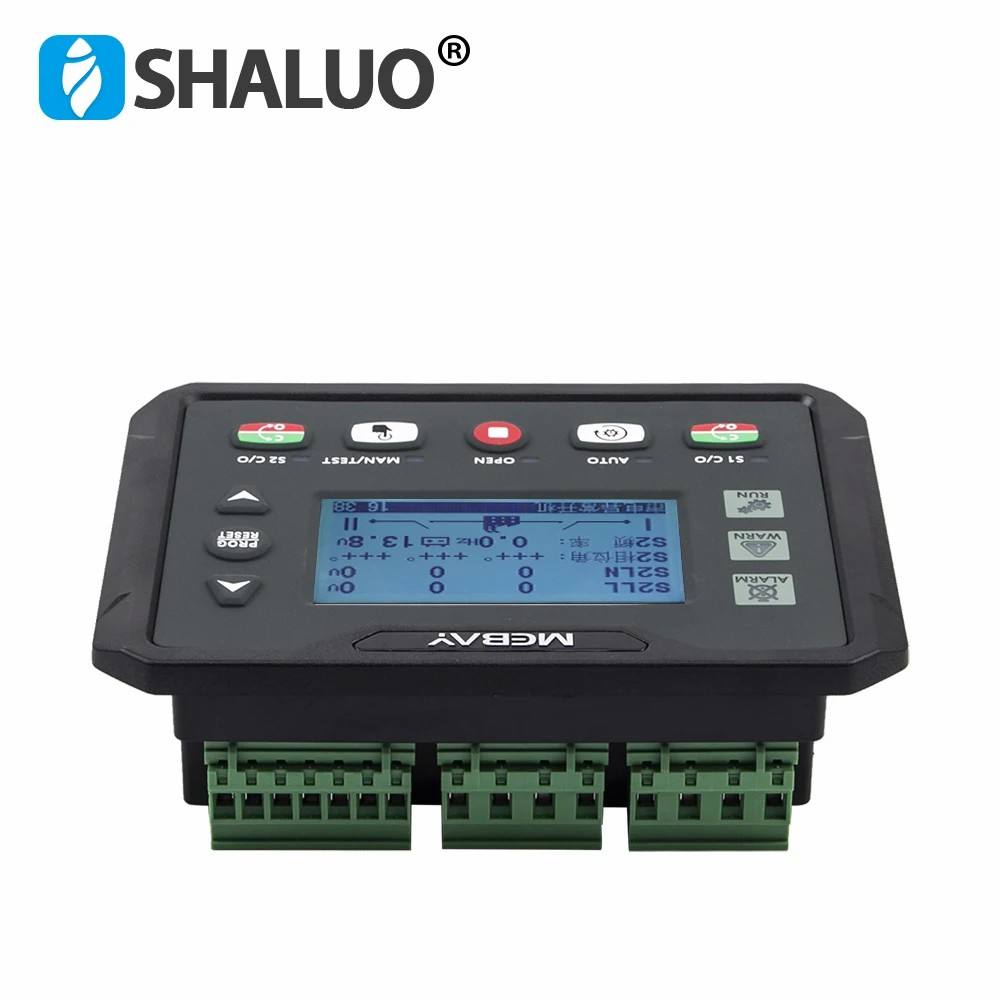

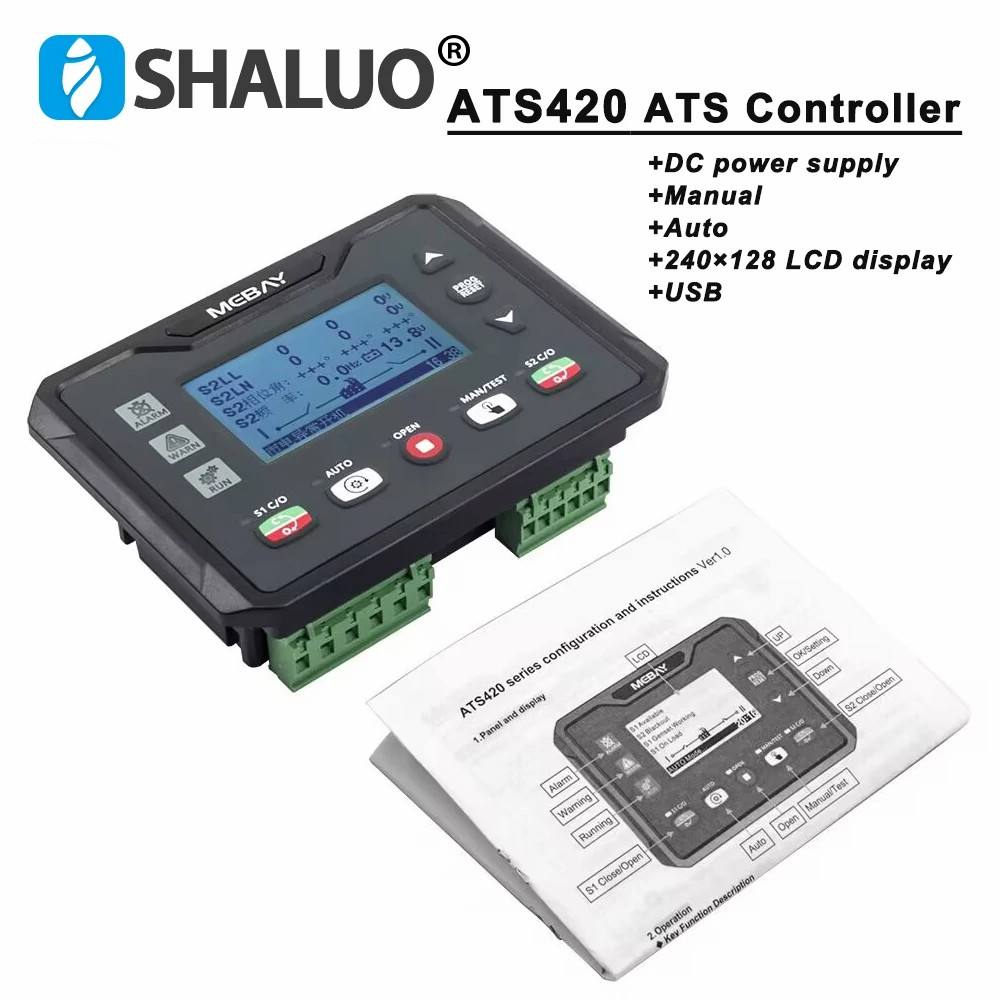

ATS420 ATS420R Mebay Generator ATS Controller Dual Power Switch Control Module LCD Intelligent Programmable Panel DC Supply

Summary:
The controller is a dual power switching ATS controller, dual power intelligent
switch module with programmable, automatic measurement, automatic control and
LCD display functions. Automatic measurement and control can reduce incorrect
operation. It is an ideal option for ATS.

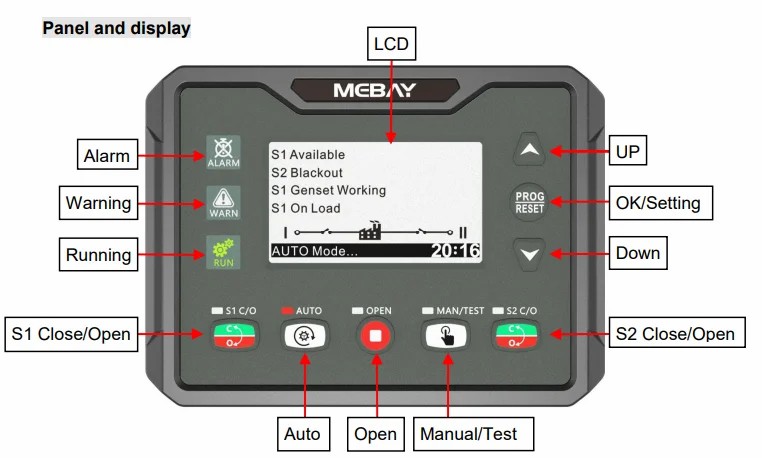

2.8inch LCD screen display with brand new UI design is adapted in this
controller can display related parameters directly. The LCD screen can display
various faults at the same time. Once the generator does not run normally, it can
effectively achieve protection.
There are Chinese/English interface options, more language can be set
according to user’s request. All the parameters can be configured through the front
face buttons or use programmable interface by RS485 or USB to adjust via PC. It has
compact structure, advanced circuits, simple wiring and high reliability, It can be
widely used in various types of power systems.

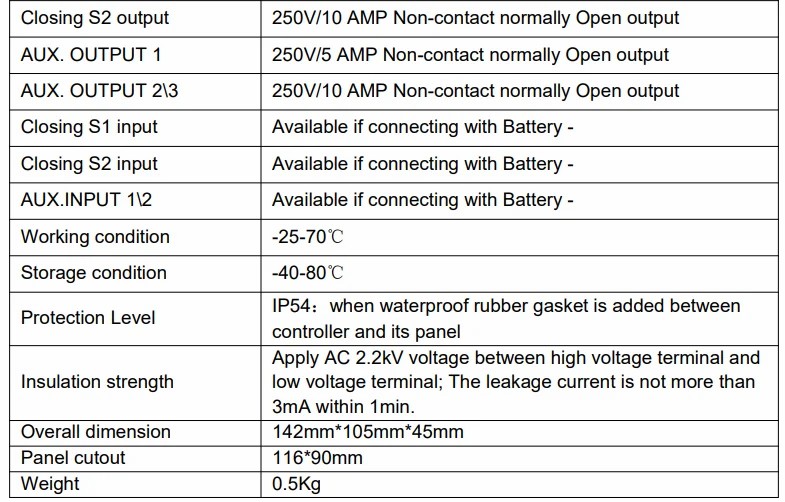

Main Features
:
There are two Models under ATS 420 series.
ATS 420: Dual power intelligent switch module.
ATS 420 R: Based on ATS 420, it adds RS485 port.
Dual core 32bit high performance single chip microcomputer.
2.8inch LCD screen, Available in Chinese/English languages, user’s language set
if necessary.
System type can set as: "S1 Mains S2 Mains", "S1 Mains, S2 Gen", "S1 Gen S2
Mains", "S1 GenS2 Gen".
Acrylic material is adapted to protect the screen.
PC material panel, waterproof, oil-proof, UV-resistant, good operation feel and
long service life.
USB Port: parameters can be set even without power through USD port to monitor
in real time.
With RS485 communication port, can achieve "Three Remote" functions via
MODBUS protocol.
Collection and display, gen, mains, power, phase and other parameters.
Applicable for PC Three-stage, PC Two-stage, CB and CC switch.
Automatic/Manual mode. In manual mode, can force the switch to close or open.
Can control two generators to work as Cycle Run mode, Master Run mode and
Balance Run mode. Suitable for various AC systems (3 phase 4-wires, 3-phase 3-wires, single-phase
2-wire, and 2-phase 3-wire).
Input/output function, status can be shown directly.
Real time clock inside.
Totally 5 relays output, 3 relays function configurable.
Totally 4 configurable switch input, 2 switch function configurable.
Control Protection: Realize automatic ATS switching of generator sets, perfect
fault display and protection functions.
Standard water-proof rubber gasket. The waterproof can reach IP54.

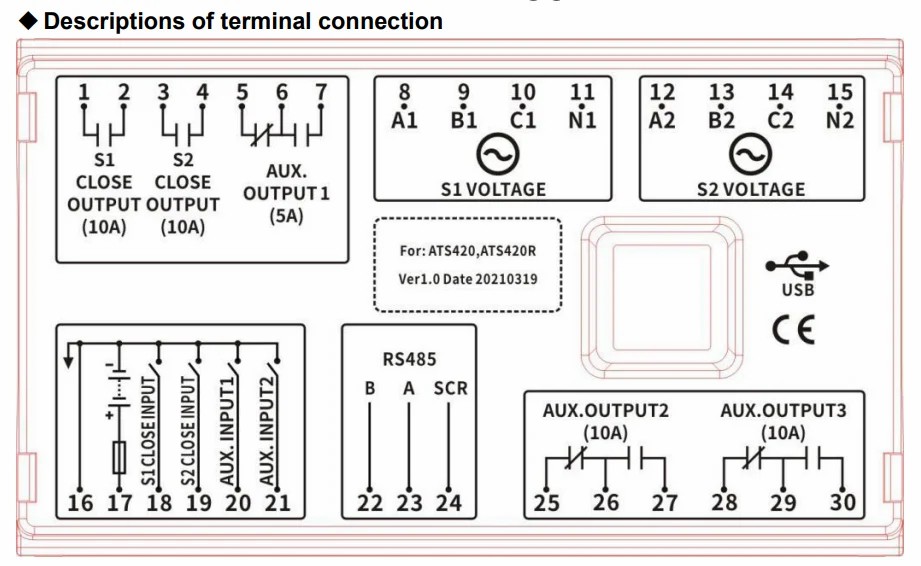

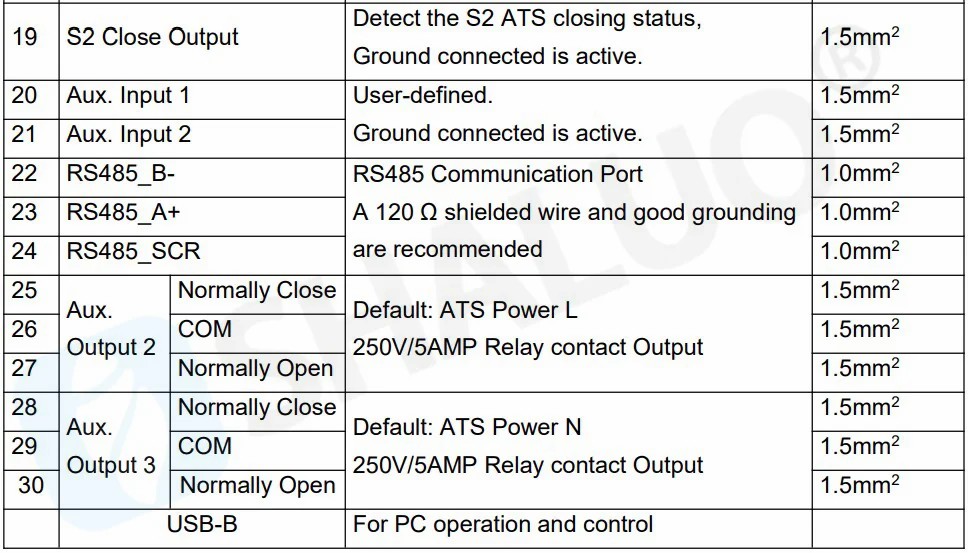

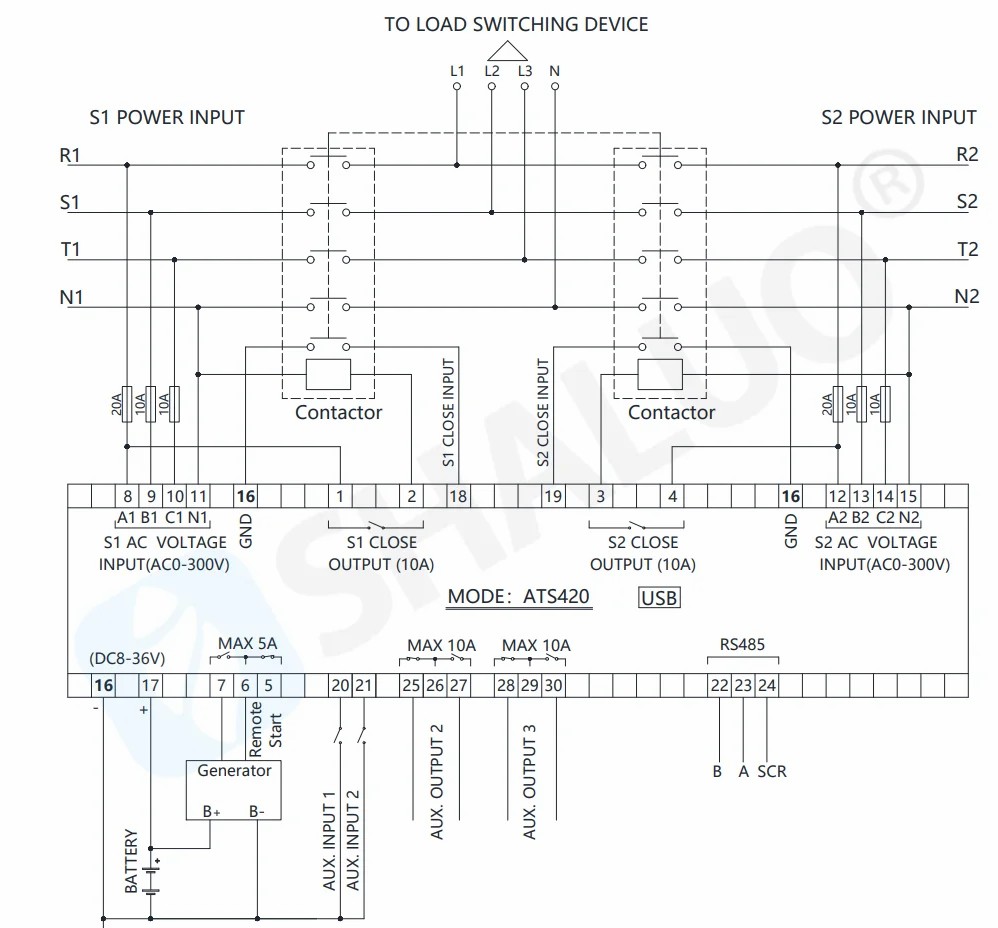

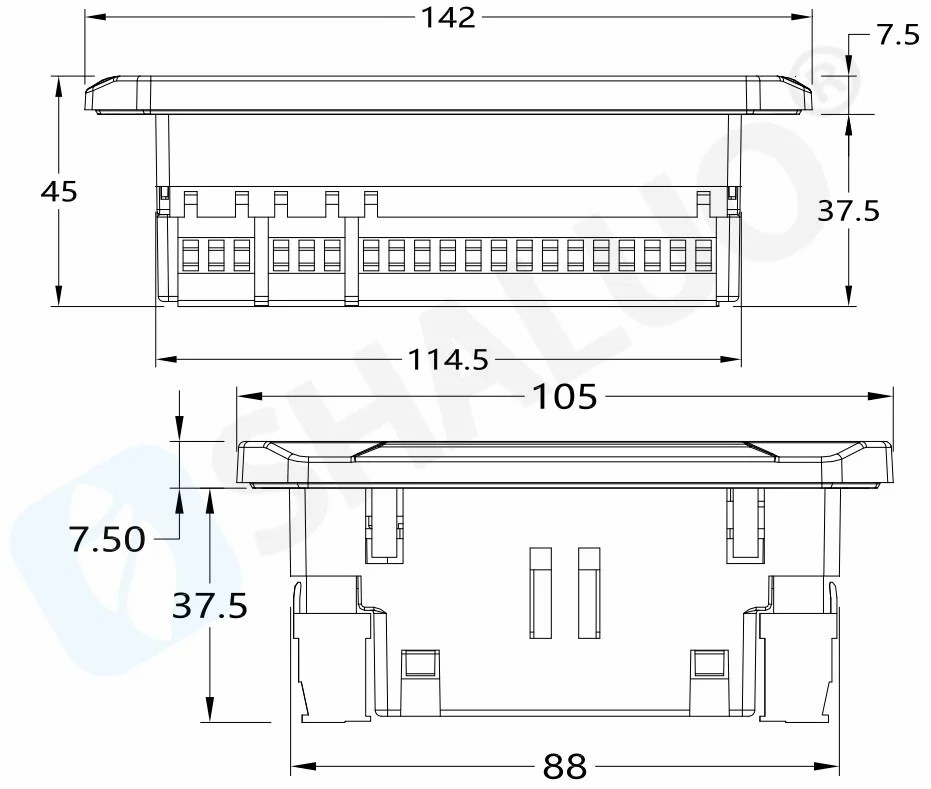

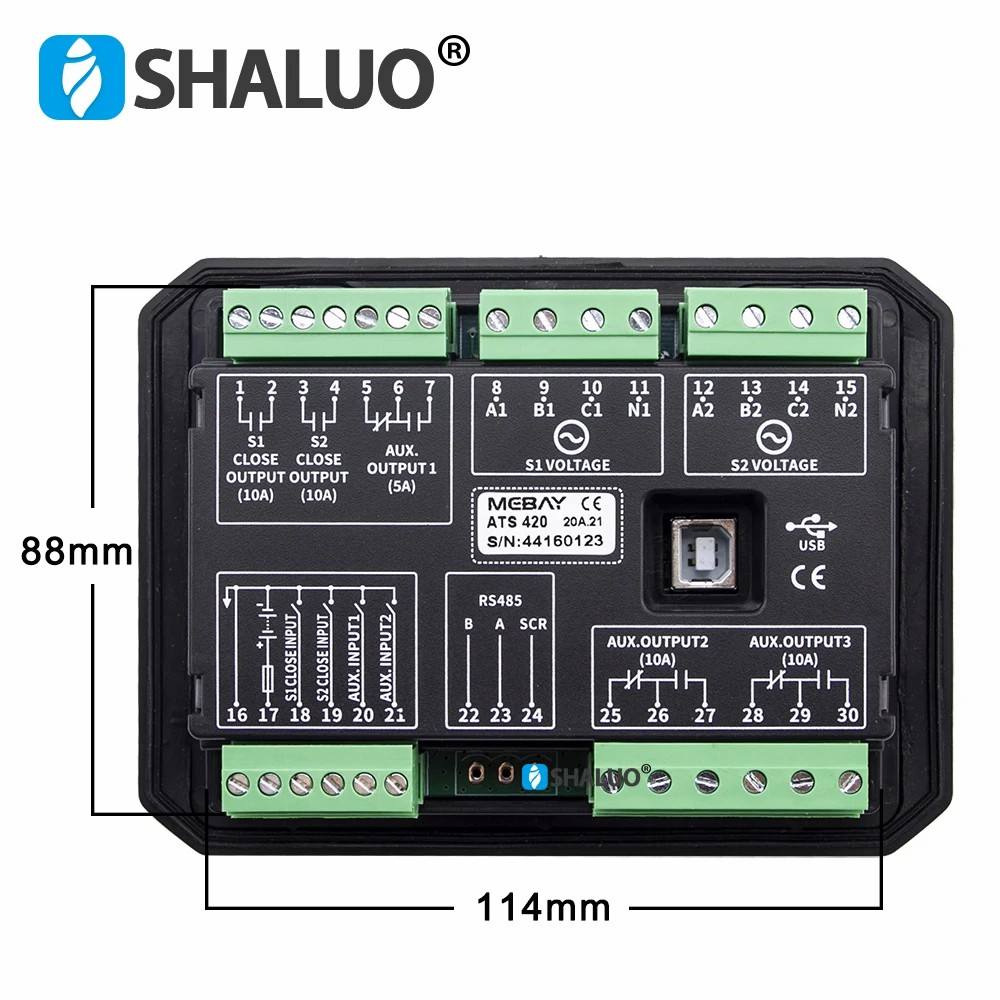

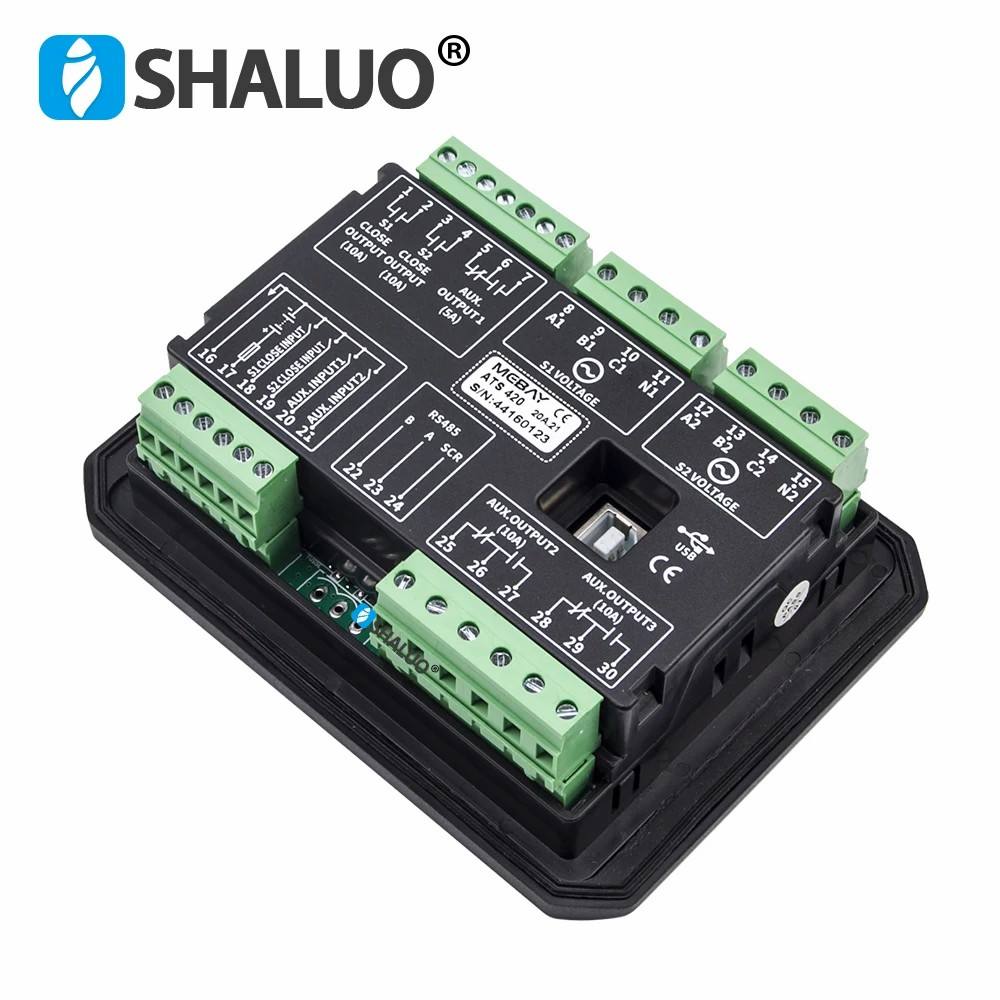

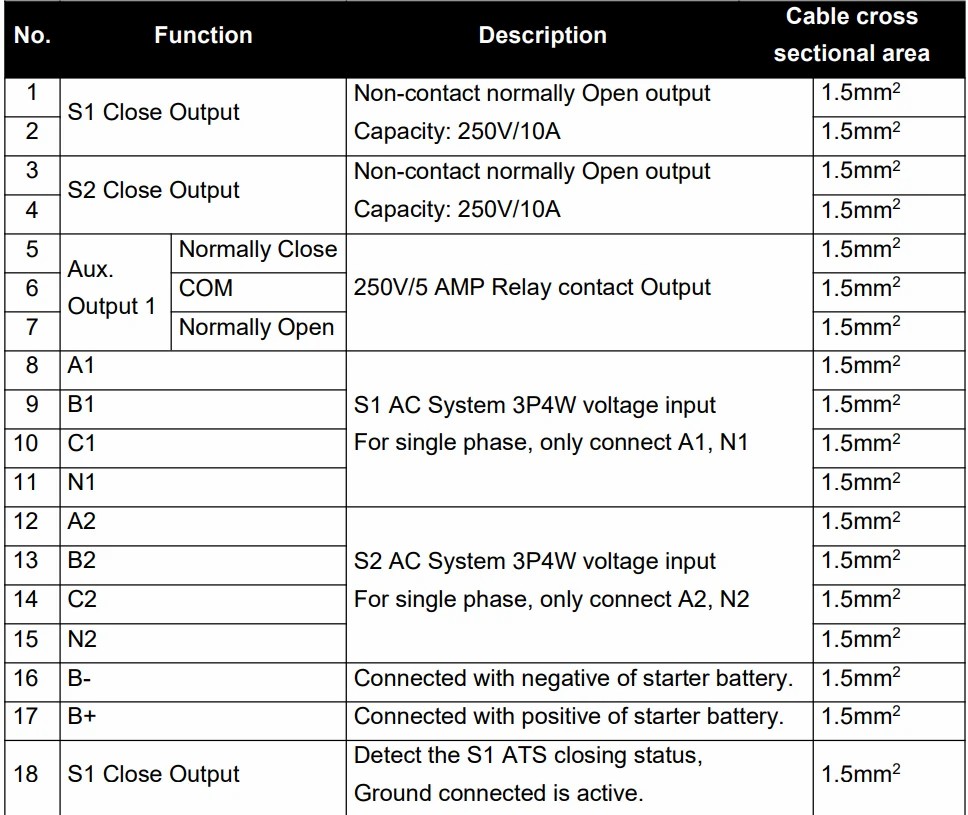

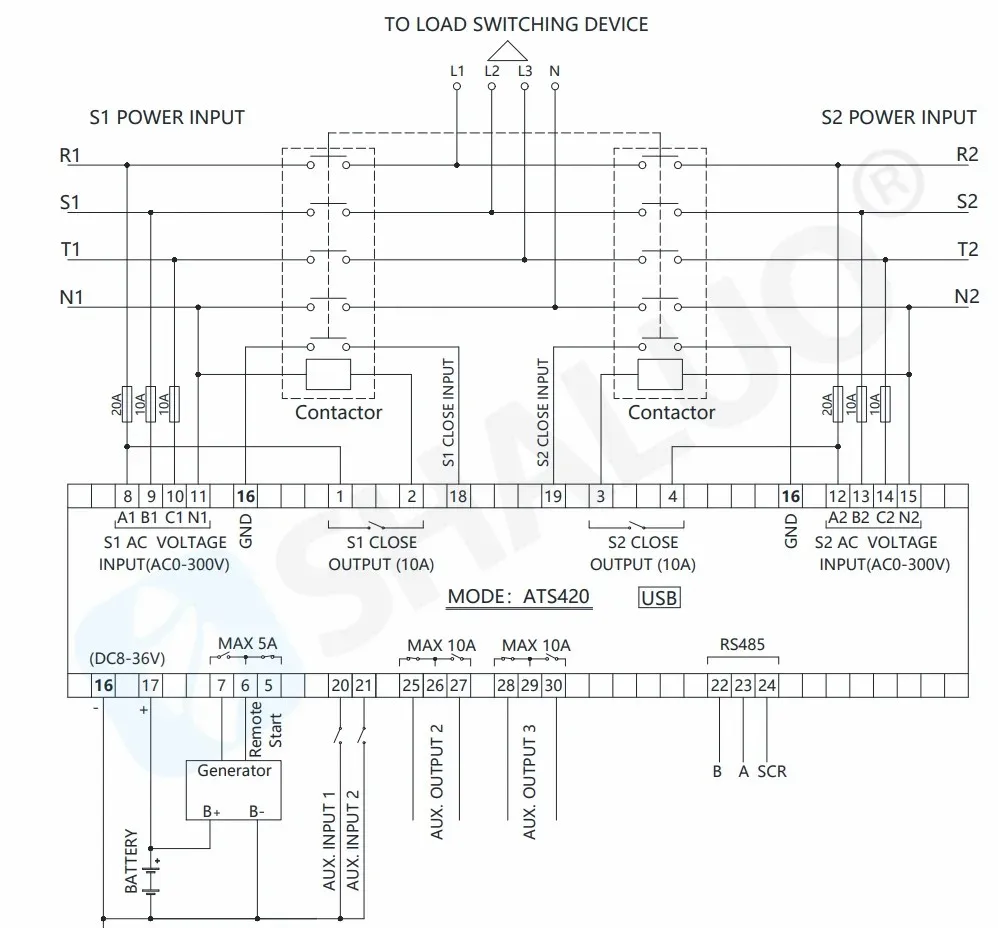

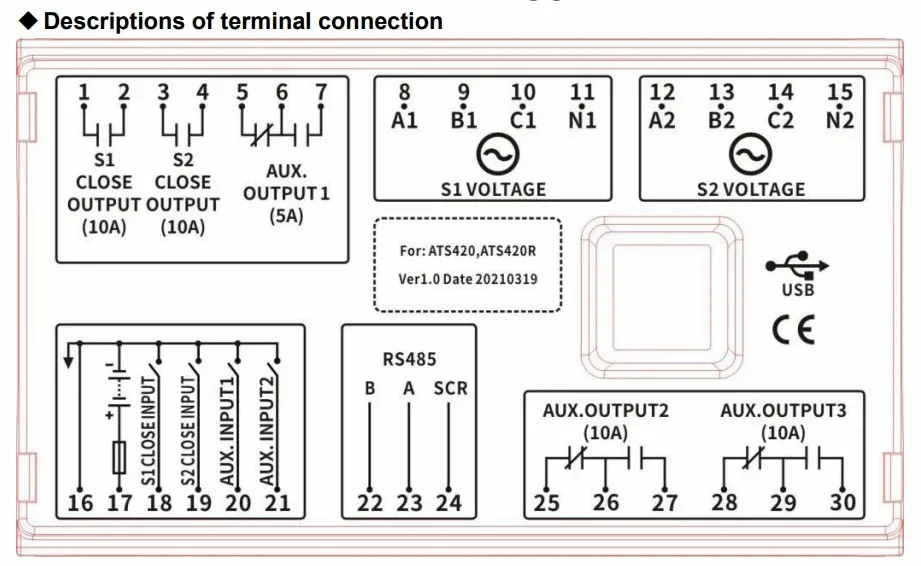

Module design: All the connections are adapted with European connectors so that
installation, connection, repair and replacement can be more easily.

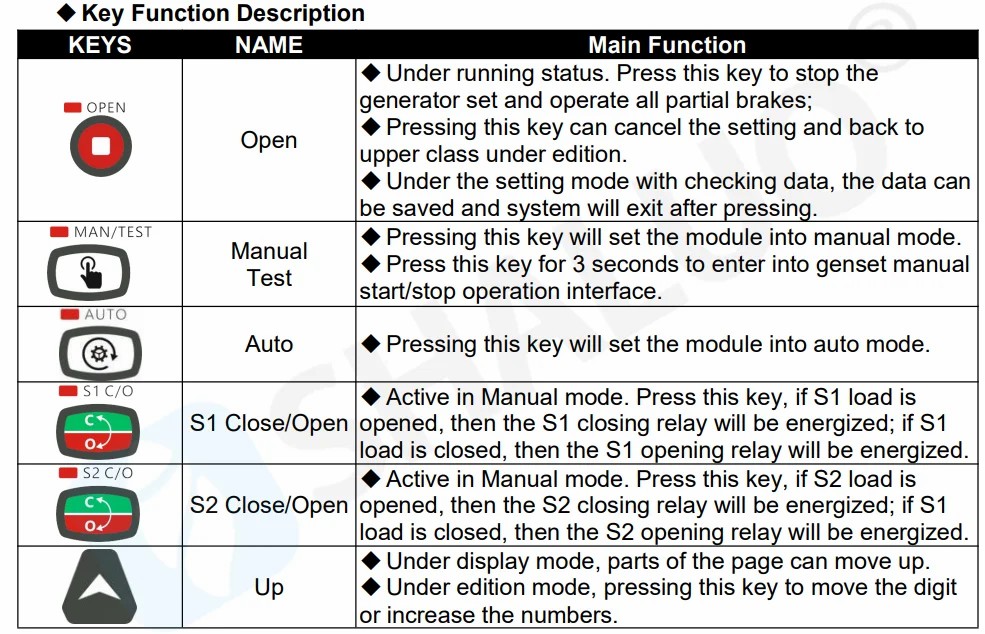

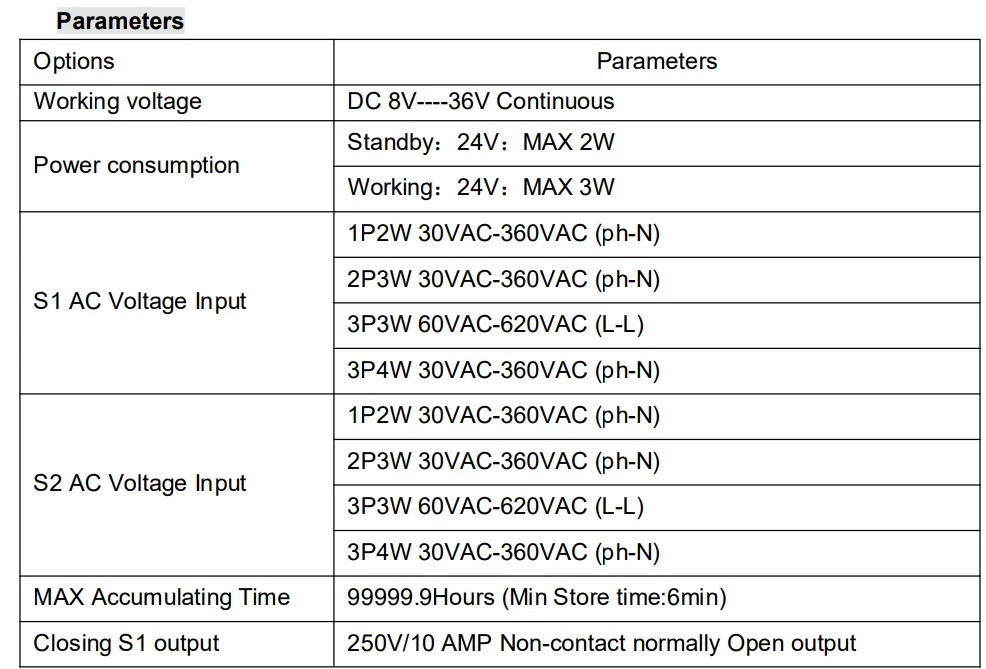

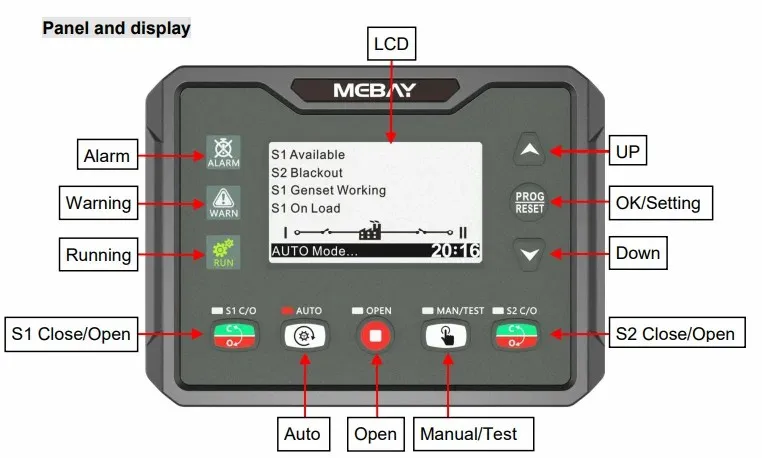

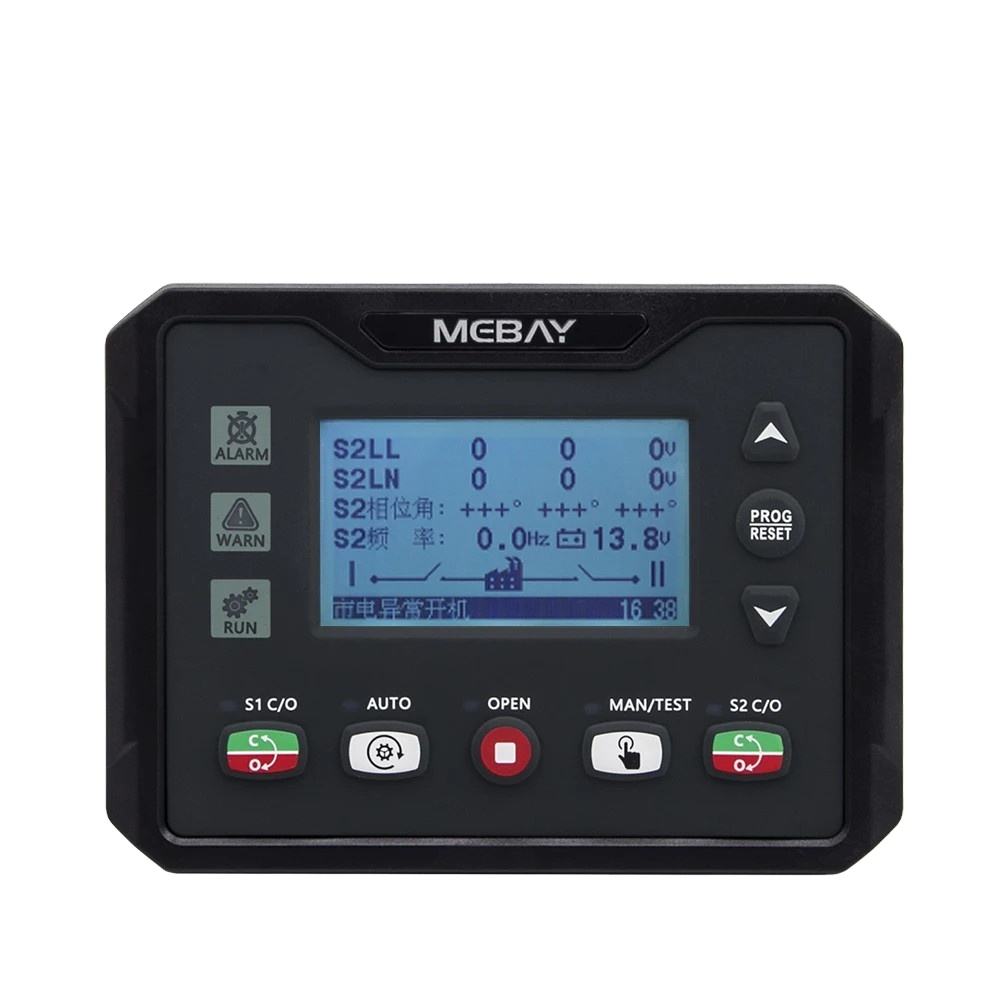

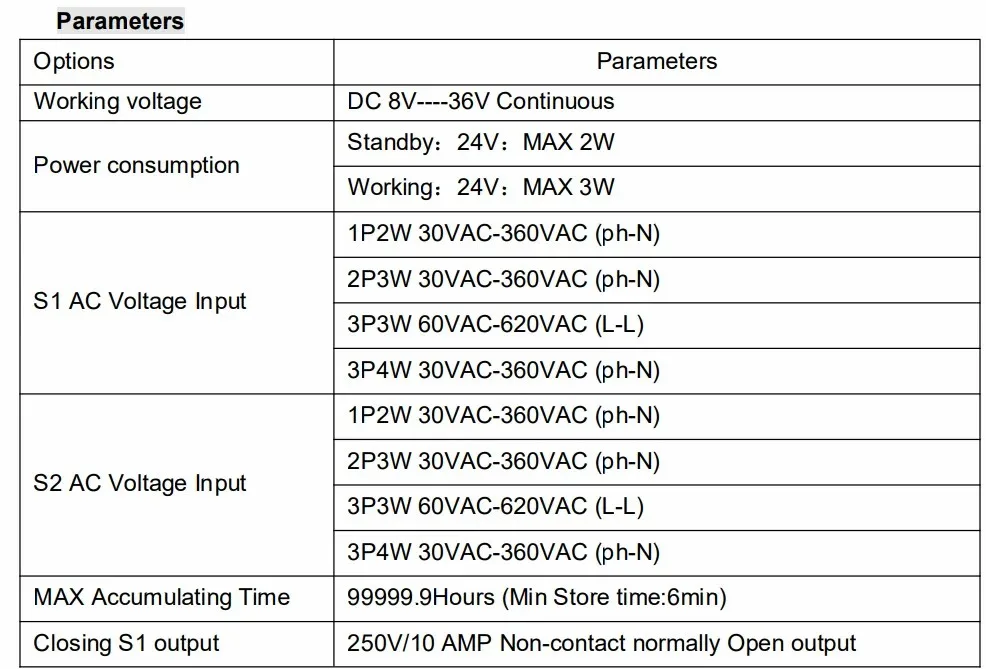

Parameters Display
 S1/S2 Voltage status
 S1/S2 Frequency
 Current real-time status
 S1/S2 Switch status
 S1/S2 Phase voltage
 S1/S2 Work status
 Input/Output status
 Total Power-on time
 Alarm number and account
 Alarm type (Warn Alarm, Fault Alarm)
 Alarm event
 Inputs, outputs number
 Input status, S1/S2 closing input, 1~2 are configurable ports
 Output status, S1/S2 closing output, 1~3 are configurable ports
 Real-time clock
 Current
