Product Description

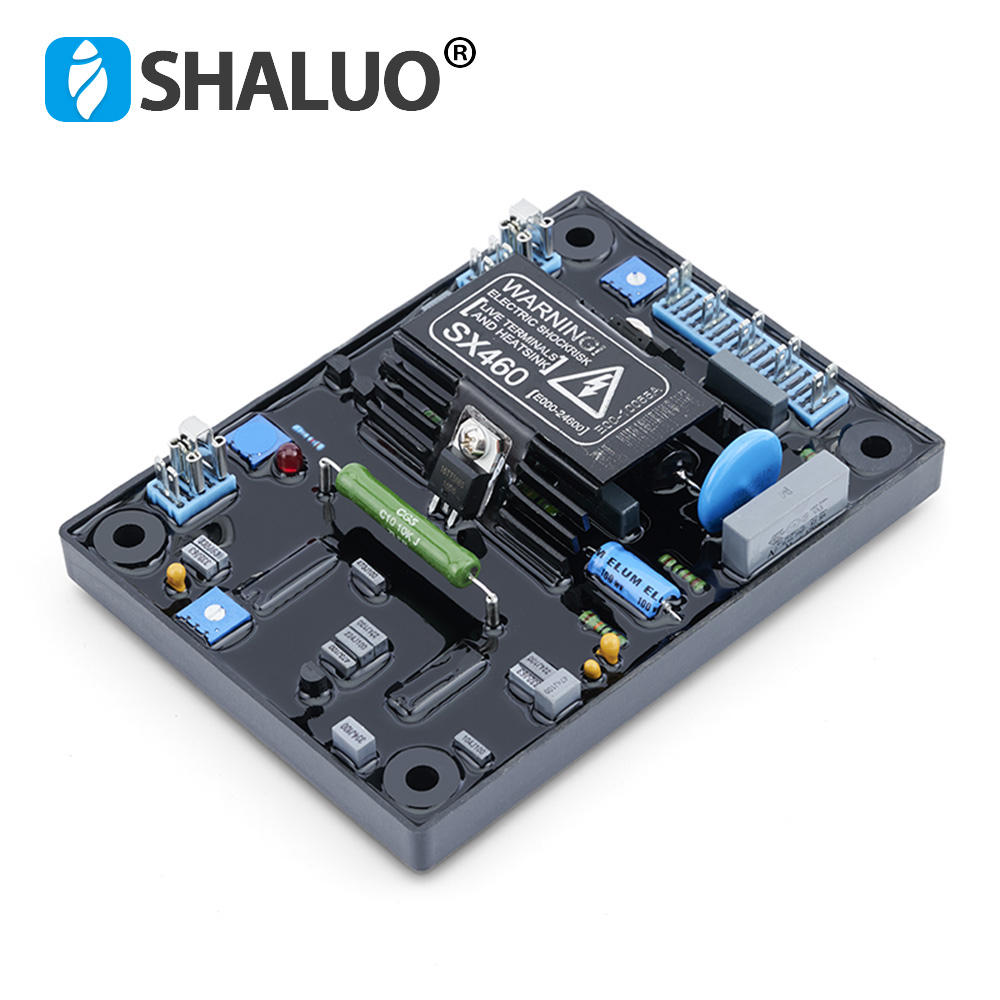

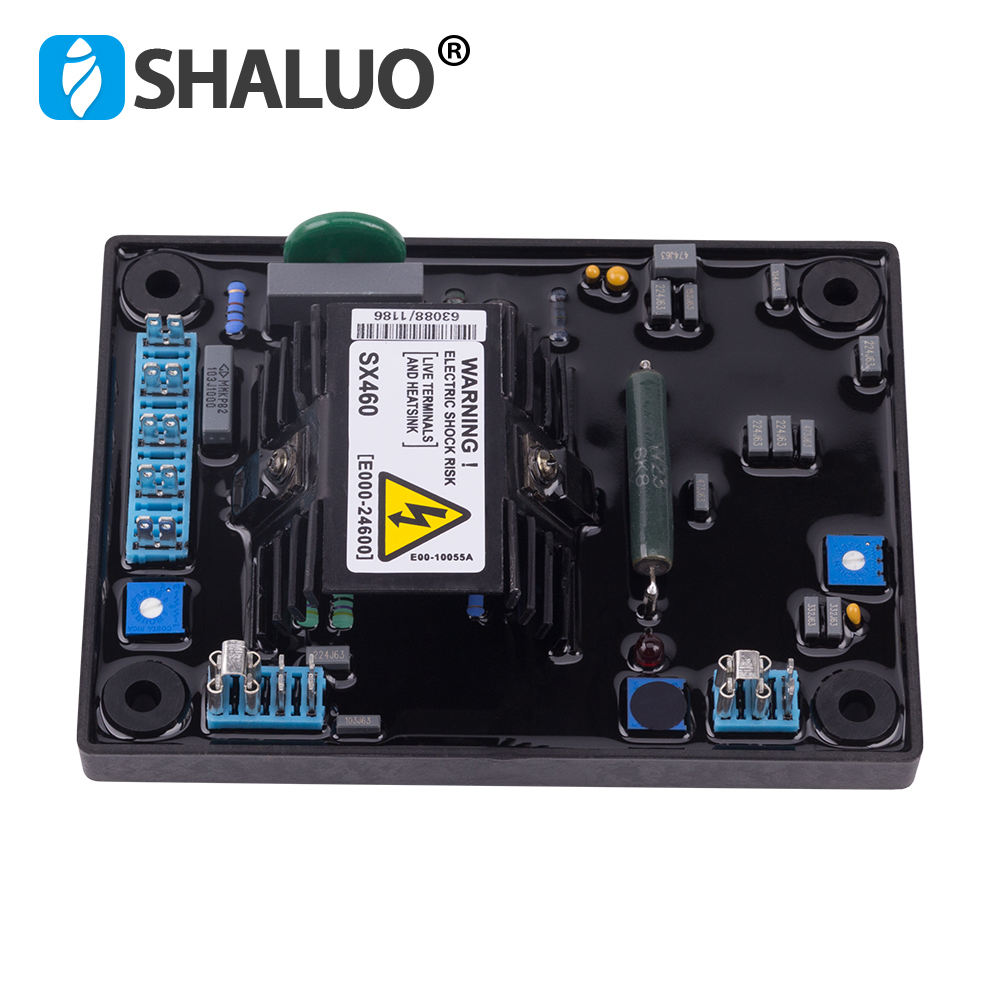

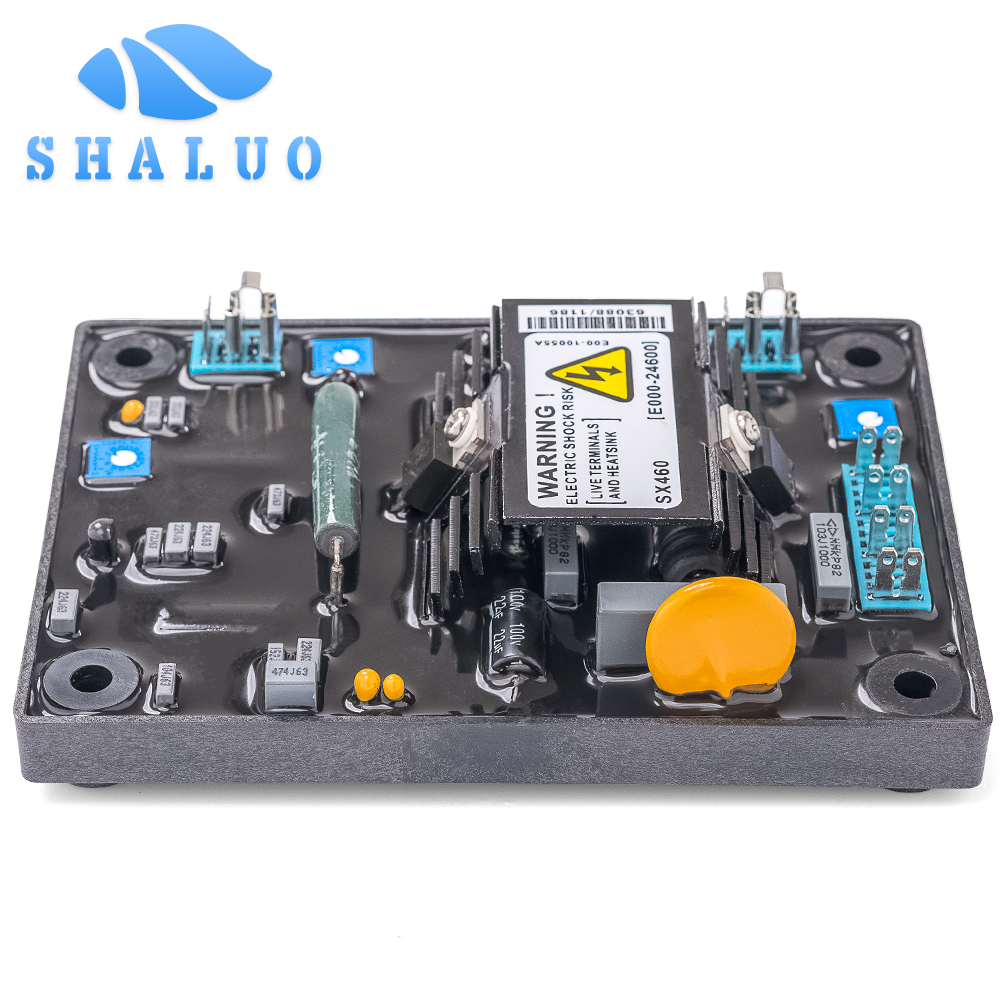

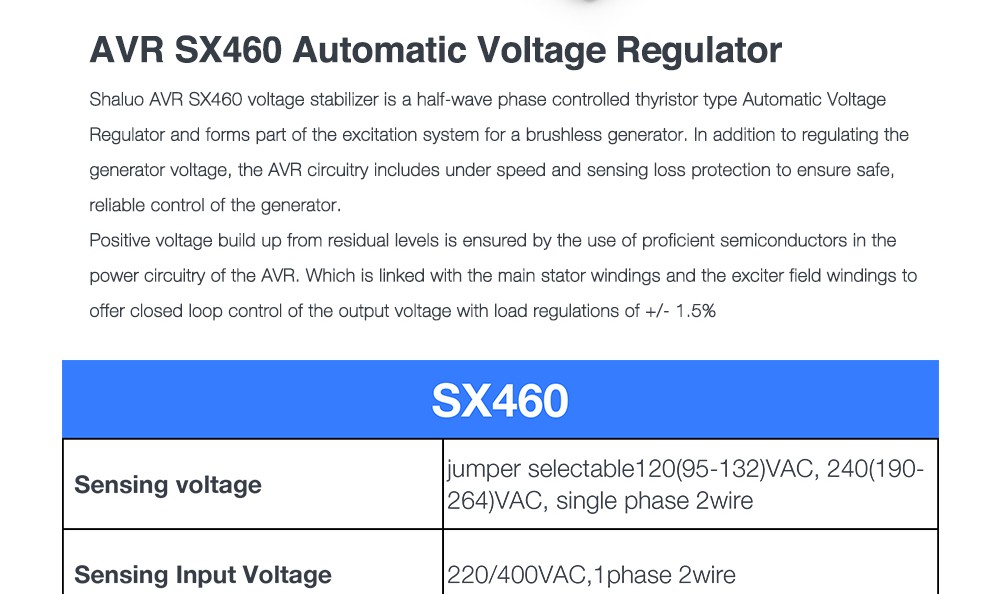

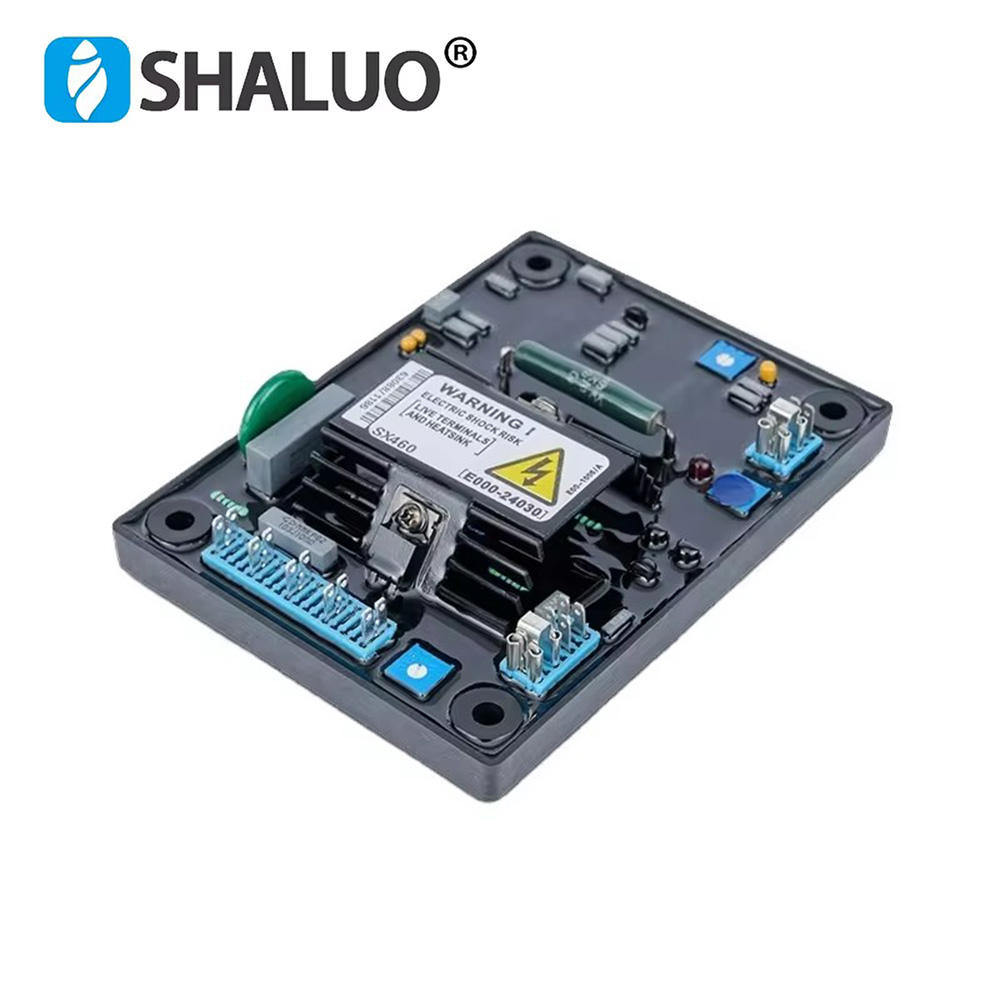

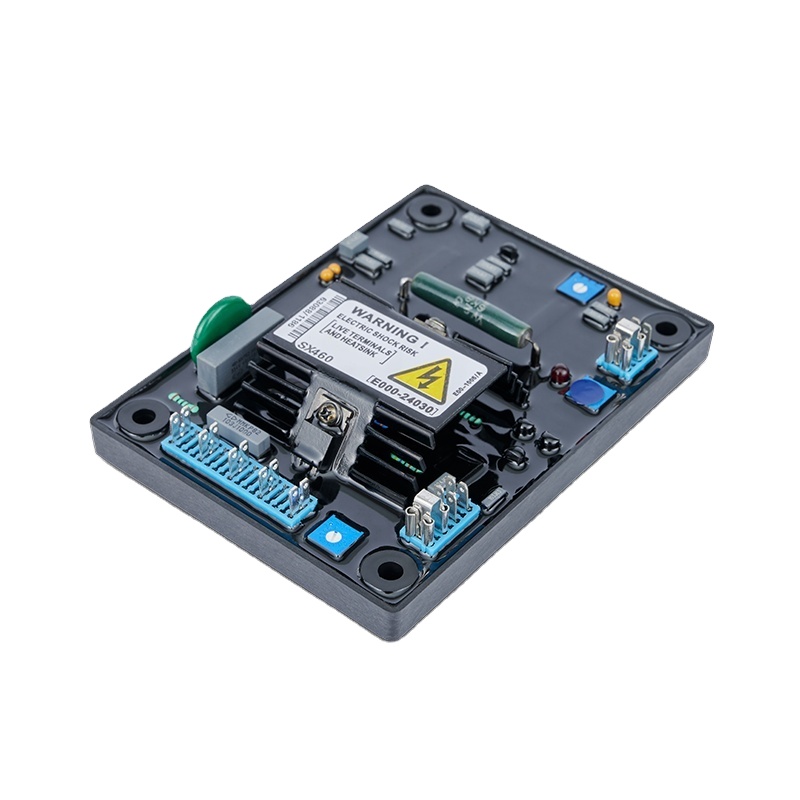

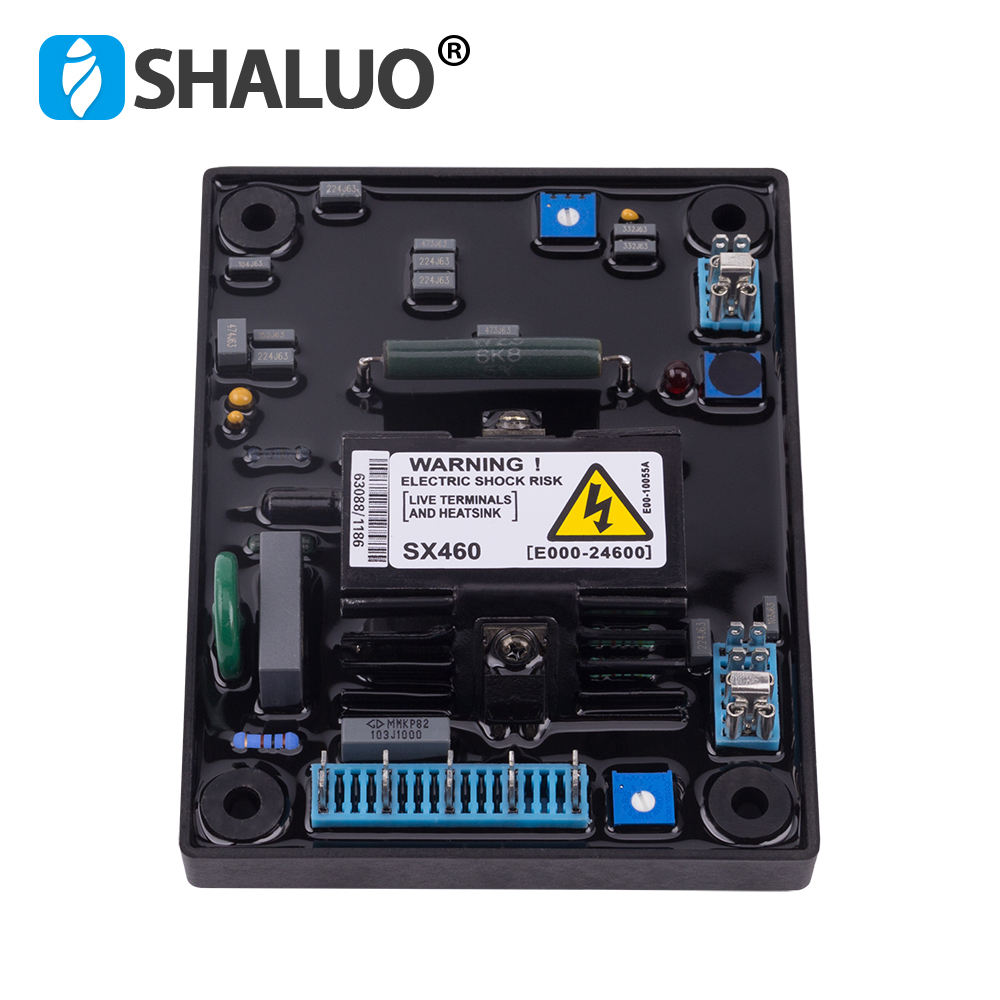

Generator Universal AVR SX460 For AC Brushless Generator AVR 3 Phases is a half-wave phase controlled thyristor type Automatic Voltage Regulator and forms part of the excitation system for a brushless generator. In addition to regulating the generator voltage, the AVR circuitry includes under speed and sensing loss protection to ensure safe, reliable control of the generator.
Positive voltage build up from residual levels is ensured by the use of proficient semiconductors in the power circuitry of the AVR. Which is linked with the main stator windings and the exciter field windings to offer closed loop control of the output voltage with load regulations of +/- 1.5%.
| SX460 | ||
| sensing voltage | jumper selectable 120(95-132)VAC,240(190-264)VAC, single phase 2wire | |
| Sensing Input Voltage | 220/400VAC, 1 phase 2wire | |

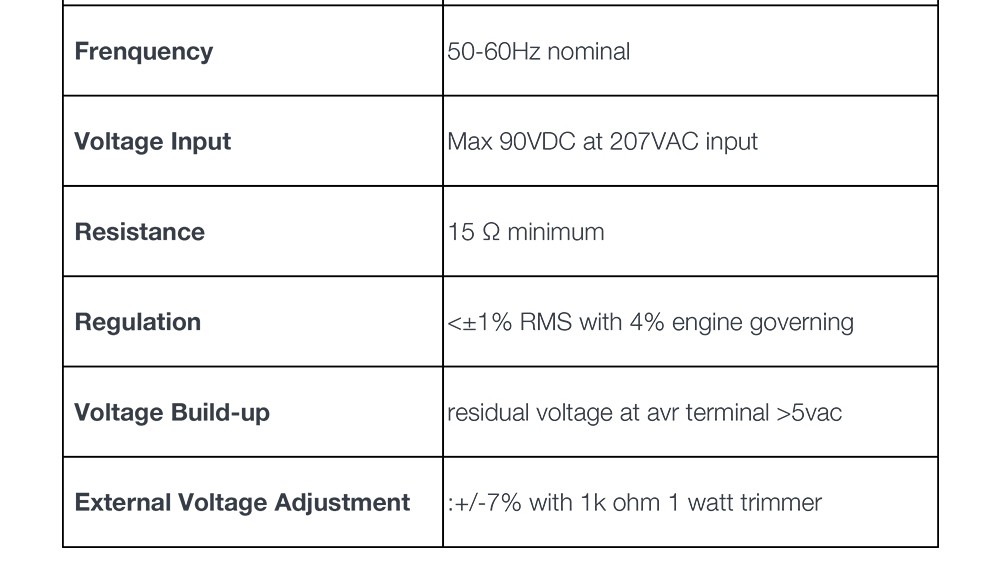

| Frenquency | 50-60Hz nominal | |
| Voltage Input | Max 90VDC at 207VAC input | |
| Resistance | 15Ω minimum | |
| Regulation | <± 1% RMS with 4% engine governing | |
| Voltage Build-up | residual voltage at avr terminal >5VAC | |
| External Voltage Ajustment | :+/-7% with 1k ohm 1 watt trimmer | |
