Product Description

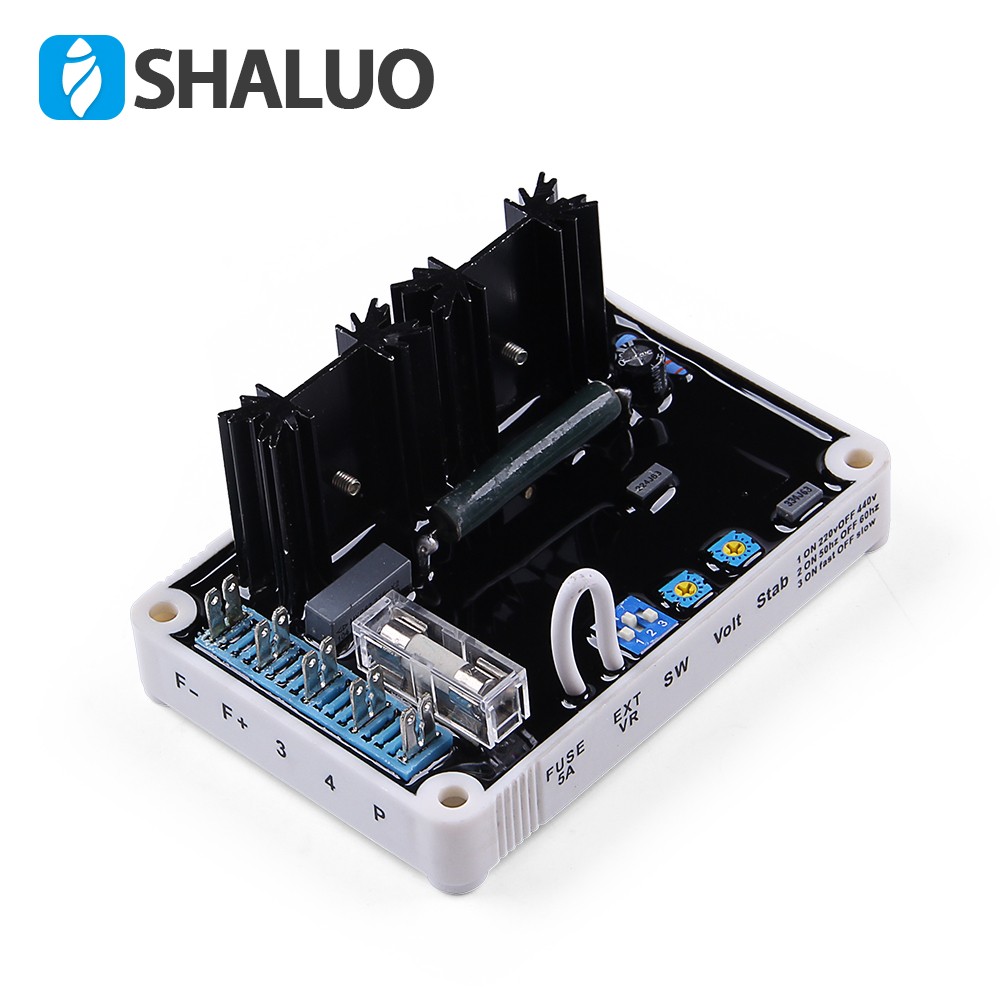

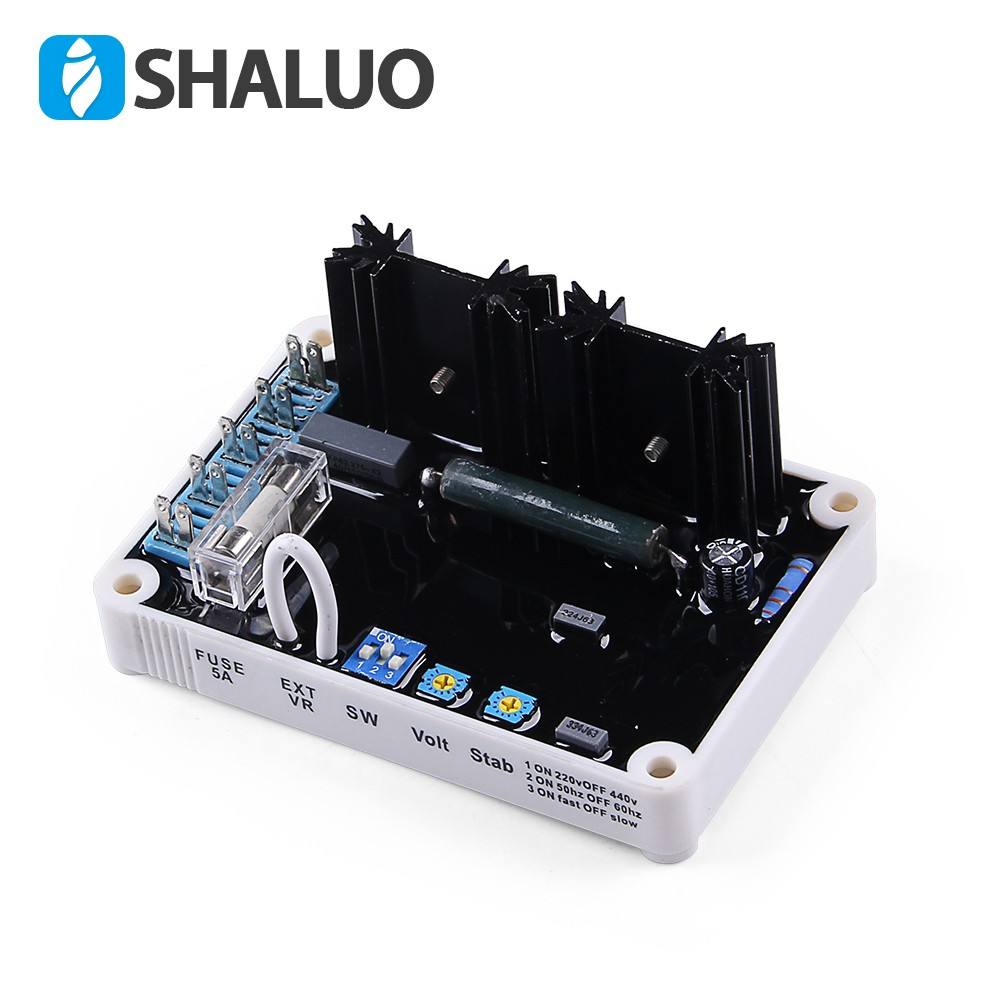

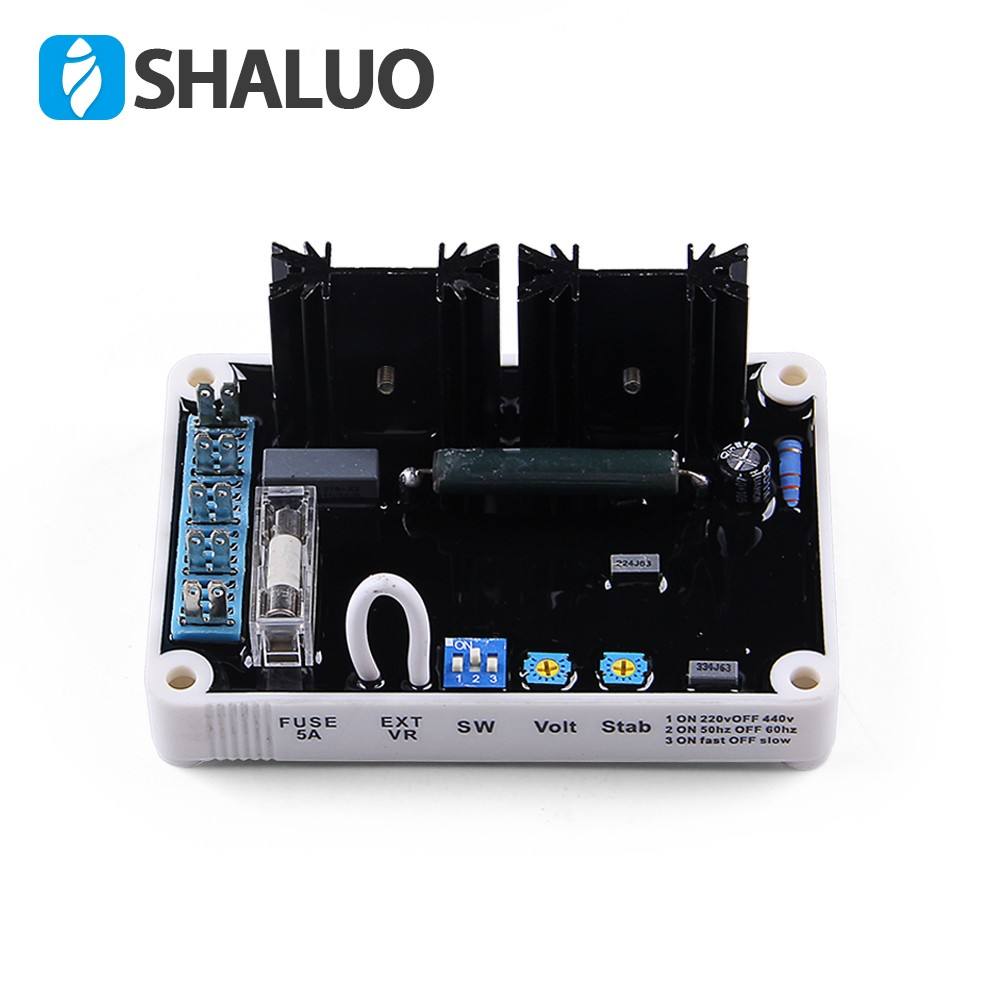

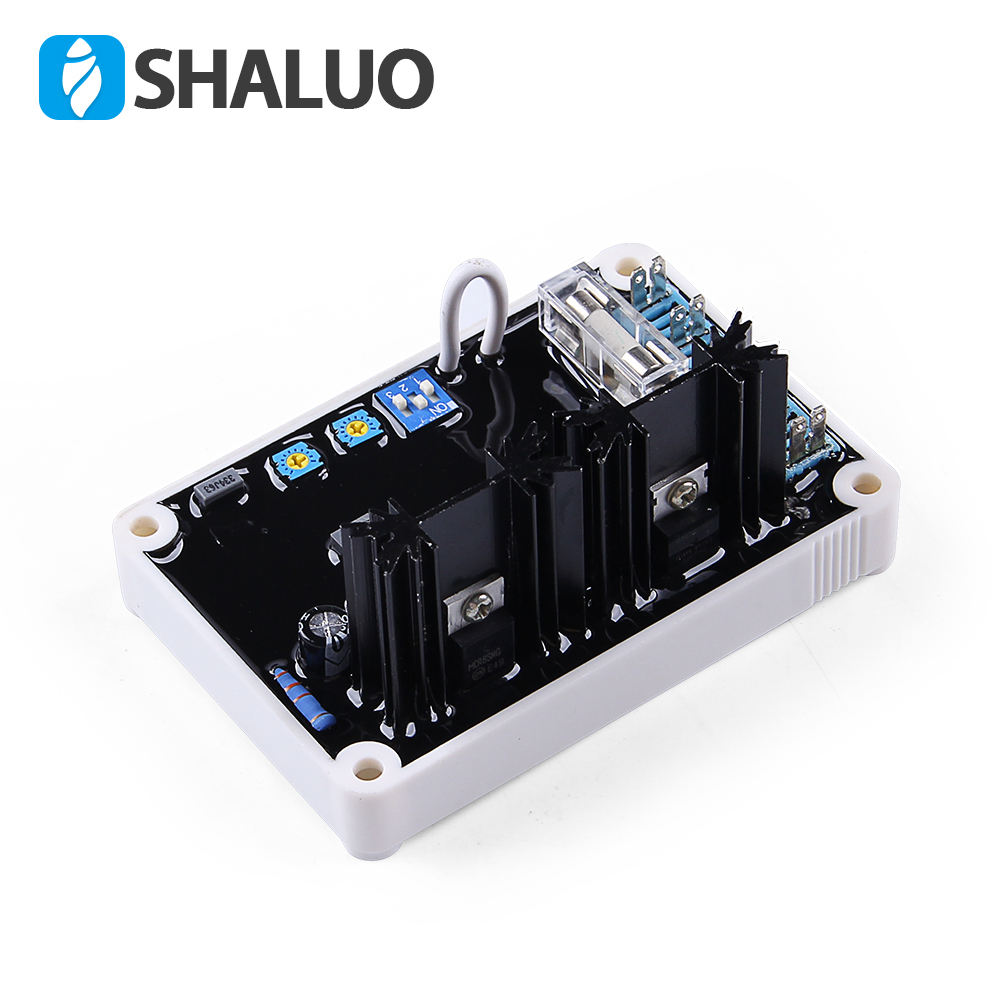

Diesel generator Basler AVR VR63-4 (AVR EA04C) automatic voltage regulator extremely rugged and reliable regulators provide performance and functionality that revolutionized the modern analog voltage regulator market, and they are still unrivaled today. Others have attempted to imitate AVC's features and functions, but only the AVC remains the total solution.
Diesel Generator AVR EA04C AC Automatic Voltage Regulator is a half-wave phase controlled thyristor type Automatic Voltage Regulator and forms part of the excitation system for a brushless generator. In addition to regulating the generator voltage, the AVR circuitry includes under speed and sensing loss protection to ensure safe, reliable control of the generator. Positive voltage build up from residual levels is ensured by the use of proficient semiconductors in the power circuitry of the AVR. Which is linked with the main stator windings and the exciter field windings to offer closed loop control of the output voltage with load regulations of +/- 1.5%
| Diesel generator Basler AVR VR63-4(KUTAI AVR EA04C) automatic voltage regulator | ||
| Sensing/Power input | ||
| Voltage | 160-265 Vac / 300-550 Vac single phase | |
| Frequency | 50Hz / 60Hz selectable | |
| Magnetic Field Output | ||
| Voltage | Max. 63 Vdc @ 240 Vac input | |
| Current | Continuous 4A Intermittent 7A for 60 seconds | |
Fu'an Shaluo Electronics co.Ltd is a manufacturer of generator accessories, Our company has established a long term and stable business relationship with a number of domestic agents and retailers.
The professional person responsible for the quality of supervision and control in the entire process.
In order to get the superior quality we only use selected good element.
Aimed at enabling the production department to manufacture and assemble the product as efficiently as possible.
