Product Description

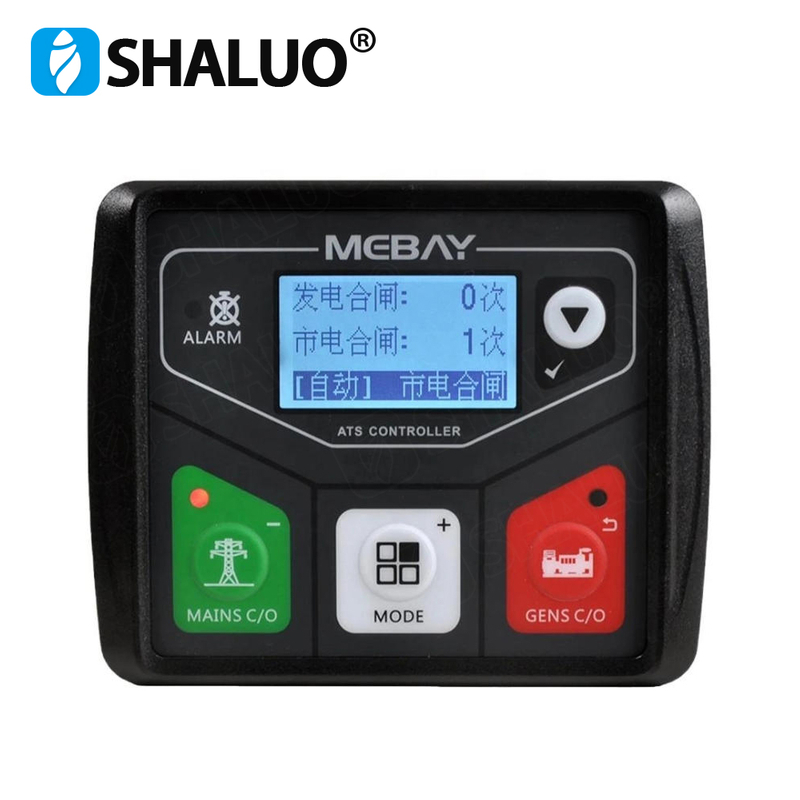

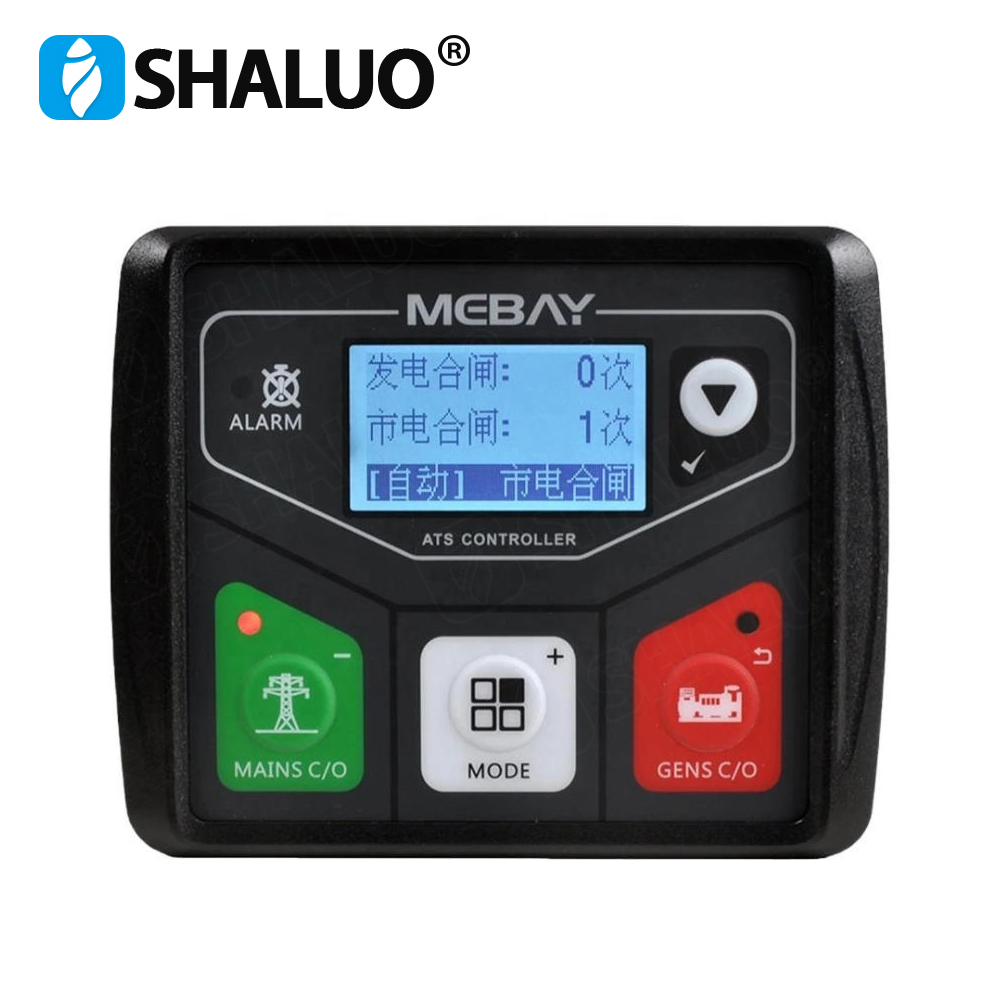

Mebay Mains Gens ATS Controller Generator Controller ATS320 AC Digital

The controller is a mains/gens ATS controller, which can automatically or manually control the ATS dual power switch, suitable for
the application of one mains and one power generation.


Options
Parameters
Working voltage
AC 90V-450V(L1N1/L2N2)
Power Consumption
Standby: 24V: MAX 1W
Working: 24V: MAX 3W
Gens Voltage Input
1P2W 90VAC-450VAC (ph-N)
Mains Voltage Input
1P2W 90VAC-450VAC (ph-N)
MAX Accumulating Time
99999.9Hours (Min Store time:6min)
Closing gens output
250V/5 AMP Non-contact normally Open output
Closing mains output
250V/5 AMP Non-contact normally Open output
Remote start output
250V/3 AMP Non-contact normally close output
Closing Gens input
Engagement brake feedback signal valid
Closing Mains input
Working condition
-25-70ºC
Storage condition
-40-80ºC
Protection Level
IP54:when waterproof rubber gasket is added between controller and its panel
Overall dimension
106mm*86mm*45mm
Panel cutout
78mm*66mm
