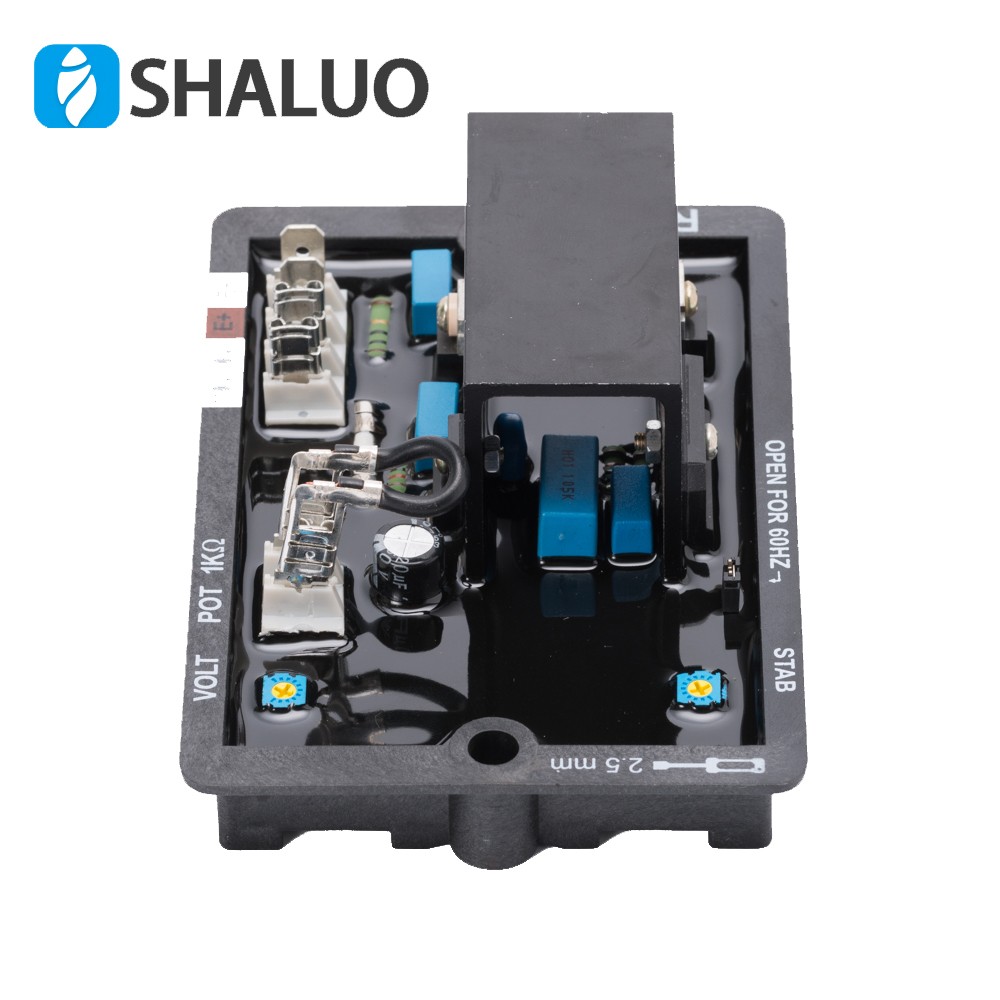

Product Description
| The regulator monitors the exciter excitation current as a function of the alternator output voltage. | ||||||
| Very simple in design,the alternator with shunt excitation has no sustaining short-circuit capacity. | ||||||
| Voltage Regulation:around +/-0.5% | ||||||
| Voltage supply/sensing range 85 ~139 V (50-60Hz) | ||||||
| Parameter sheet | ||||||

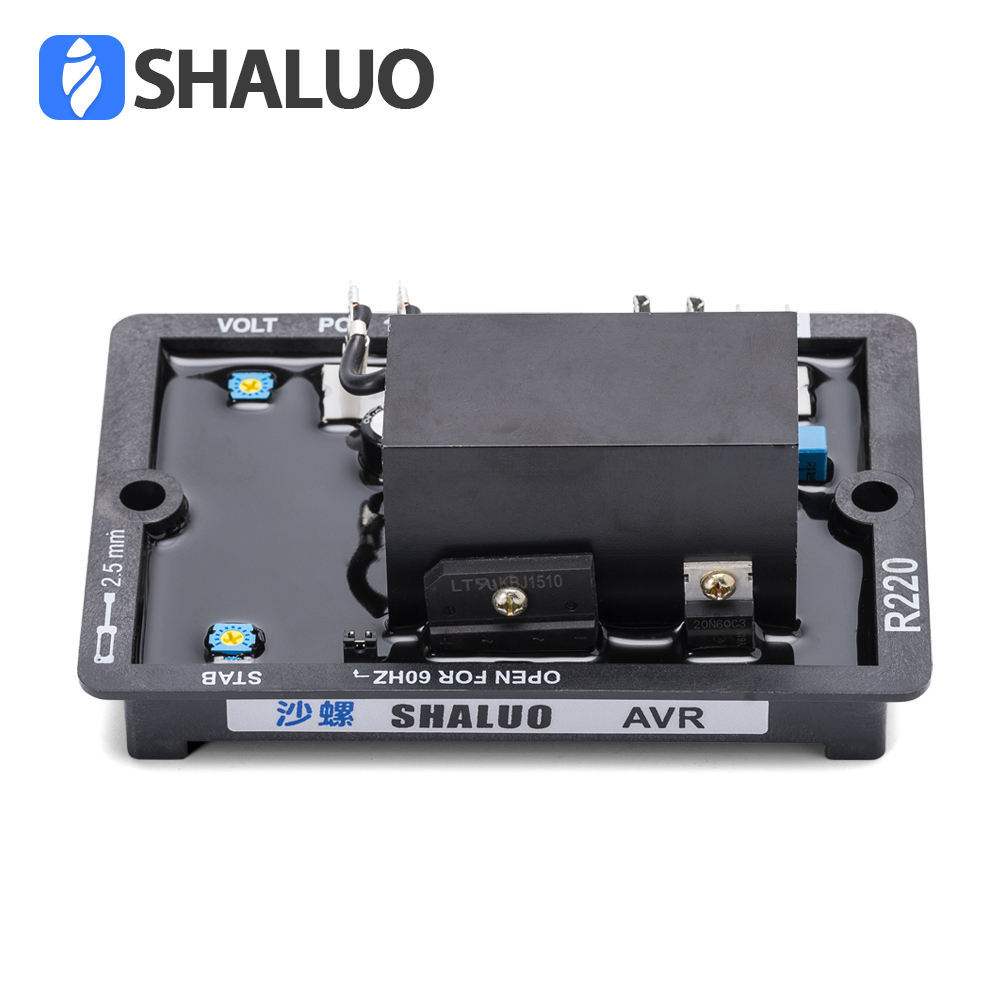

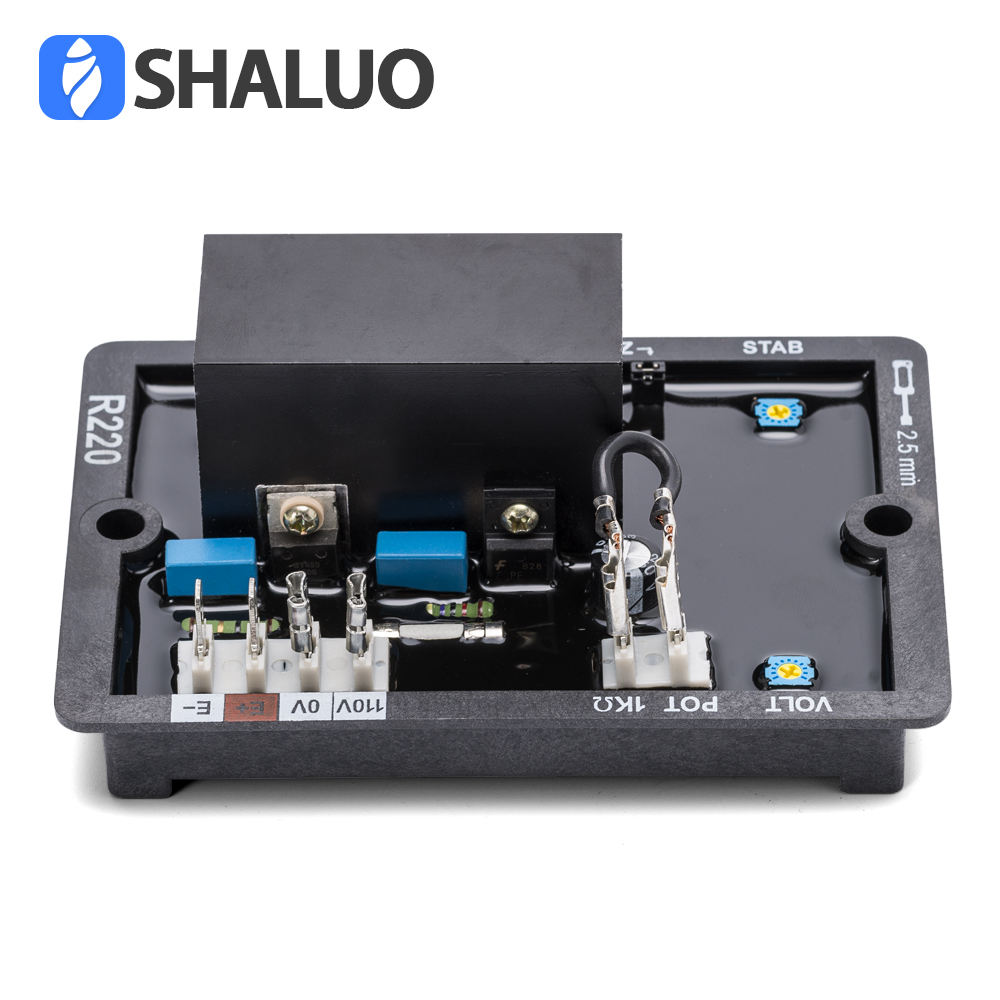

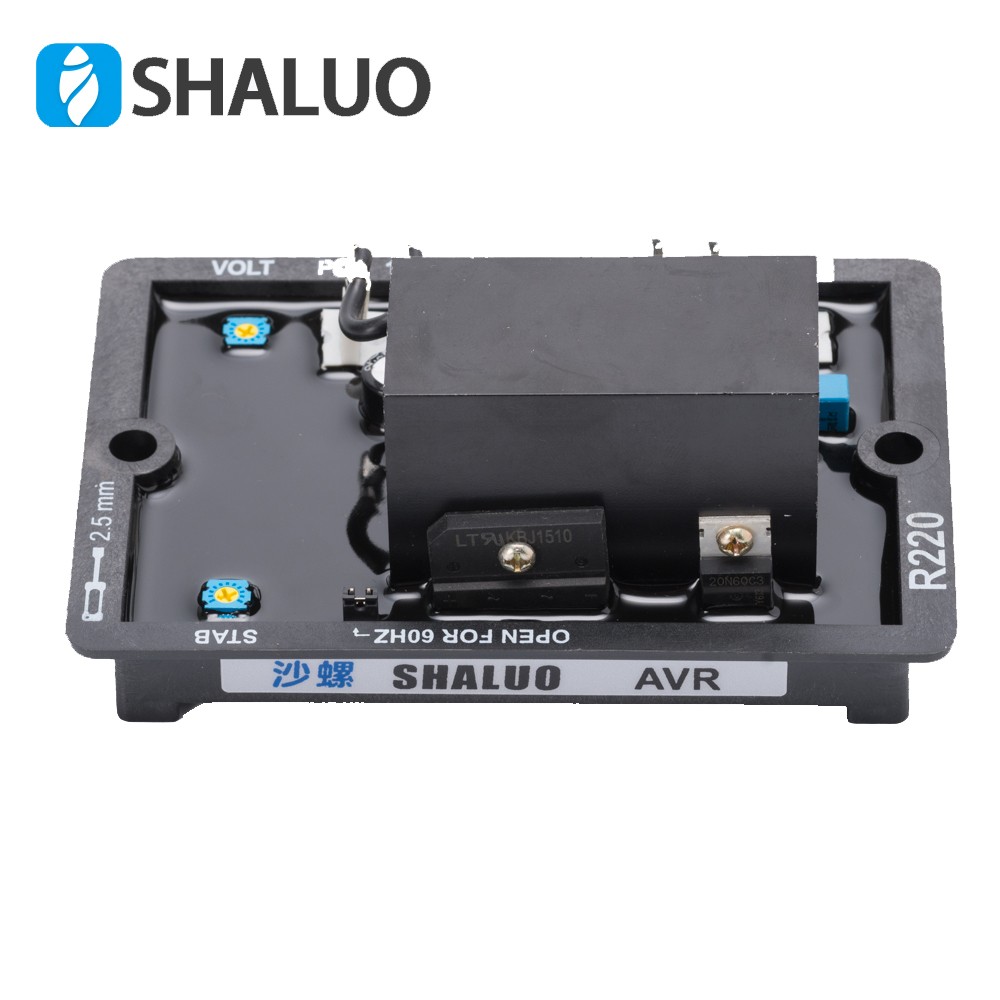

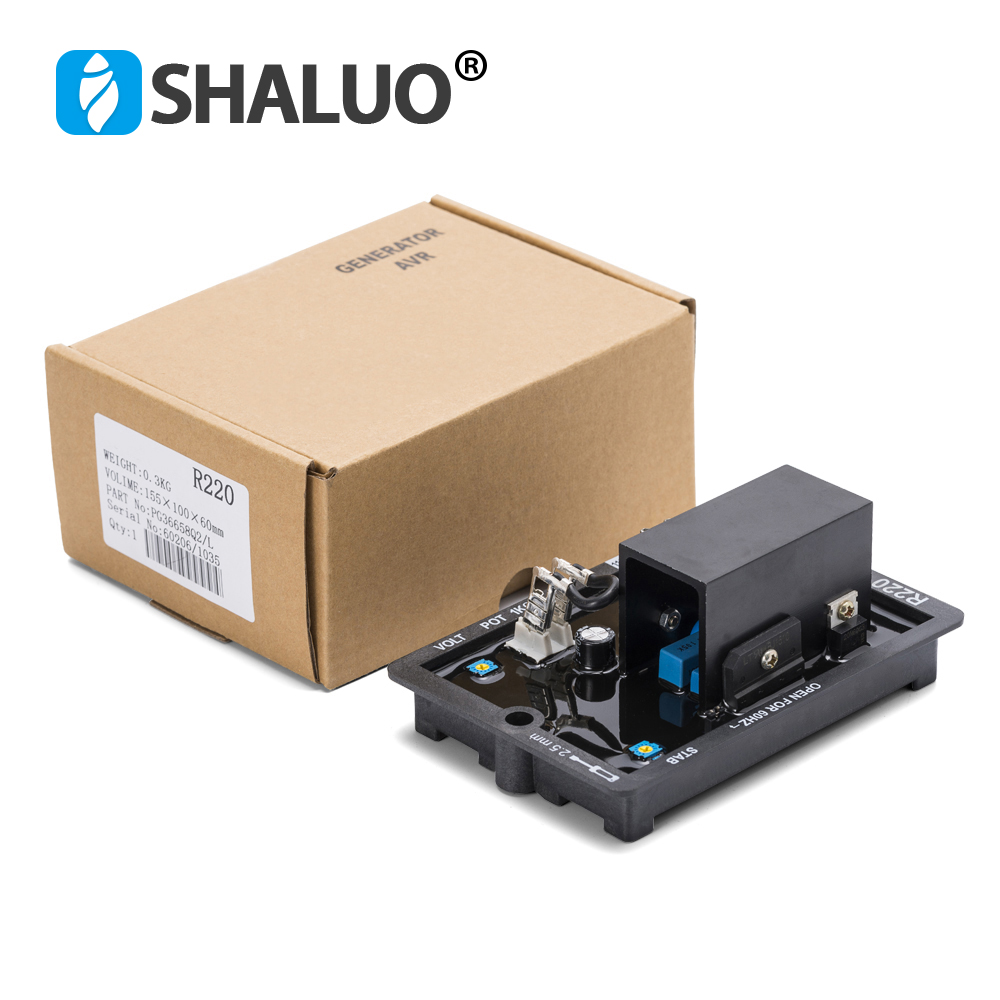

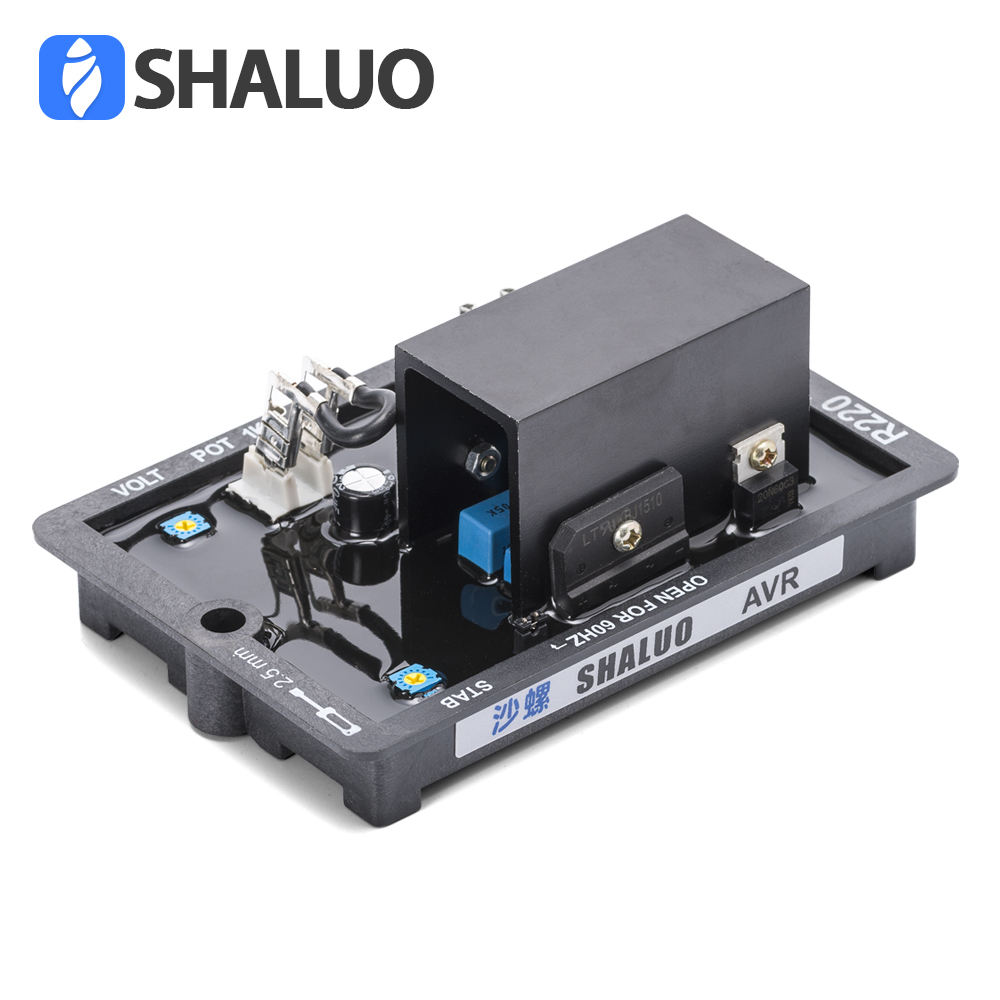

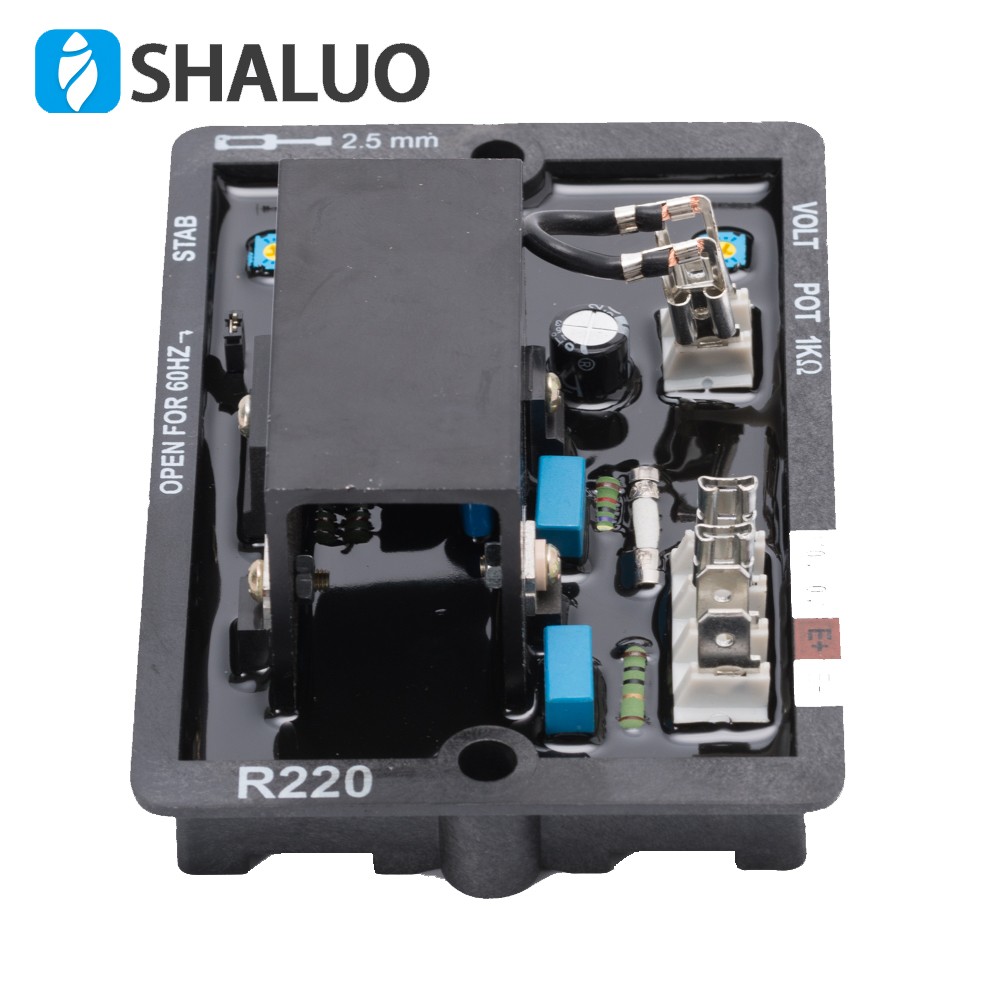

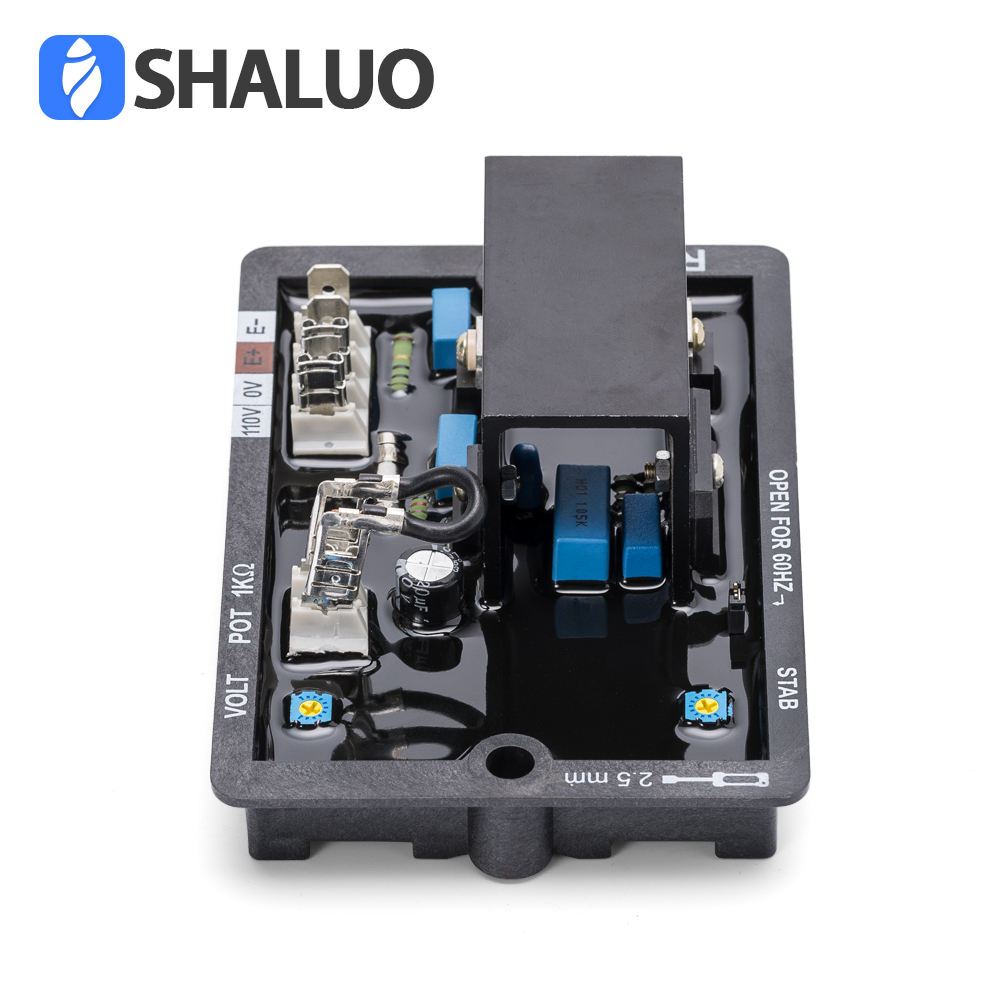

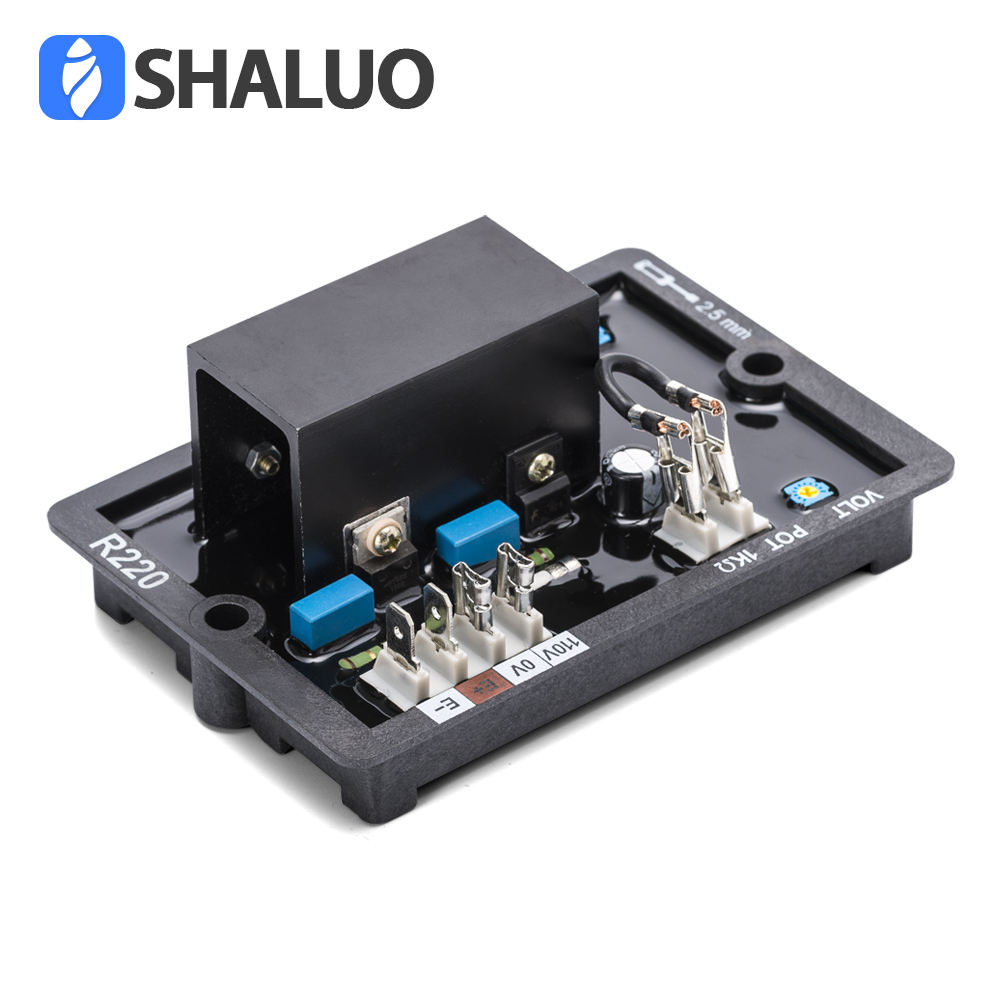

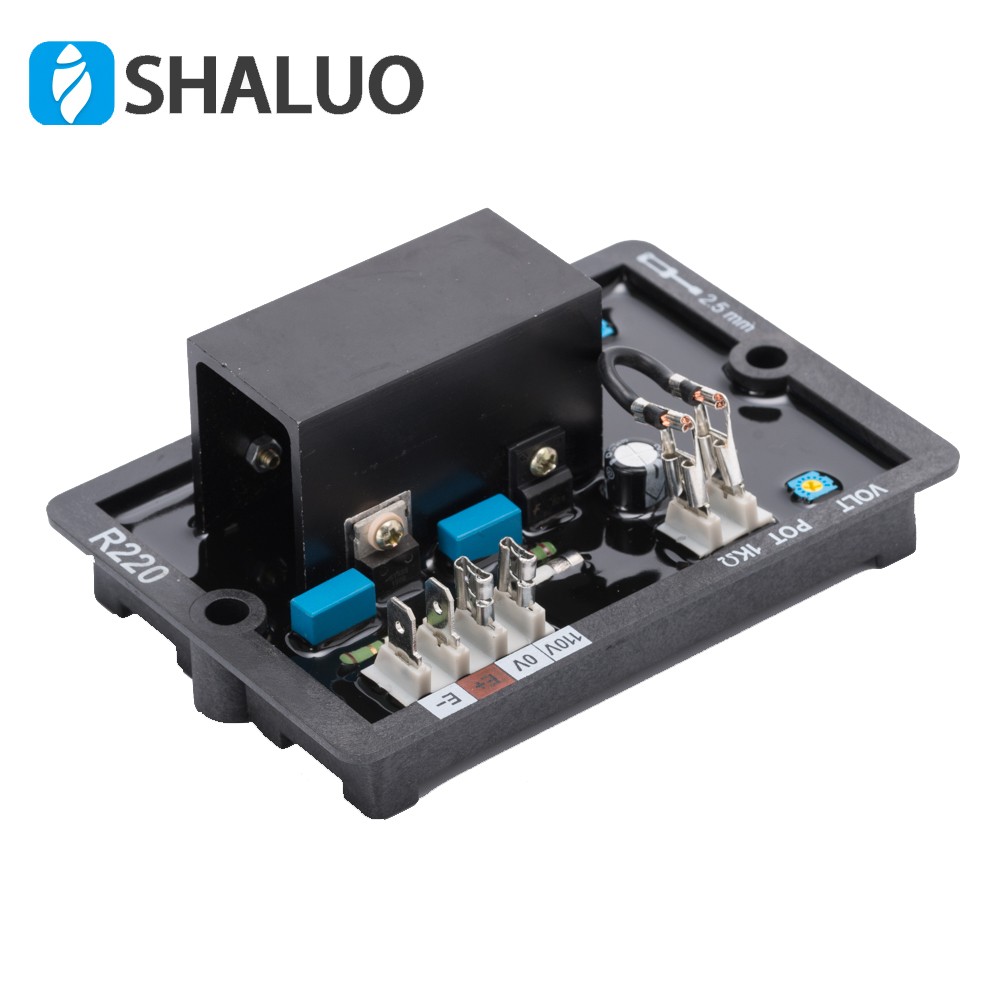

| R220 | ||||||
| Sensing Input | Voltage | 85 to 139 V | ||||
| Frequency | 50/60 Hz | |||||
| Output | Voltage | max 75 V dc at 100V ac input | ||||
| Current | Continuous 4A dc; Intermittent 8A | |||||
| Resistance | 15 ohms minimum | |||||
Fu'an Shaluo Electronics co.Ltd is a manufacturer of generator accessories, Our company has established a long term and stable business relationship with a number of domestic agents and retailers.
The professional person responsible for the quality of supervision and control in the entire process.
In order to get the superior quality we only use selected good element.
Aimed at enabling the production department to manufacture and assemble the product as efficiently as possible.
