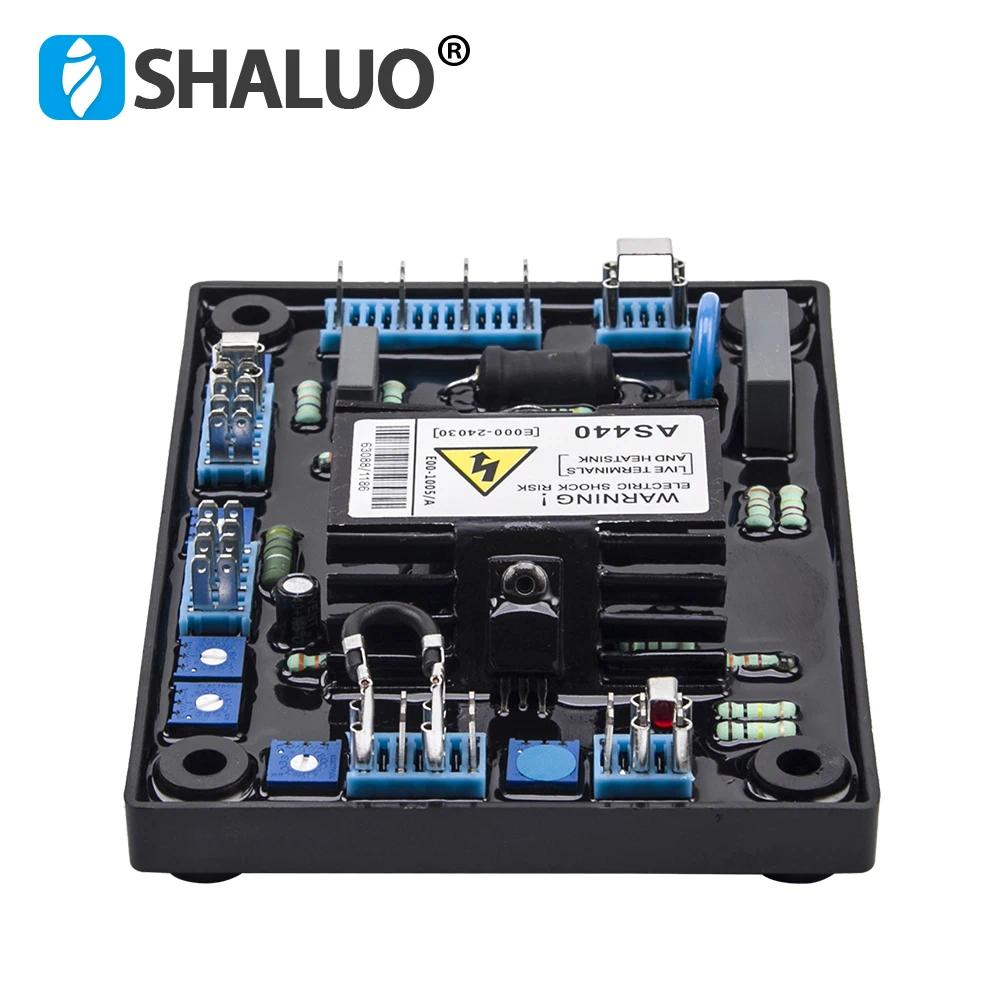

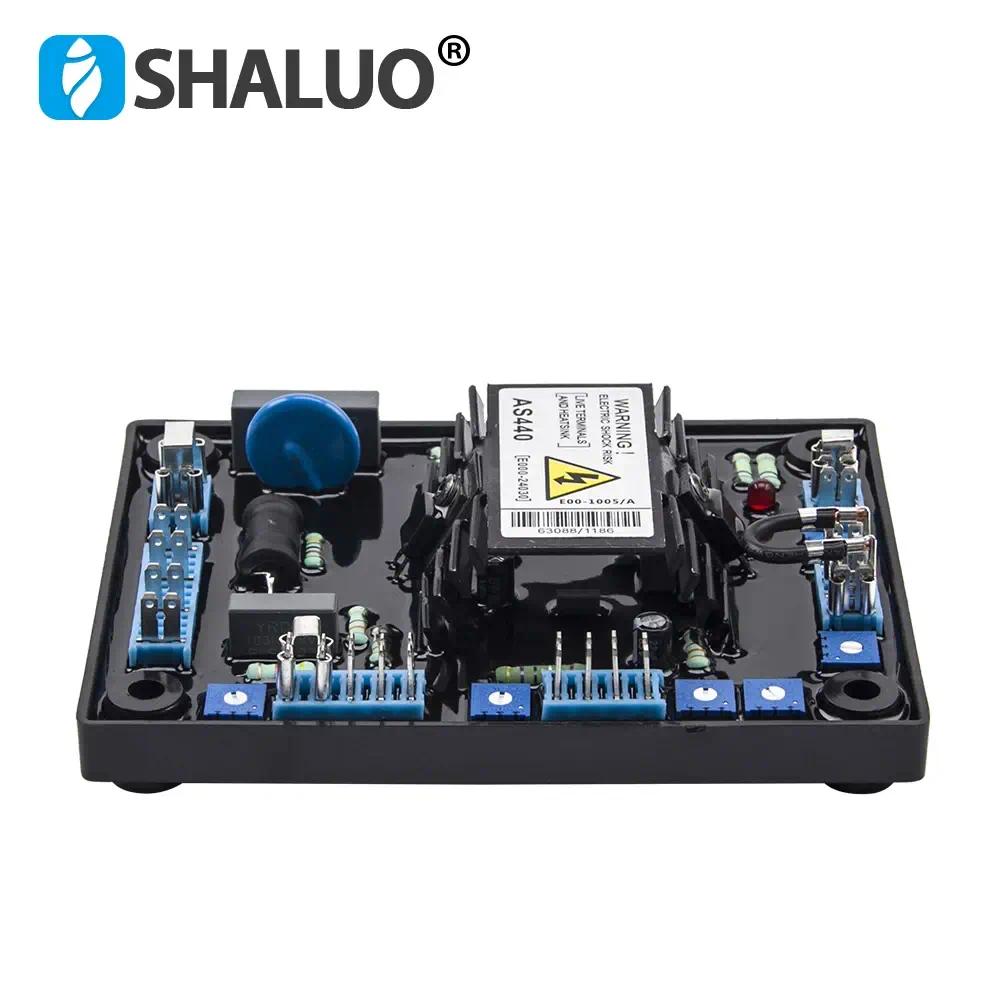

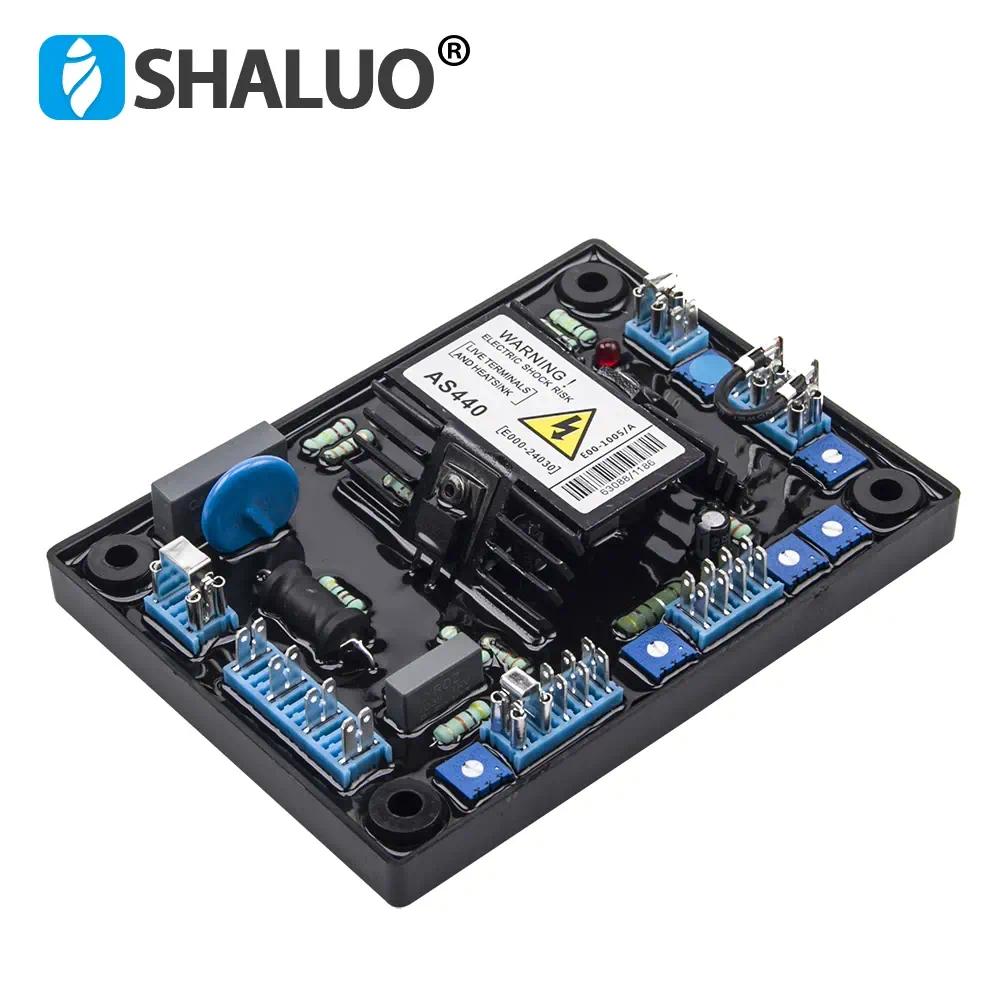

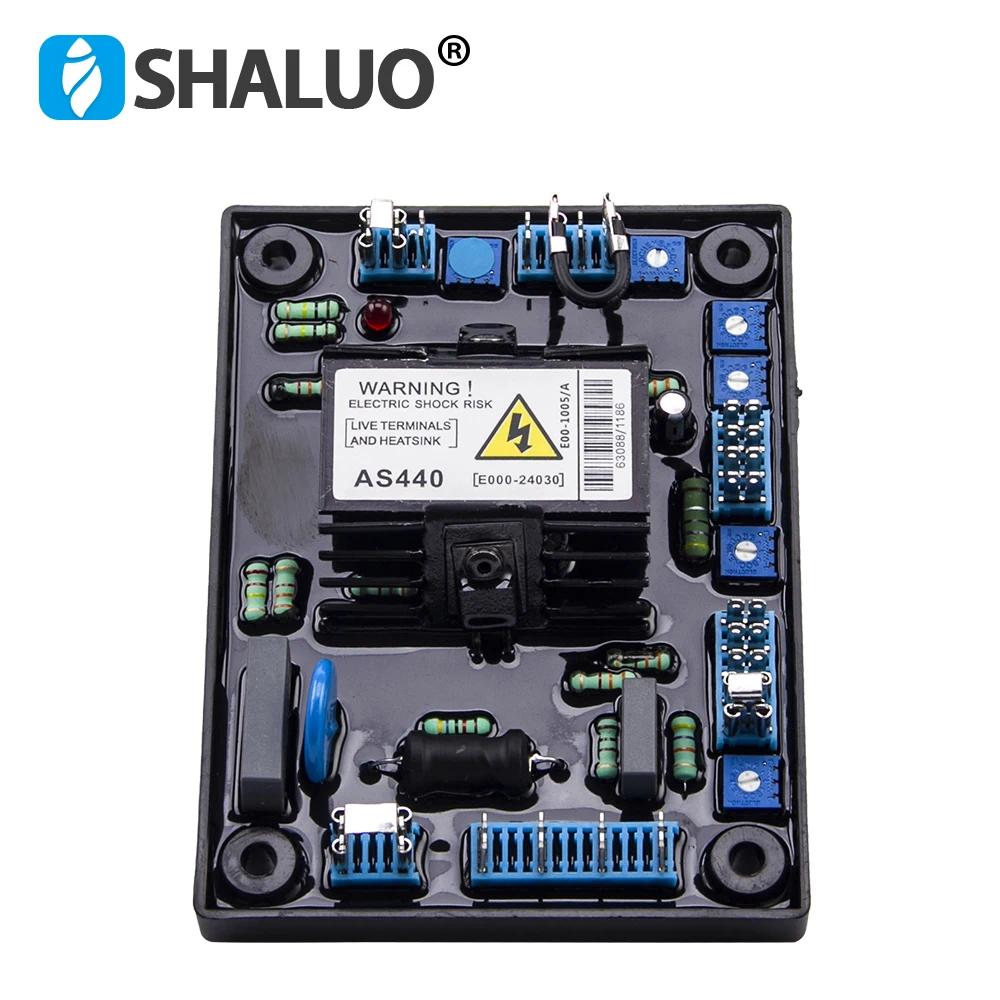

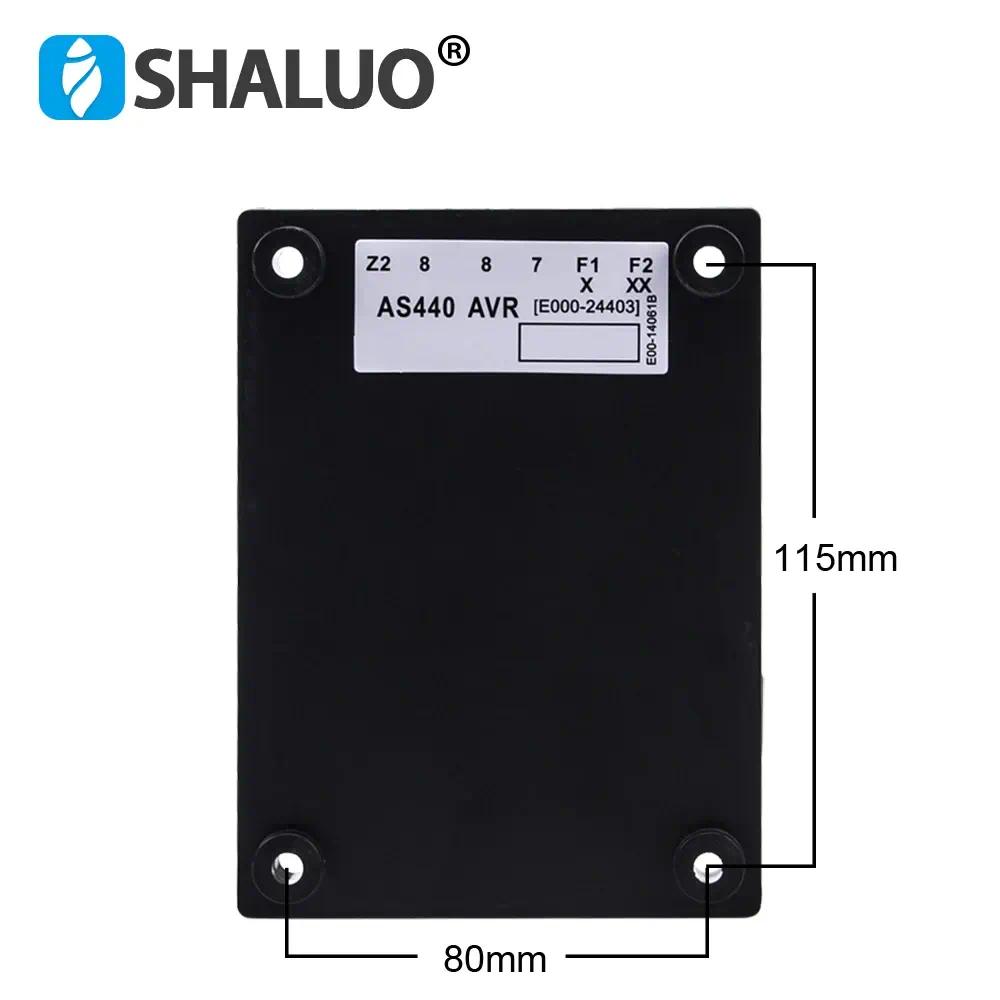

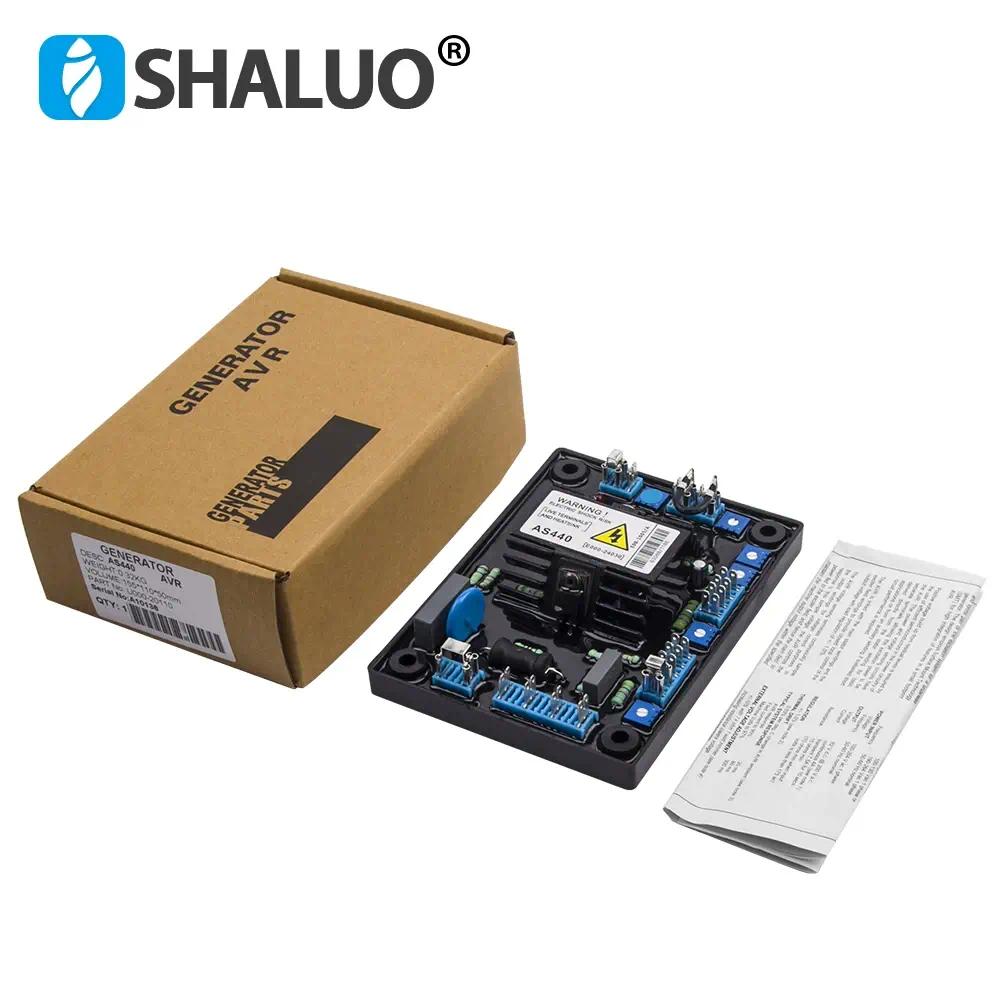

1 Phase Generator AVR AS440 is a half-wave phase-controlled thyristor type Automatic Voltage Regulator(AVR) and forms part of the excitation system for a brushless alternator.
Technical specification
Sensing input
Voltage Jumper selectable 100-130V ac 1 phase or 190-264V ac 1 phase
Frenquency 50-60Hz nominal
Power input
Voltage 100-264V ac 1 phase
Frequency 50-60Hz nominal
Output
Voltage 82V dc @200V ac
Current continuous 4A
transient 7.5A for 10 secs
Resistance 15 ohms min (10 ohms min when input volts i s less than 175ac)
Regulation +/-1.0%
Thermal Drift 0.03% per deg. C change in AVR ambient
Typical System Response AVR response 20ms
Field current to 90% 80ms
Machine Volts to 97% 300ms
External Voltage Adjustment +/-10% with 1 k ohm 1 watt trimmer
Increasing resistance lowers voltage
Under frequency Protection Set point 94-98% Hz
Unit power Dissipation 12 watts maximum
Build Up Voltage 4 Volts @ AVR terminals
Analogue input Maximum input +/-5V dc
Sensitivity 1V for 5% Generator Volts(adjustable)
input resistance 1k ohm
Quadrature Droop input 10 ohms burden
Max. sensitivity: 0.07A for 5% droop 0 PF
Max. input: 0.33A
Over Excitation protection Set point 75V dc
Time delay 10-15 seconds(fixed)
Environmental
Vibration 20-100Hz 50mm/sec
100Hz-2kHz 3.3g
Operating temperature -40 to +70C
Relative Humidity 0-70C 95%
Storage temperature -55 to +80C
