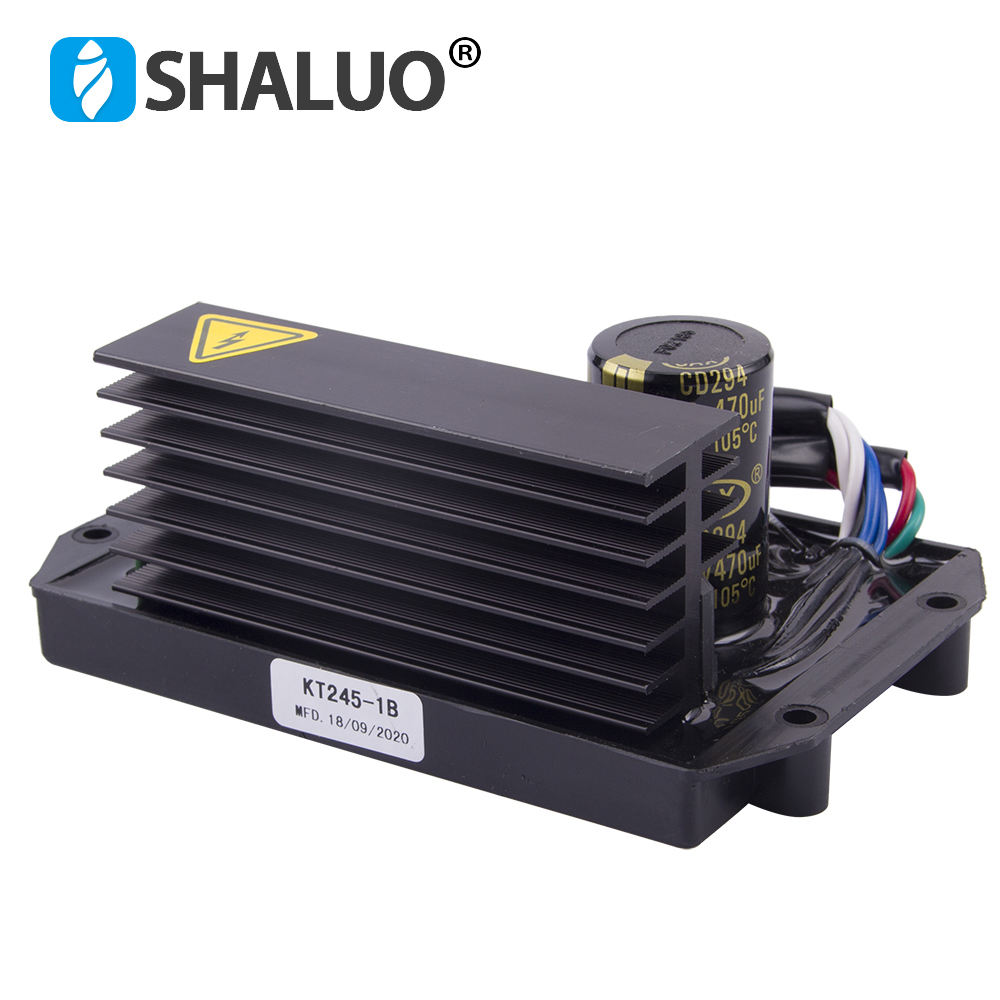

2. AVR parameters
Output voltage: 230V
No-load voltage adjustment range: 180V~280V
Applicable generator power: 8KW~15KW
Output voltage change rate: ≤1.5% (variable range can be adjusted according to generator parameters)
Voltage stability: ≤±0.5V
Temperature rise: ≤40℃
Output short circuit protection: Yes (recover 15S after protection)
Output overload and excitation overcurrent protection: Yes (recover 15S after protection)
3. Installation

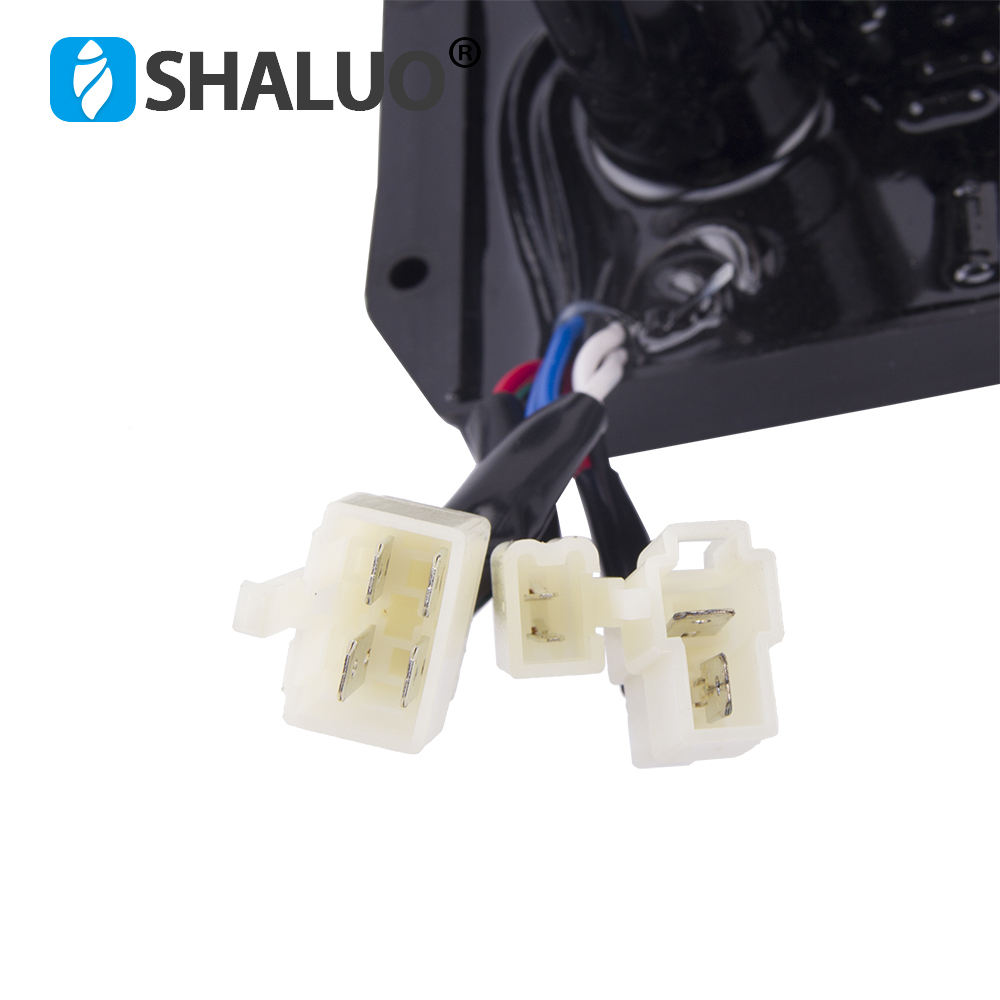

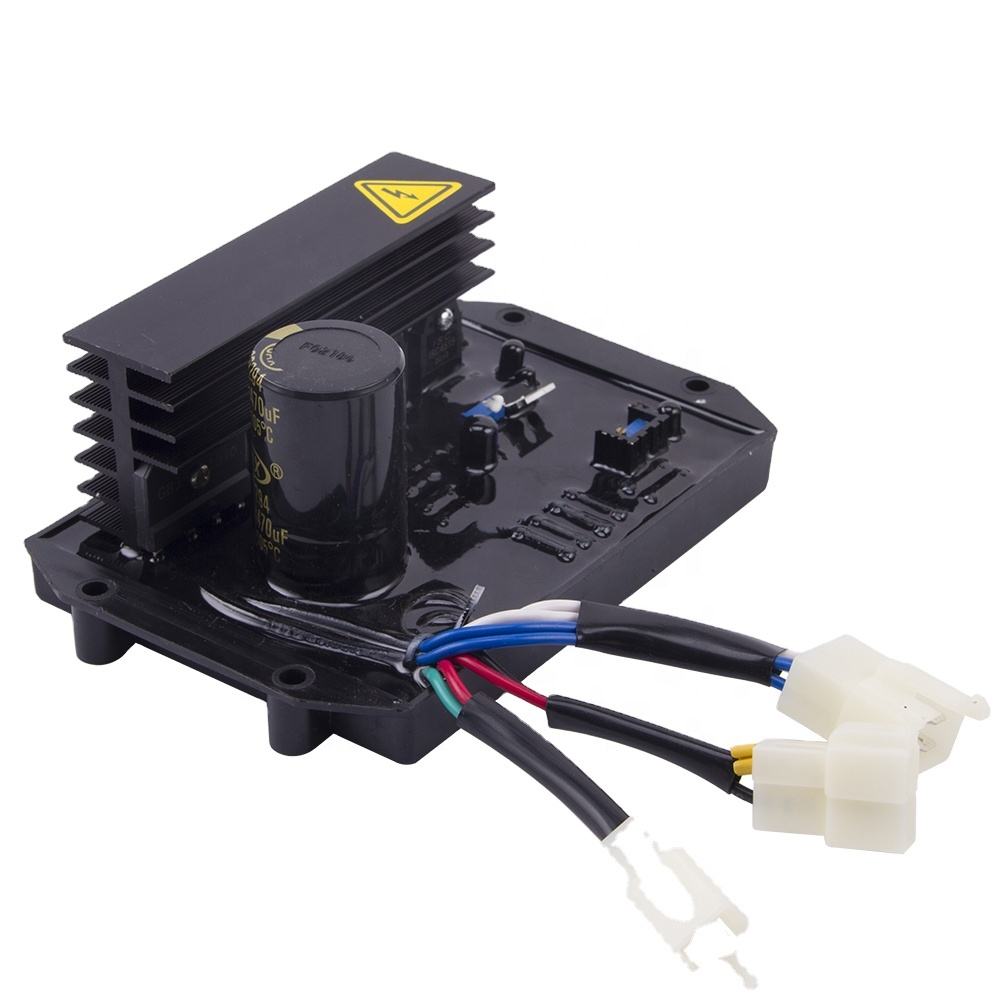

Connector:
Secondary winding, sampling: 70413-6.3-11; Excitation: 7021-6.3-11; External excitation: 7021-2.8-11
wire color:
Secondary winding: blue, sampling: yellow, excitation: red positive, white negative
clue:
Wire diameter: 0.75m2, lead length: 100mm

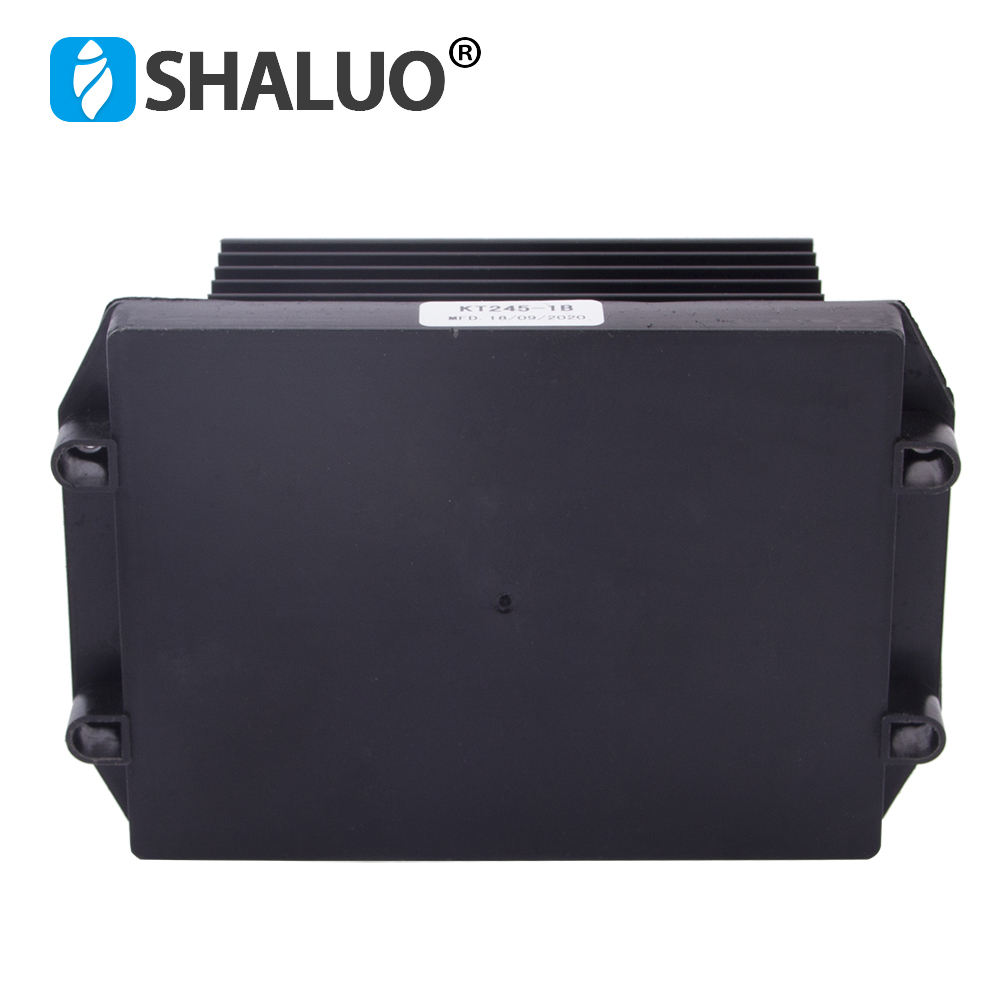

Mounting holes:
Aperture: 5.5mm, hole distance: 140*50mm

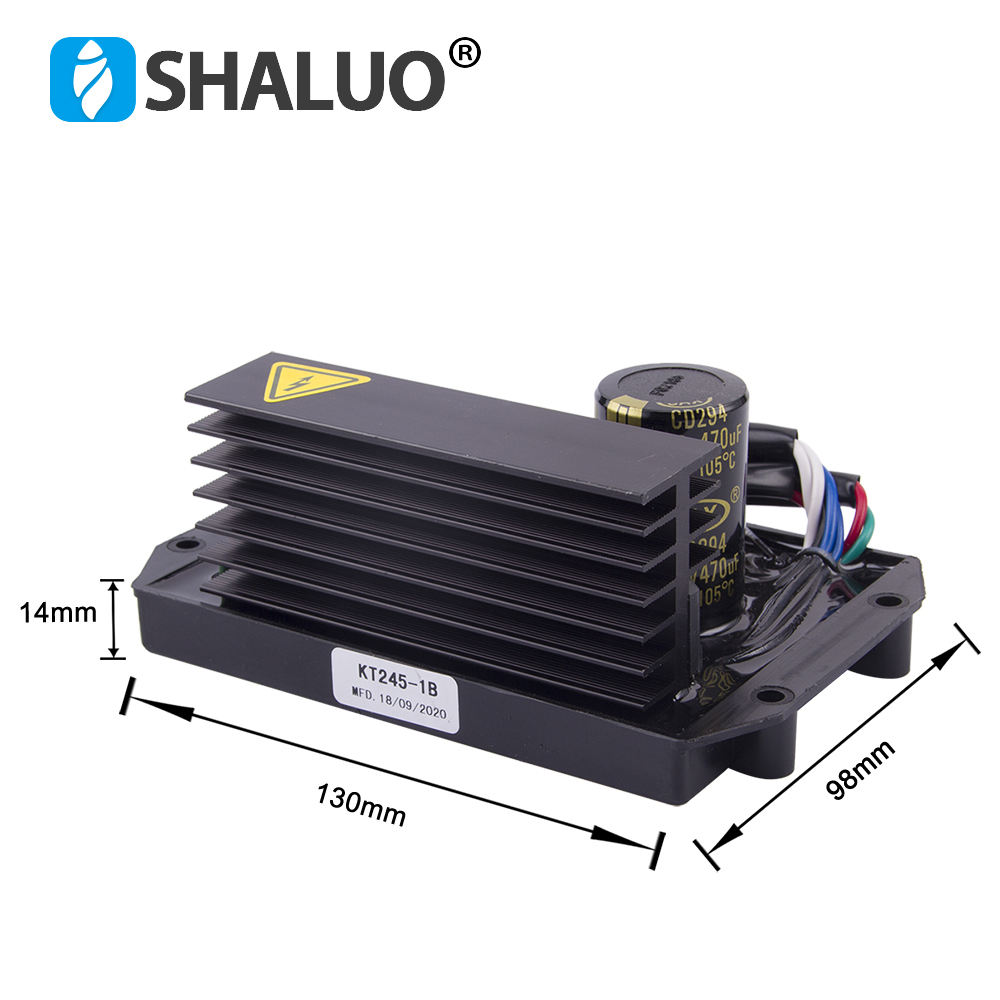

Dimensions:
Rectangle: Maximum size 150*98*60mm;
