MRS16 MRS20 MRS10 MRS11 Remote Auto Start LCD Display Control Module Diesel Generator Electric Controller Panel

Availability:
Quantity:
Inquire Add to Basket

Product Description

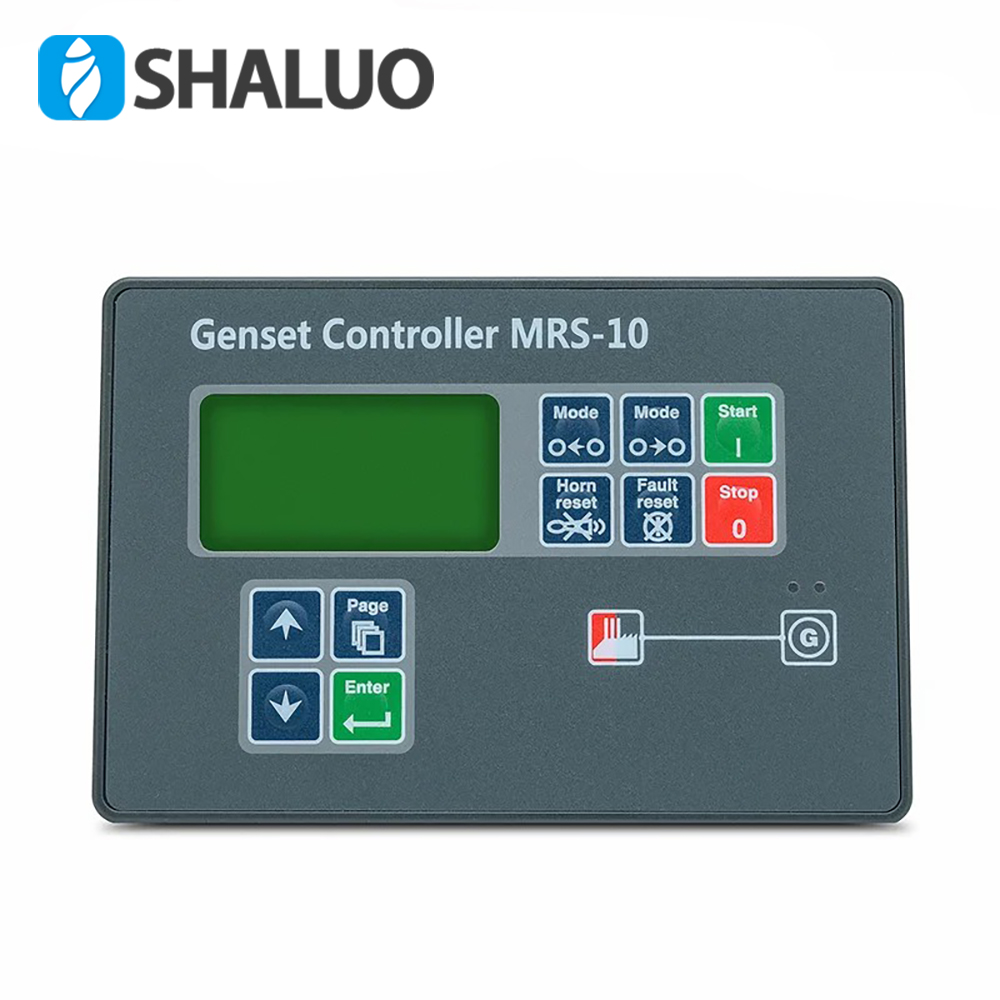

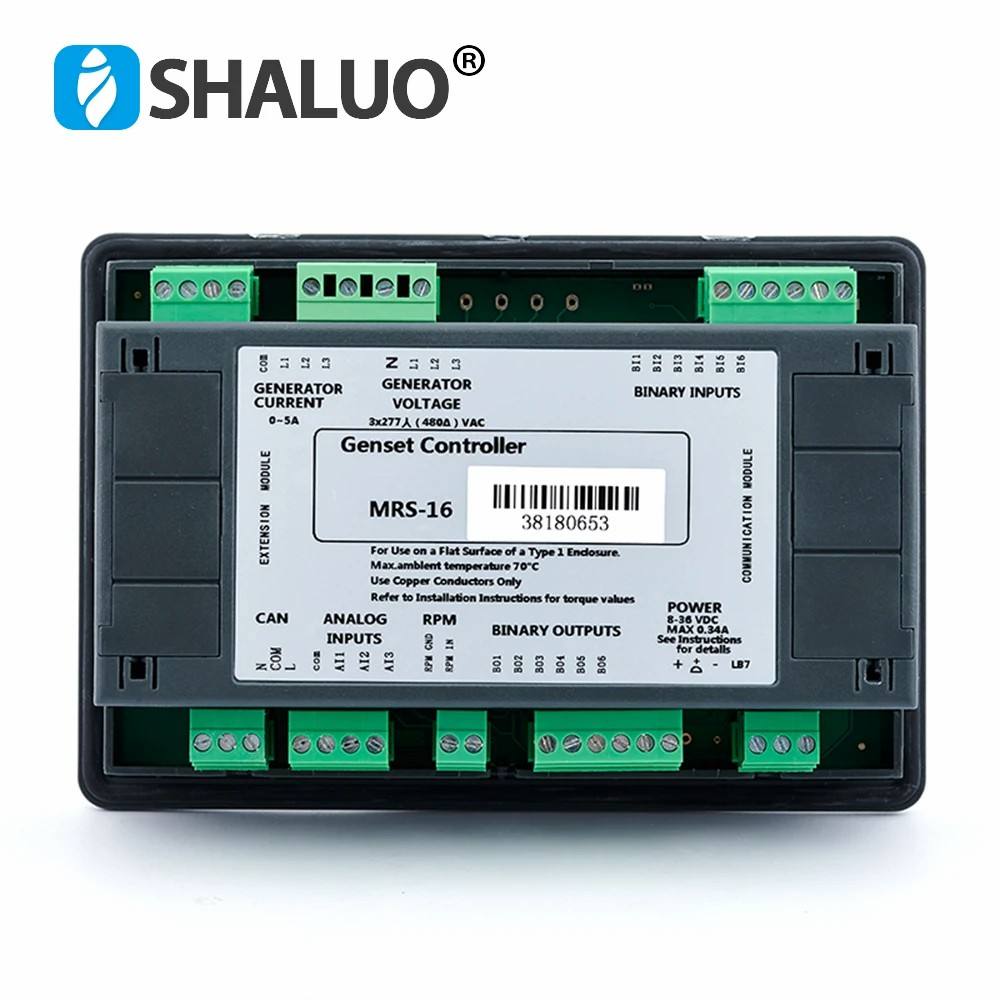

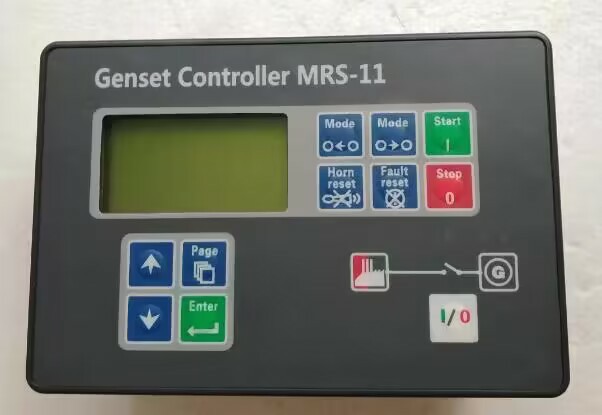

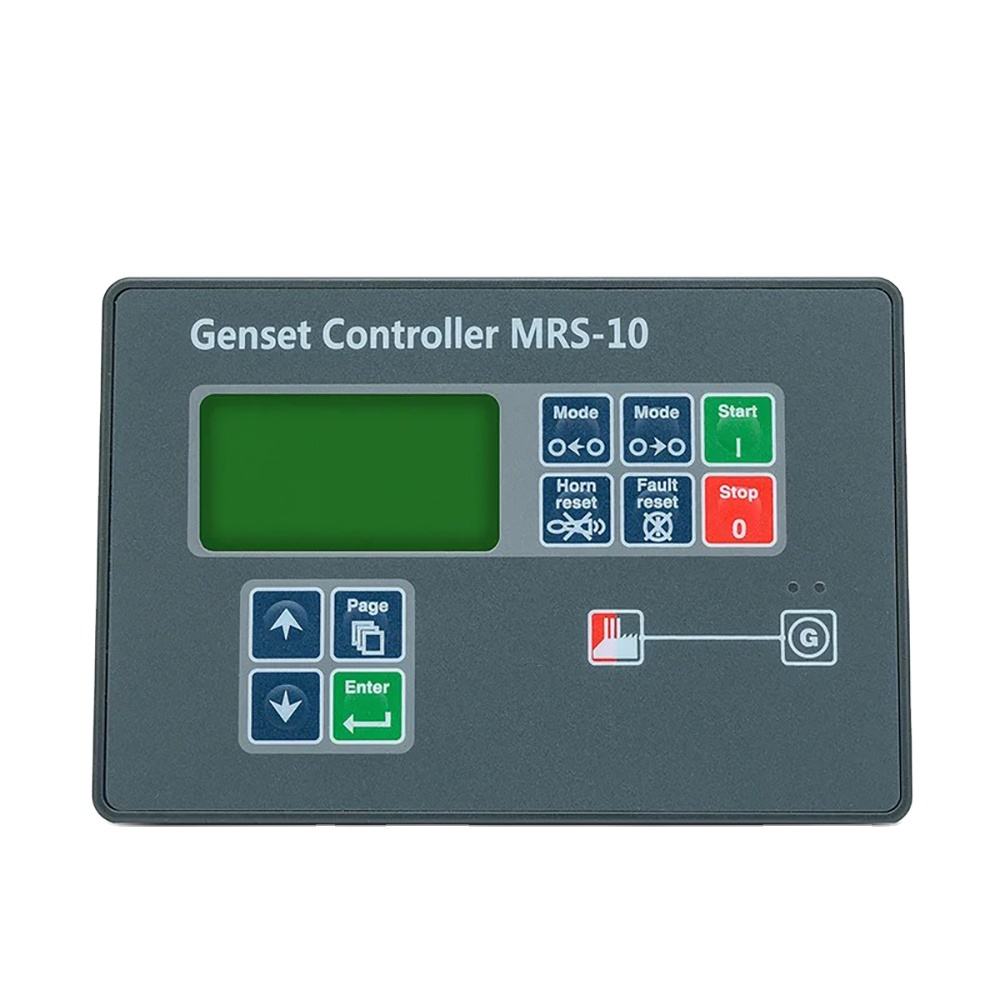

Has three models MRS10 MRS11 MRS20 Contact the salesperson specifically
General Description ：
Description of the controller system (with all options)
InteliLite NT -MRS is a comprehensive controller for single generating sets. IL-NT MRS 15/16 features extended support of
electronic engines and extension modules.

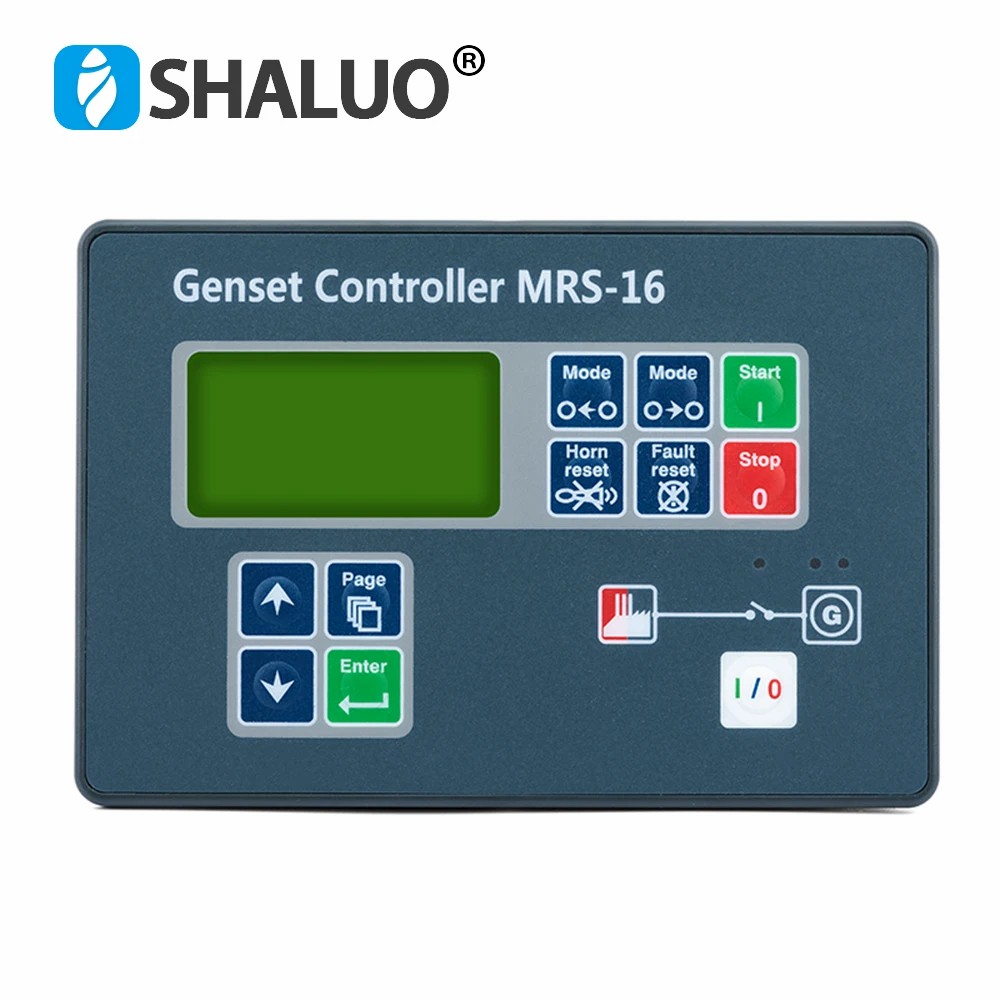

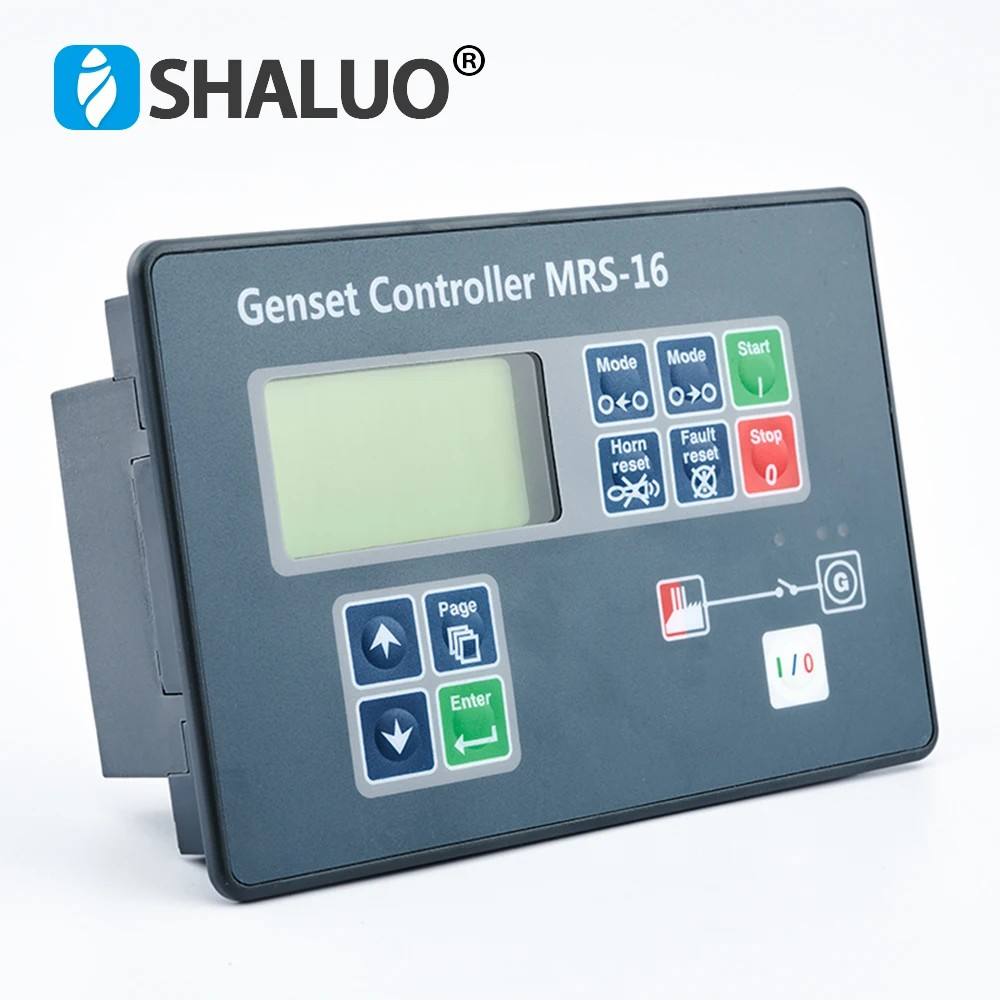

InteliLite NT controllers are equipped with a powerful graphic display showing icons, symbols and bar-graphs for intuitive
operation, which sets, together with high functionality, new standards in Gen-set controls.
InteliLite automatically starts the Gen-set, closes the Gen-set C.B. when all conditions are met, then stops the engine on
external signal or by pressing push buttons.
InteliLite NT provides gas engine support without ventilation.
The key feature of InteliLite NT is its easy-to-use operation and installation. Predefined configurations for typical applications
are available as well as user-defined configurations for special applications

Remote control ：
InteliLite NT controller can be remotely controlled. In case of the work on the gen-set check, that nobody can remotely start the
engine.
To be sure:
Disconnect remote control via RS232 line
Disconnect input REM START/STOP
or Disconnect output STARTER and outputs GCB CLOSE/OPEN


IL-NT RS232 is optional plug-in card to enable InteliLite NT for RS232 communication. This is required for computer or Modbus
connectin. Card inserts into expansion slot back on the controller.
To insert the module, you must open the cover first (use screwdriver to open) and then insert the module into slot. Once you have
insert it, the module will snap under plastic teeth. It is supposed to be installed permanently. Should you need to remove it, the
safest way is to remove whole back cover and than remove module manually
（you need to buy RS232 communication module extraly）
