Mebay DC80D DC82DR MK3 AMF Start Stop Diesel Generator Controller Module LCD Display RS485 PC Monitoring Control Board

Availability:

Quantity:



Inquire Add to Basket

Product Description

Product Description

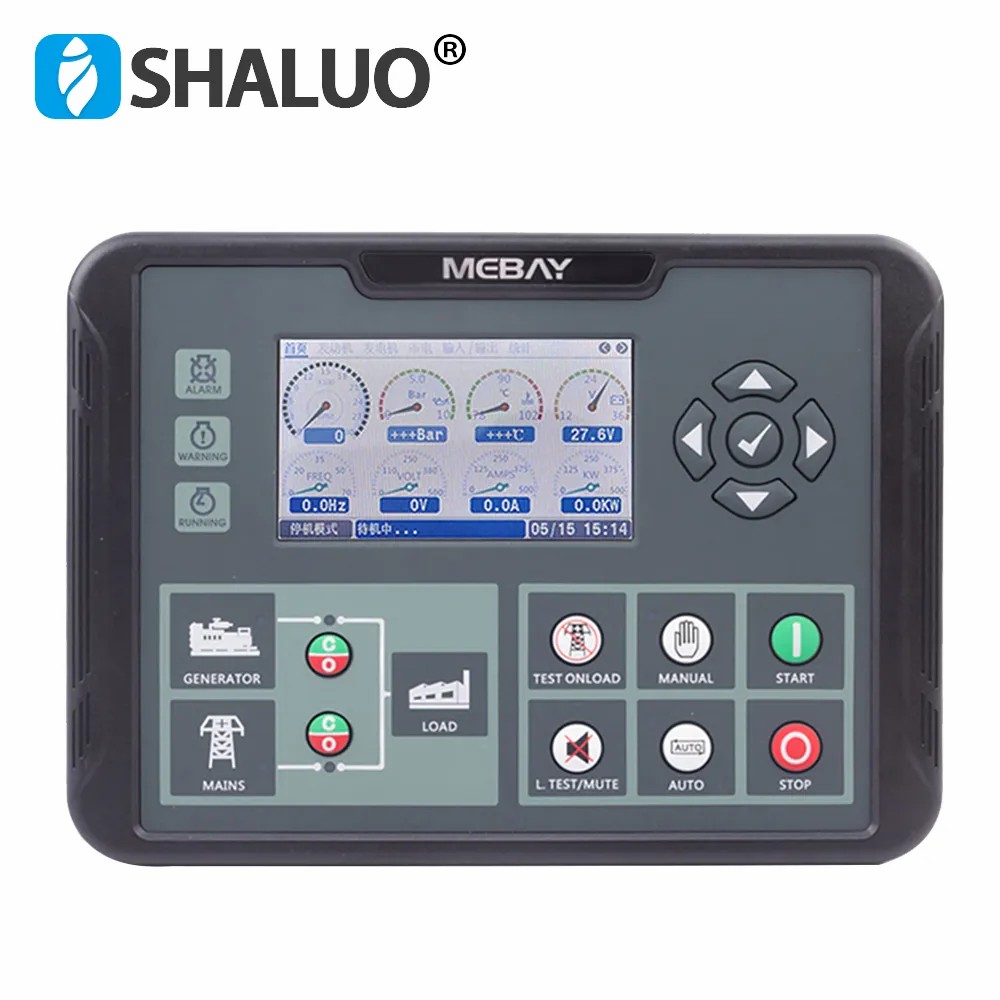

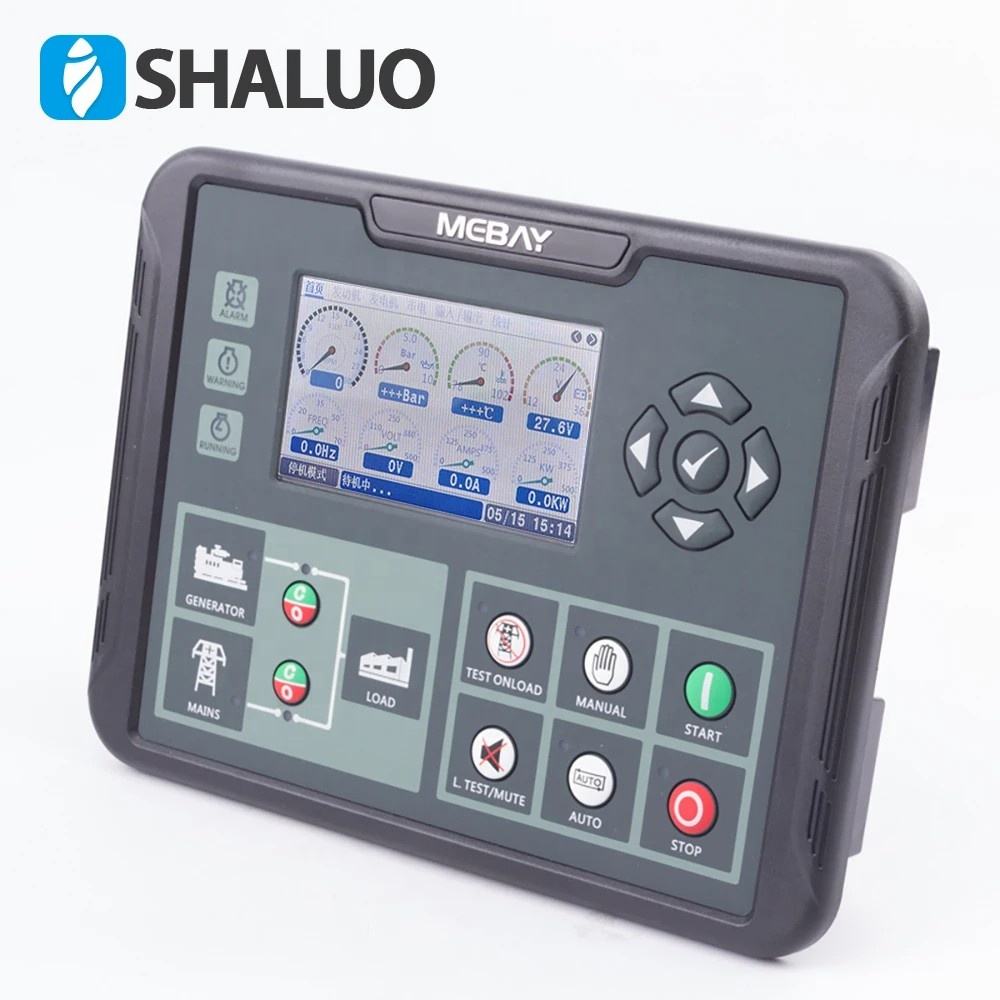

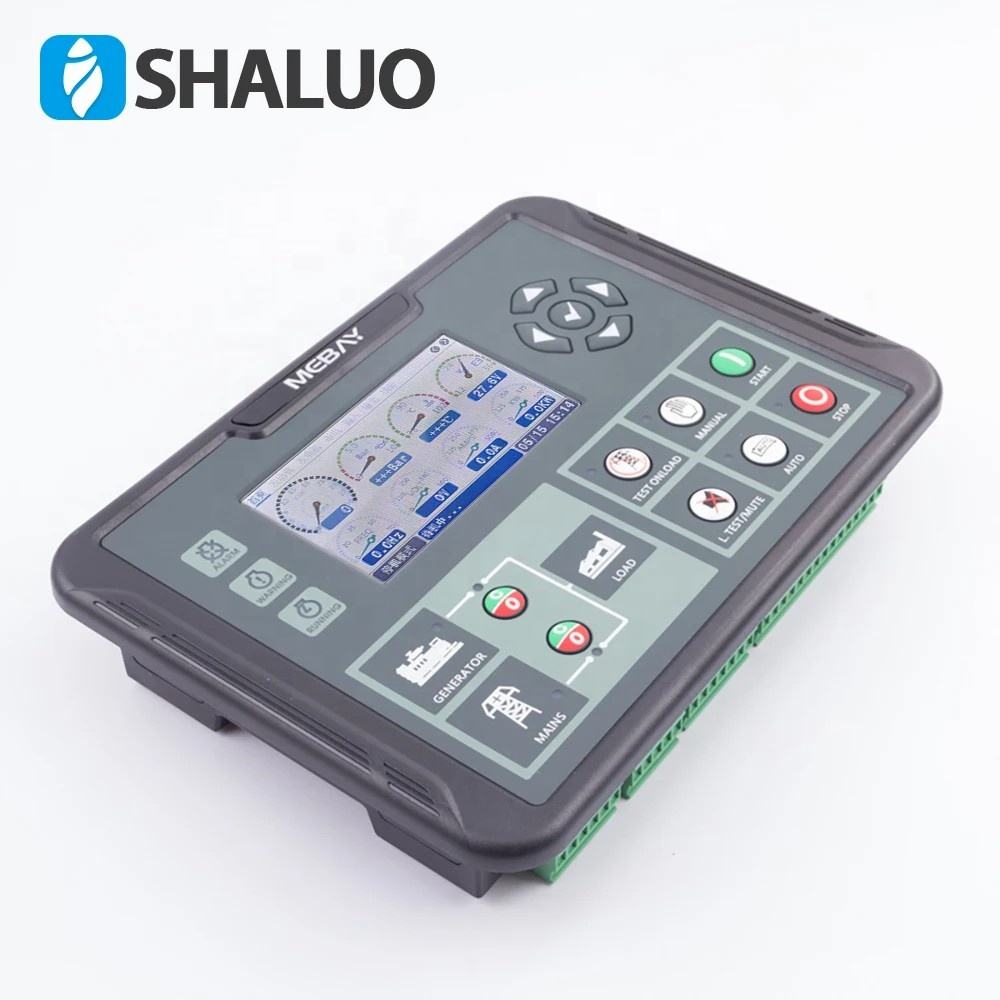

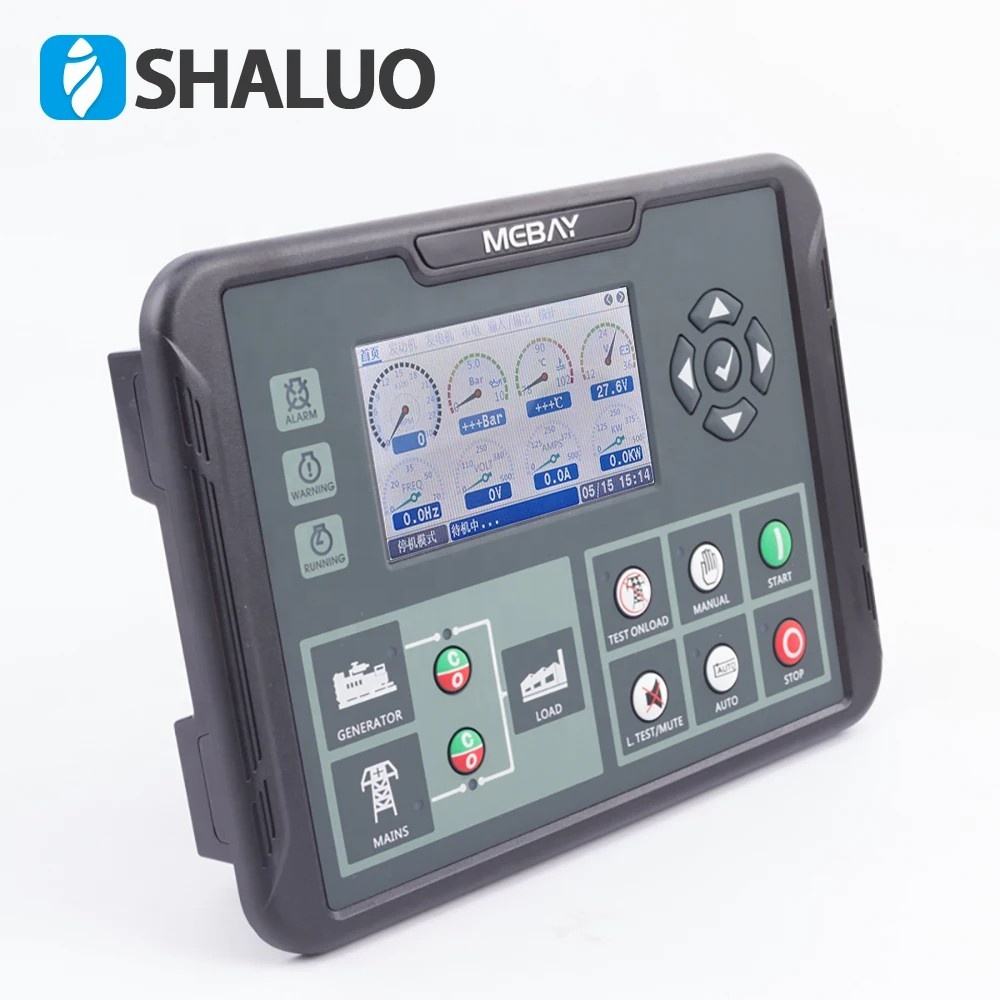

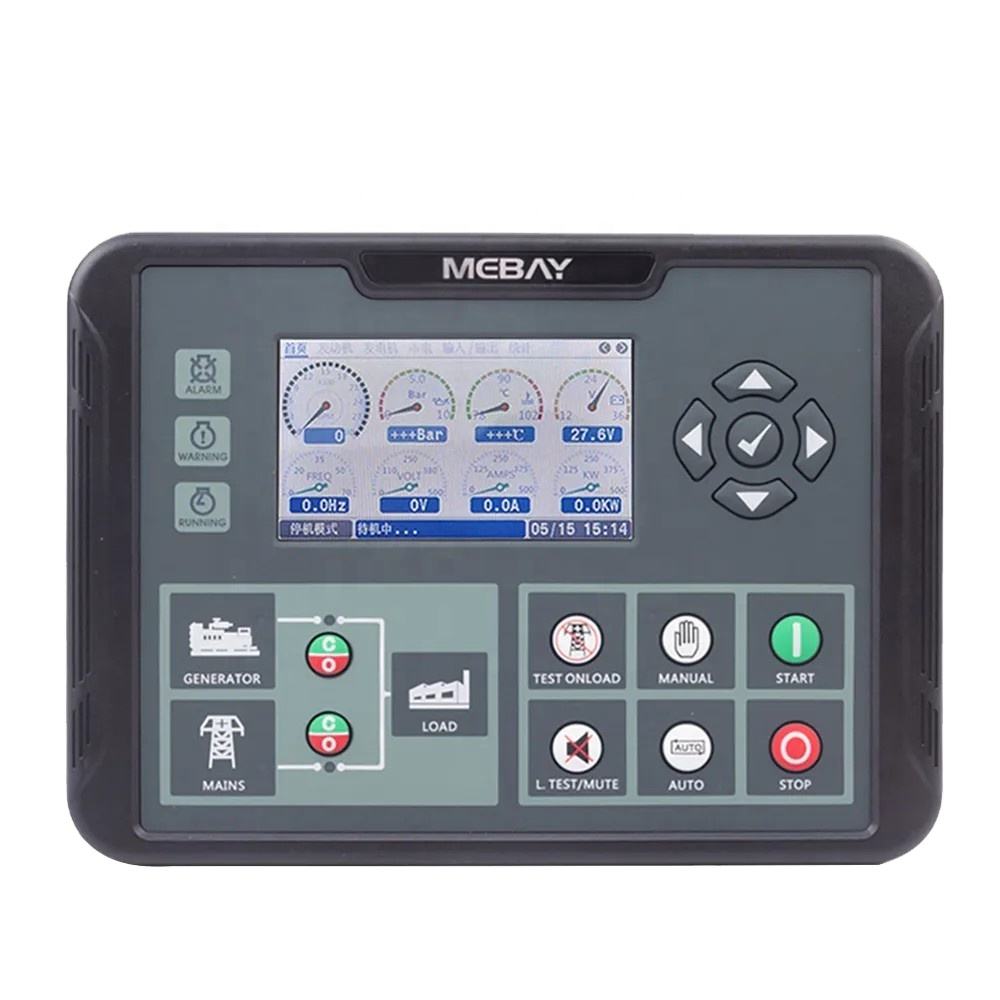

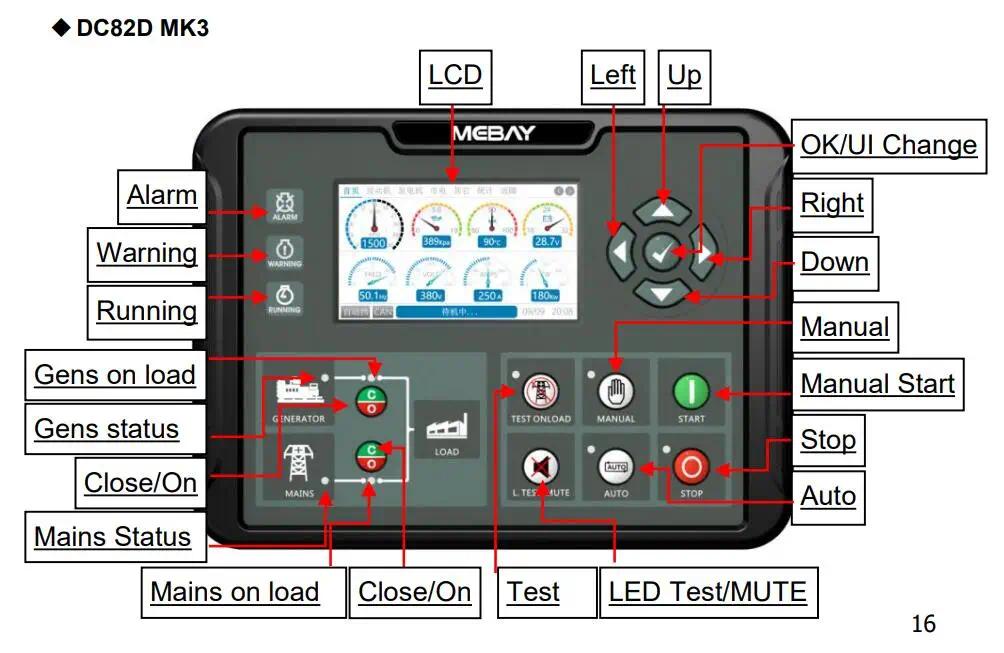

DC80D MK3 DC80DR MK3 DC82D MK3 DC82DR MK3 four models

DC8xD MK3 GENSET CONTROLLER USER MANUAL

1.Summary
This series controller is specialized for Diesel / Gasoline / Gas Genset Start, Stop, Parameters monitoring, faults-checking as
well as data setting.
4.3inch colorful LCD screen display with brand new UI design is adapted in this controller that the relative failures can be
displayed directly. All the parameters can be displayed by simulated indicators and words. Besides, LCD screen can display various
faults in the same time that the genset will be stopped once it can’t work
smoothly.
There are Simplified Chinese, Traditional Chinese, English, Spanish, Russian interface options, more language can be set according
to user’s request. All the parameters can be configured through the front face buttons or use programmable interface by RS485 or
USB to adjust via PC. It can be widely applied for all kinds of auto control system of gensets.

2.Main Features
There are four Models under DC8xD MK3 series.
DC80D MK3: used for single machine automation. Start/Stop through remote start signal.
DC82D MK3: Based on DC80D MK3, it adds Mains monitoring and AMF (Mains/Generator automatic switching control), especially suitable
for the automation system composed by mains and genset.
DC80DR MK3: Based on DC80D MK3, it adds RS485 port.
DC82DR MK3: Based on DC82D MK3, it adds RS485 port.
Dual core 32bit high performance single chip microcomputer. 4.3inch TFT colorful big screen LCD, Available in 5 languages,
user’s language set if necessary.
Indicator and number display through UI surface.
Acrylic material is adapted to protect the screen.
Silicone panels;
USB Port: parameters can be set even without power through USD port to monitor in real time.
With RS485 communication port, can achieve “Three Remote” functions via MODBUS protocol.
Various kinds of parameters display.
Input/output function, status can be shown directly. More categories of surface setting.
Real time clock inside.
Maintenance countdown function, can set maintenance timing or date.
The black box function can save the relevant parameters of the unit when the fault alarm occurs in real time, and it is
convenient to find the cause of the fault.
Totally 7 relay’s output, among which 5 relay output can be self-configurable, each relay can be set as max 50 functions,
besides, there are 2 groups as non-contact terminals.
5 relays can be set as switch value input, and function configurable. 3 sensor simulation input connectors, various kinds of
units can be set.
Sensor can be self-defined by front face button or PC software.
Adapt to 3P4W,1P2W,2P3W(120V/240V,50/60HZ)
Various of crank conditions (RPM, Frequency, Oil Pressure) can be chosen.
Control Protection: Auto Start/Stop of genset, load transfer (ATS control) and perfect failure display and protection.
Standard water-proof rubber gasket. The waterproof can reach IP54

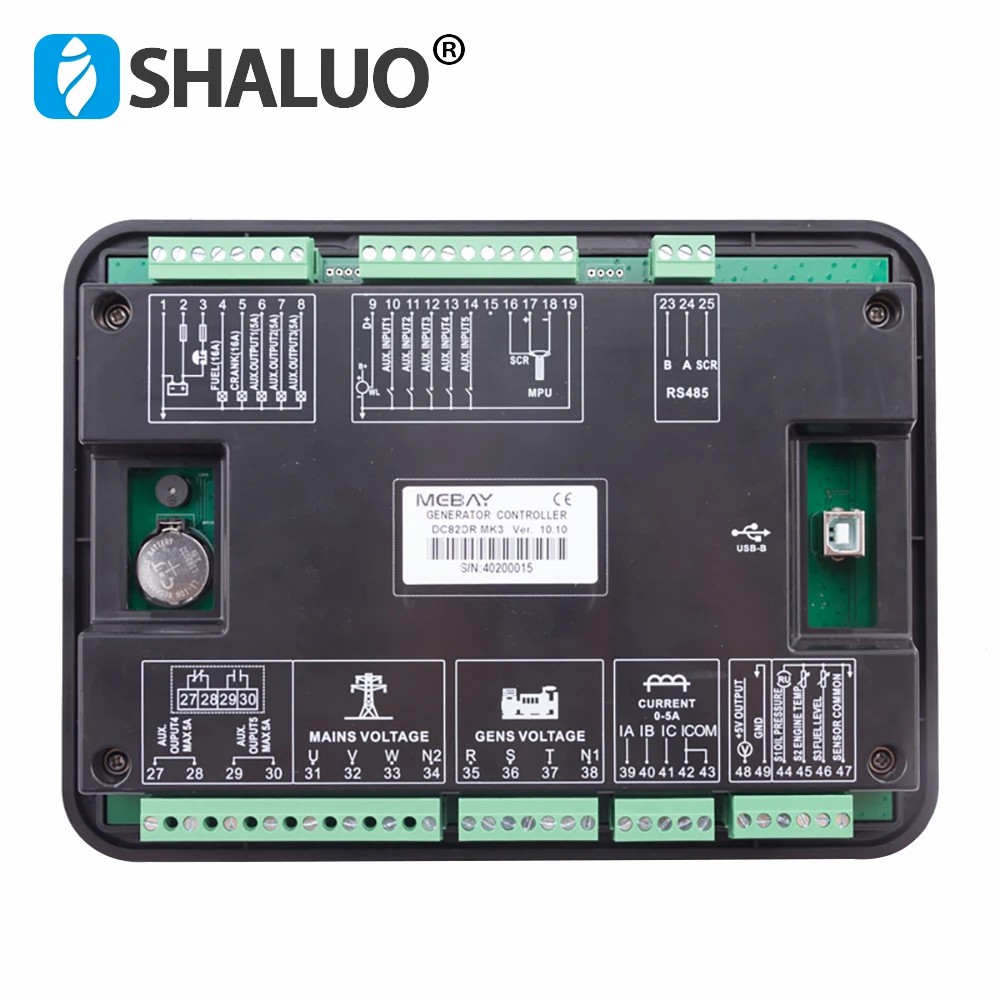

Module design: All the connections are adapted with European connectors so that installation, connection, repair and replacement
can be more easily.
