SmartGen BAC2410 24V 10A Generator Battery Charger Auto Intelligent Float Charging Charger Adapter Module Genset Spare Parts

Availability:
Quantity:

Product Description

BACM2410 BATTERY CHARGER USER MANUAL

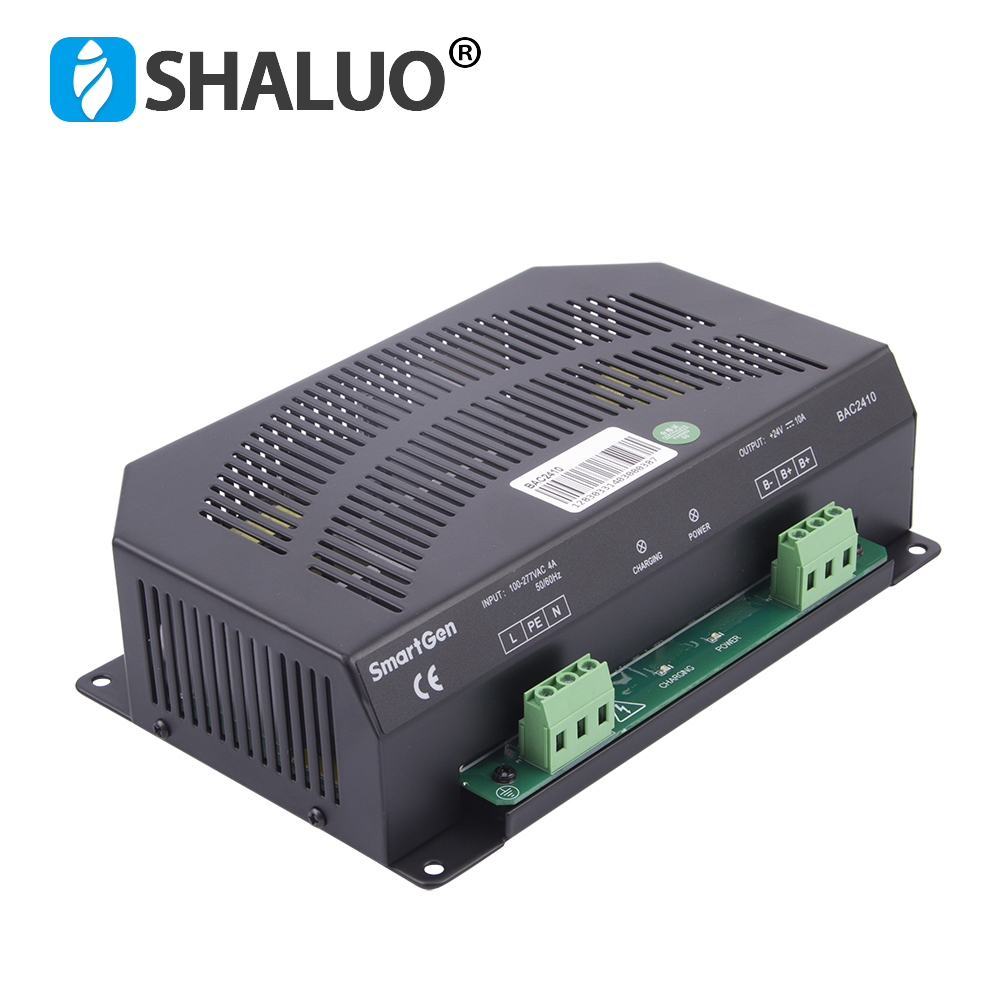

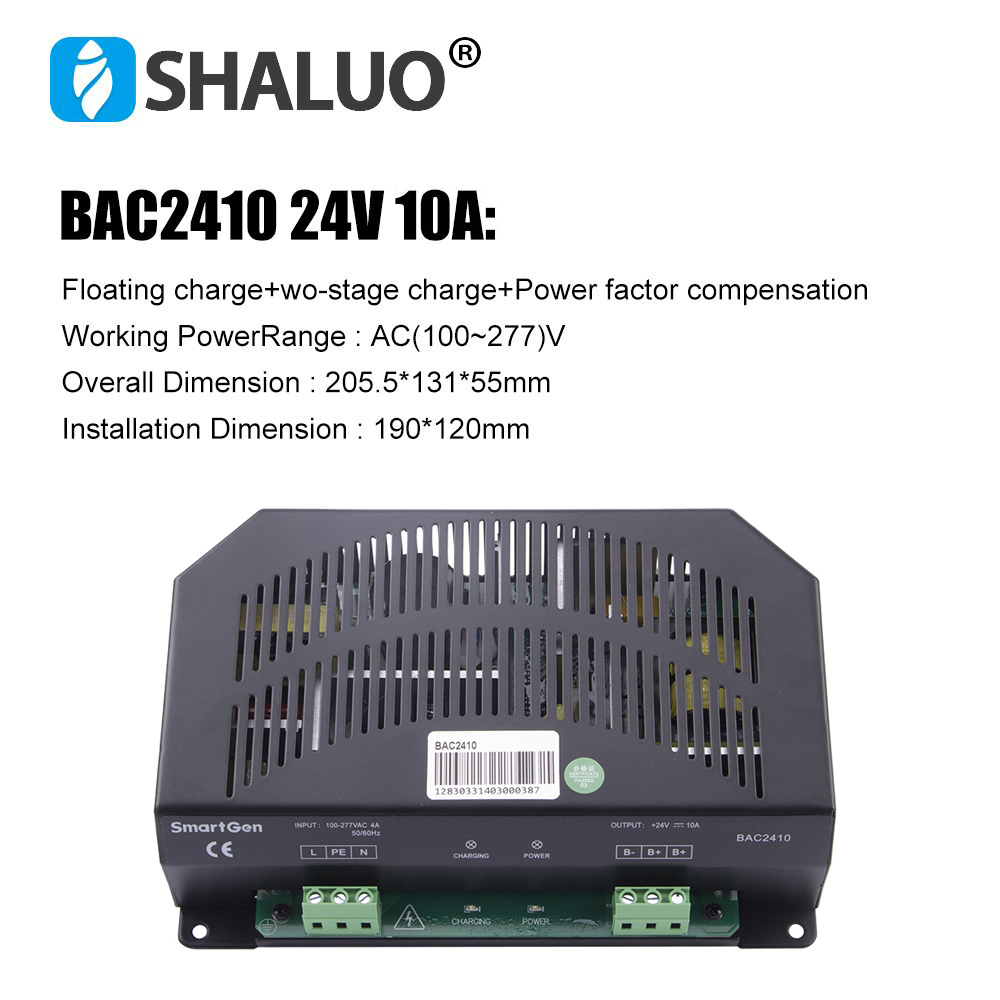

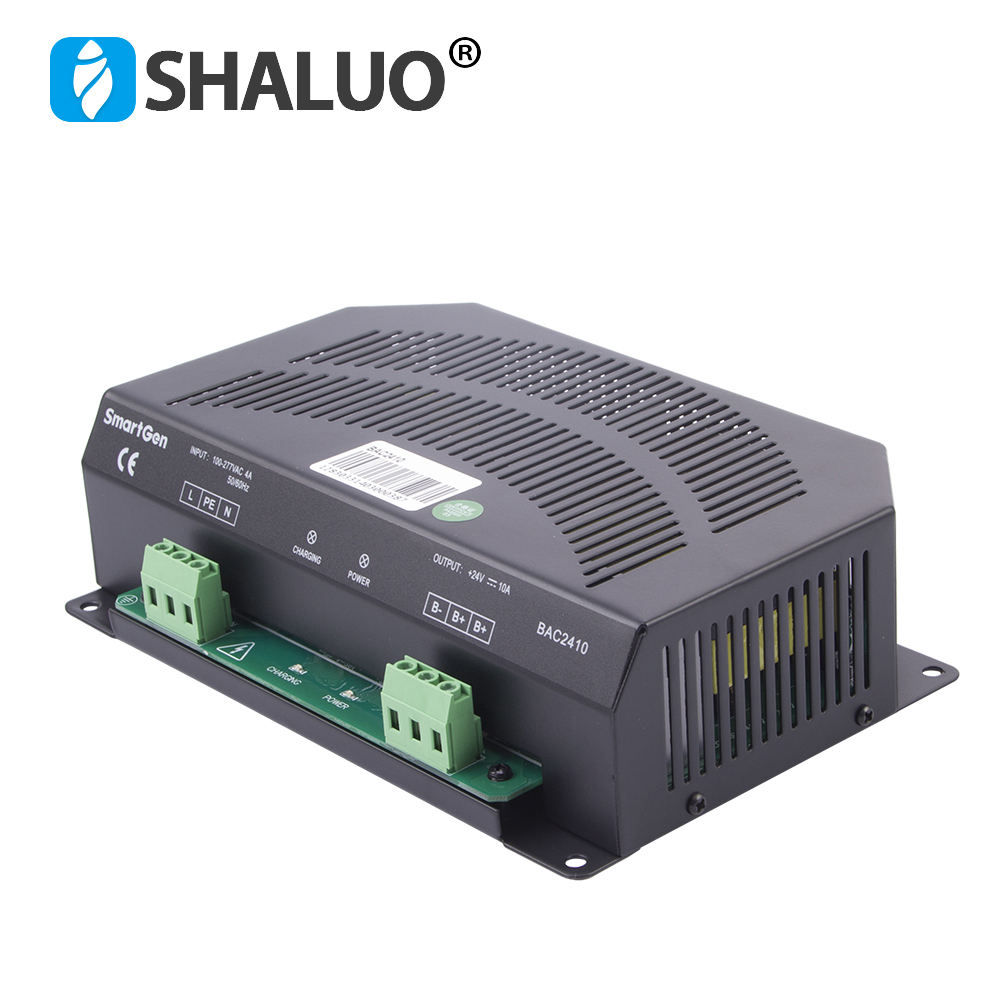

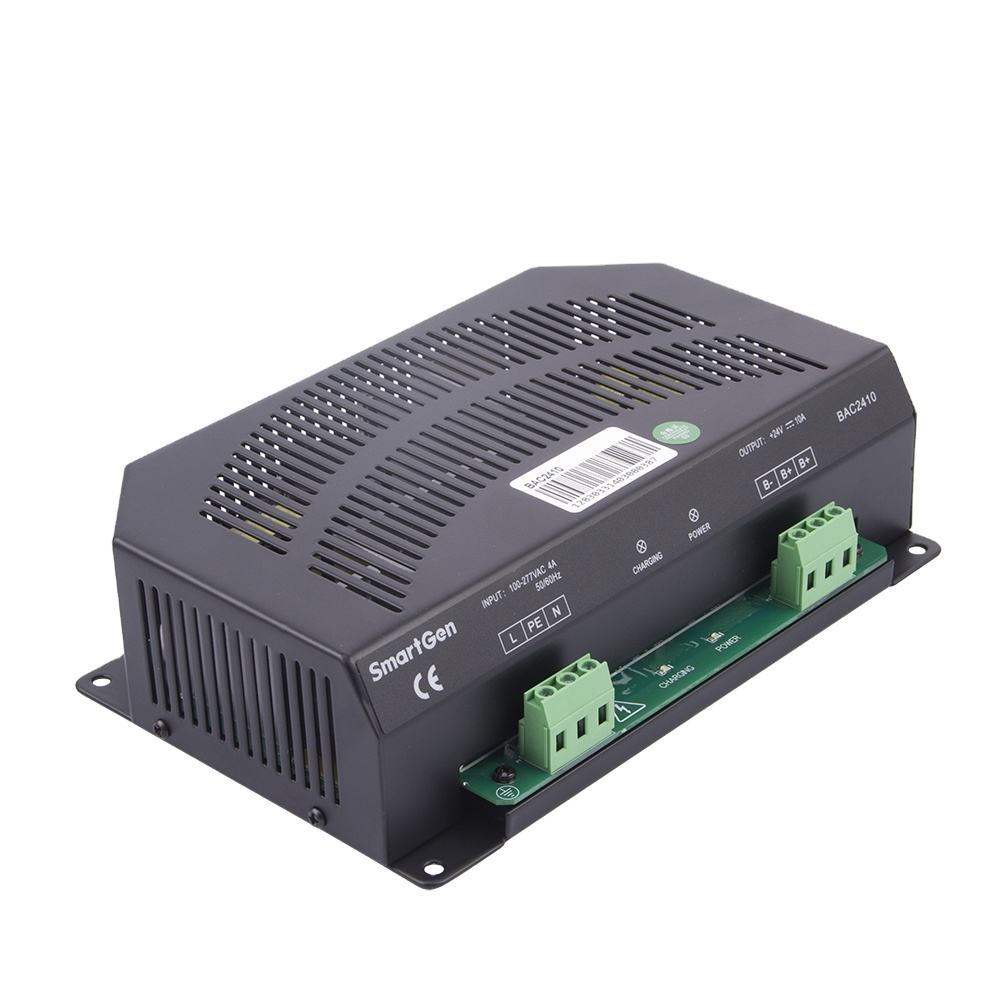

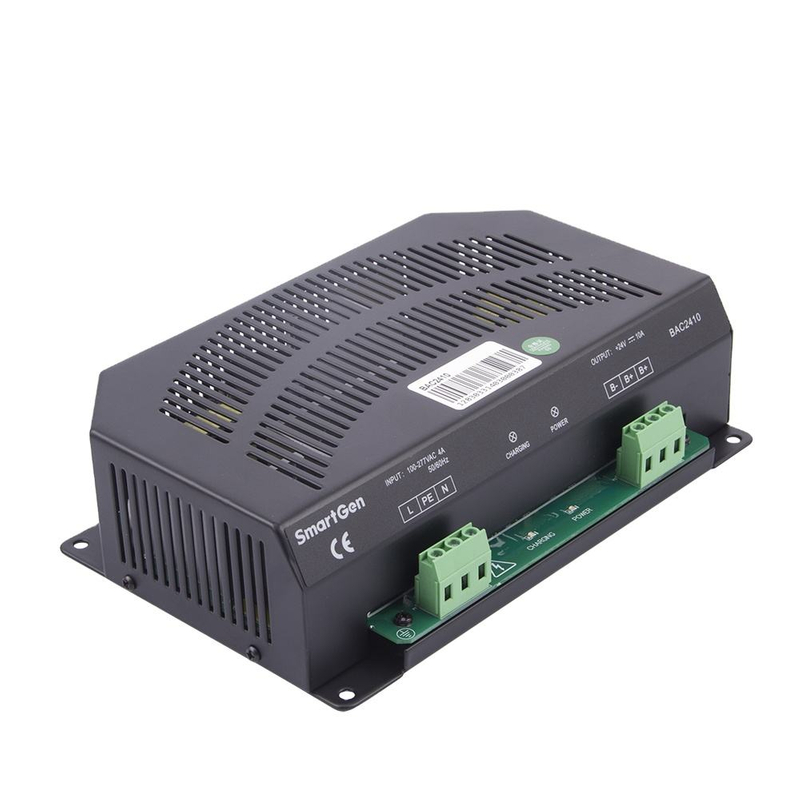

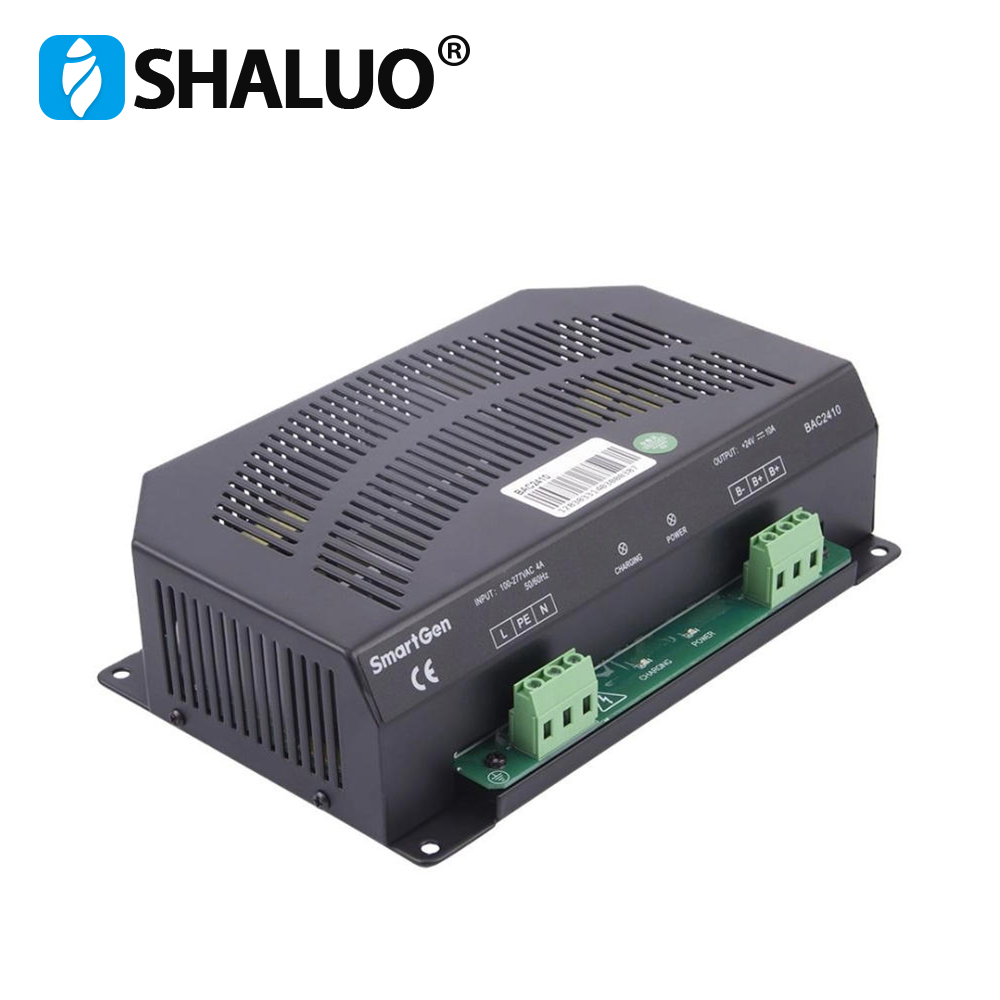

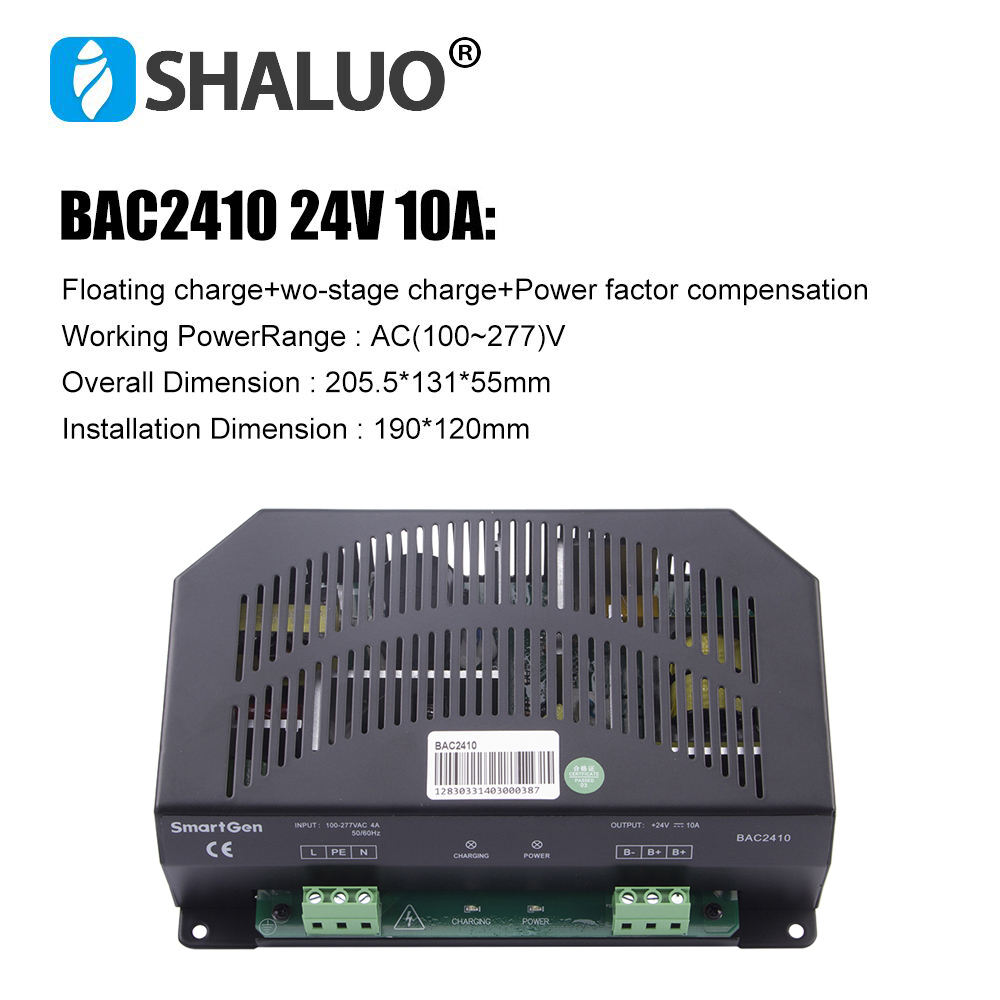

BAC2410:Fit with up-to-date power supply device, float charger BAC2410 is specially designed for meet the charging characteristics
of the lead-acid engine starter batteries and can be used for long-term float charging of 24V lead-acid batteries.
PERFORMANCE AND CHARACTERISTICS:
Switch power supply structure, wide input alternating voltage range, small size, light weight, high efficiency rate;
Automatic two-stage charging process (first constant current, then constant voltage) carried out according to storage battery
charging characteristics to prevent overcharging and significantly prolong battery lifetime;
Built-in PFC circuit can calibrate the power factor above 0.99;
Built-in current protective circuit, which can give effective protection when output over current, short-circuit or reverse
connection occurs. Regard power lamp or charge lamp fast blinking as alarm;
Suitable for 24V storage battery and the rated current is 10A;
LED display: Power indication (Green light) and charging indication (Red light).
BACM2410:
BACM2410 battery charger is intelligent and multi-function which is specially designed for meet the charging characteristics of
the lead-acid engine starter batteries. Suitable for 24V battery and the maximum charge current is 10A.
PERFORMANCE AND CHARACTERISTICS:
Switch power supply structure, wide input AC voltage range, small size, light weight, high efficiency rate;
Users can select automatic two-stage charging process or automatic three-stage charging process as needed. Both the two charging
process are carried out according to storage battery charging characteristics to prevent overcharging and significantly prolong
battery lifetime;
Built-in PFC circuit can calibrate the power factor above 0.99;
Built-in current protective circuit for over current protection, short-circuit protection and reverse connection protection. The
output will be recovery automatically after the failure is removed.Battery voltage detection ports can detect the battery voltage
in real time.Battery low voltage output port; it will output low level immediately after the battery voltage has fallen below the
set value for preset delay.Temperature sensor port allows for monitoring the battery temperature in real time and temperature
compensation function which can prevent the battery temperature is too high effectively.Mains failure port; It will output low
level immediately when the AC input is interrupted.
BACM2410 charger is suitable for 24V battery;Rated current: 10A.
