Product Description

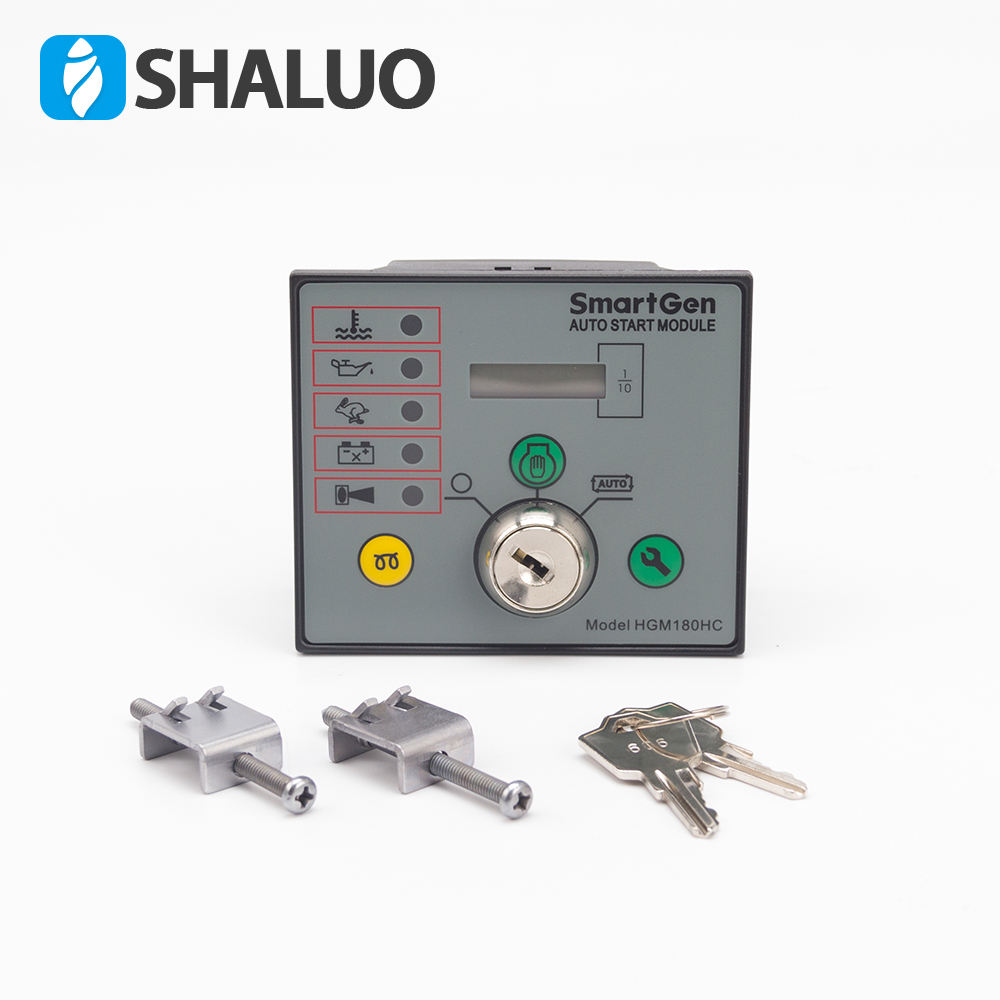

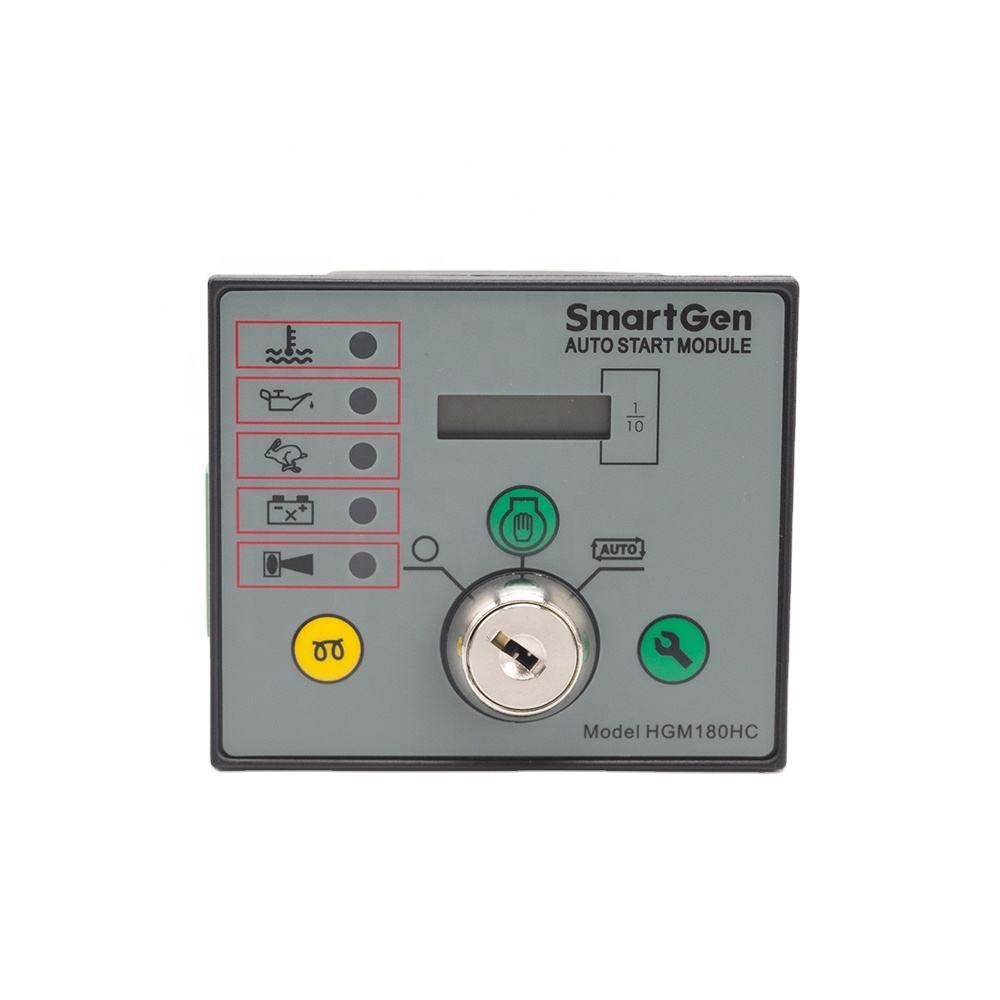

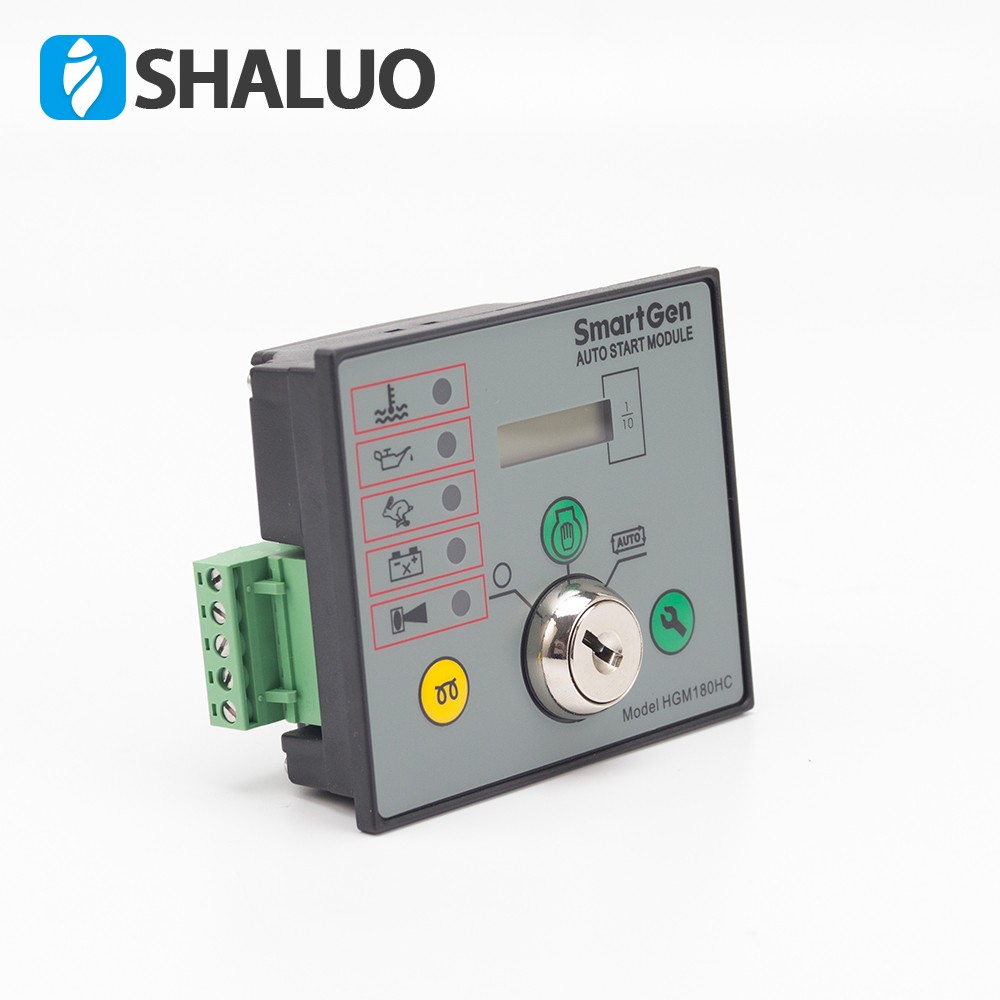

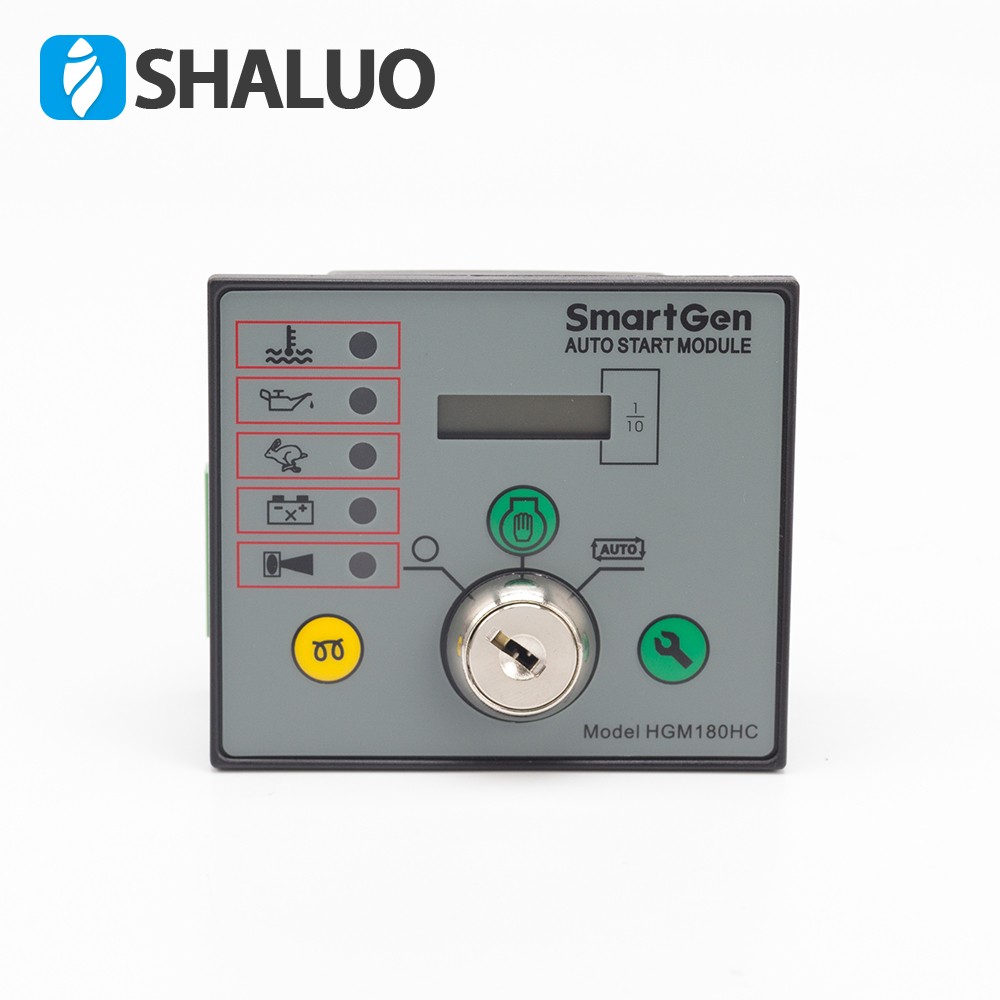

The HGM170 auto start module is an engine control module designed to control the engine via a key switch and remote start signal or pushbuttons on the front panel. The module is used to start and stop the engine and indicate fault conditions, automatically shutting down the engine and indicating the engine failure by LED, giving true, first-up fault annunciation.

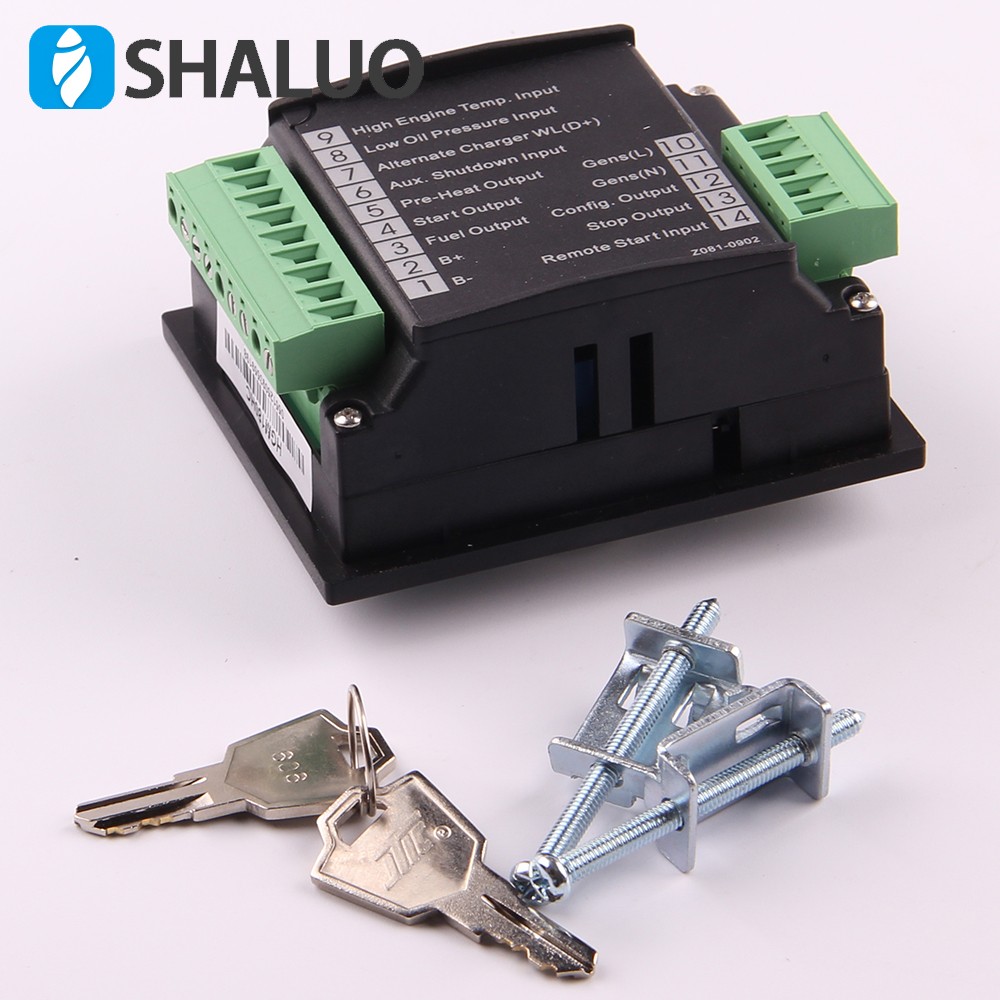

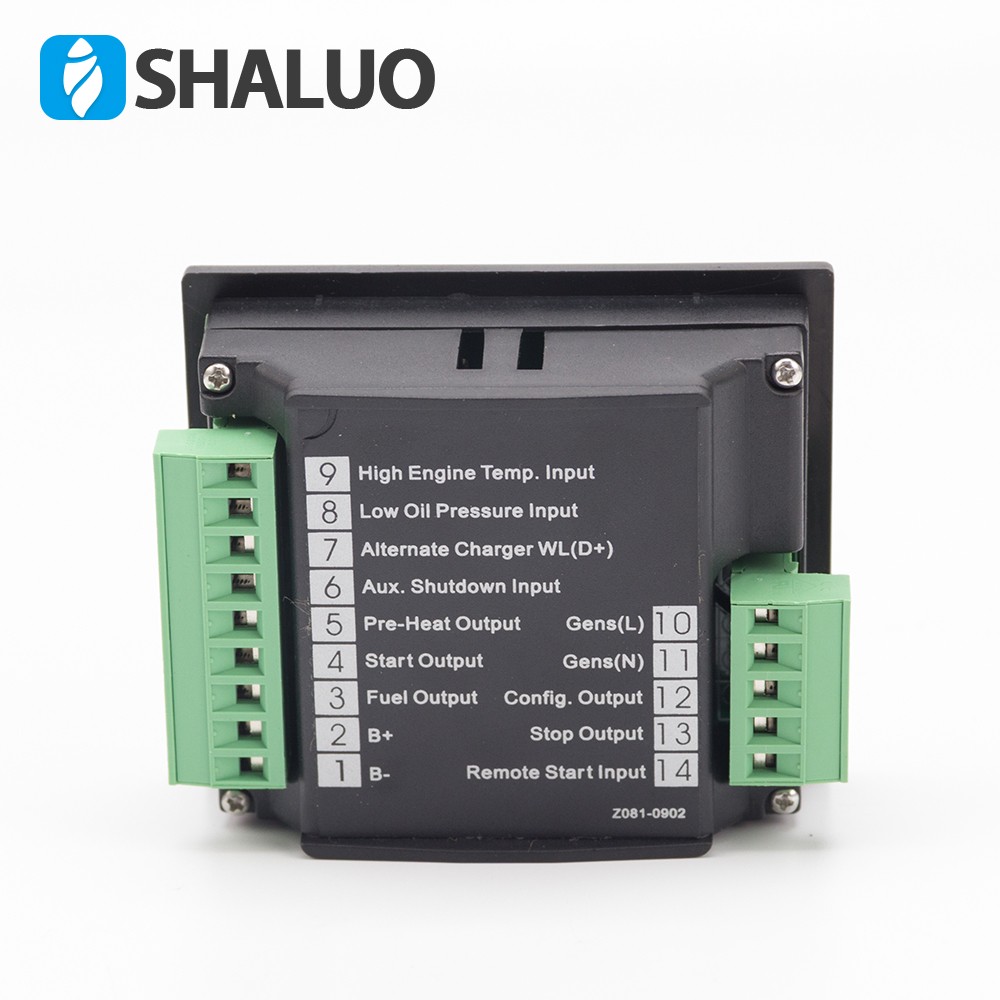

The module is housed in an enclosed robust plastic case for front panel mounting. Connections to the module are via plug and sockets.
The HGM170hc has a inbuilt LCD hours counter, which displays the number of hours that the generator has run, to the nearest 1/10 hour.
SPECIFICATION
DC Supply
8 to 35V continuous.
Alternator Input Range
15 - 300VAC(+20%) RMS
Alternator Input Frequency
50 - 60 Hz at rated engine speed.
Over speed: Nominal frequency +14% (+24% Overshoot)
Start Output
Relay 1A plant battery negative B- terminal
Fuel Output
Relay 1A plant battery negative B- terminal
Pre-heat Output
Relay 1A plant battery negative B- terminal
Stop Output
Relay 1A plant battery negative B- terminal
Four switch Inputs
Switch to negative.
Frequency select
