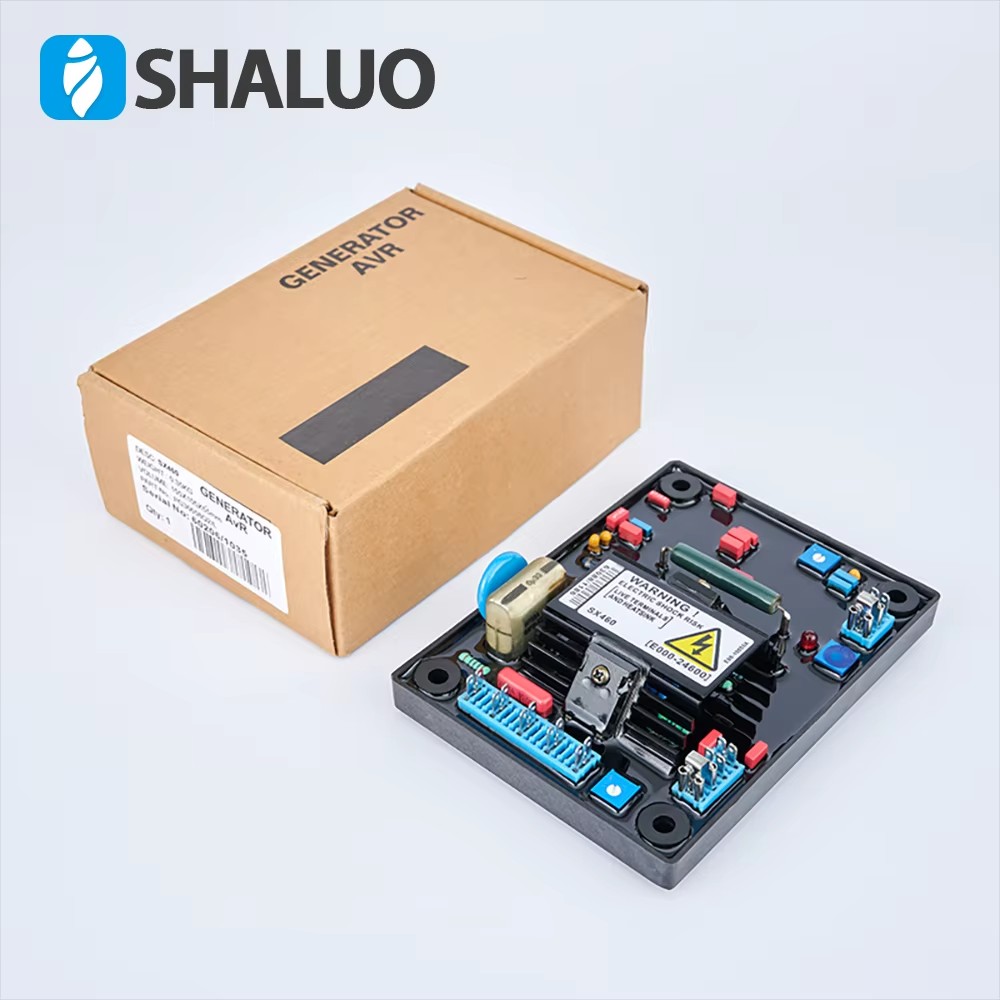

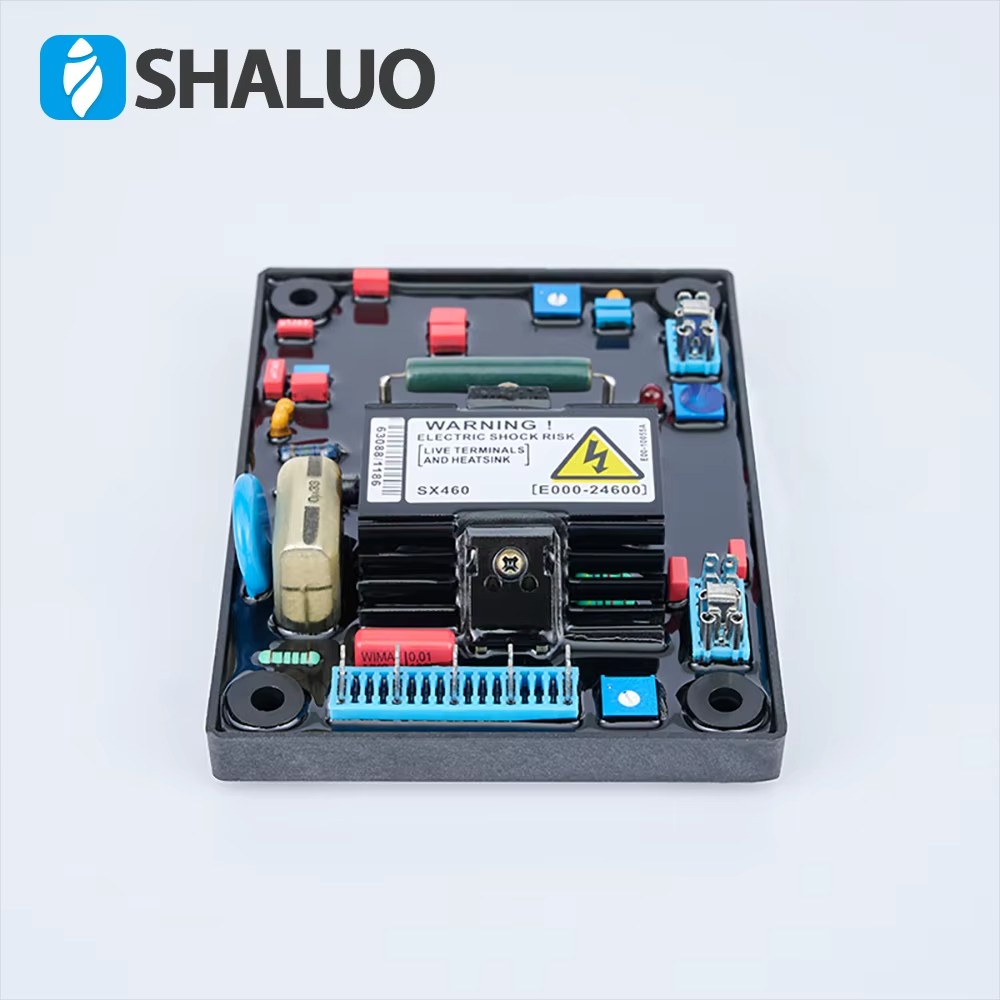

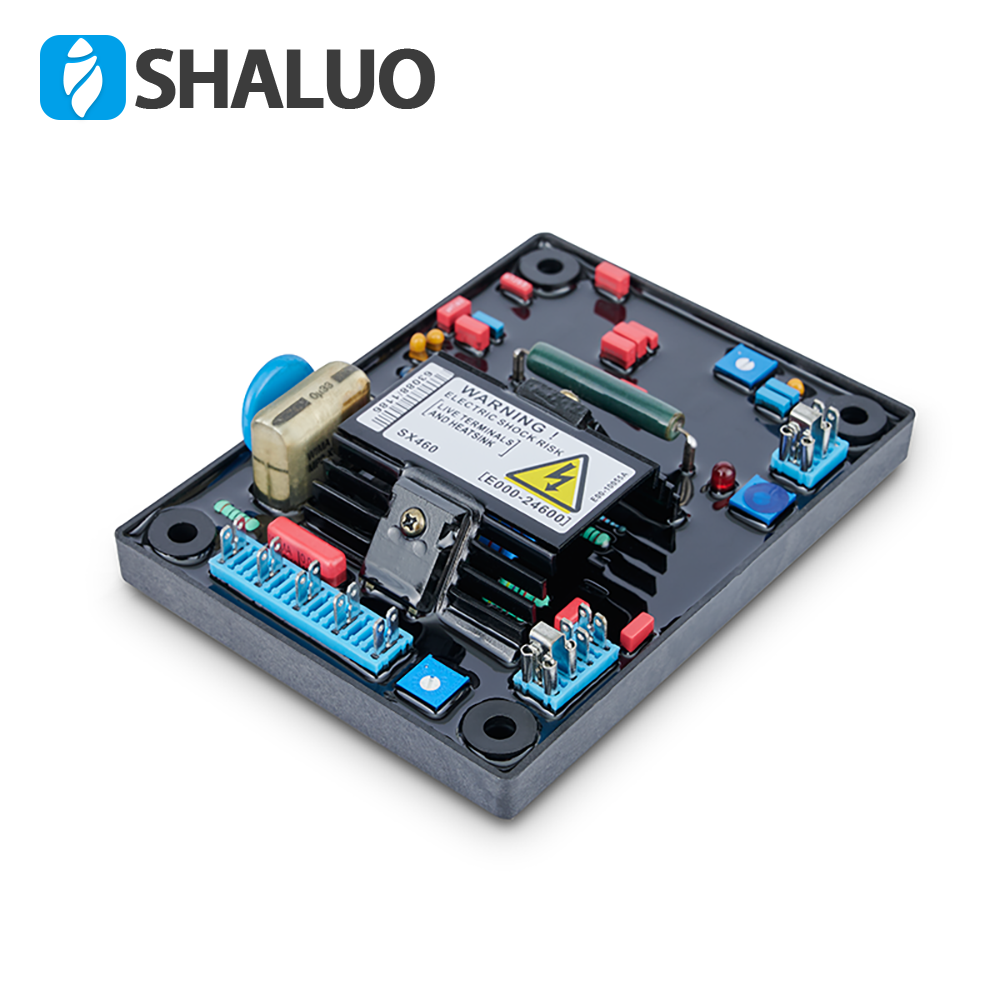

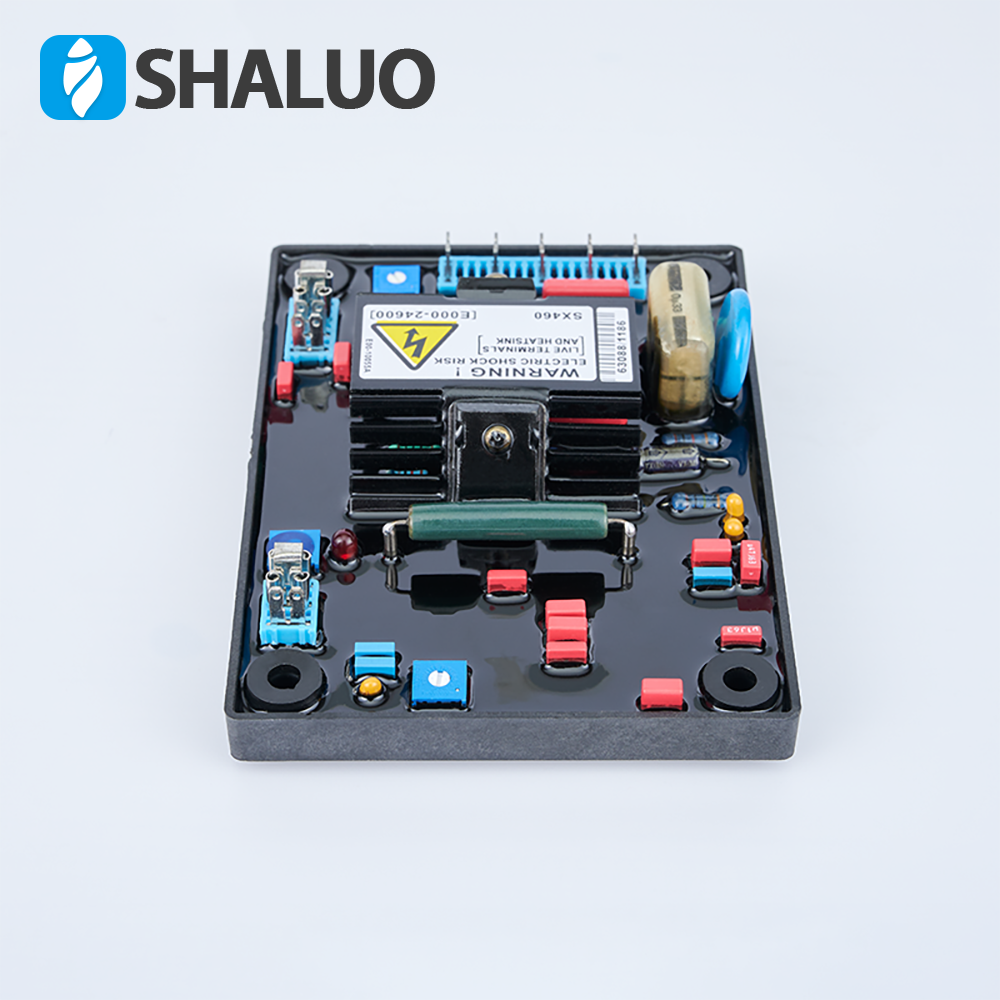

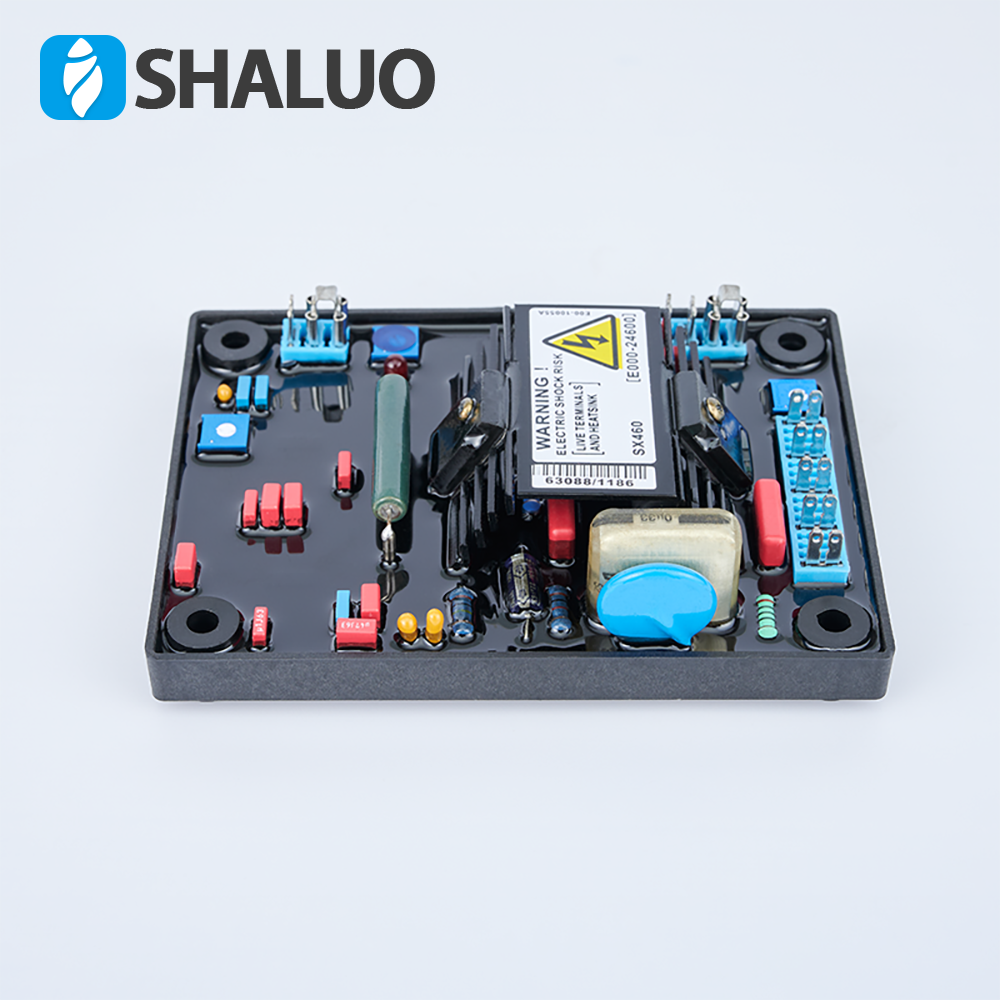

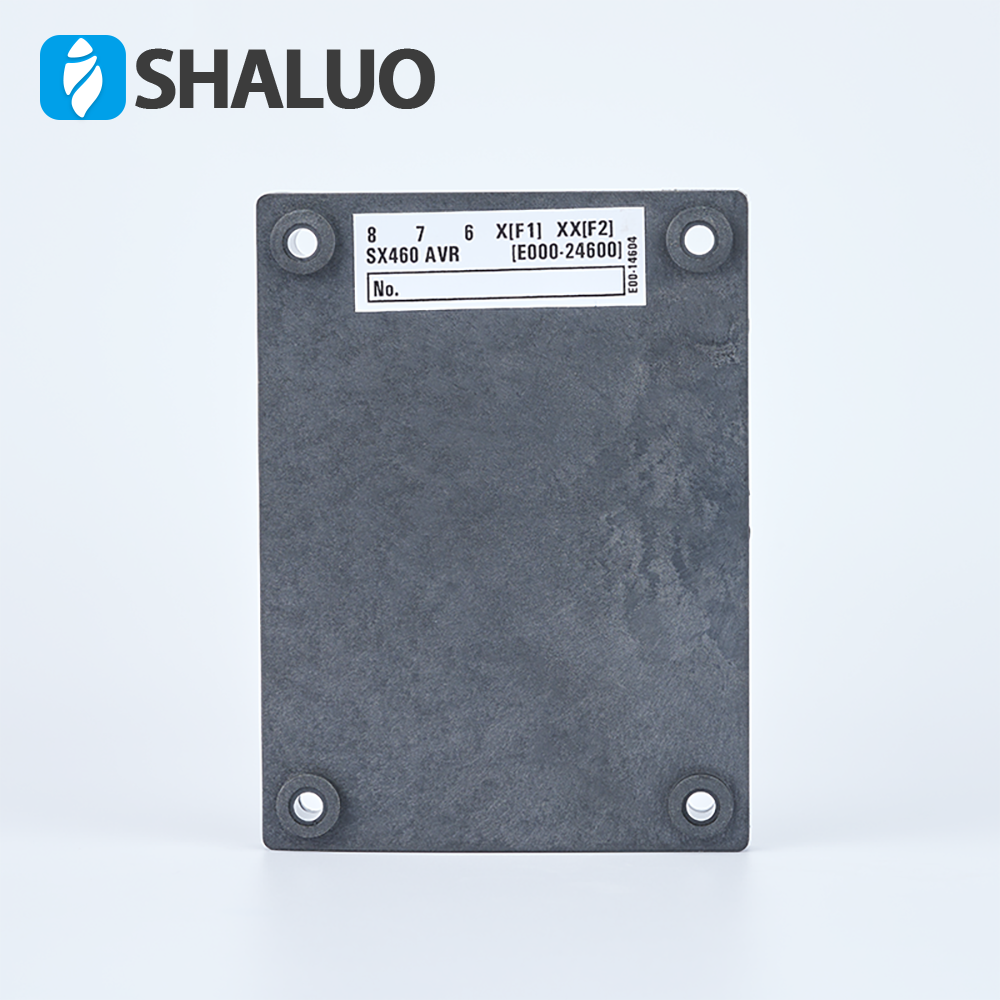

Generator Universal AVR SX460 For AC Brushless Generator AVR 3 Phases is a half-wave phase controlled thyristor type Automatic
Voltage Regulator and forms part of the excitation system for a brushless generator. In addition to regulating the generator
voltage, the AVR circuitry includes under speed and sensing loss protection to ensure safe, reliable control of the generator.
Positive voltage build up from residual levels is ensured by the use of proficient semiconductors in the power circuitry of the
AVR. Which is linked with the main stator windings and the exciter field windings to offer closed loop control of the output
voltage with load regulations of +/- 1.5%.
