Product Description

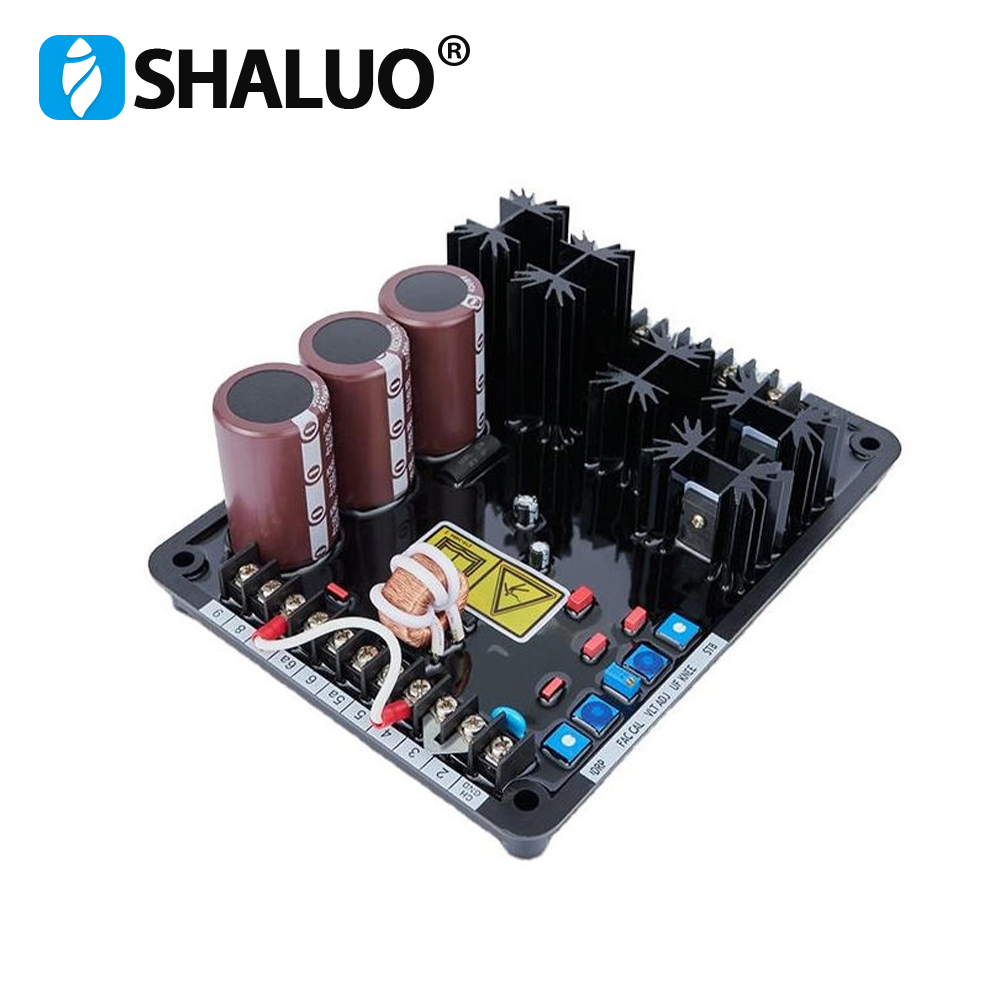

| Specications | K65-12B | K125-10B | |
| Output power(with a 240 Vac input): | 12Adc@ 65 V dc maximum continuous. | 10Adc @ 125V dc maximum continuous. | |
| 25Adc @ 125 V dc forcing for 10 seconds. | 20Adc @ 250 V dc forcing for 10 seconds. | ||
| AC input power | 100 to 280Vac,single-phase 50 to 400 Hz,or 63 to 105 Vac;three-phase,50 to 400 Hz,1092 VA maximum continuous burden | 180to 280Vac,single-phase or three-phase,50 to 400Hz,1750VA maximum continuous burden | |
| AC sensing voltage | 90 to 140 Vac,50/60Hz;single-or-three-phase | 90 to 140 Vac,50/60Hz;single-or-three-phase | |
| External voltage adjust rheostat: | 10k ohm,2 W,potentiometer | 10k ohm,2 W,potentiometer | |
| Regulation accuracy | ±0.5% Average responding | ±0.5% Average responding | |
| Voltage drift | ±1% voltage variation for a 40℃(104℉）change | ±1% voltage variation for a 40℃(104℉）change | |
| Response time: | ＜ 4 milliseconds | ＜ 4 milliseconds | |
| Frequency compensation: | 1 or 2 V/Hz jumper selectable with knee adjustable from 45Hz to 65 Hz. | 1 or 2 V/Hz jumper selectable with knee adjustable from 45Hz to 65 Hz. | |
| EMI suppression | Internal Iter | Internal Iter | |
| Voltage Build-Up: | Internal provision for automatic voltage build-up from generator residual voltages as low as six Vac. | Internal provision for automatic voltage build-up from generator residual voltages as low as six Vac. | |
| Overexcitation shutdown | Overexcitation protection starts timing at 90 Vac ±5% and takes the output to zero in greater than 30 seconds.The output can be 125 Vdc for greater than 10 seconds. | Overexcitation protection starts timing at 180 Vac ±5% and takes the output to zero in greater than 30 seconds.The output can be 250 Vdc for greater than 10 seconds. | |
| Droop | 1A or 5 A,＜10VA，adjustable from 0 to 10% at rated input current,0.8 power factor | 1A or 5 A,＜10VA，adjustable from 0 to 10% at rated input current,0.8 power factor | |
| UL recognized/CSA certied | UL Recognized per Standard 508,UL File NO.E97035.CSA certied per Standard CAN/CSA-C22.2 No.14-95,CSA File No.LR 23131 | UL Recognized per Standard 508,UL File NO.E97035.CSA certied per Standard CAN/CSA-C22.2 No.14-95,CSA File No.LR 23131 |
