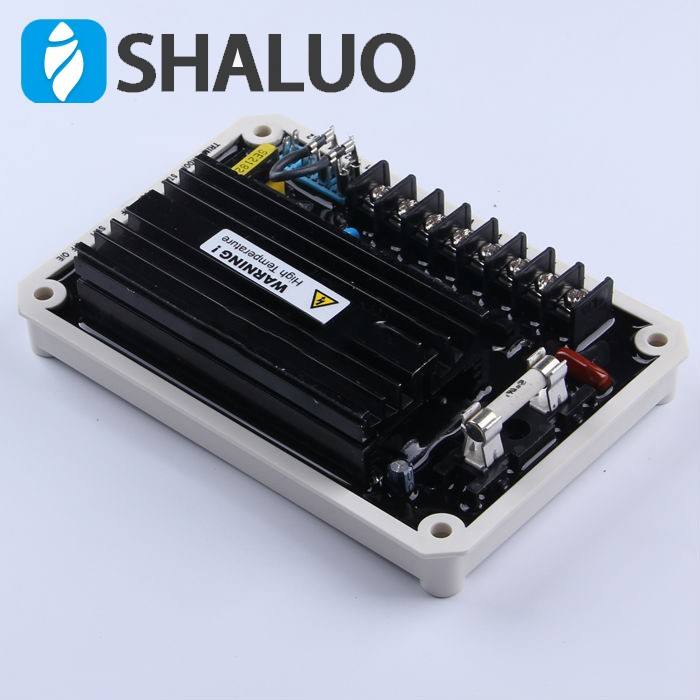

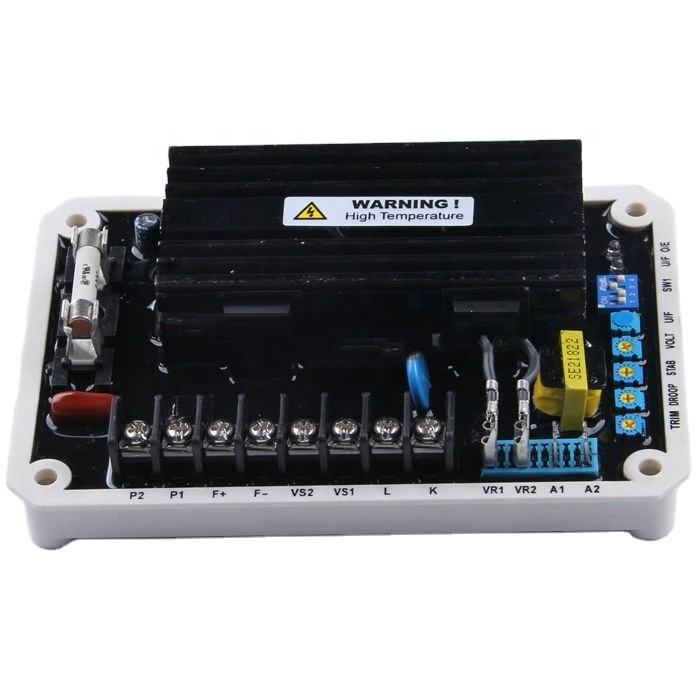

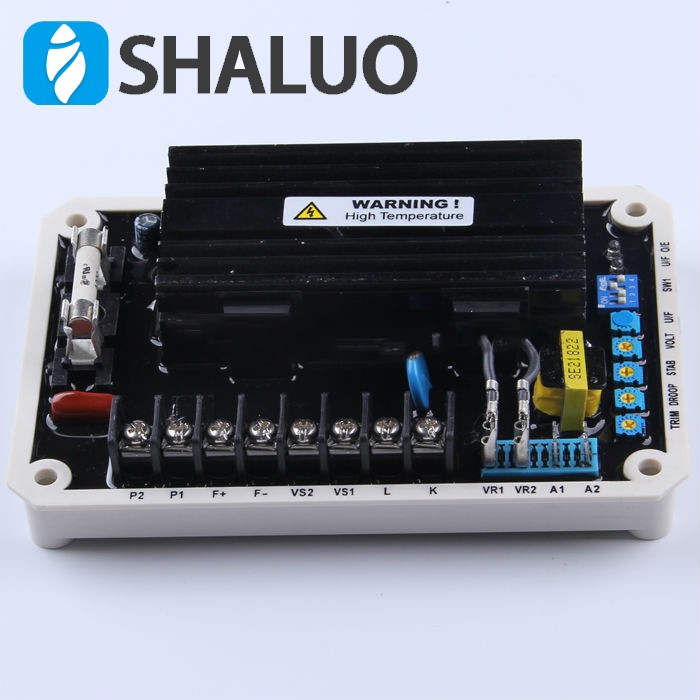

generator accessories EA16 Automatic Voltage Regulator AVR for genset set

1.EA16 Suitable Frequency 50/60 Hz

2.Soft Start Voltage Ramping

3.16 ADC Current Output

4.Can be used in Parallel Operation



< ±0.5% Regulation

Suitable for brushless type generator Sensing Input 170~510 VAC

Can be used in Parallel Operation

16 ADC Current Output

EA16 Suitable Frequency 50/60 Hz , EA16-400Hz Suitable Frequency 400 Hz

Soft Start Voltage Ramping

Load CT Current Compensation, Analogue Voltage Input


Model NO. EA16 EA16-400Hz

Sensing Input Voltage 170~510 VAC Single Phase 2 wire Voltage 170~510 VAC Single Phase 2 wire

Frequency 50/60 Hz Frequency 400 Hz

Power Output Voltage 60~300 VAC Single Phase 2 wire

Max. 90 VDC @ 240 VAC input Voltage 60~300 VAC Single Phase 2 wire

Max. 90 VDC @ 240 VAC input

Input Current Continuous 16A, Intermittent 20A for 10 Sec.

Resistance Min. 6Ω @ 35 VDC Current Continuous 16A, Intermittent 20A for 10 Sec.

Resistance Min. 6Ω @ 35 VDC

Voltage Regulation < ±0.5% (with 4% engine governing) < ±0.5% (with 4% engine governing)

Voltage Build-up Residual volts at AVR terminal > 5 VAC Residual volts at AVR terminal > 5 VAC

External Volts Adjustment ±5% with 2 KΩ 1 watt trimmer ±5% with 2 KΩ 1 watt trimmer

CT Current Compensation Input 1A or 5A (Selectable) 1A or 5A (Selectable)

Analogue Input ±5 VDC ±10% AC @ ±3 VDC ±5 VDC ±10% AC @ ±3 VDC

Unit Power Dissipation Max. 10 watt Max. 10 watt

Thermal Drift 0.03% per °C change in AVR ambient 0.03% per °C change in AVR ambient

Under Frequency Protection 55 Hz @ 60 Hz , 45 Hz @ 55 Hz (Adjustable) 320 Hz (Adjustable)

Environment Operating Temperature : -40~70 °C

Storage Temperature : -40~85 °C

Relative Humidity : Maximum 95%

Vibration : 3.3G @ 100~2 KHz Operating Temperature : -40~70 °C

Storage Temperature : -40~85 °C

Relative Humidity : Maximum 95%

Vibration : 3.3G @ 100~2 KHz

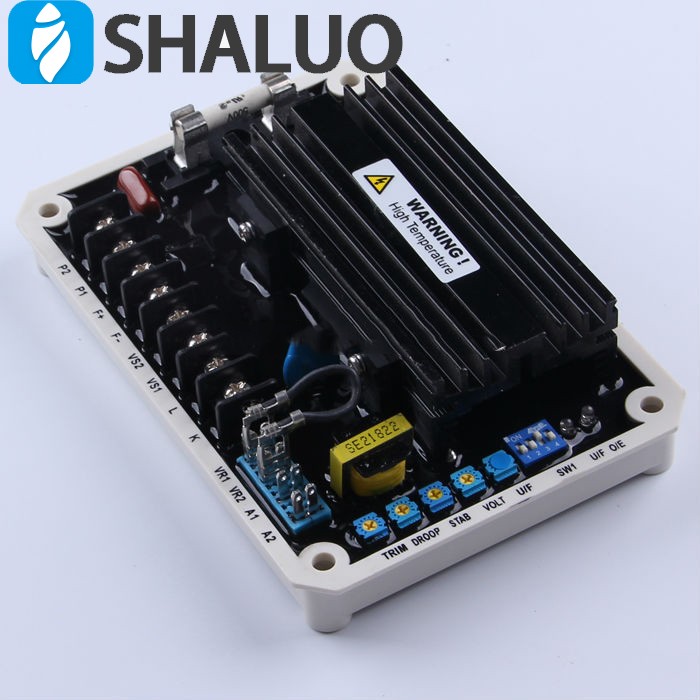

AVR Controls Functions VOLT : Voltage Adjustment

STAB : Stability Adjustment

U/F : To Set the U/F* Knee Point

(*U/F: Under Frequency Protection)

DROOP : To Adjust Droop

TRIM : Analogue Input Adjustment VOLT : Voltage Adjustment

STAB : Stability Adjustment

U/F : To Set the U/F* Knee Point

(*U/F: Under Frequency Protection)

DROOP : To Adjust Droop

TRIM : Analogue Input Adjustment

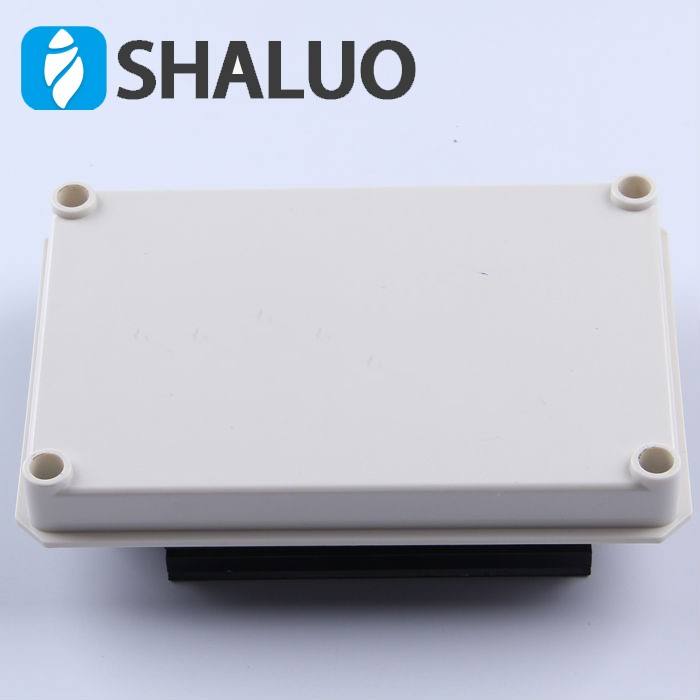

Dimensions 156.0 (L) x 106.0 (W) x 41.0 (H) mm 156.0 (L) x 106.0 (W) x 41.0 (H) mm

Weight 450 g ±2% 450 g ±2%
