Product Description

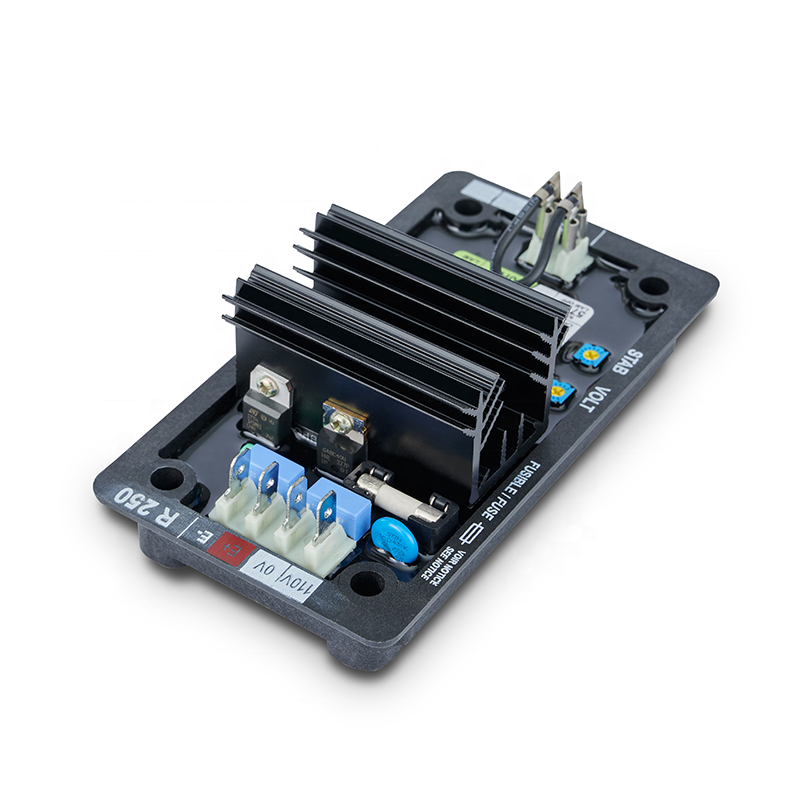

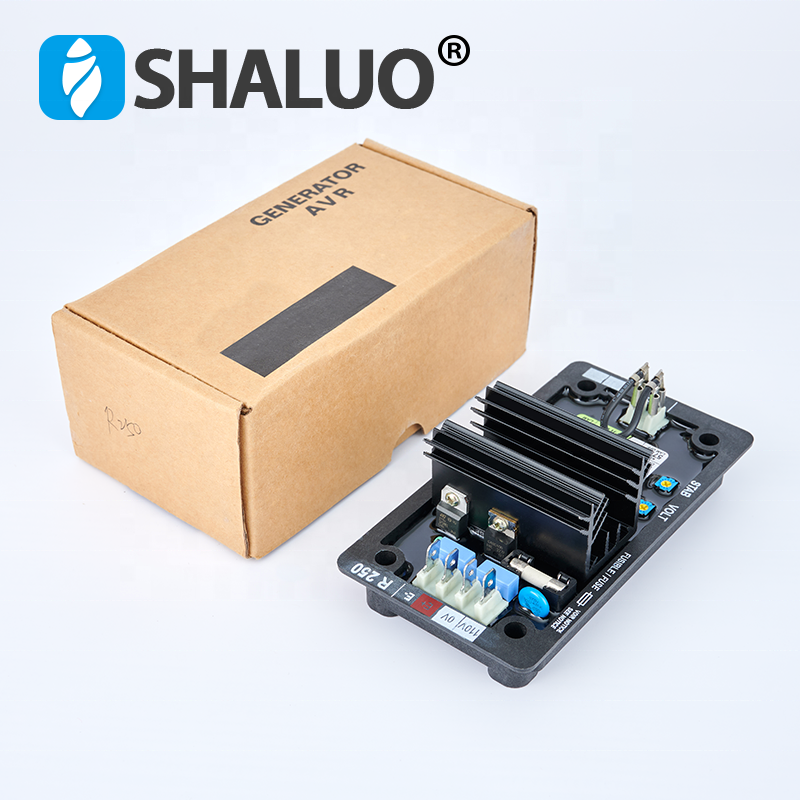

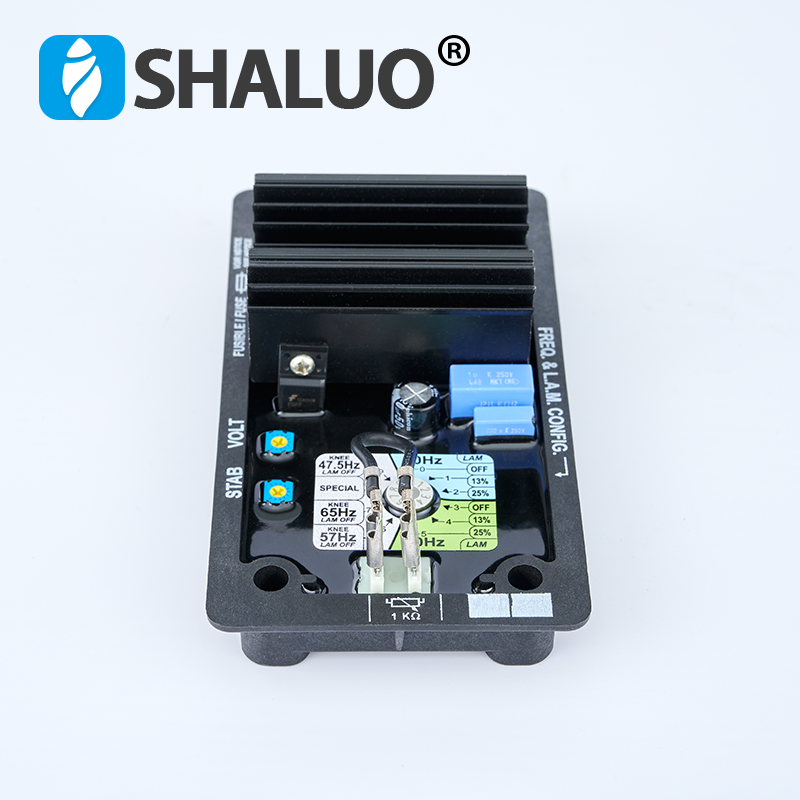

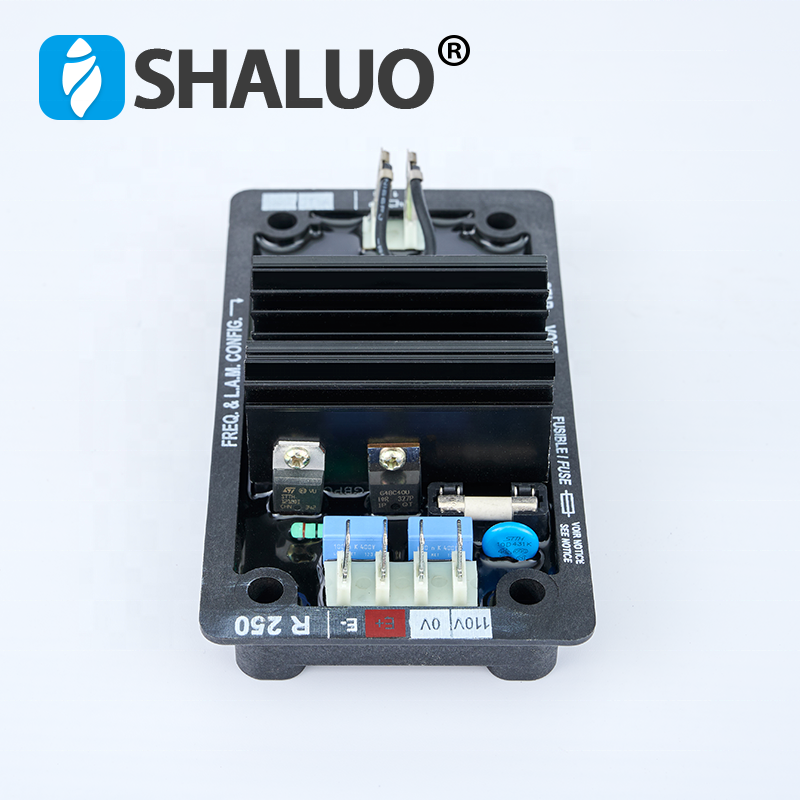

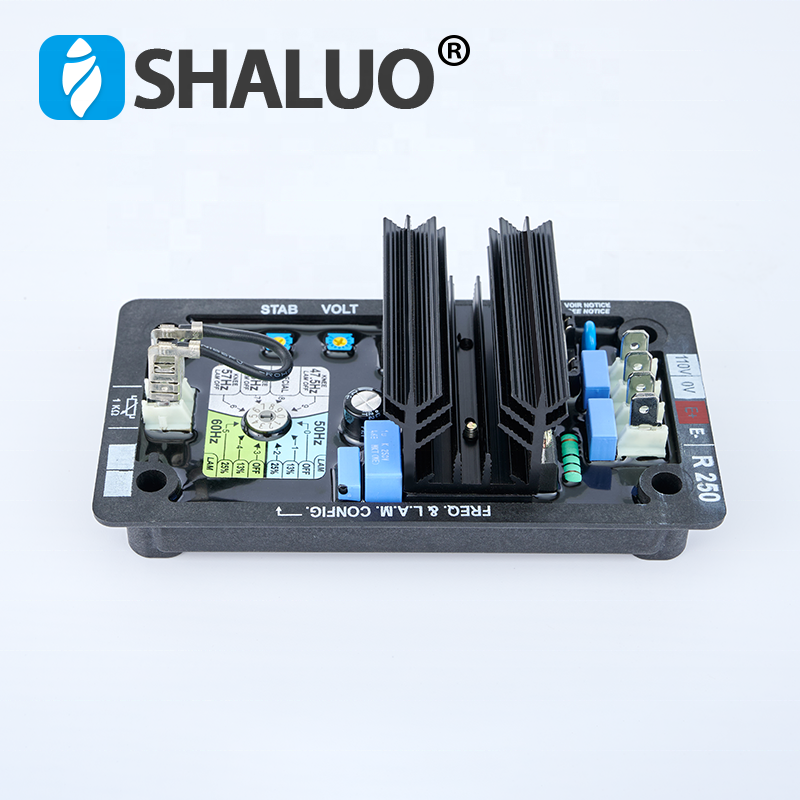

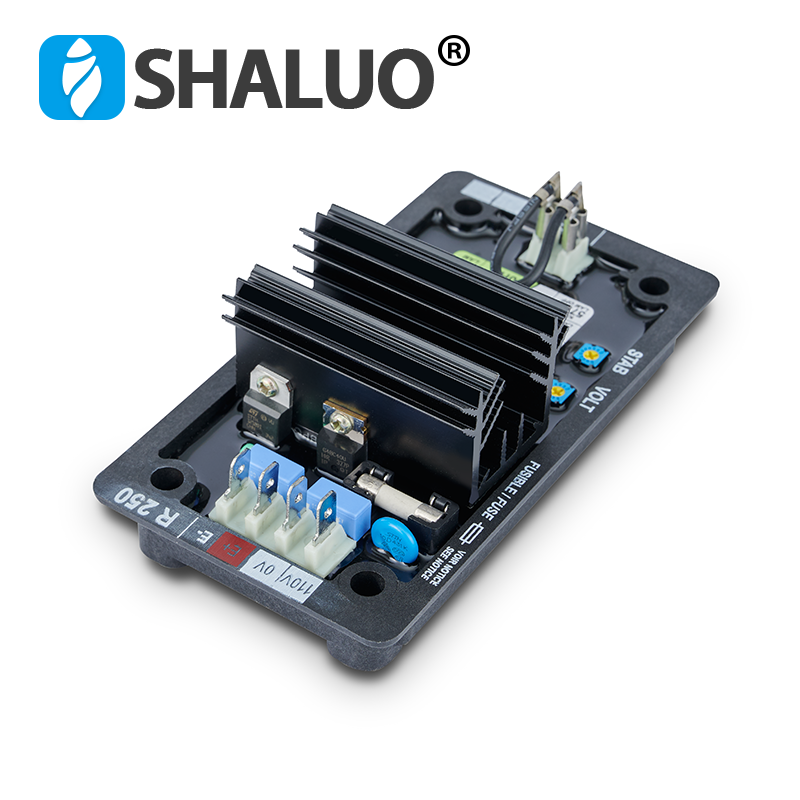

Generator AVR R250 is a half-wave phase controlled thyristor type Auto Voltage Regulator and forms part of the excitation system for a brushless generator. In addition to regulating the generator voltage, the AVR circuitry includes under speed and sensing loss protection to ensure safe, reliable control of the generator. Positive voltage build up from residual levels is ensured by the use of proficient semiconductors in the power circuitry of the AVR. Which is linked with the main stator windings and the exciter field windings to offer closed loop control of the output voltage with load regulations of +/- 1.5%
| AVR R250 | ||||||||||
| Voltage regulation | Around ± 0.5 % | |||||||||
| Supply range | 85 to 139 V | |||||||||
| Potentiometer for voltage setting | 1000Ω /0.5W min. setting range ±5% | |||||||||
| Operating at 50 Hz | Threshold at 48 Hz without LAM forimpactsbetween 30 and 40% of the rated Load | |||||||||
| Threshold at 48 Hz with LAM 13% forimpacts between 40 and 70% of the rated Load. | ||||||||||
| Threshold at 48 Hz with LAM 25% for impacts > 70% of the rated load | ||||||||||
| Operating at 60 Hz | Threshold at 58 Hz without LAM forimpacts between 30 and 40% of the Rated load | |||||||||
| Threshold at 58Hz with LAM 13% for impacts 40 and 70% of the rated load | ||||||||||
| Threshold at 58Hz with LAM 25% for impacts > 70% of the rated load | ||||||||||
| Specific operating | Threshold at 57Hz without LAM for speed variations at a steady state > 2 Hz | |||||||||
| Threshold at 65Hz without LAM for speed and tractelec / gearlec (U/F gradient) | ||||||||||
| Special: the factory setting 48Hz 2U/F gradient; a special programme is Possible on request. | ||||||||||
| Threshold at 47.5 Hz without LAM for speed variations at a steady state > 2 Hz | ||||||||||
