Generator Speed Controller 3062322

Brief introduction of functions:
3044196(speed controller) is a design with full electrical closed-loop path control function, which can control Cummins engine
perfectly when connecting with the matched actuator in EFC system, as it can control the engine speed rapidly and accurately once
getting instantaneous loading change.
2, Specification:
a, Electric Specification:
 RPM Stability: <±0.25%
 Speed Range: 1KHz ~ 6.5KHz
 Thermal stability: Max ±0.7%
 IDLE Regulation: 260 ±20Hz
 DROOP Regulation: Minimum 15Hz ±6Hz/ 1 Amp; Maximum: 400Hz ±75Hz/ 1 Amp
 External Speed Regulation: ±200Hz (with 1 KΩ connected)
 AUX Input Sensitivity: 148Hz / 1V., ±10Hz
 Impedance: 1MΩ
b, ENVIRONMENT:
 Working Temp Range: -40 ~ 85
 Working Humidity Range: Maximum 95%
 Stocking Temp: -55 ~ 92
 Shocking: 20-100HZ 500mm/Sec.
c, INPUT POWER SUPPLY
 Voltage: 12V or 24V
 Grounding Pole: Negative pole
 Power Supply: 40mA
 Actuator Continuous Current: Minimum 1A, Maximum 4.5A
 MPU Signal: 2 ~ 120V RMS
NOTE: Above-Mentioned parameters are tested with a 3800Hz working frequency.
3, Installation
please use antiskid self-lock screw to install after making hold in the suitable places according to the following data.

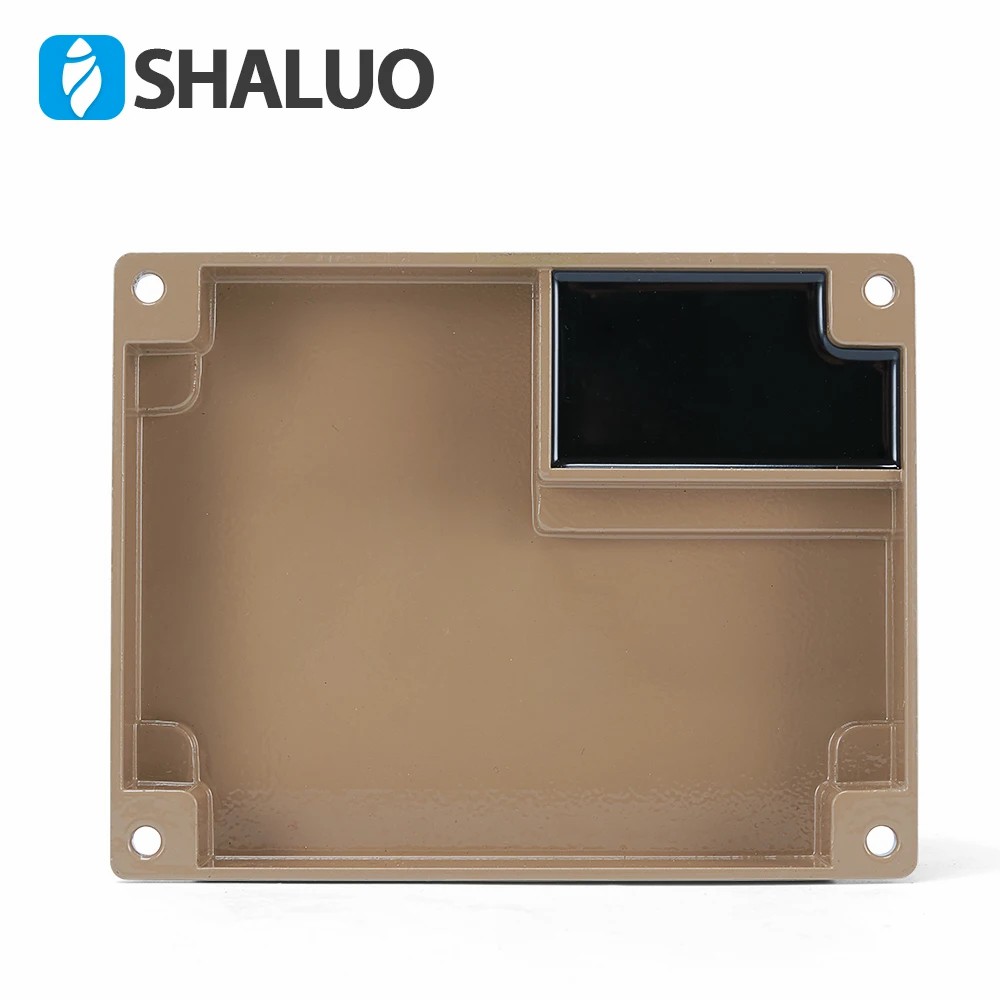

the distance between the center and four hole is 135mm*102mm, the diameter of the hole is 5.5mm.

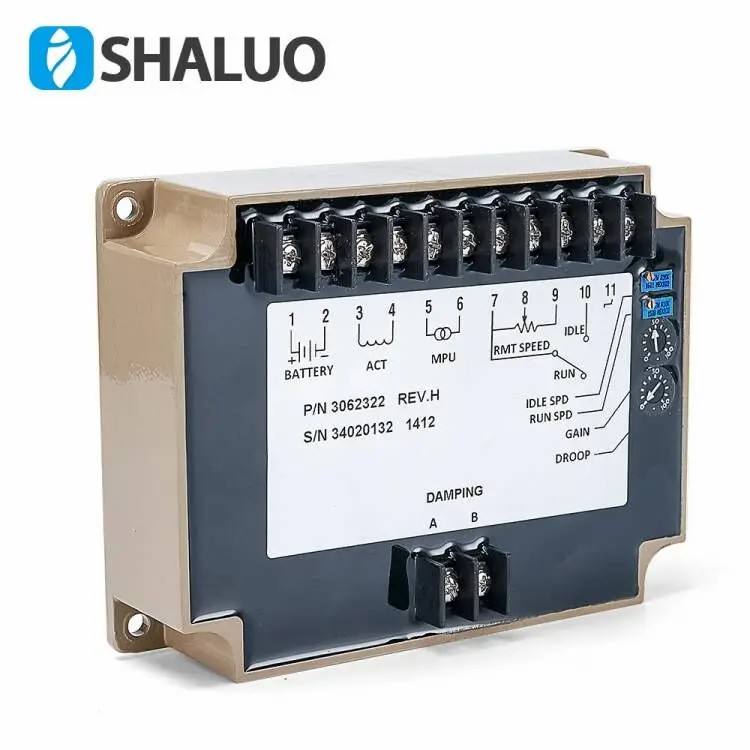

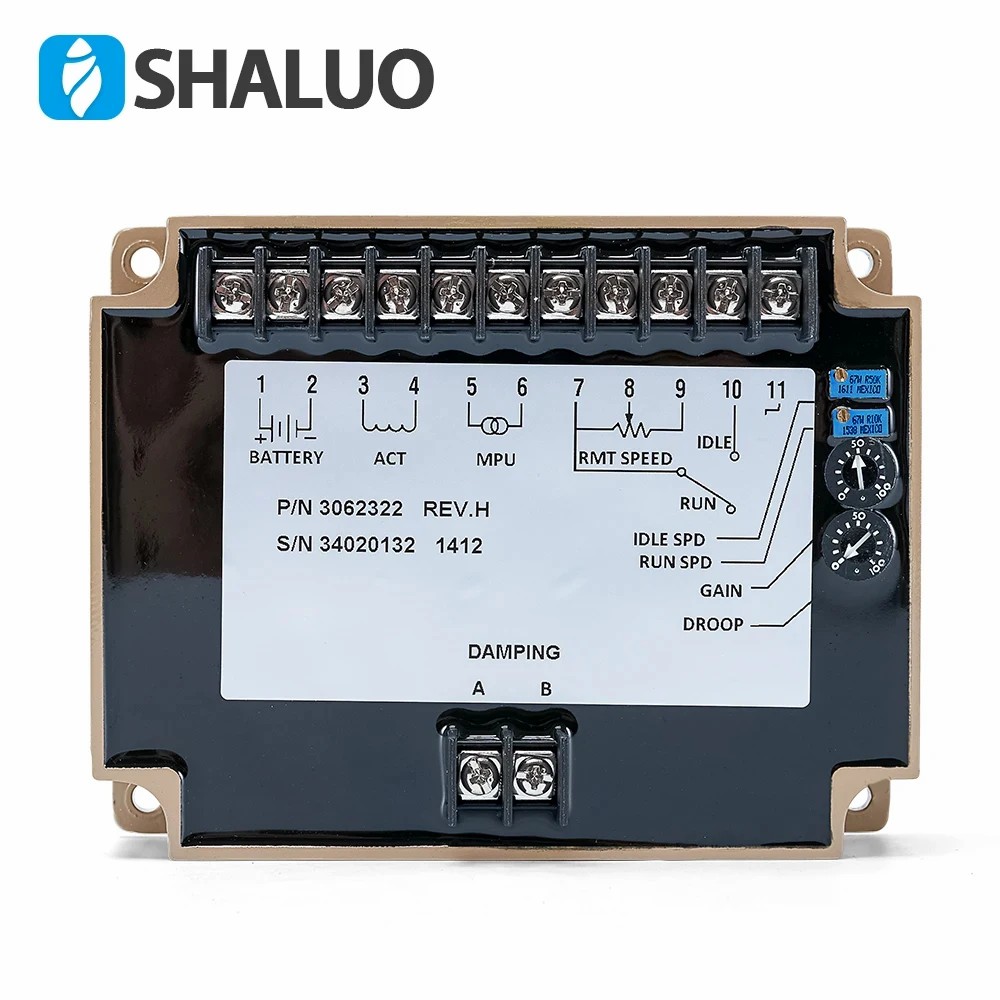

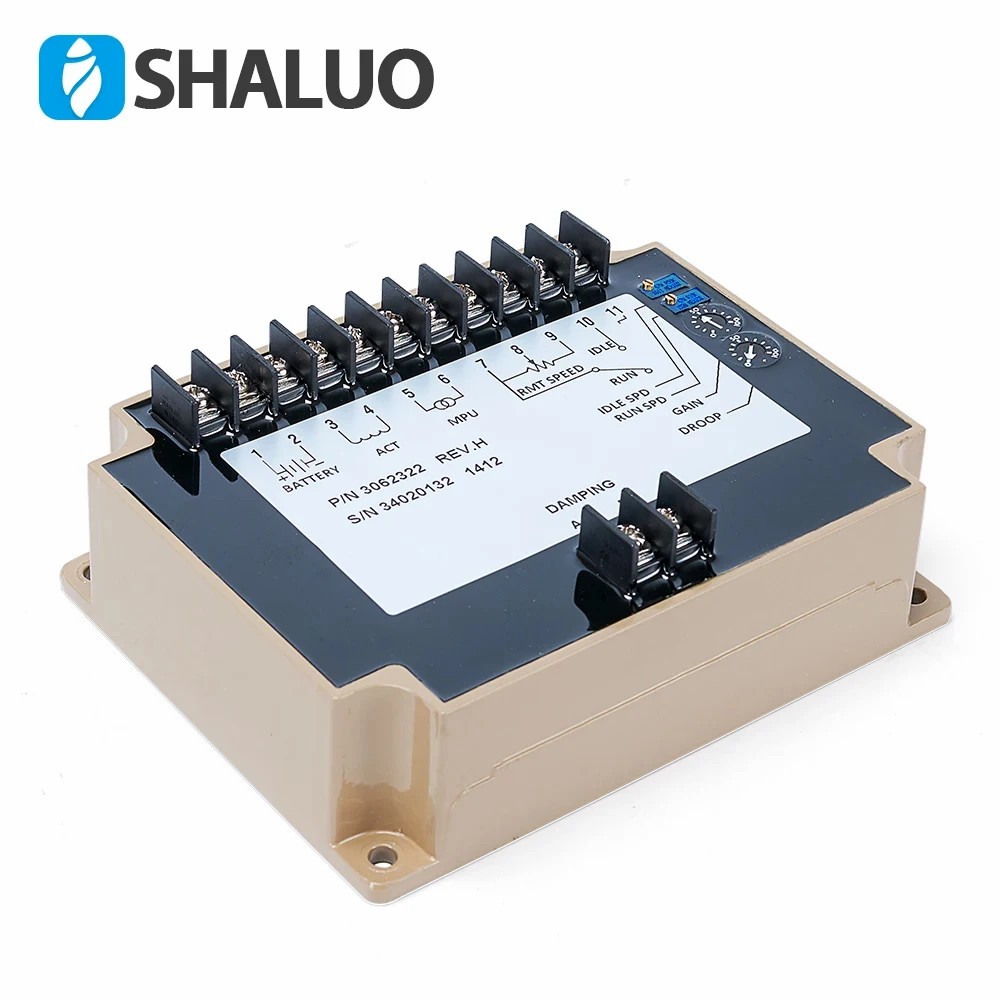

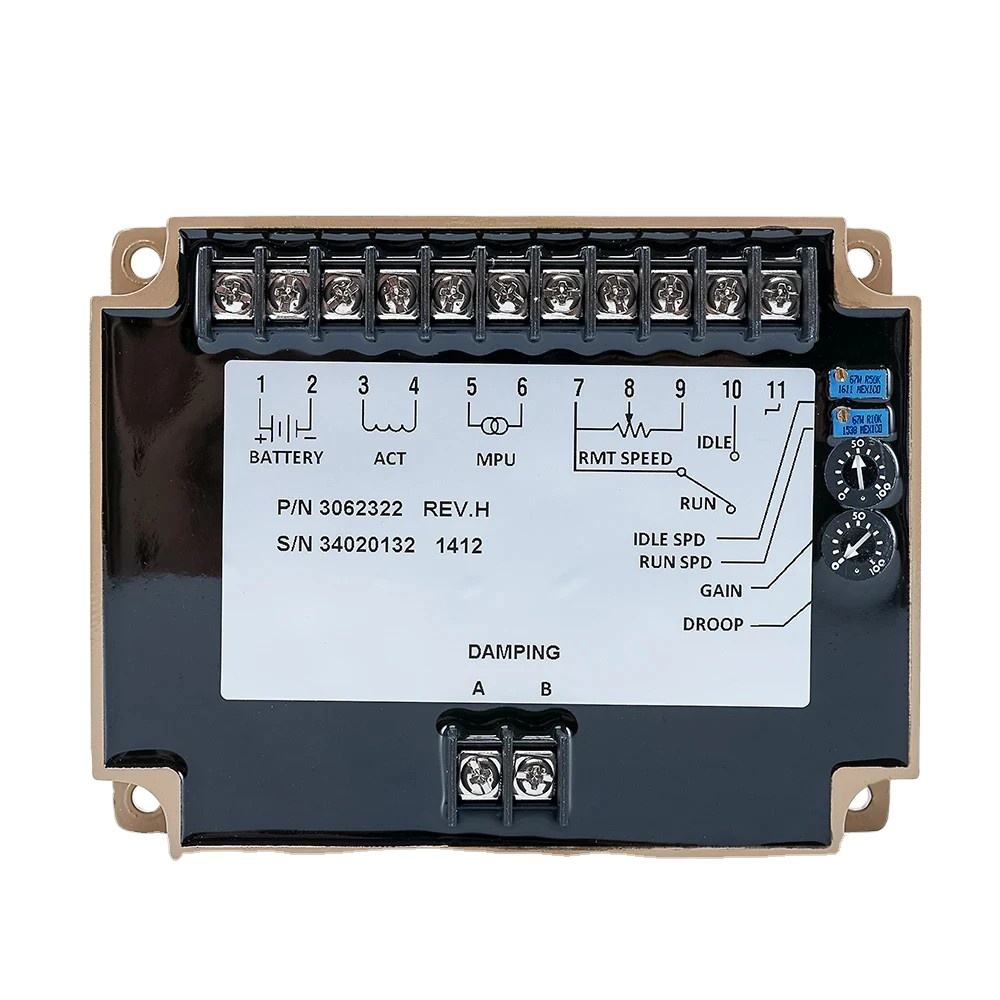

Terminals' introduction is as below:
Speed controller
No.1,No.2 terminals: 1 is DC positive, 2 is DC negtive.
No.3,No.4 terminals are the output connector of ACTUATOR
No.5,No.6 terminals are the input connections of MPU
No.7,No.8,No.9 terminals are external RPM fine tuning
No.10 is the connector of idle-speed switch
No.11 terminal is free connector
4, adjustment
The speed controllers shall be adjusted before sending out from factory, but it can be adjusted slightly again during the
operating according to different engine models, the operation is as below:
a, adjust to the initial position:
if wrong operation is made during the operation that the potentiometers adjustment is in a mess then please adjust as the
instruction below:
 stop engine and switch off the power of speed controller:
 please adjust IDLE SPEED to middle point(turning around 20 circles. Firstly use inverted direction to the bottom then turn
around 10 circles in clockwise direction)
 please adjust RUN SPEED to middle point (turning around 20 circles,Firstly use inverted direction to the bottom then turn around
10 circles in clockwise direction )
 please adjust GAIN to 20%~50%(turning around 1 circle)
 please adjust DROOP TO 0
b, IDLE
Usually the IDLE speed is 600-800 RMP per min, if turning IDLE in clockwise direction,the RPM will be increased;if turning IDLE in
inverted direction, the RPM will be decreased.
c, RUN
Usually the speed of idle load is 1515RPM per min(50.5Hz), rated load is 1500RPM per min(50.0Hz). if turning RUN in clockwise
direction,the RPM will be increased;if turning RUN in
inverted direction, the RPM will be decreased.
d, GAIN
The running speed of engine responses rapidly when turning GAIN in clockwise direction, the running speed of engine is stable when
turning GAIN in inverted direction, the places are in No.5-No.7.on the occasion of idle load, please adjust GAIN in clockwise
direction slightly till the running speed is up, then ajust GAIN in inverted direction slightly till the speed is stable.
e, DROOP
The function of DROOP: when the load is increased, then running speed of engine will be decreased. if turning DROOP in clockwise
direction, then the running speed's drop-out value will be increased;if turning DROOP in inverted direction, then the running
speed's drop-out value will be decreased.
