Product Description

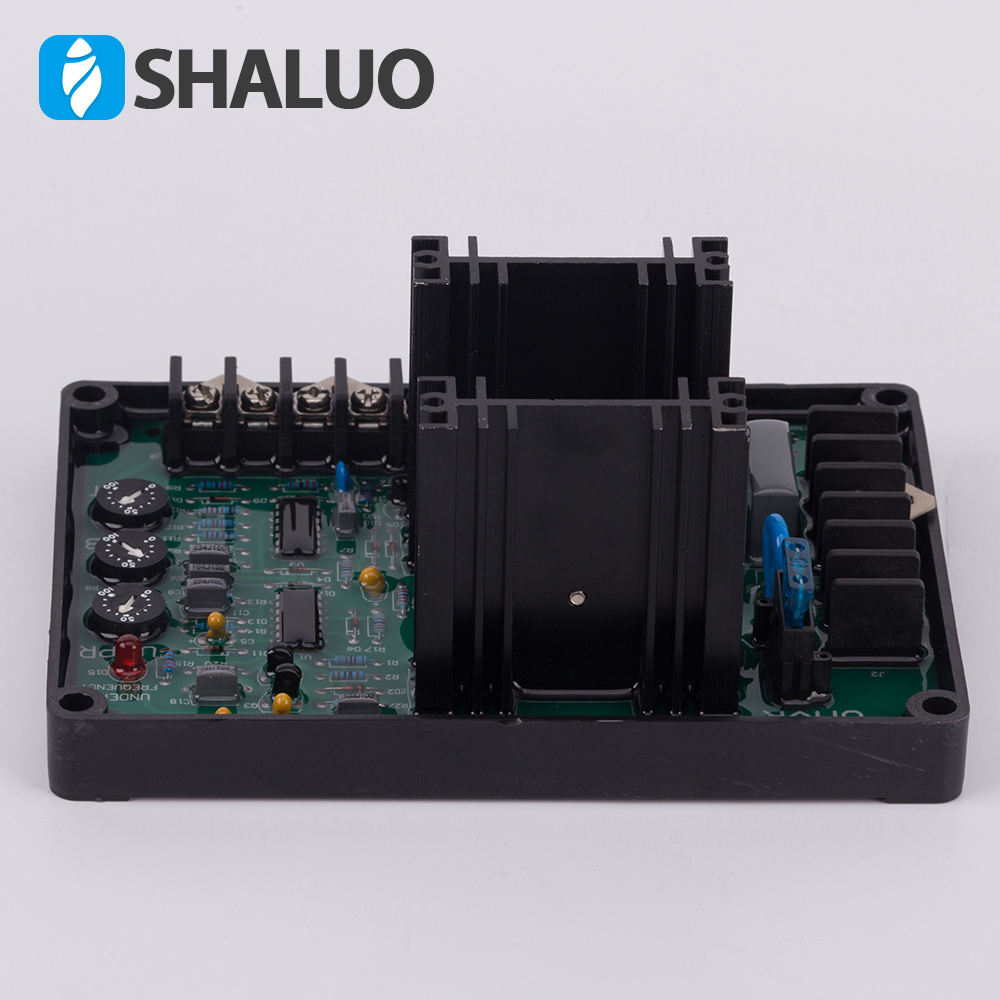

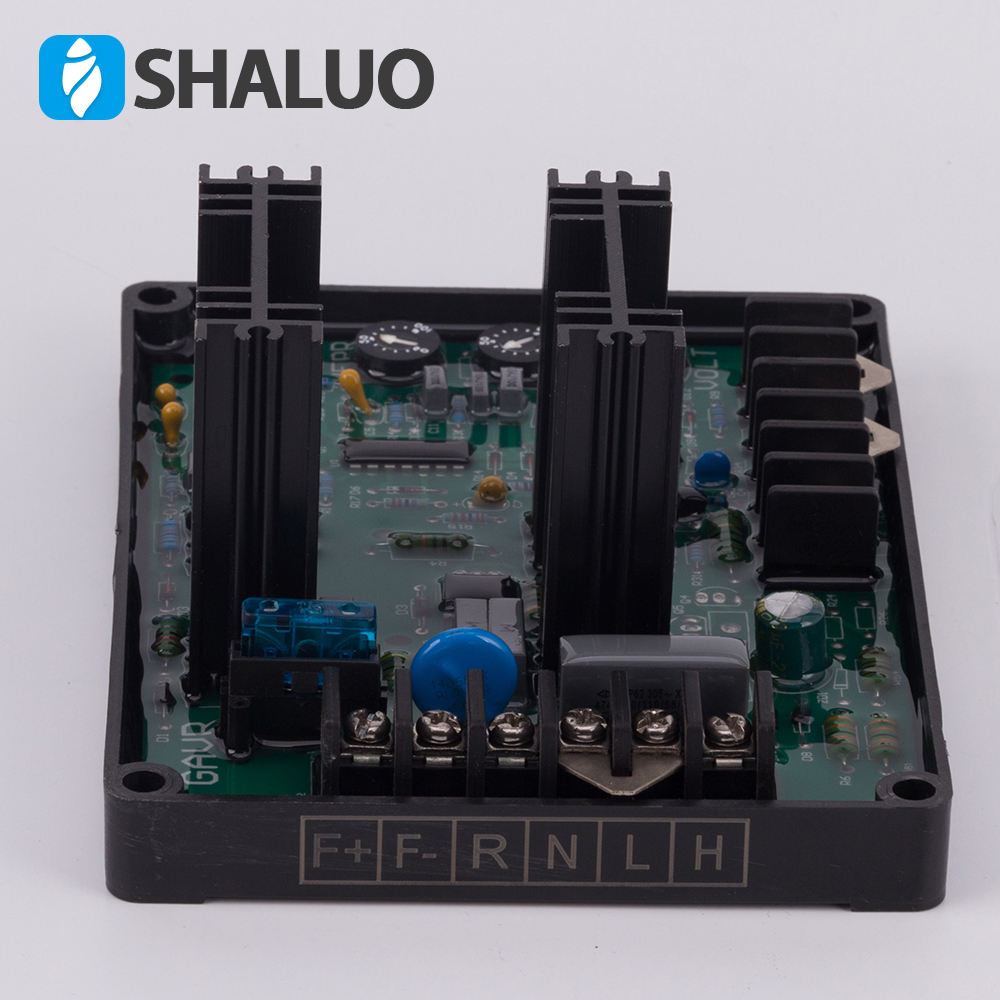

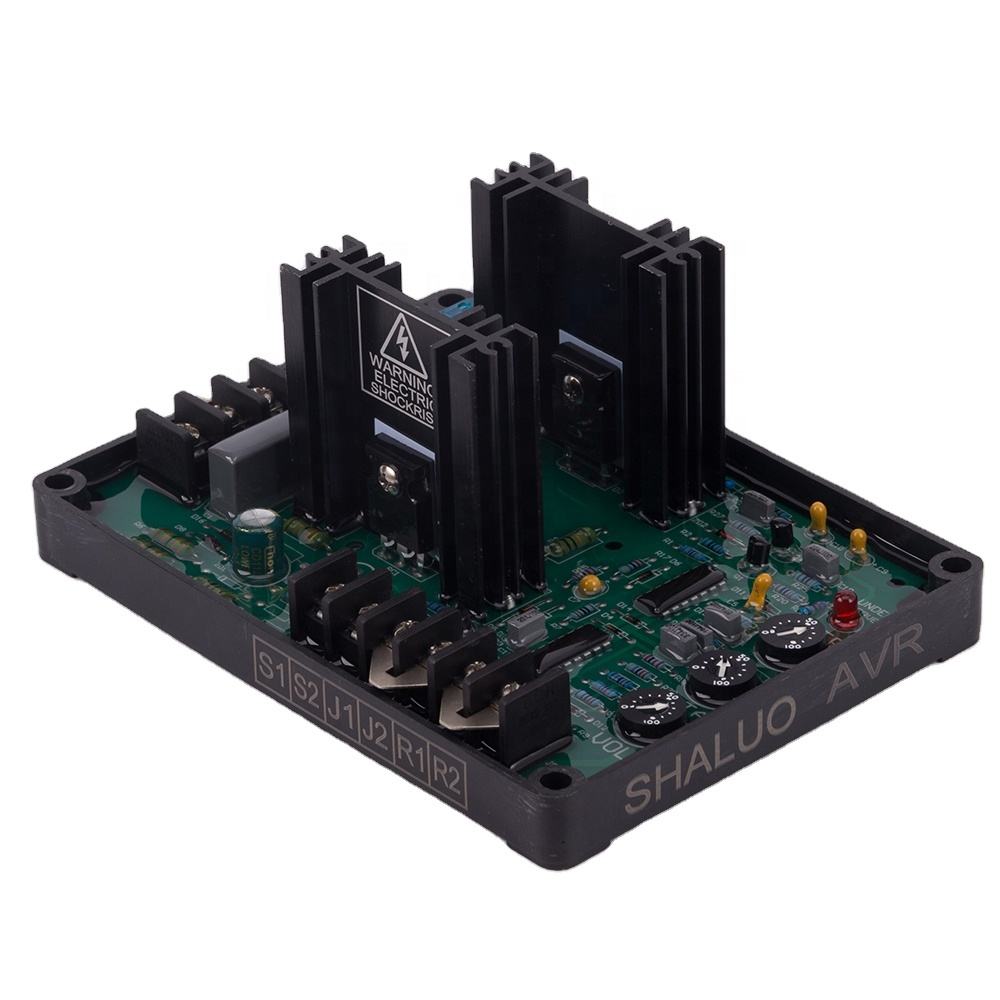

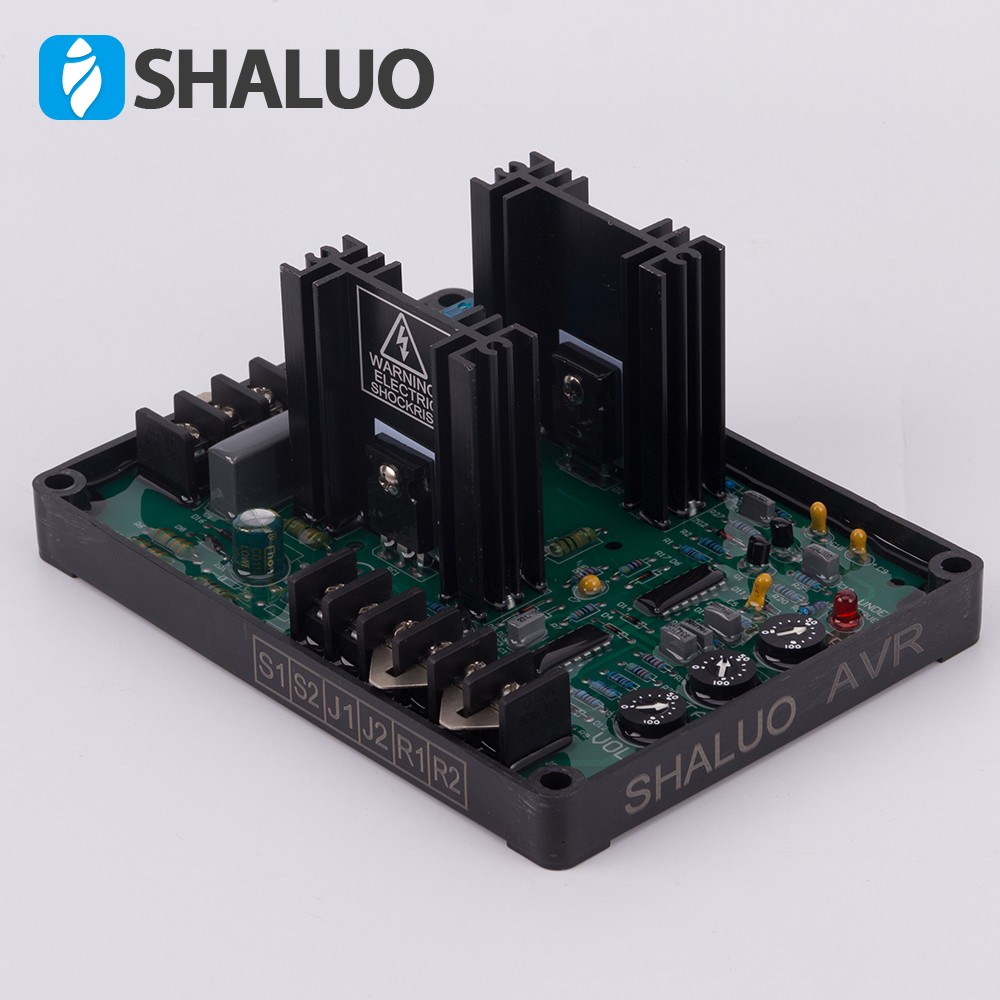

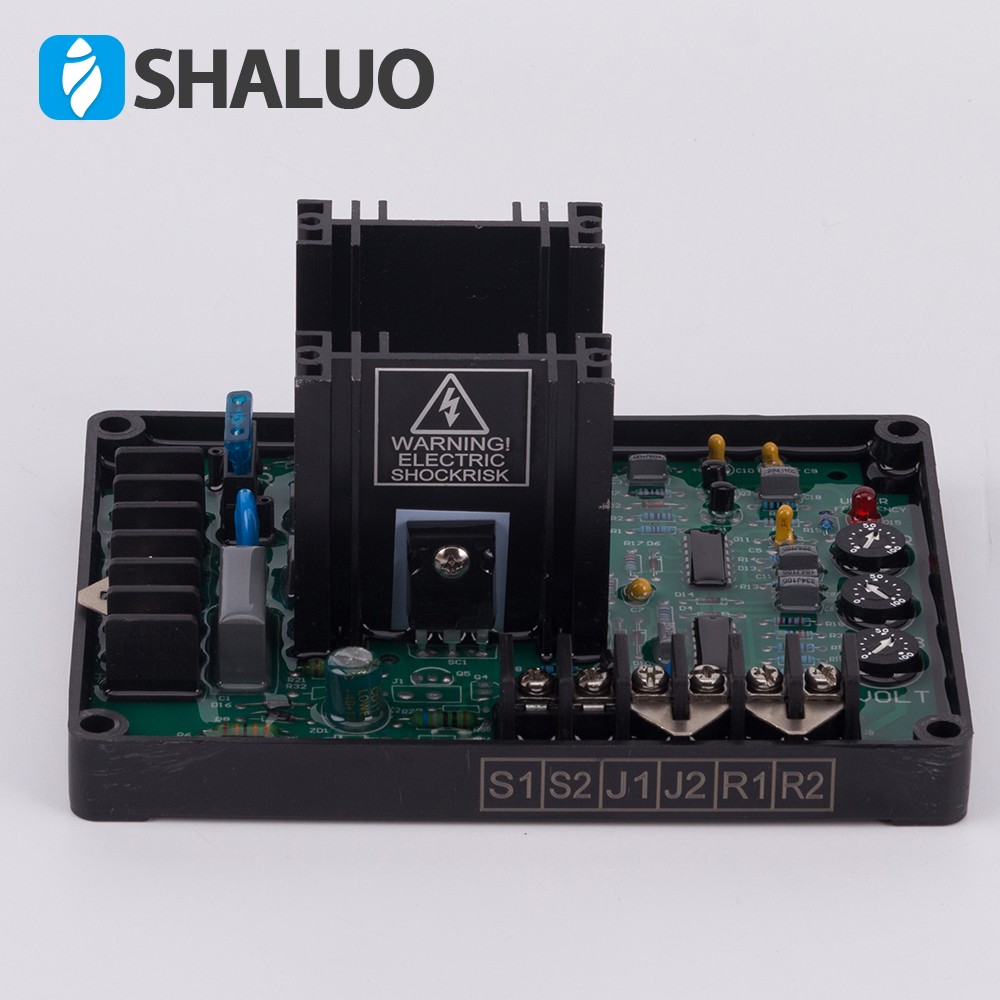

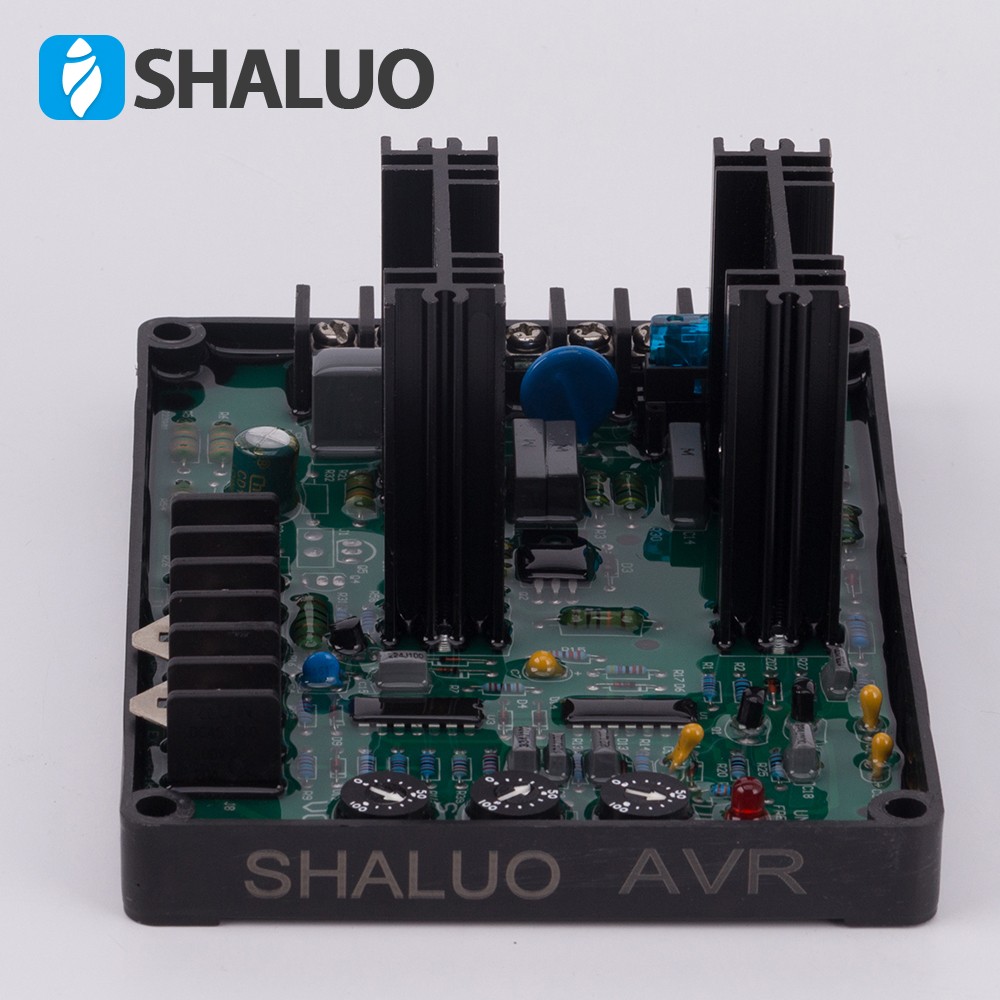

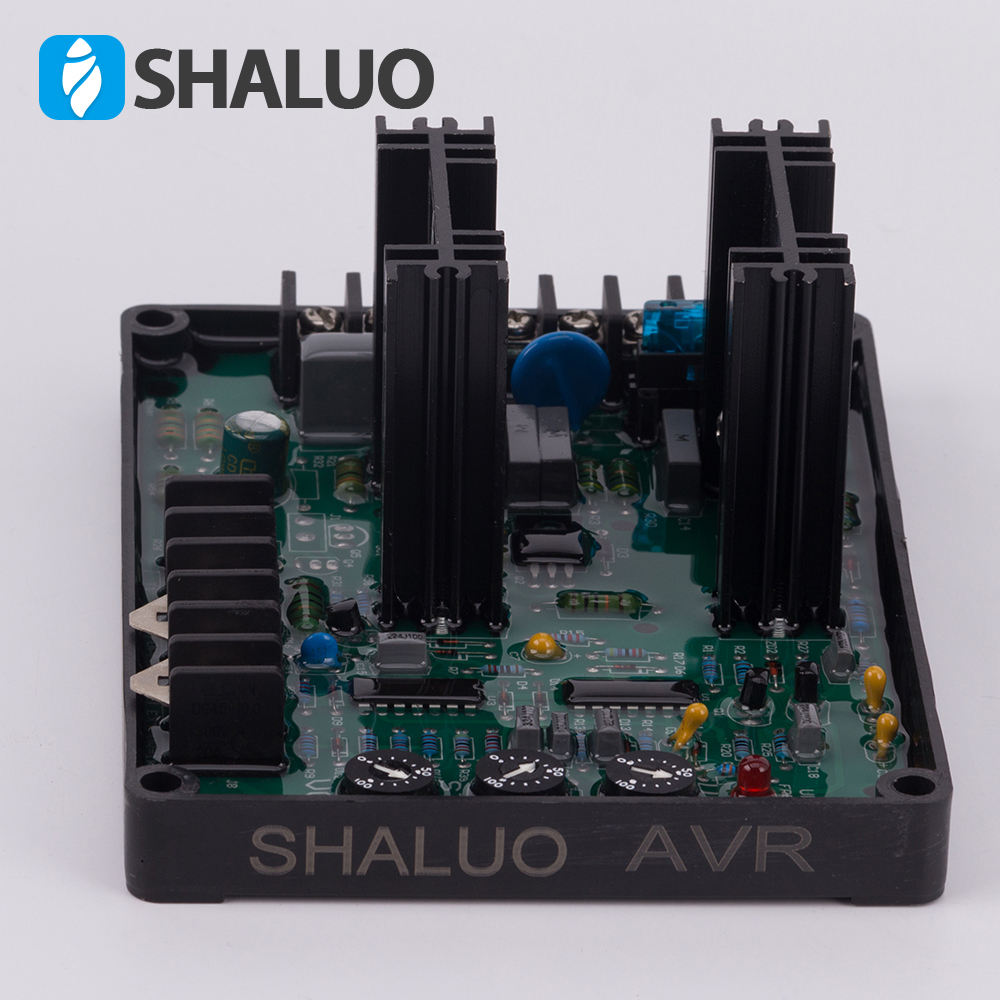

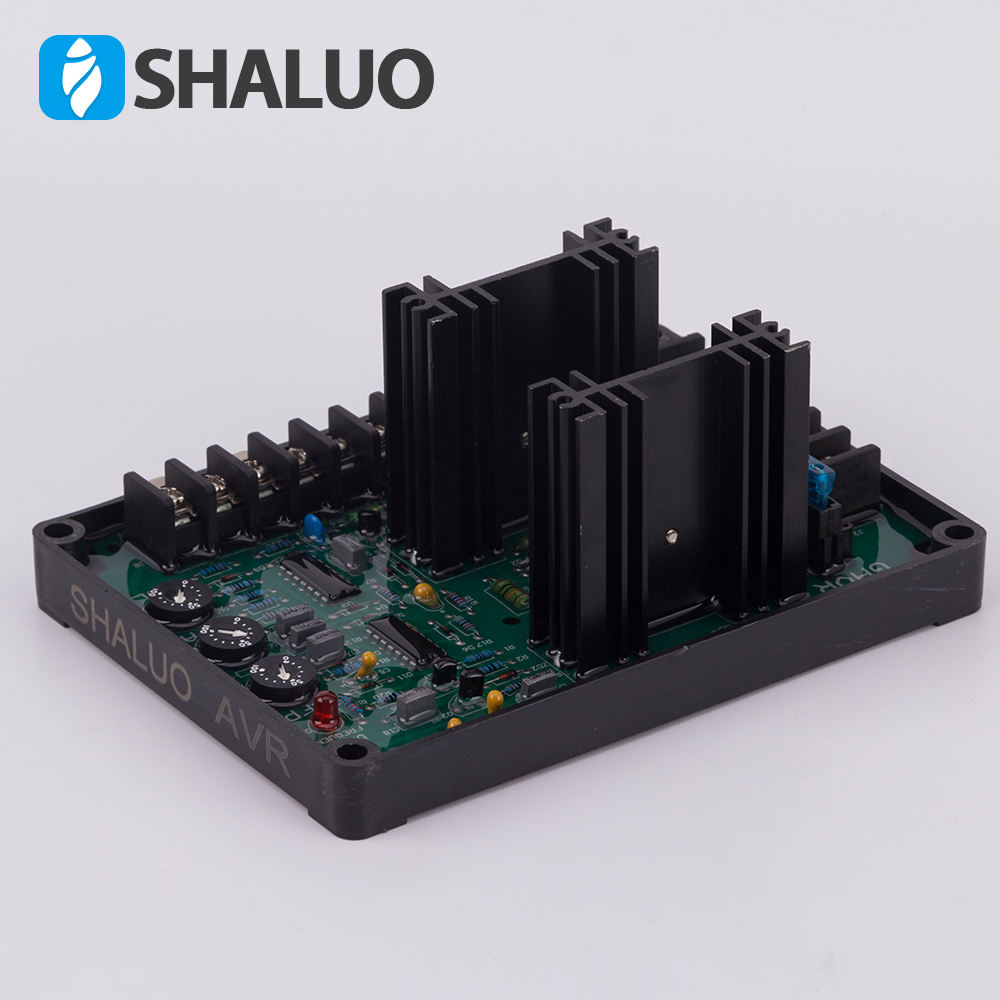

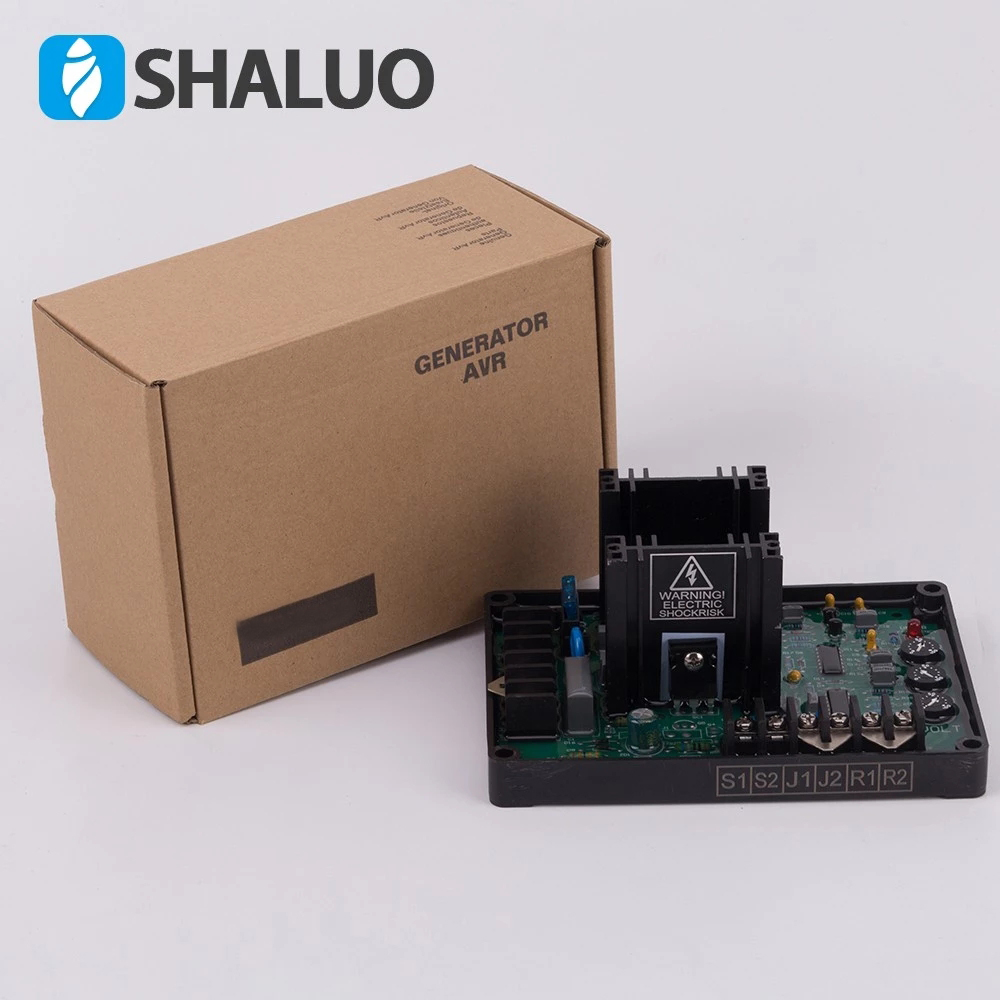

Alternator generator AVR GAVR-20A is Universal 20 Amp 1/2 Wave Self Excited Dip- Switch Programmable be Valtage alternator generator , which is suitable for brushless generator.
Techinal Data:
Model GAVR-20A
Sensing Input Voltage 220/400VAC,1phase 2wire
Power Input Voltage 180~240VAC, 1phase 2wire
Output Voltage Max.90VDC@240VAC input
Current Continuous 6A
Intermittent 15A for 10SEE
Resistance Min.10Ω Max 100Ω
Voltage Build-up esidualvolts at AVR teminal >5VAC
External Volts Adjustment +/-7%with 1KΩ 1watt trimmer
Unit Power Dissipation Max.8Watt
Under Frequency Protection 60Hz system presets knee point at 57Hz
Factory Settings 50Hz system presets knee point at 47Hz
Fu'an Shaluo Electronics co.Ltd is a manufacturer of generator accessories, Our company has established a long term and stable business relationship with a number of domestic agents and retailers.
The professional person responsible for the quality of supervision and control in the entire process.
In order to get the superior quality we only use selected good element.
Aimed at enabling the production department to manufacture and assemble the product as efficiently as possible.
