Home » Products » Generator Parts & Accessories » ATS » ATS switch » 63A 100A 4P ATS Generator Dual Power Automatic Transfer Switch Circuit Breakers Power Switches Electric Generator Parts

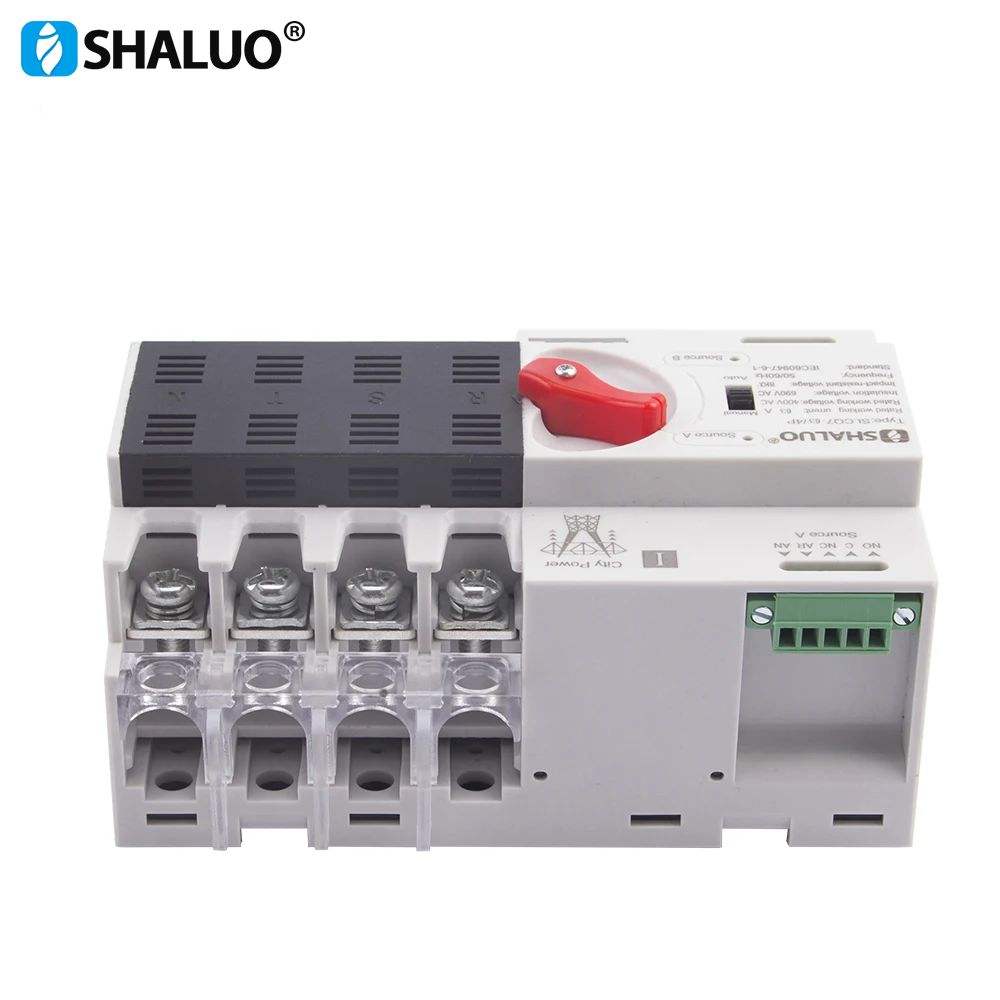

63A 100A 4P ATS Generator Dual Power Automatic Transfer Switch Module Circuit Breakers Switches Electric Generator Parts

Share to:

63A 100A 4P ATS Generator Dual Power Automatic Transfer Switch Circuit Breakers Power Switches Electric Generator Parts

Availability:

Quantity:



Inquire Add to Basket

Product Description

Product Description

When the city power supply is abnormal, the backup power supplywill work immediately to ensure the continuity, reliability and safety ofthe power supply.This product is specially designed for home trackTV installation and is specially used for Pz30 distribution box.

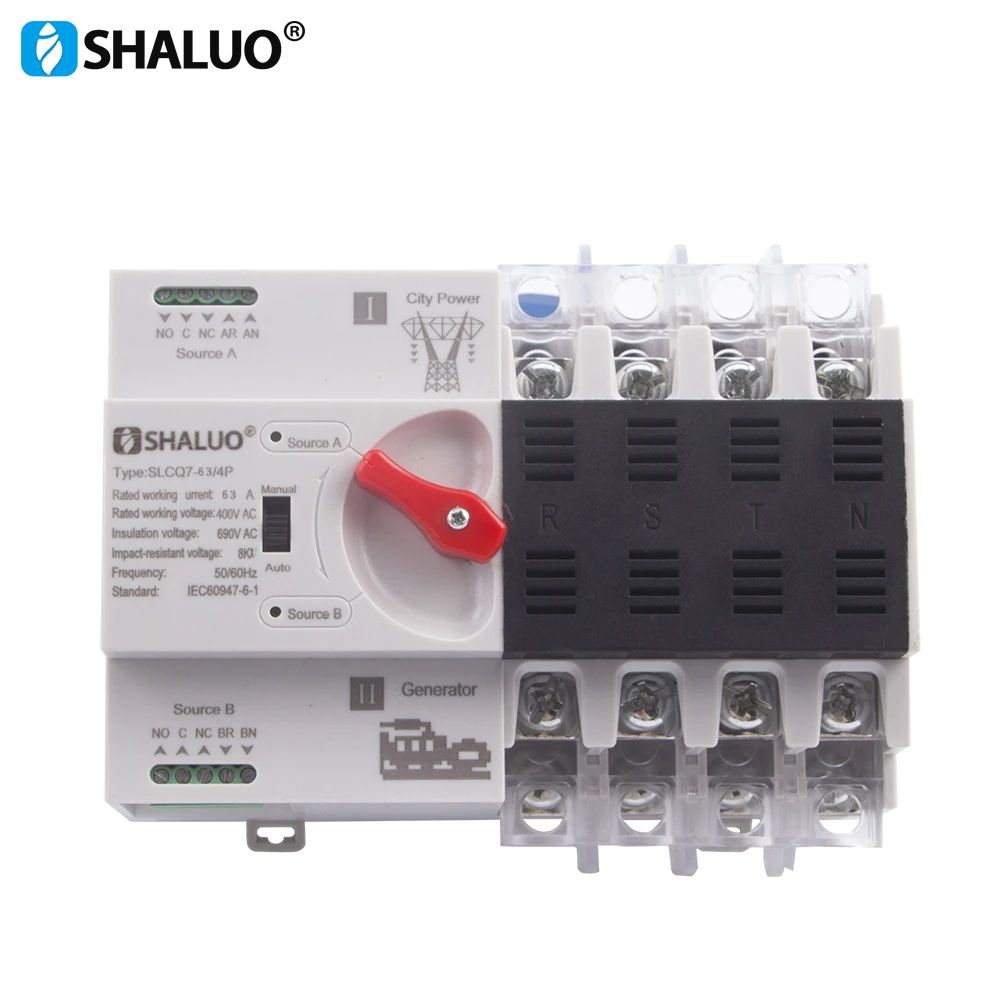

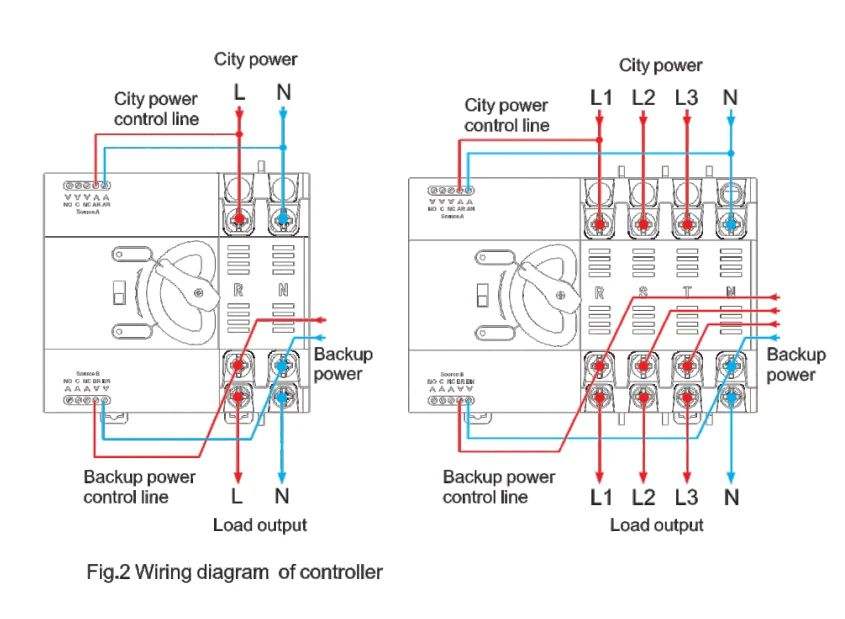

1.( Must be connected ) Take zero line and fire line from the city power control incoming line to connect AR (live wire)/ AN (neutral line) 2. ( Must be connected ) Take zero line and fire line from the backup control incoming line to connect BR (live wire)/ BN (neutral line) 3.The power indication signal is passive output, and the generator signal is taken (common) and (normally closed) 4.Connect the load end at the lower end of the ( Backup power supply side), Stepped wiring 5.There is an isolation board on the load. When wiring, first remove the isolation board, connect the load and then install the isolation board (it is recommended to connect the load first, then connect the backup power supply) Note: Normal type wiring same as solar type. For solar type,the backup power must be connected to the city power.

The product is specificallydesigned for household orbit-type installation and specifically used in Pz30 power distribution box.

Our Certifications

Our Factory

About the company

7.1-详情_10

Payment & Delivery
