Product Description

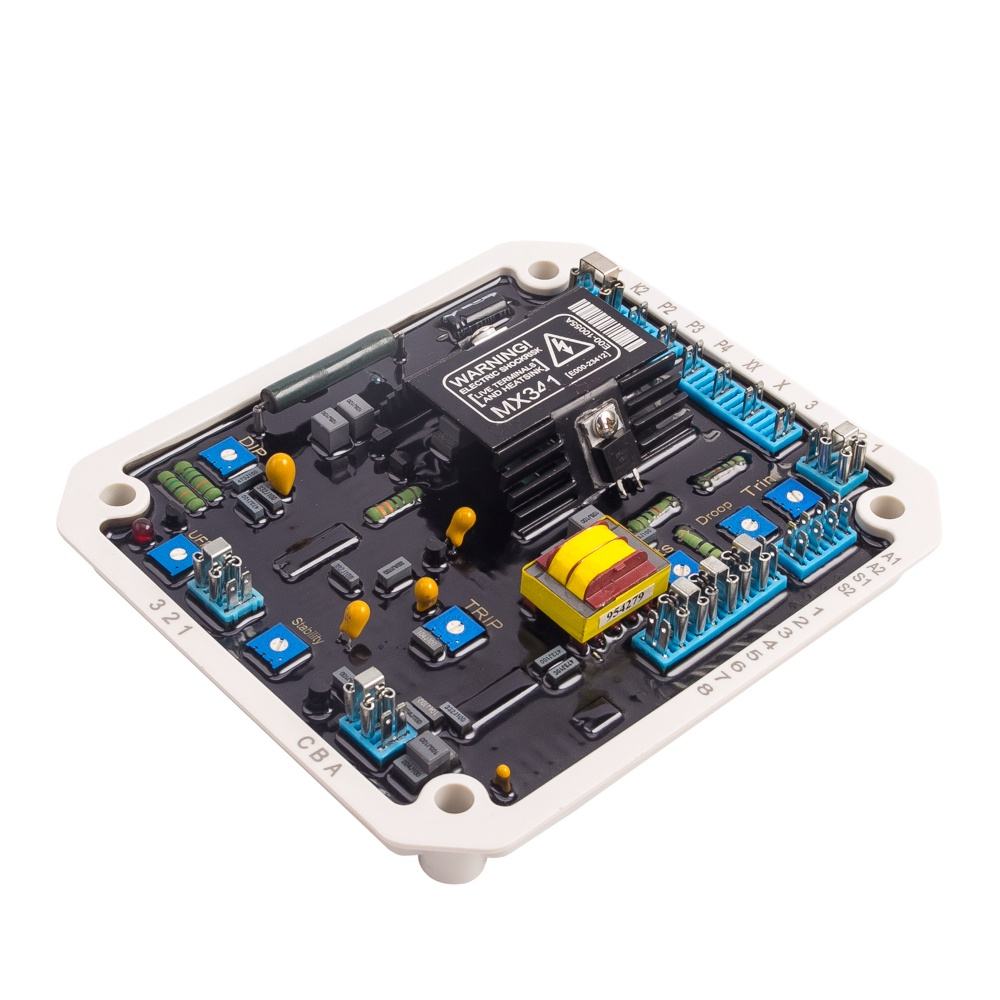

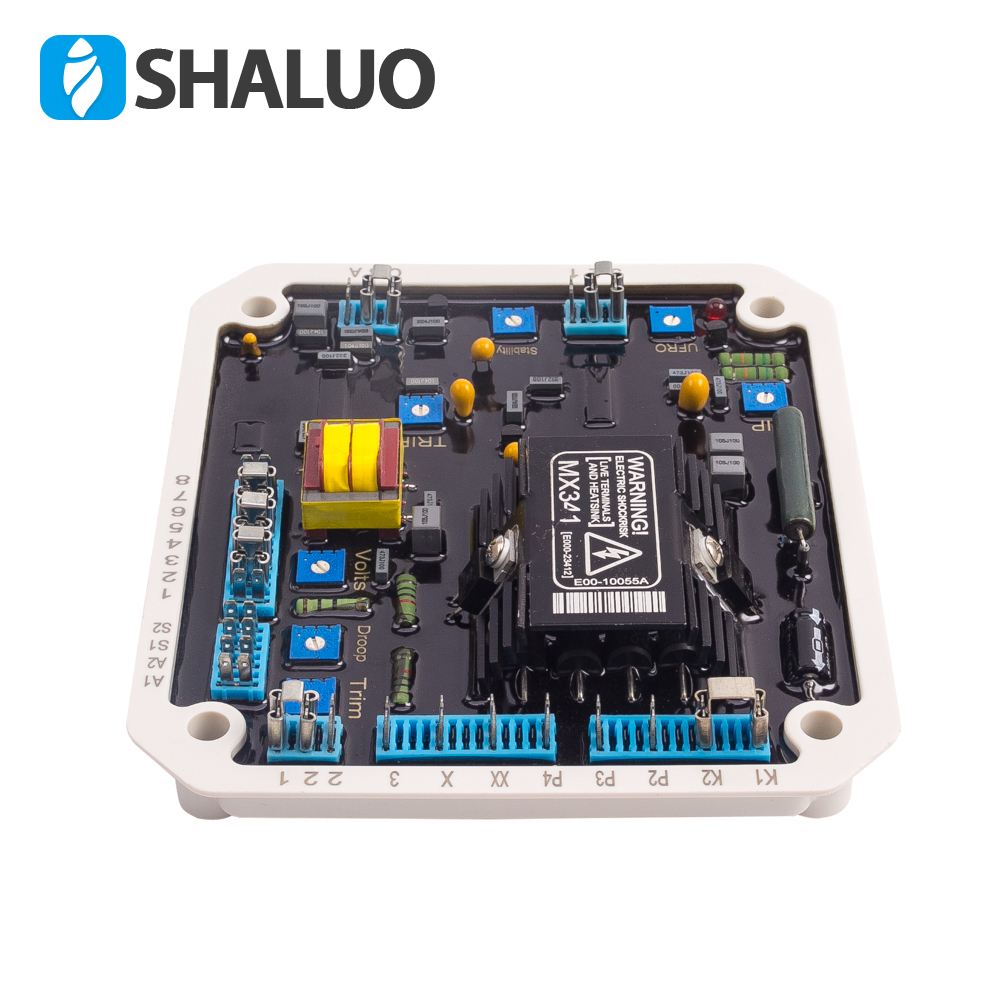

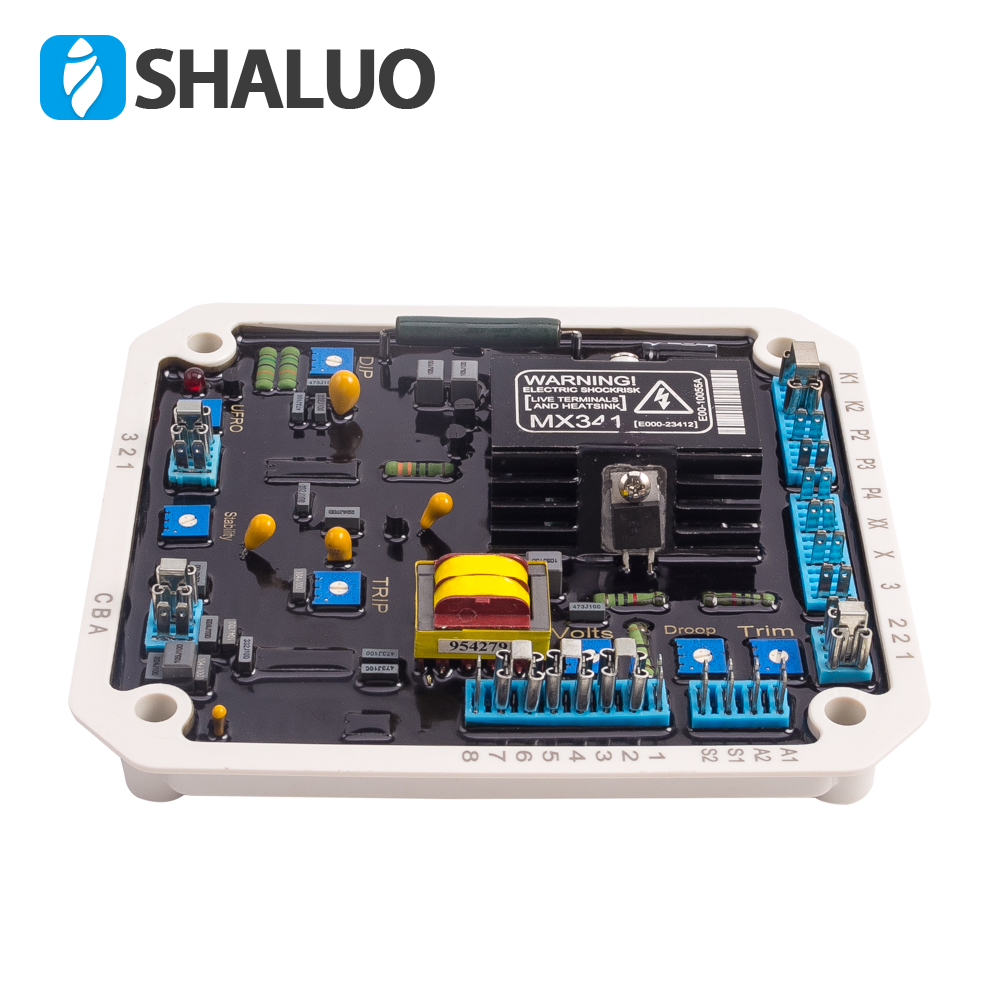

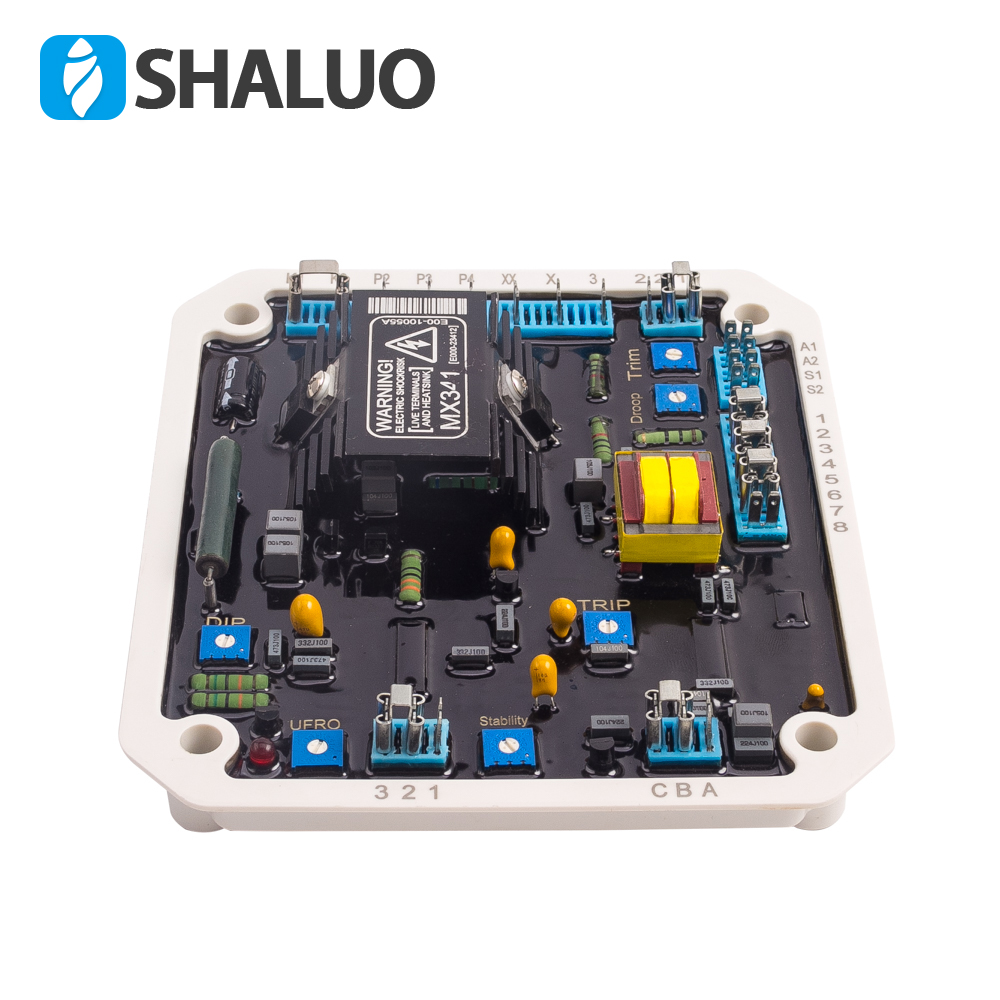

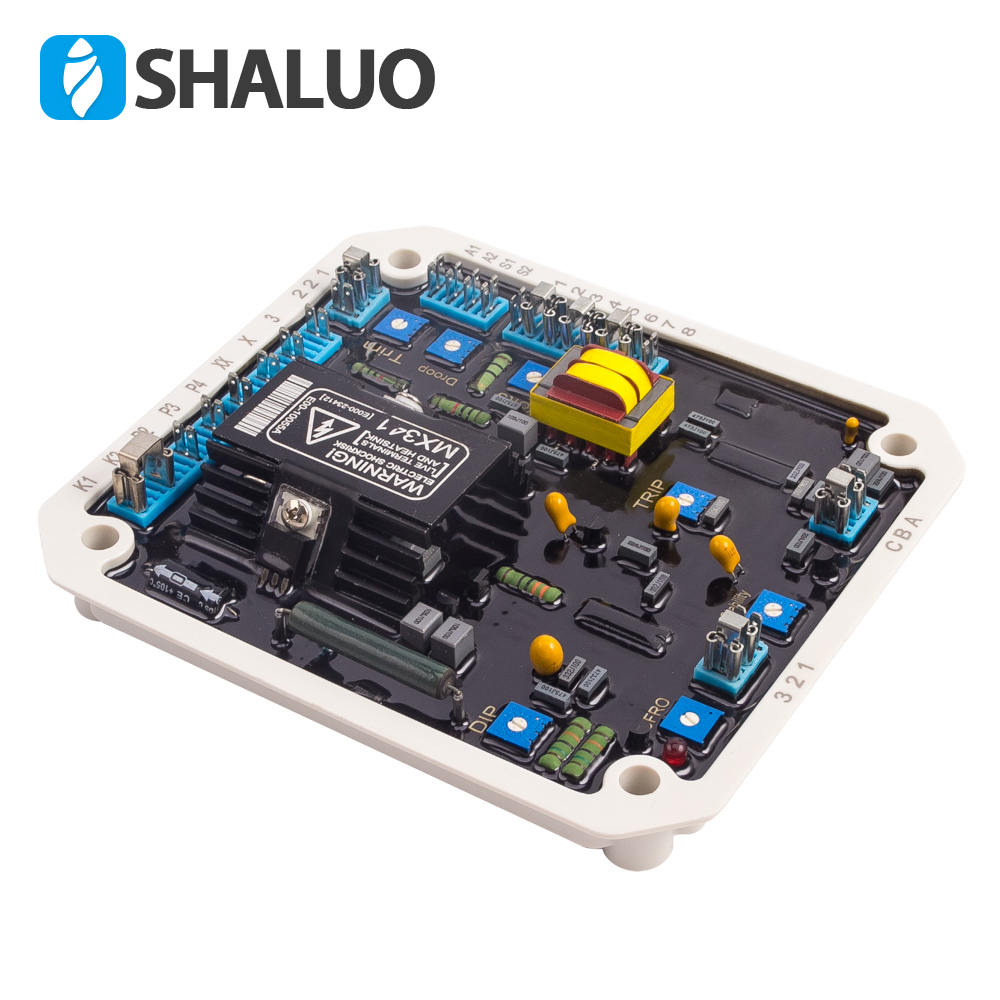

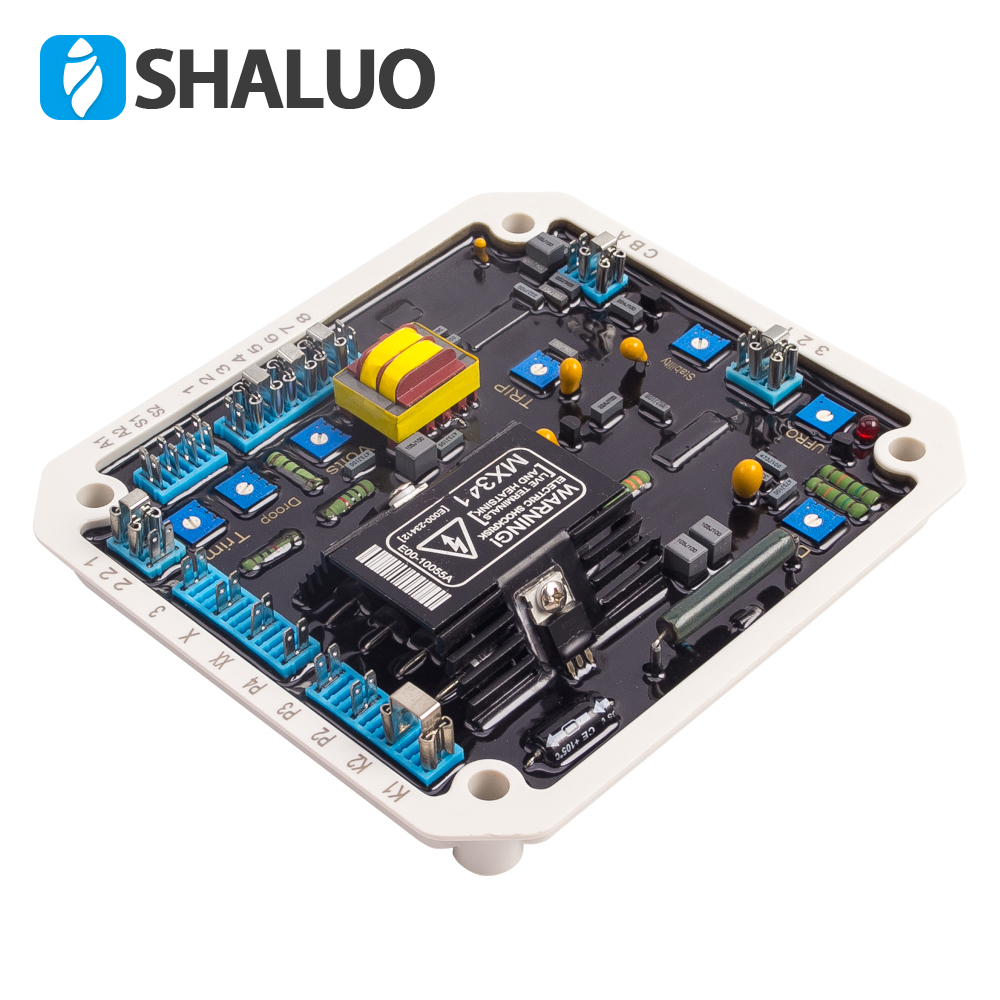

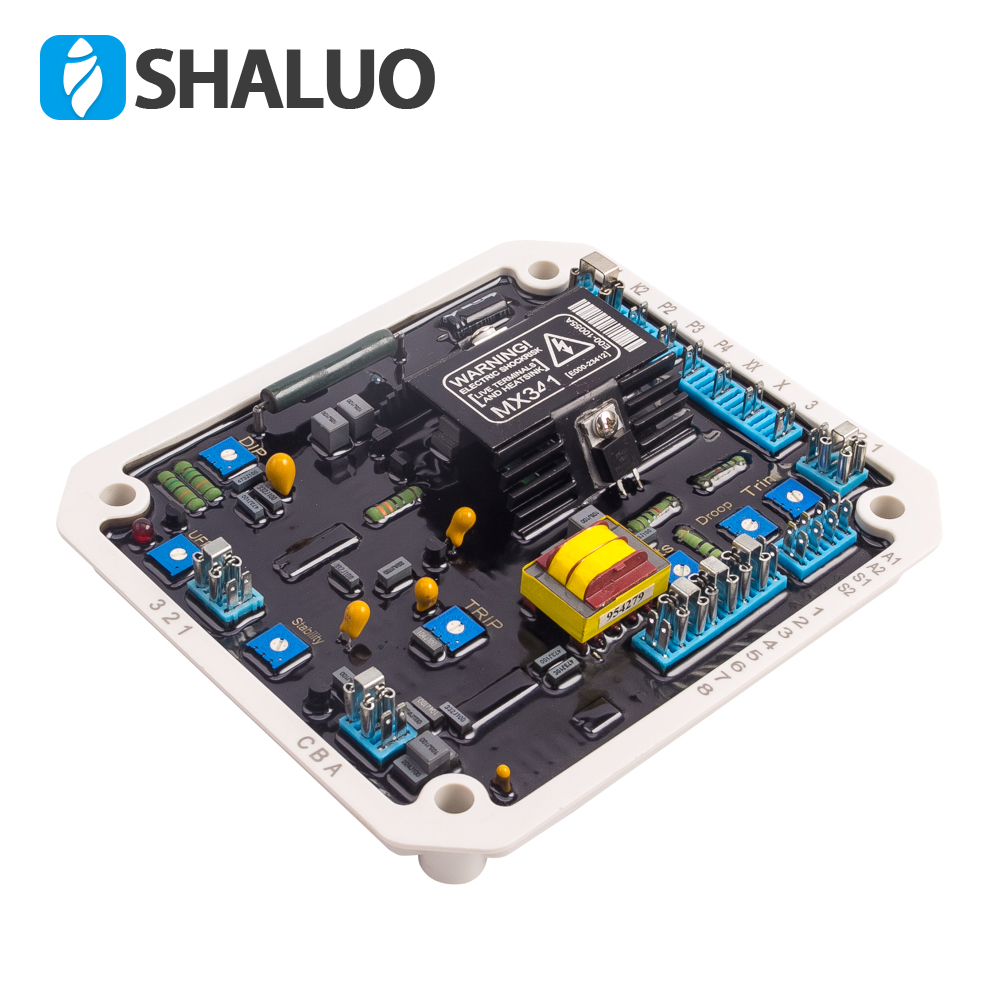

Automatic Voltage Regulator AVR MX341 Stabilizer for Soft Rubber Magnet Generator
MX341 Permanent Magnet Generator type voltage regulator is a compatible replacement for SHALUO MX341 and 305-0846.
MX341 is 2 phase sensed Automatic Voltage Regulator and forms part of the excitation system for a brushless generator.Excitation power is derived from a three phased permanent magnet generator(PMG),to isolate the AVR.control circuits from the effects of nonlinear loads and to reduce radio frequency interence on the generator terminals.Sustained generator short circuit current is another feature of the PMG system.
The AVR sense the voltage in the main generator winding and controls the excitation to maintain the generator output voltage with the specified limits,compensating for load,speed,temperature and power factor of the generator.Thress phase RMS sensing is emplyed for superior voltage regulation.
Adjustable soft start circuitry is included to provide a smooth controlled build up of generator output voltage.
| Product Name | Newage Nupart Three Phase Automatic Voltage Regulator AVR MX341 | ||
| Sensing/Power input | Voltage | 190 to 264 Vac,1 phase 2 wire jumper selectable | |
| Frequency | 50/60 Hz jumper selectable | ||
| Output | Voltage | Max. 90 Vdc @ 207 Vac input | |
| Current | Continuous 4A,Intermittent 6A for 10 seconds | ||
| Voltage Regulation | < +/-1% (with 4% engine governing) | ||
* Voltage regulation < +/-1%
* Soft start voltage ramping
* Sensing voltage loss protection
* 120 or 240 Vac sensing, jumper selectable
* Under frequency roll off protection
* With under frequency LED indicator
