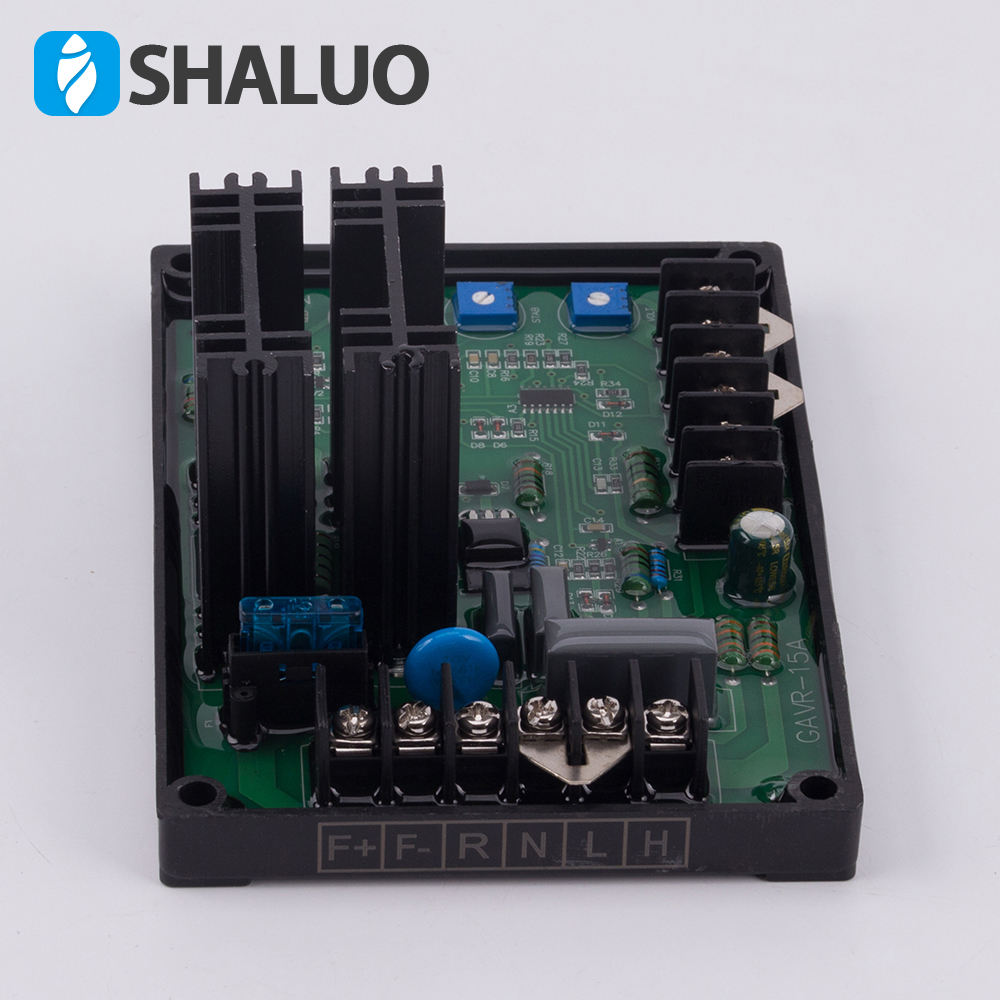

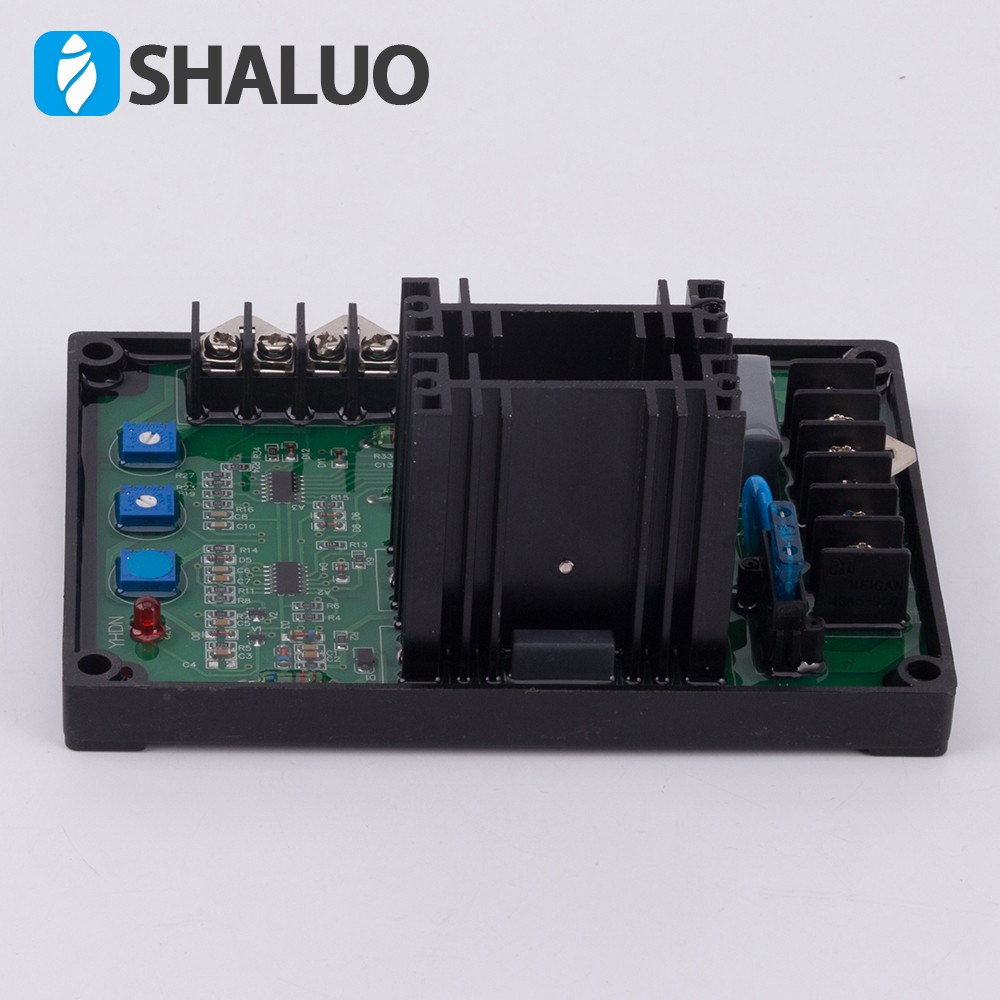

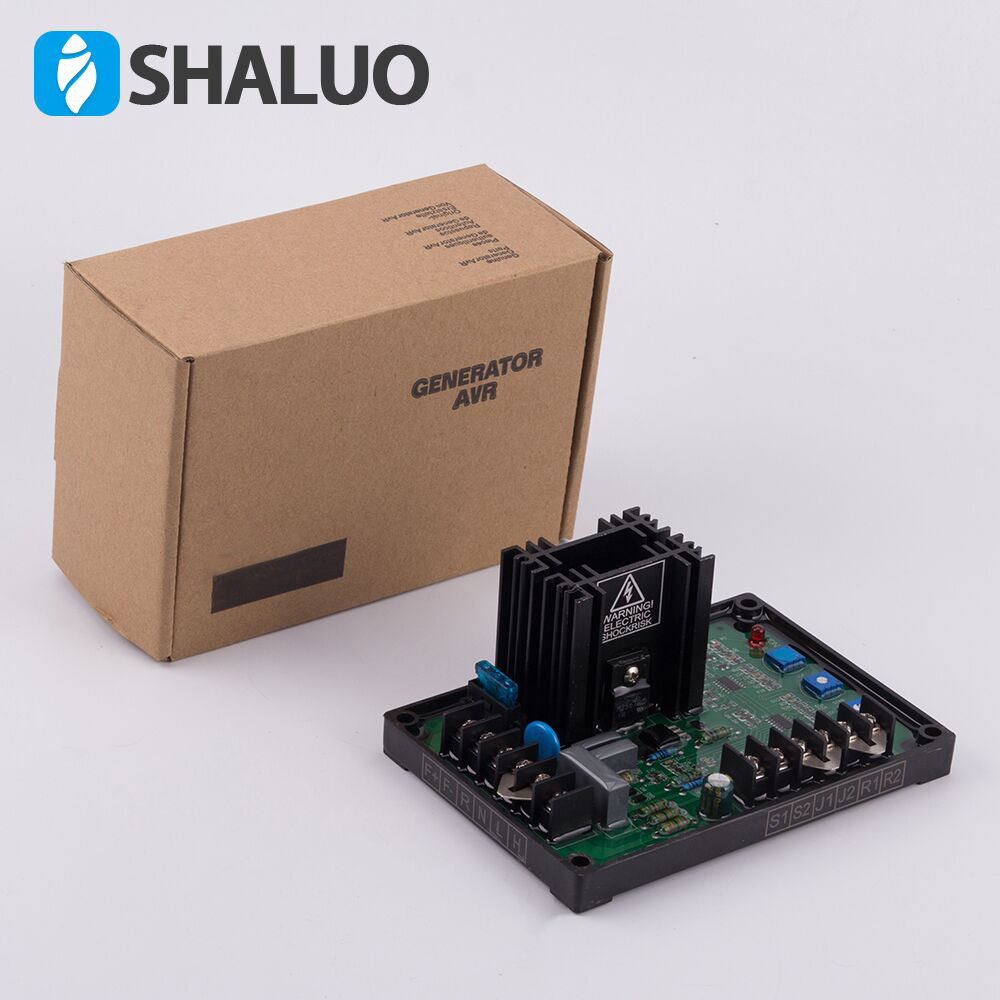

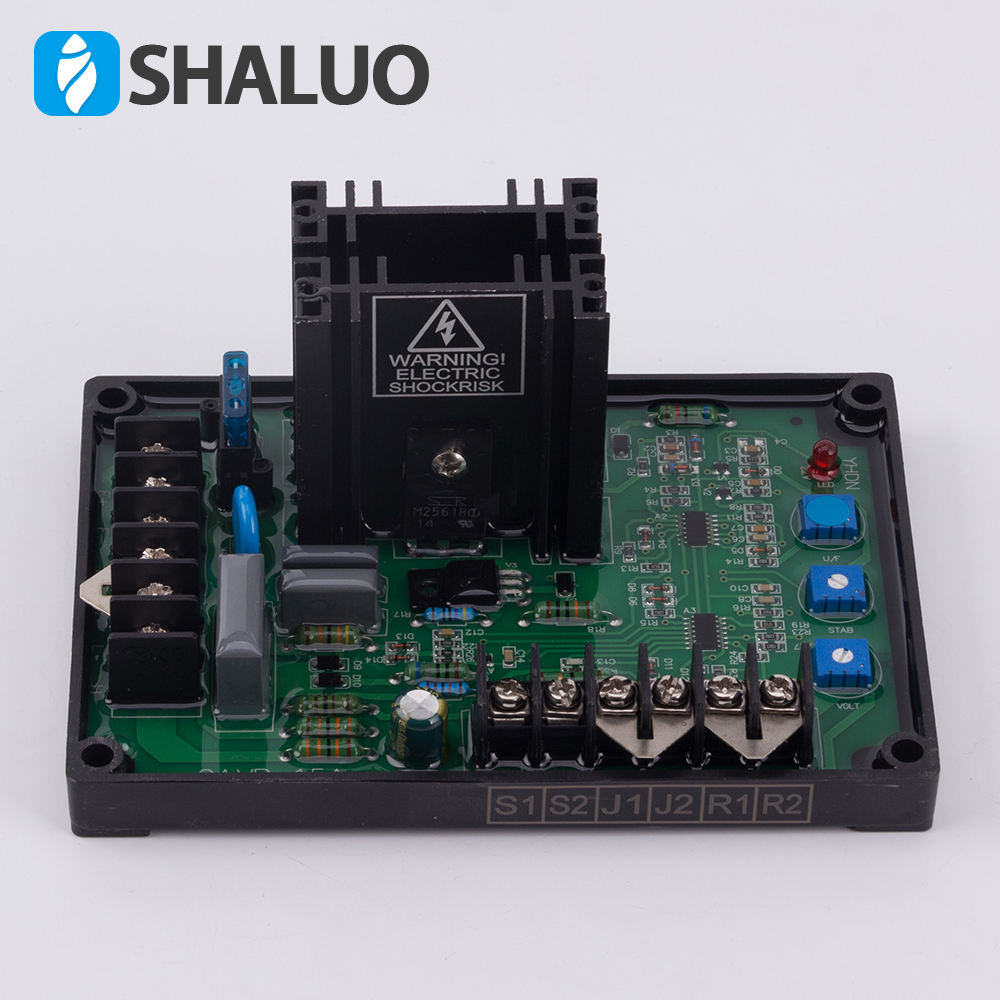

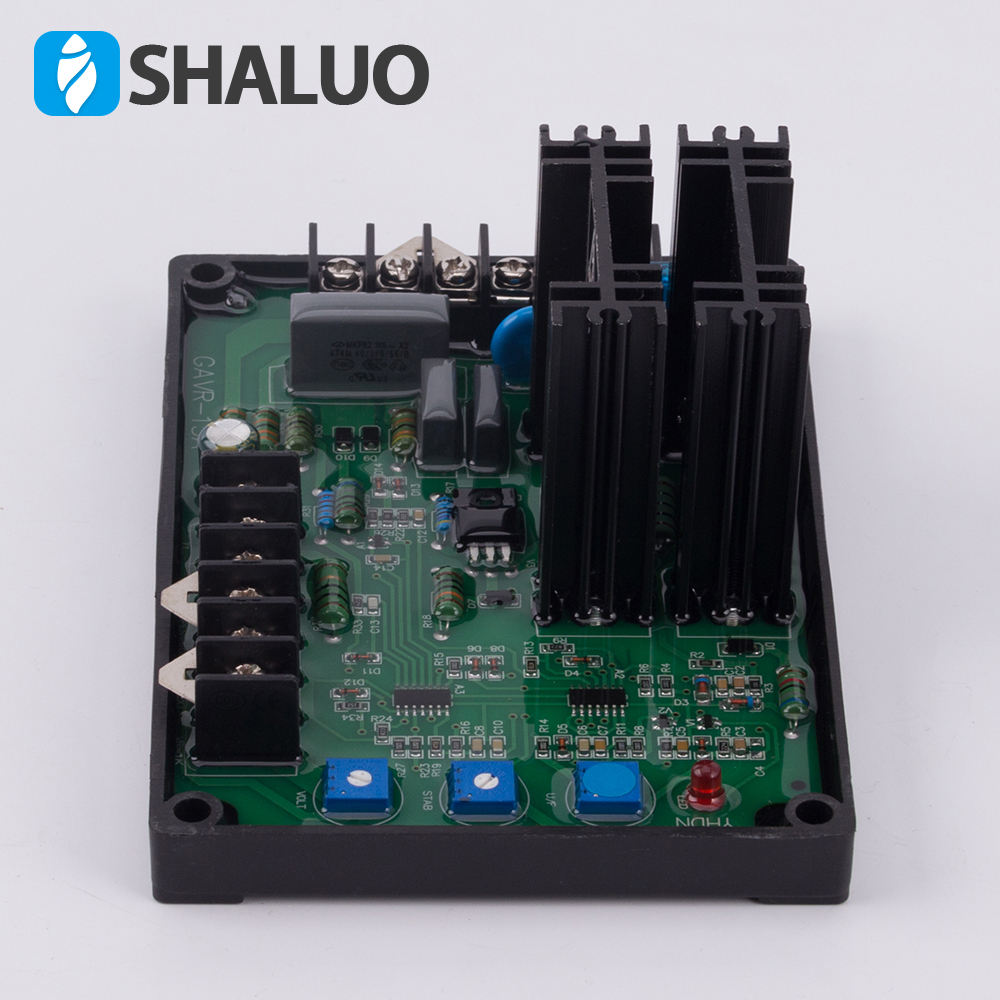

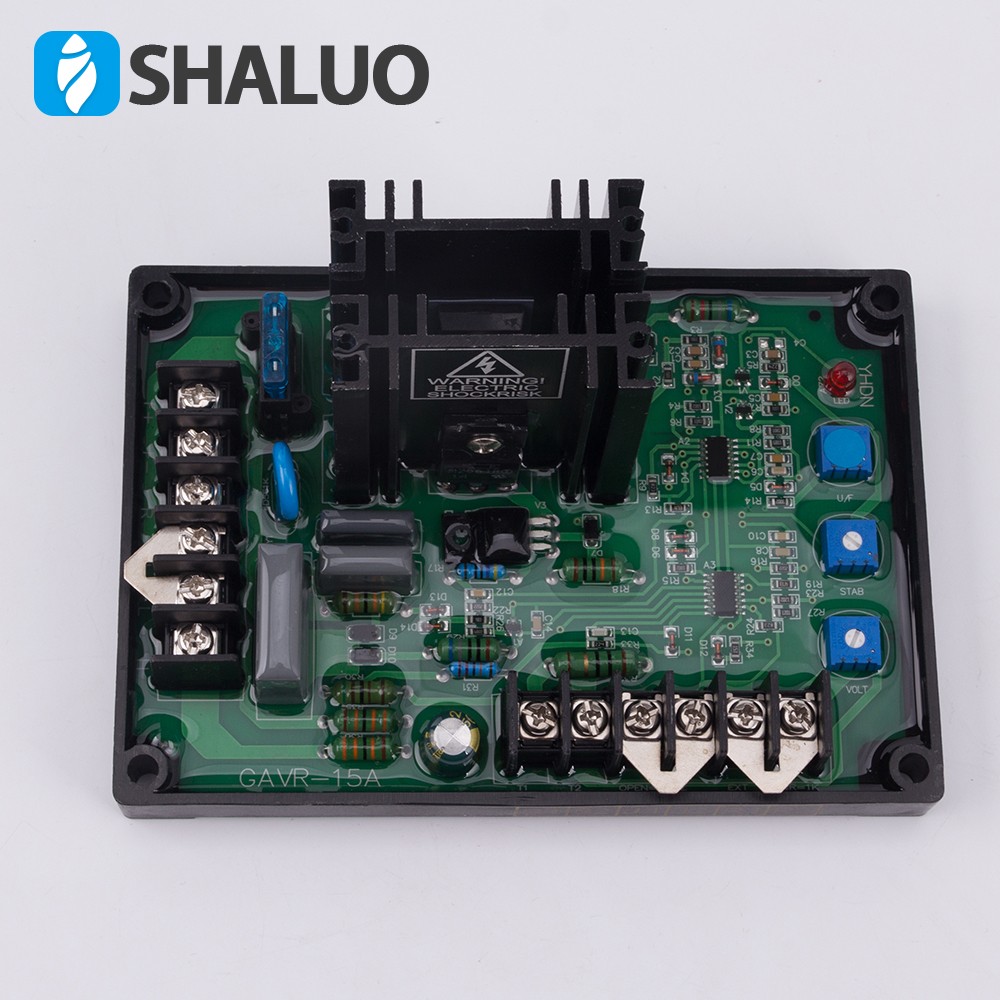

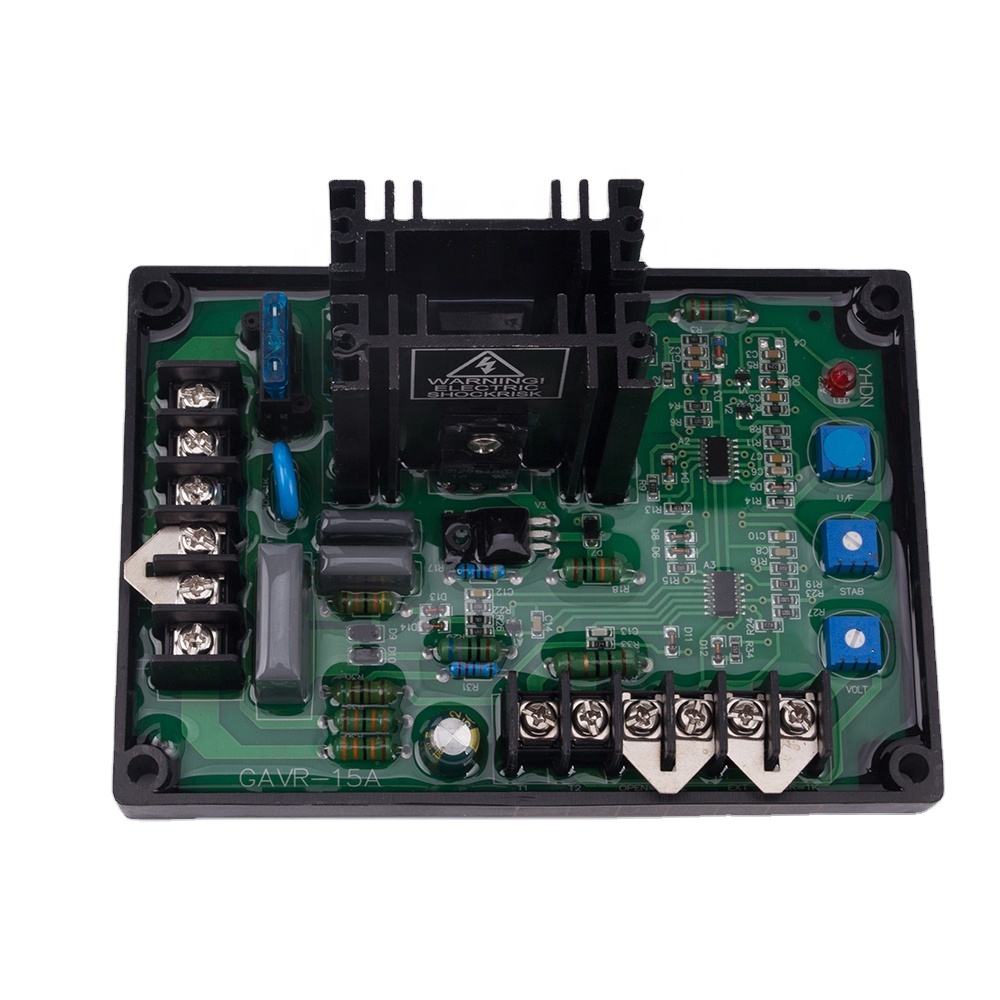

AVR Generator Motor Control Stabilizer Automatic Voltage Regulator 220v Voltage Protector GAVR-15A

Features

1.<±0.5% Regulation

2. 220/440VAC programmable Input

3.Rugged Compact design

4.With under frequency protection

5.Soft start voltage ramping

6. EMI suppression

7.Built-in high capacity 15Amp fuse

Specifcations

Sensing input

Voltage 220/440VAC,1 phase 2wire

Power input

Voltage 180-240VAC,1 phase 2wire

Output

Voltage Max.90VDC@240VAC input

Current Continuous 6A

Intermittent 12A for 10secs

Resistance Min10Ω,Max.100Ω

Volts Regulation ±0.5%(with 4% engine governing)

Voltage build-up Residualvolts at AVR teminal>5VAC

External volts adjustment ±7%with 1KΩ 1watt trimmer

Soft start voltage ramp time 3sec

Unit power Dissipation Max.8watt

EMI suppression Internal electromagnetic Interference filtering

Thermal Drift 0.05 %per°C change in AVR ambient

Under Frequency protection 60hz system presets knee point at 55HZ

(Factory Settings) 50Hz system presets knee pint at 45HZ

Environment

Vibration 3G@100-2Khz

Relative Humidity<95%

Operating temperaturer -40~65°C

Storage temperaturer -40~85°C
