Product Description

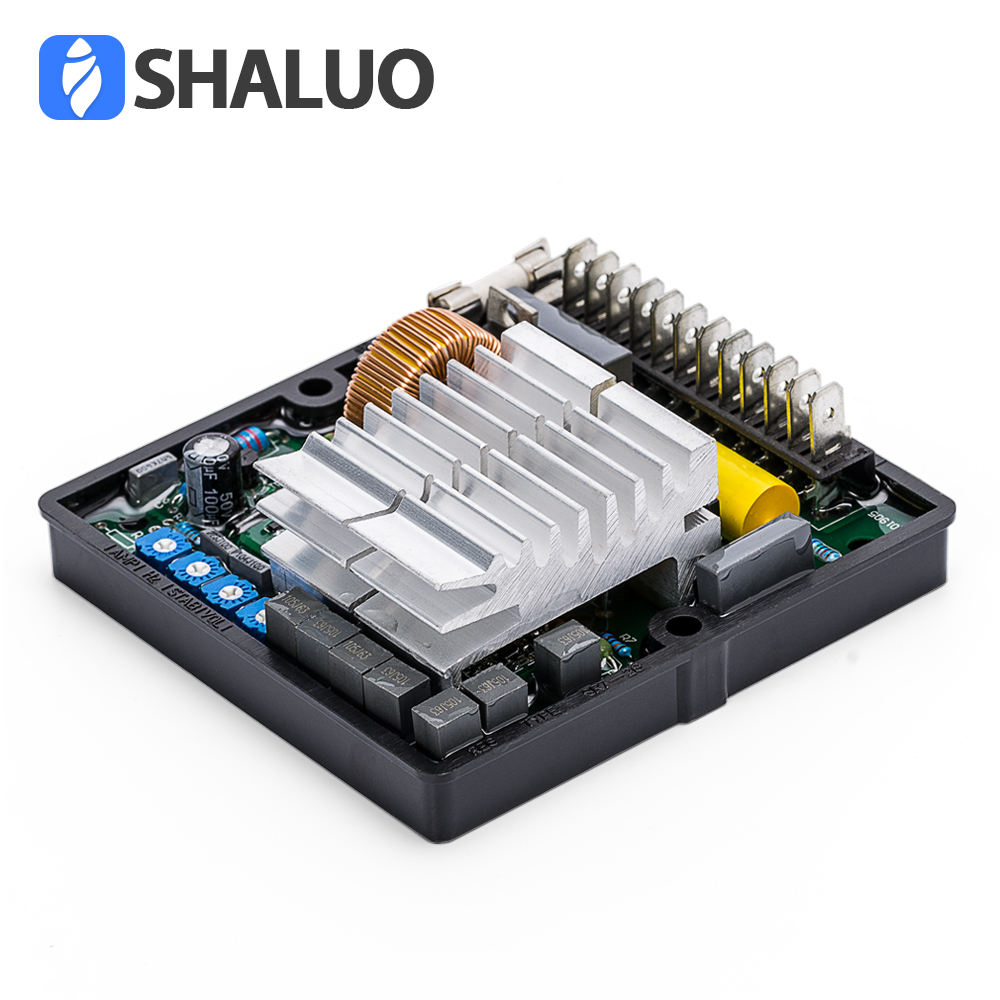

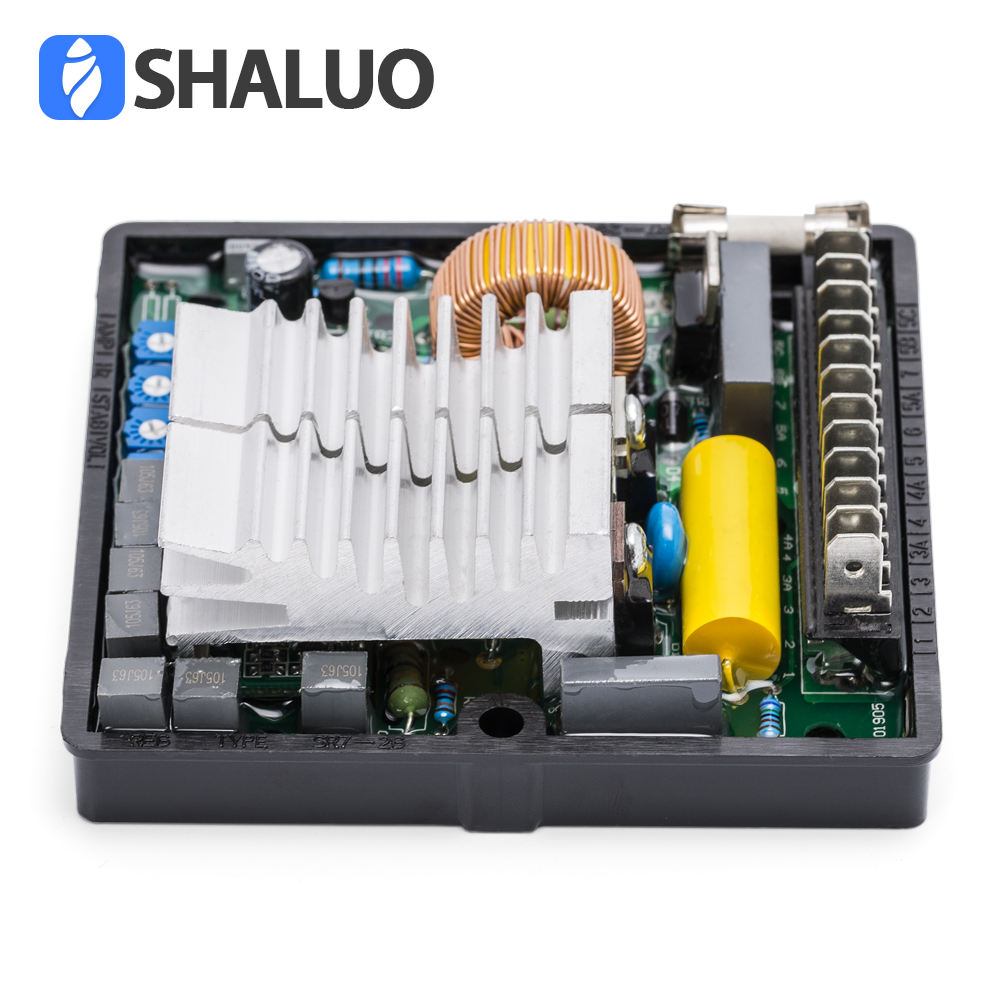

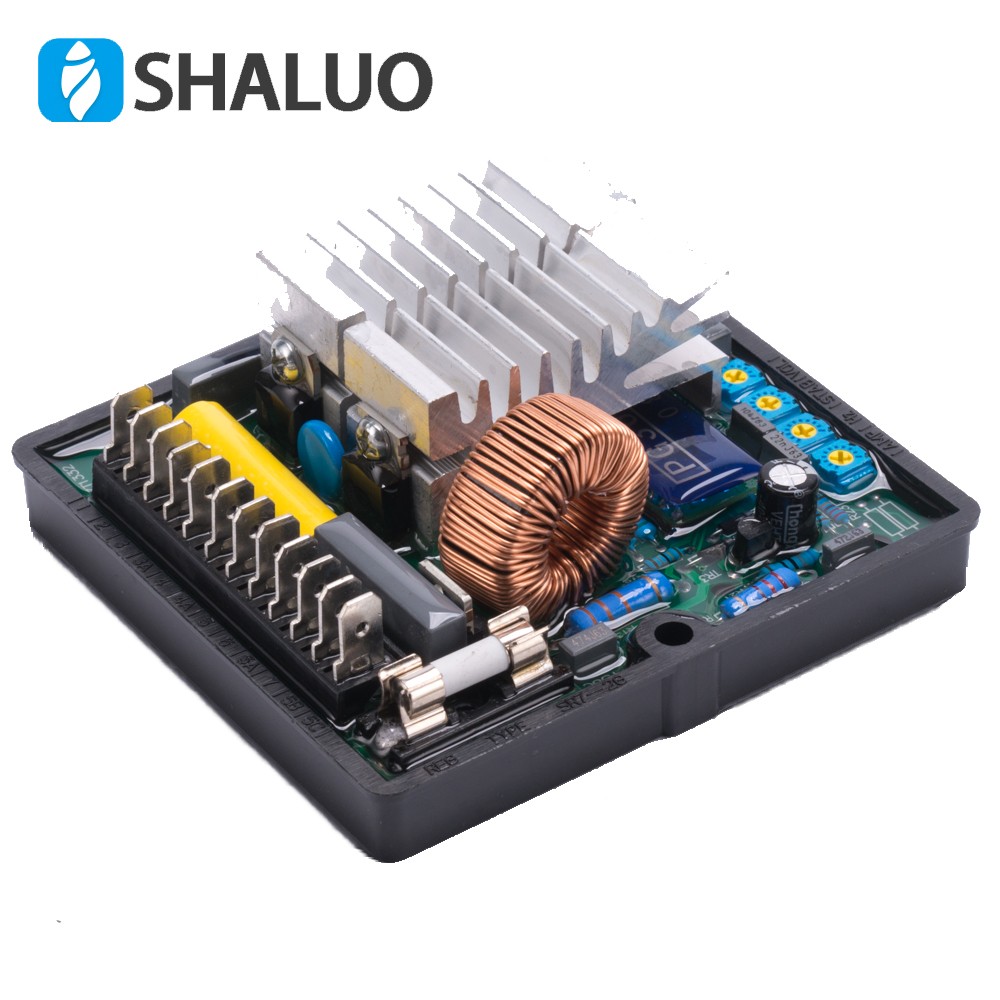

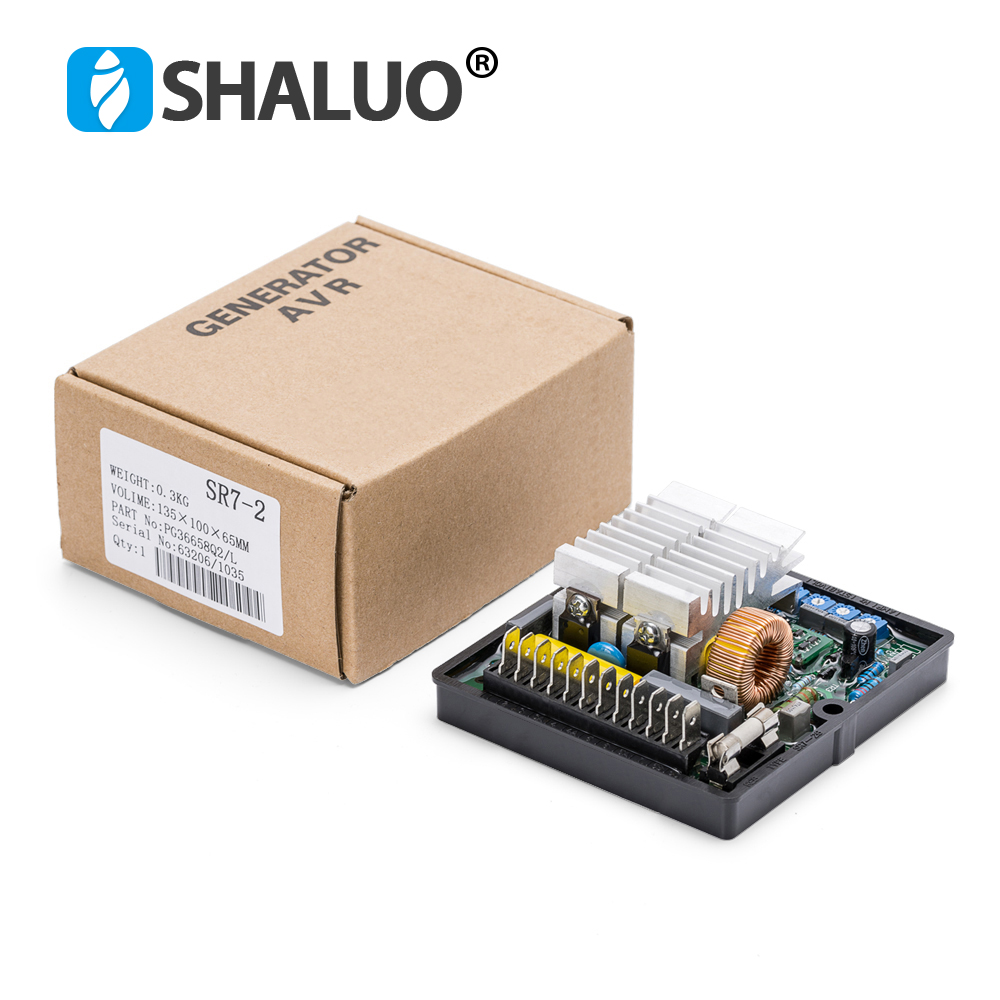

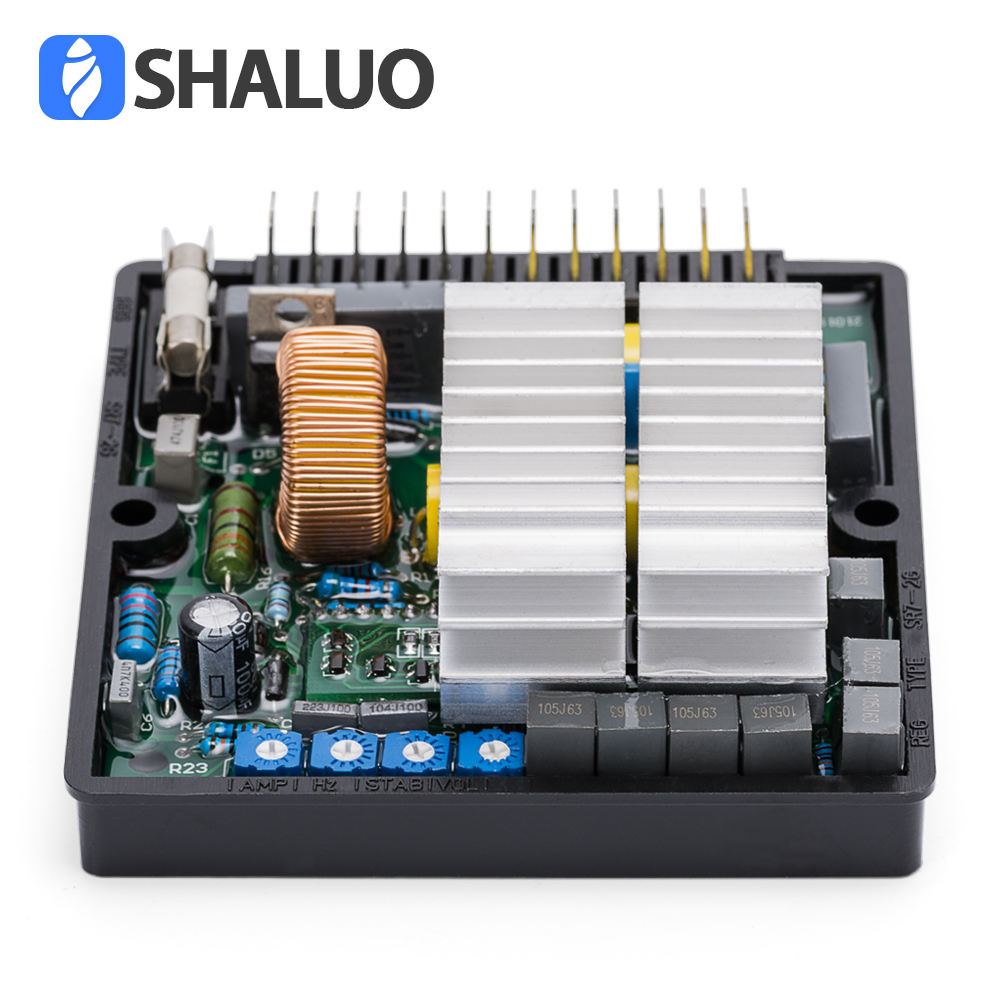

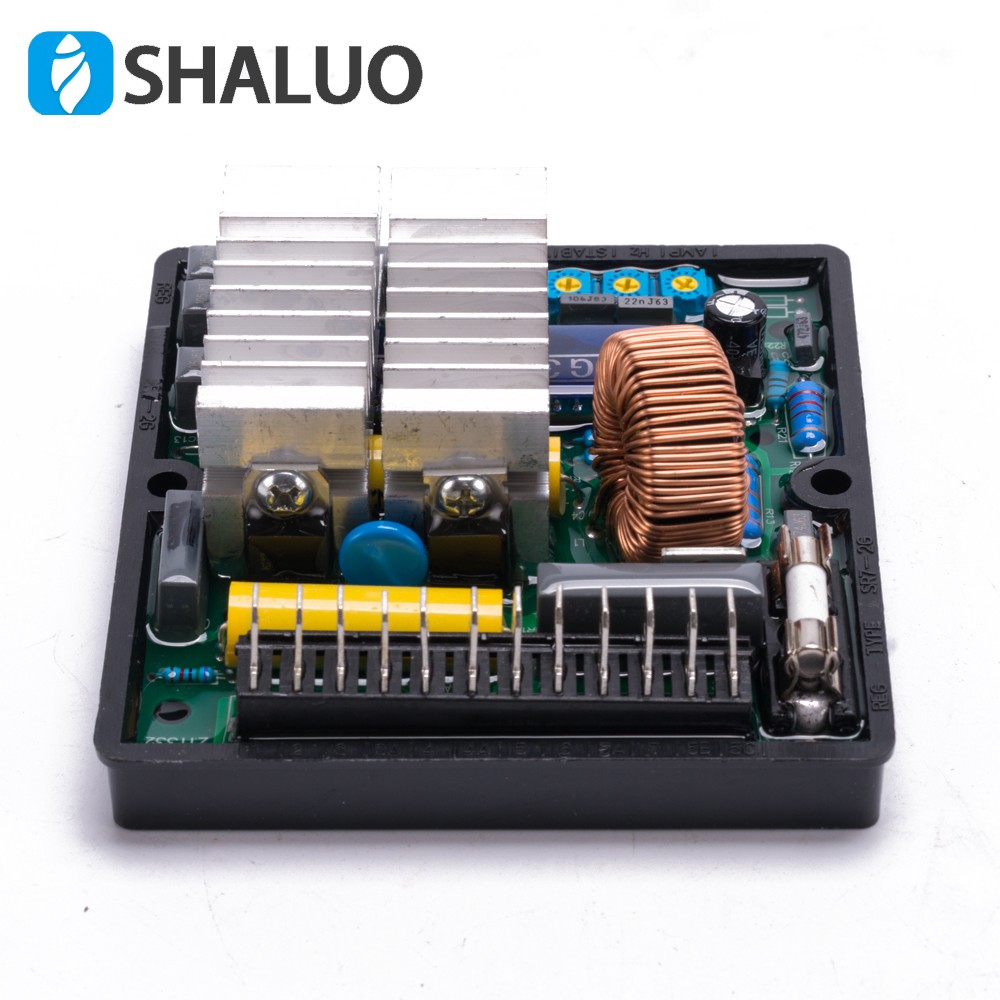

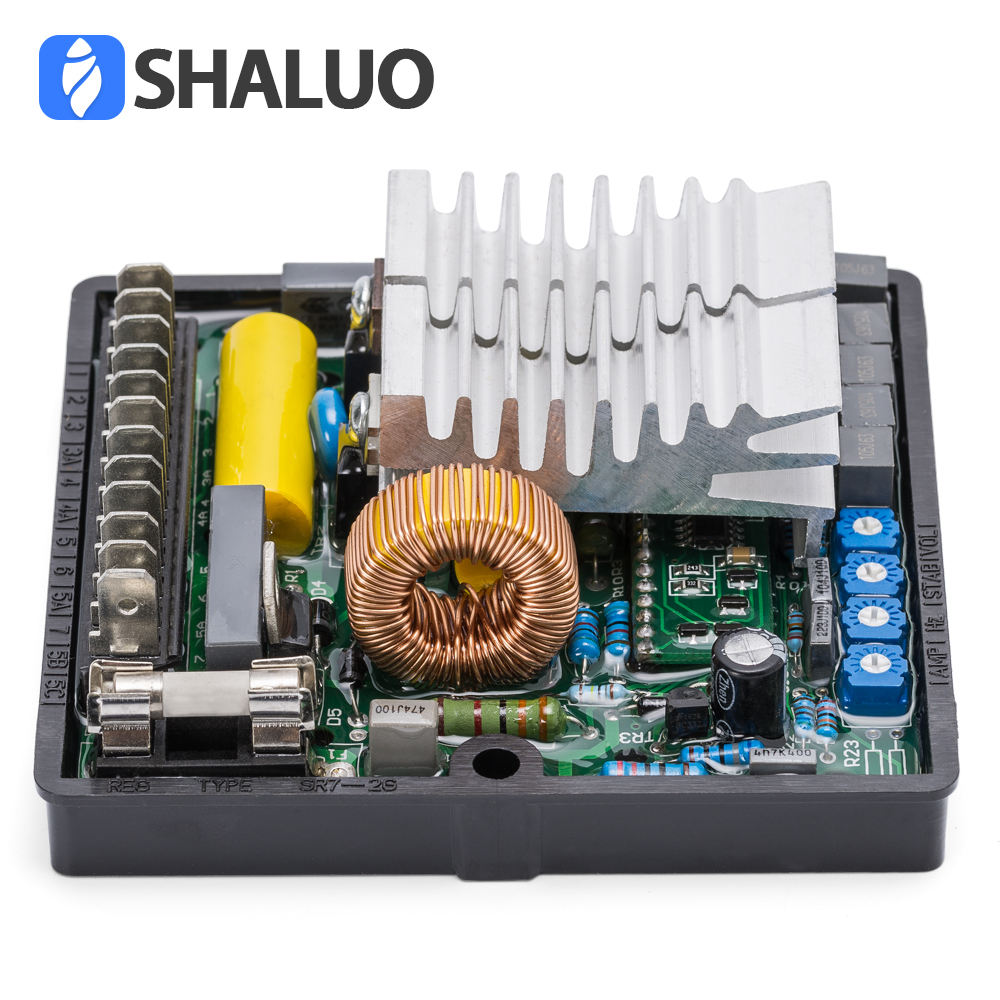

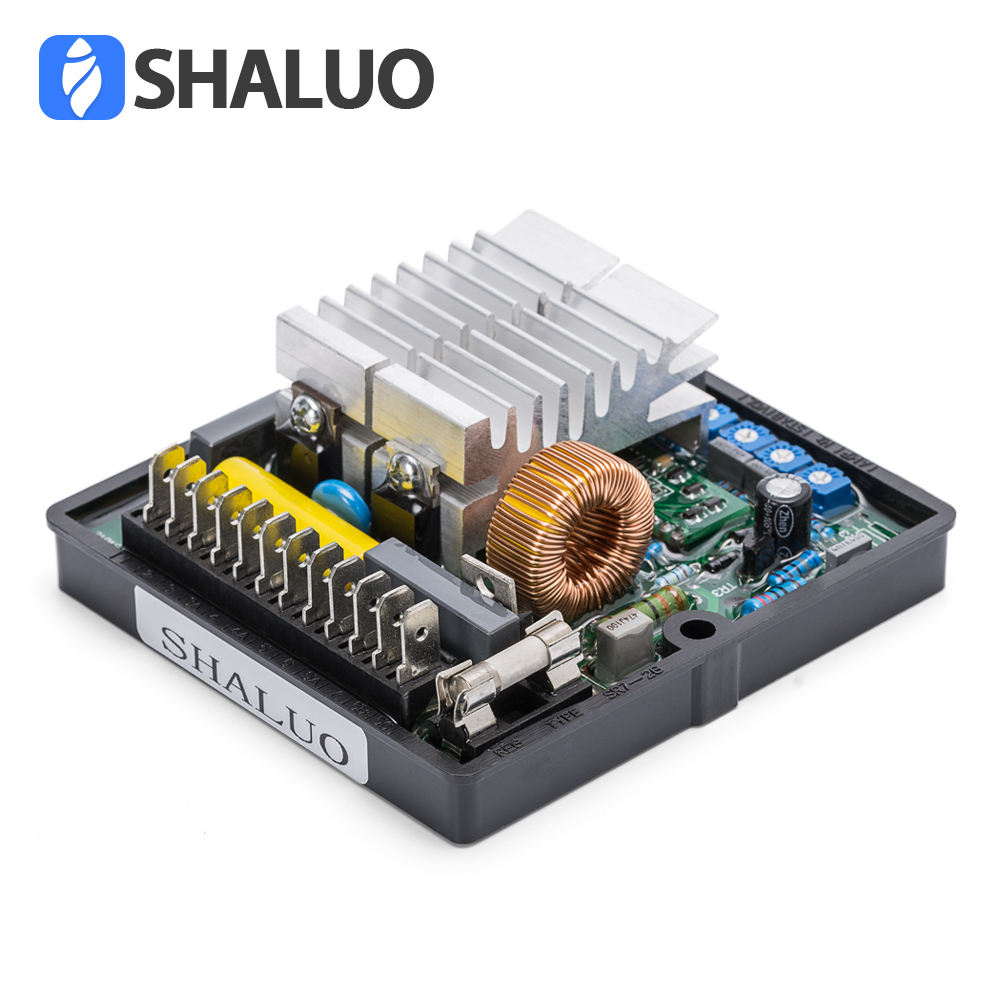

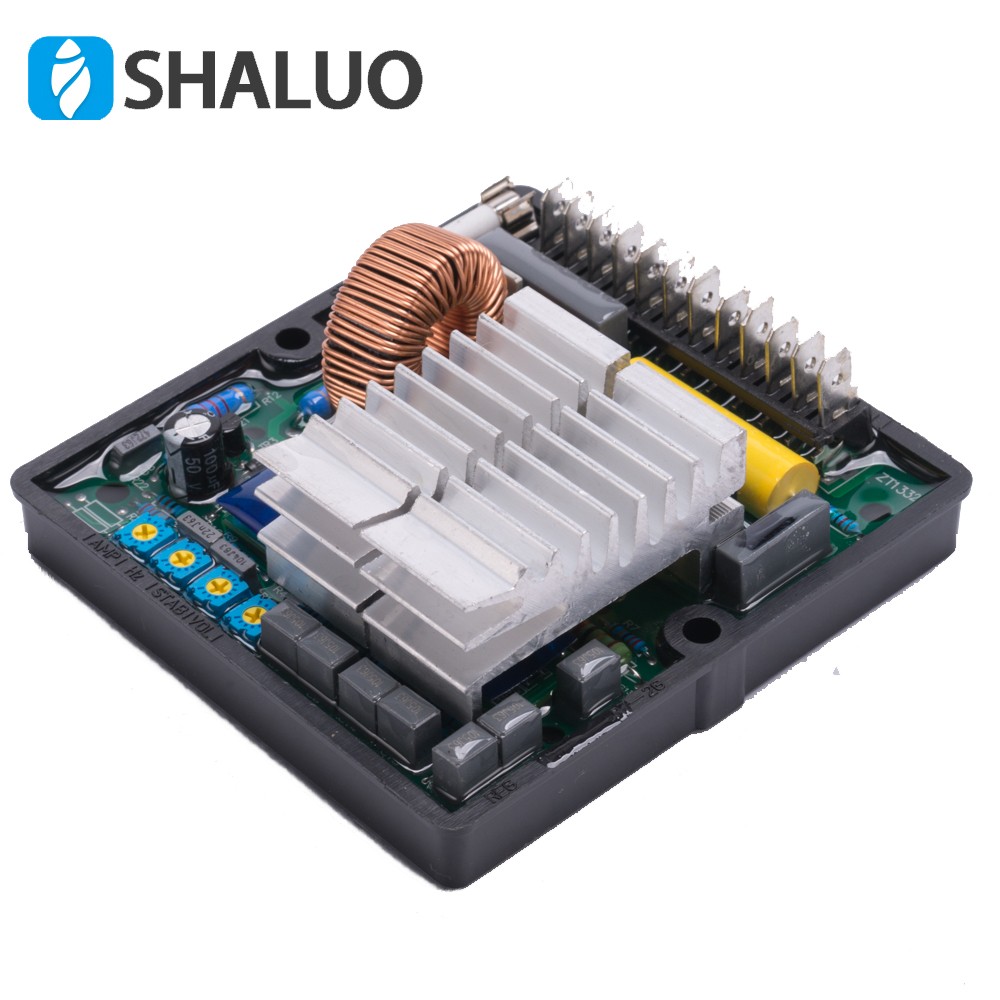

SR7 self excited half wave type Genset Automatic Voltage Reg
ulator is a direct replacement avr for Mecc Alte SR7-1 and SR7-2
Wide Sensing Voltage Range 80~350 VAC
Wide Power Input Range 80~270 VAC, Accepts Power Input from Main Winding or Auxiliary Winding
Under Frequency Protection Indication LED
Over Excitation Protection and Indication LED
EMI Suppression
| Model NO. | SR7 | ||||
| Sensing Input | 80~350 VAC single phase 50/60 Hz | ||||
| Power Input | Voltage 50~270 VAC Frequency 50/60 Hz | ||||
| Output Voltage | 63 VDC @ 220 VAC input | ||||
| Output Current | Continuous 6A, Max. Intermittent 7A for 10 sec. | ||||
| Voltage Regulation | < ±1% (with 4% engine governing) | ||||
| Voltage Build-up | Residual voltage above 5 VAC 25 Hz | ||||
| External Volts Adjustment | 100 K Ohm 1/2 watt ±7% | ||||
| Unit Power Dissipation | Max. 5 watt | ||||
| Under Frequency Protection | Adjustable range 42~60 Hz | ||||
| Over Excitation Protection | 40~Max. VDC @ 0.3~20 sec. | ||||
| EMI Suppression | Internal electromagnetic interference filtering | ||||
| Excitation Winding Resistance | DC Resistance 10~100 Ohm | ||||
| Environment | Storage Temperature : -40~80 °C Relative Humidity : Maximum 95% Vibration : 1.5G @ 5~30 Hz / 5.0G @ 30~500 Hz | ||||
| AVR Controls Function | HZ. : Under Frequency Setting AMP. : Over Excitation Setting U/F : Under Frequency Protection O/E : Over Excitation Indication LED | ||||
| Dimensions | 97.0 (L) x 92.0 (W) x 39.0 (H) mm | ||||
| Weight | 275 g ±2% | ||||
