AVR diesel generator Automatic Voltage Regulator DX5E three phase Carbon brush generator Voltage stabilizer Accessories kit

Availability:
Quantity:

Product Description

Product Description

DX-5E AVR diesel generator Automatic Voltage Regulator three phase Carbon brush generator Voltage stabilizer Accessories kit

AC Brush Generator AVR Circuit Diagram 3 Phase GB-170 is a half-wave phase controlled thyristor type Automatic Voltage Regulator and forms part of the excitation system for a brushless generator. In addition to regulating the generator voltage, the AVR circuitry includes under speed and sensing loss protection to ensure safe, reliable control of the generator. Positive voltage build up from residual levels is ensured by the use of proficient semiconductors in the power circuitry of the AVR. Which is linked with the main stator windings and the exciter field windings to offer closed loop control of the output voltage with load regulations of +/- 1.5%.
Product Name
GB-170
SENSING/POWER INPUT
Voltage
110/220Vac,3 phase ,3 wire
MAGNETIC FIELD OUTPUT
Voltage
50/60 Hz jumper selectable
Current
continuous 10A
PRESSURE REGULATING ACCURACY
<+/-1%RMS with 4% engine governing

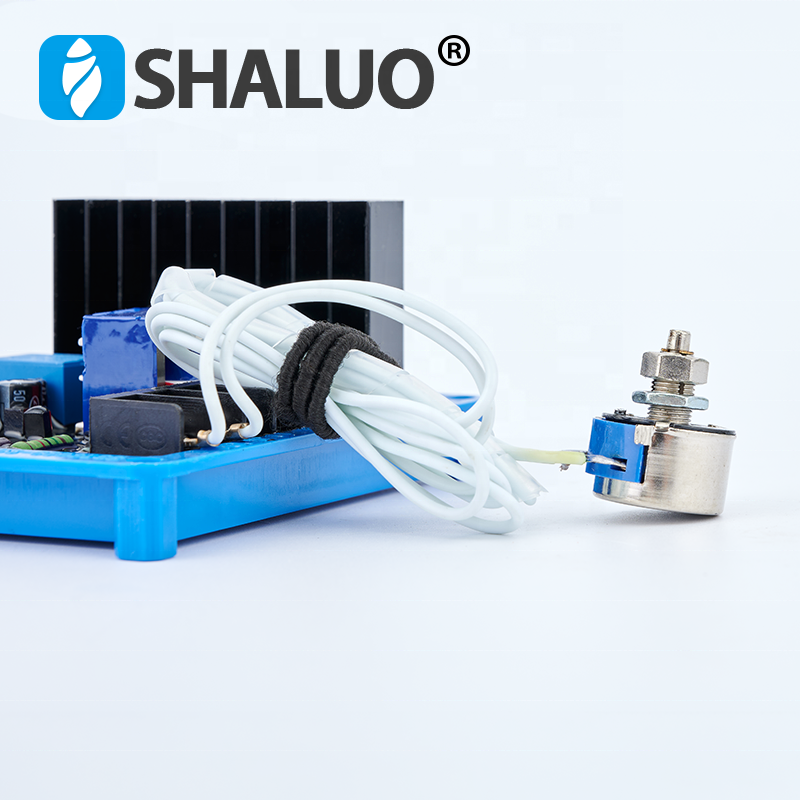

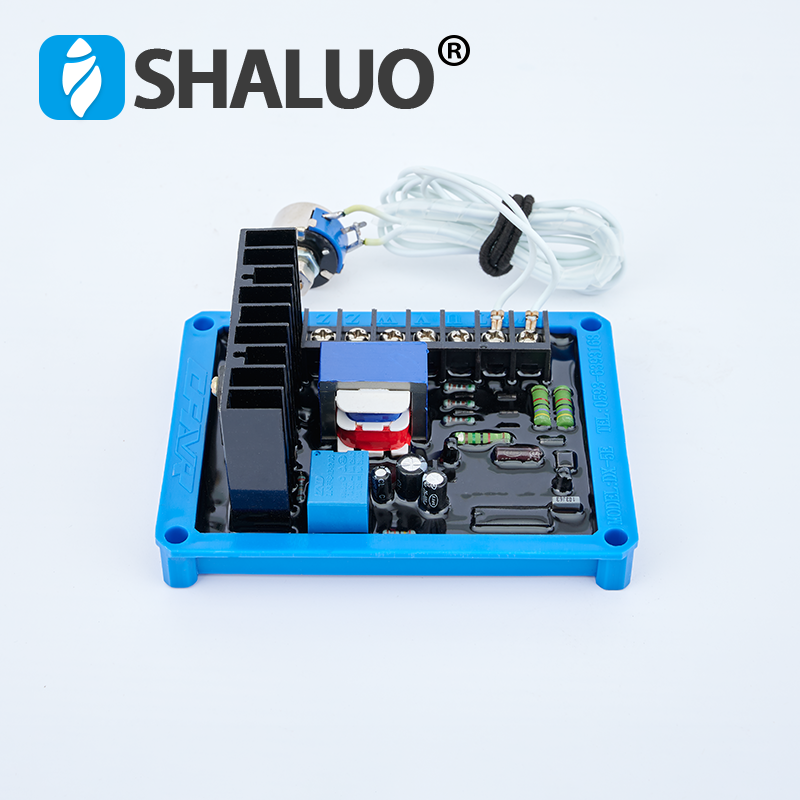

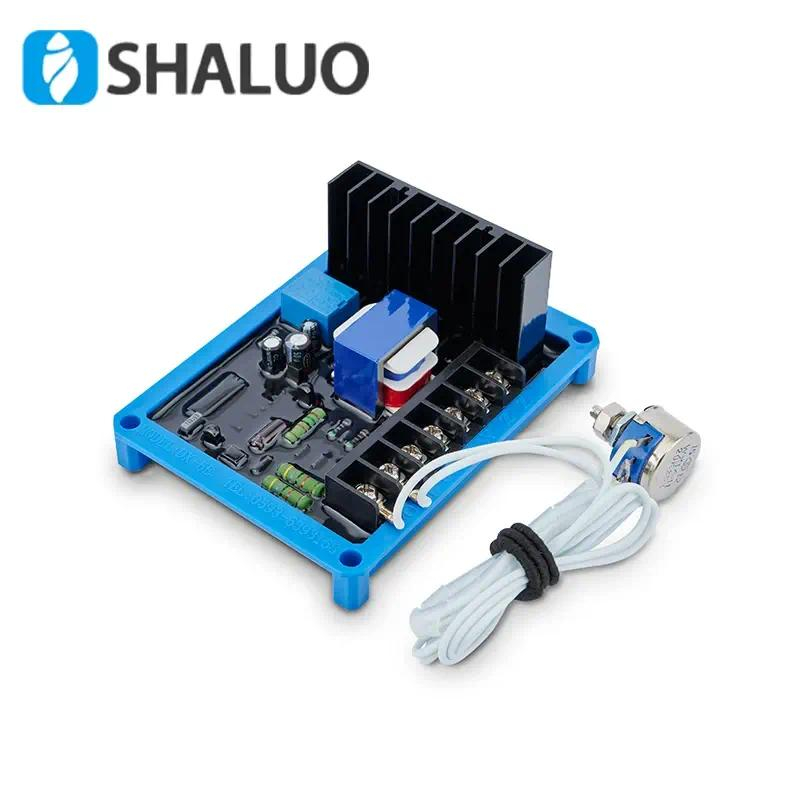

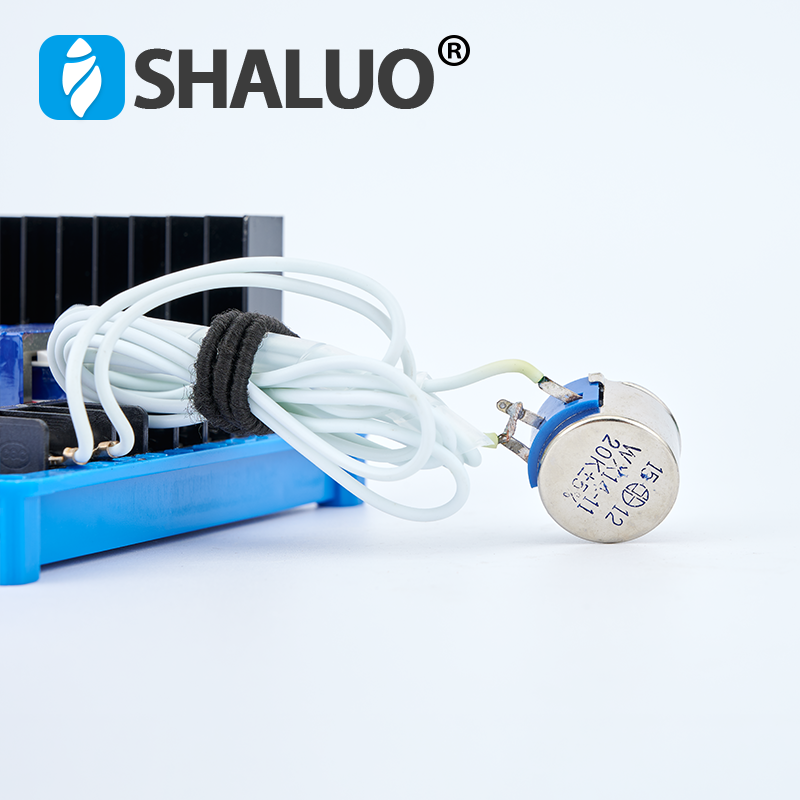

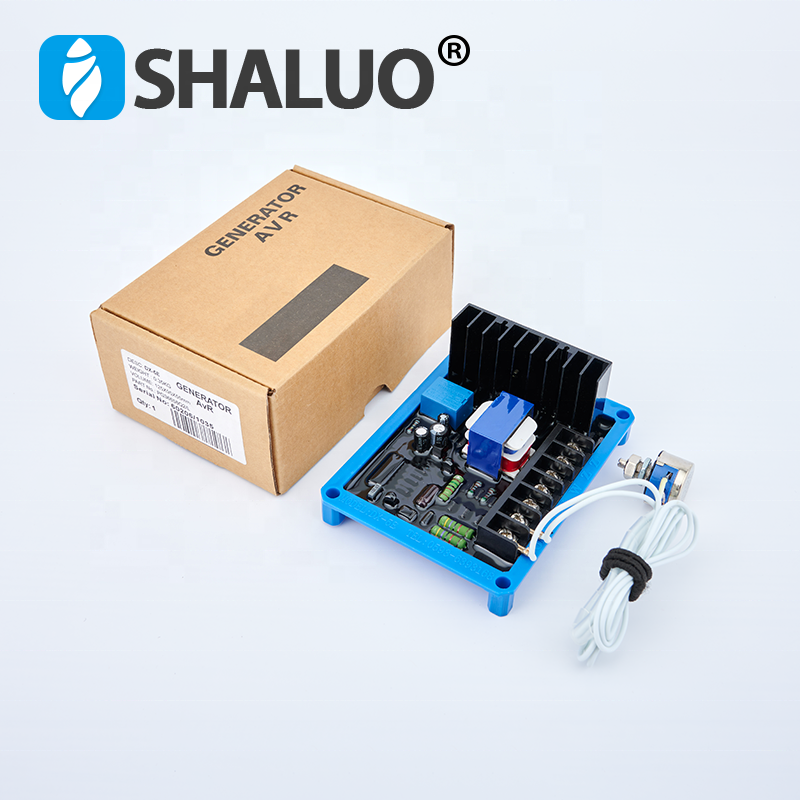

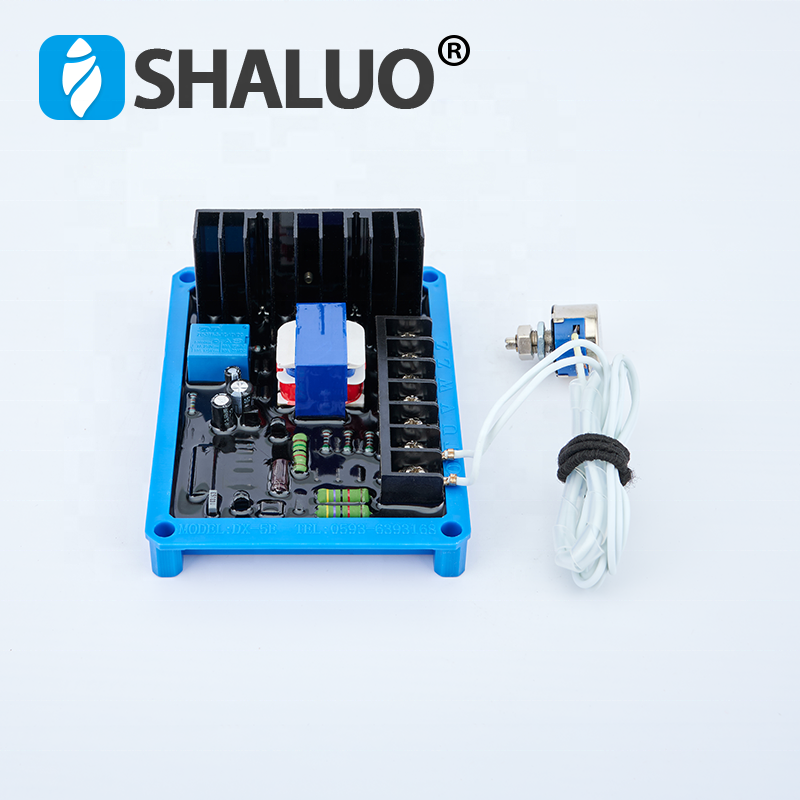

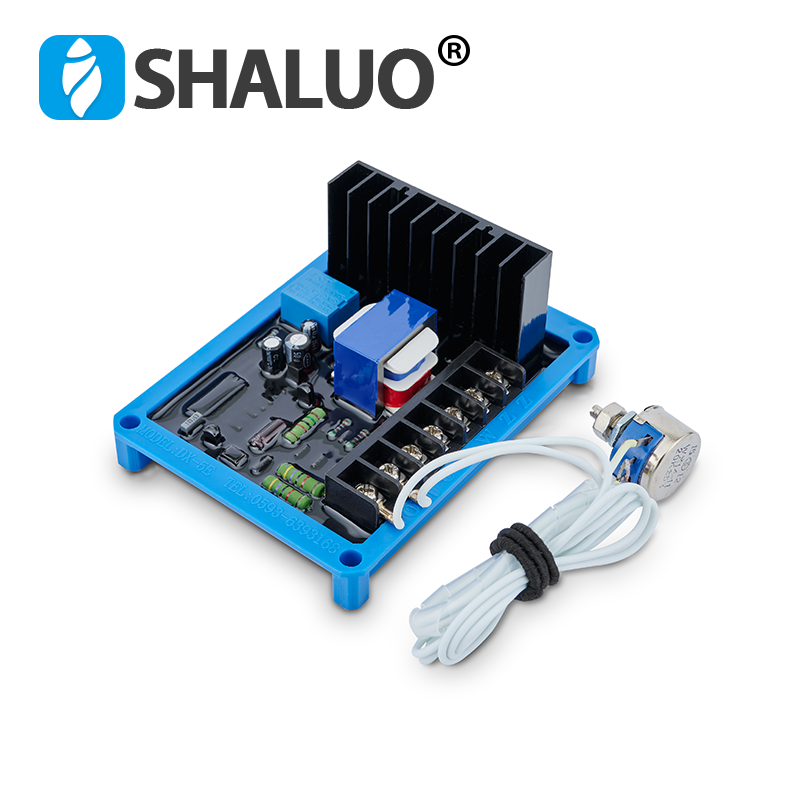

Details Images
