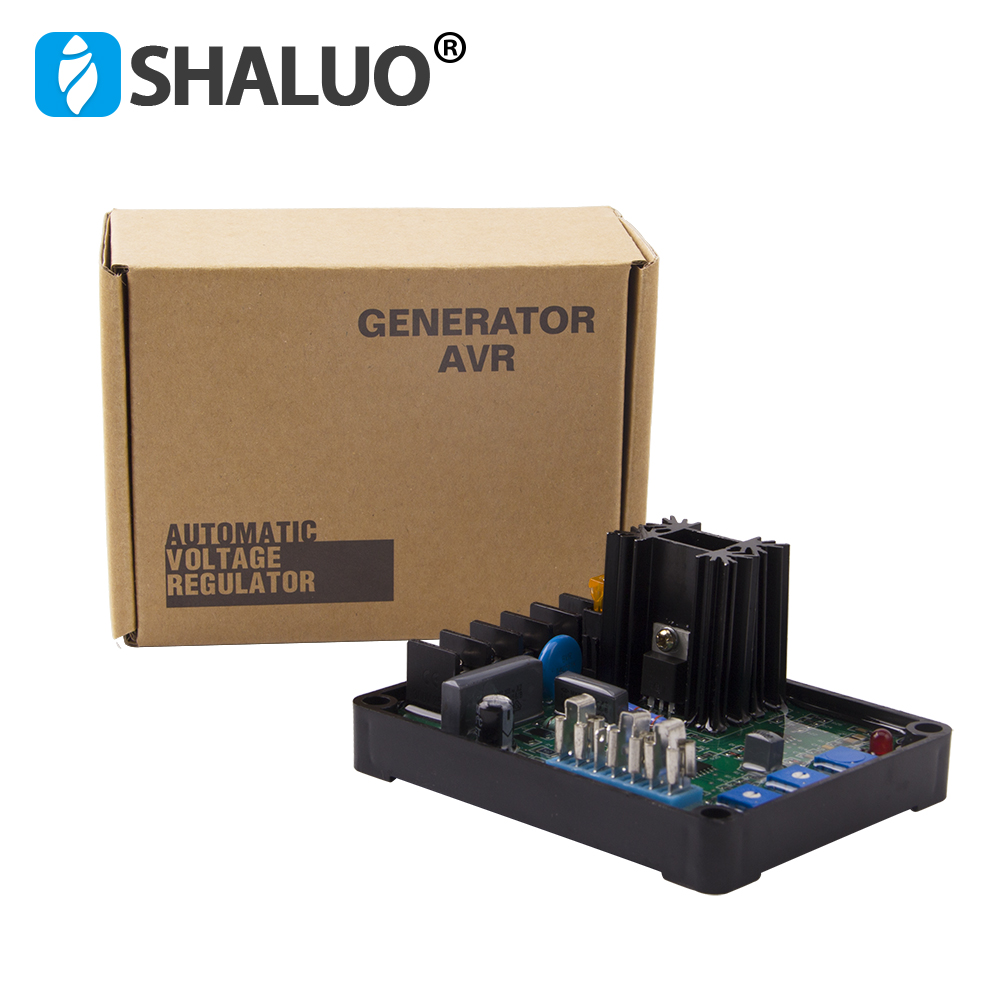

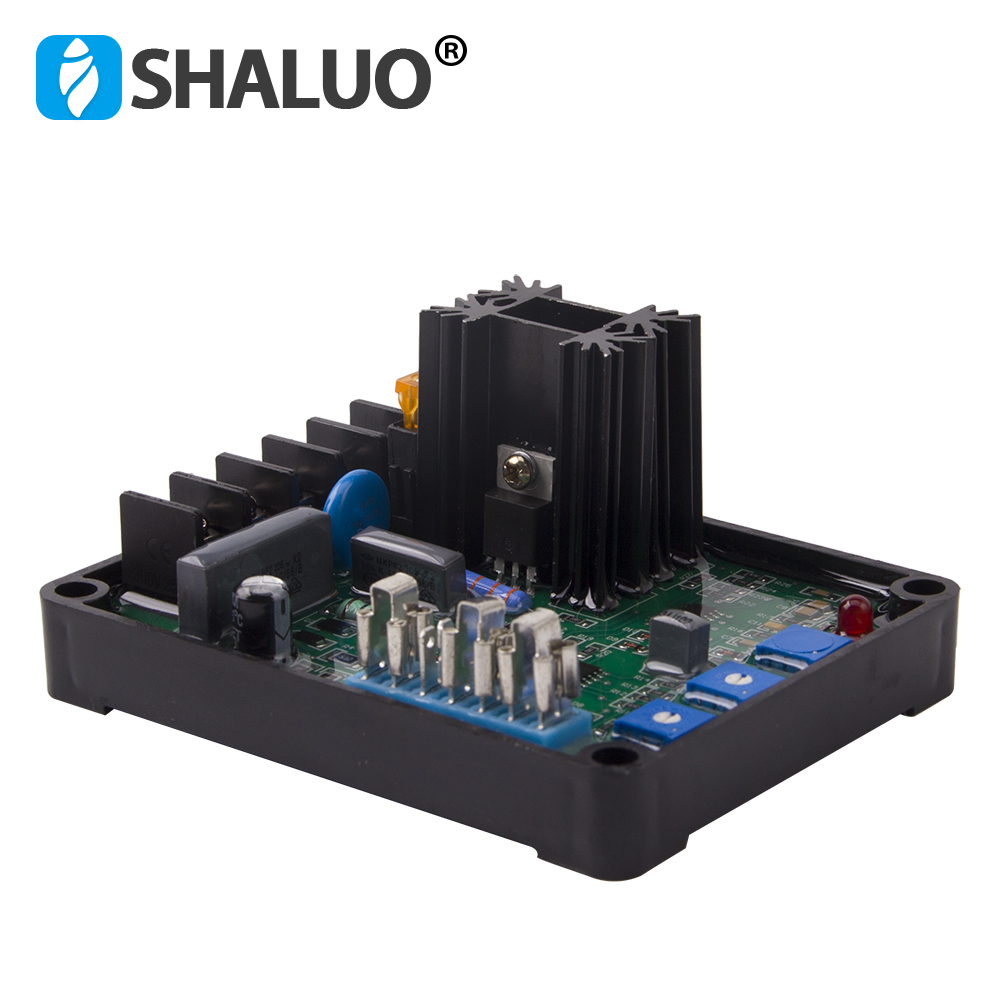

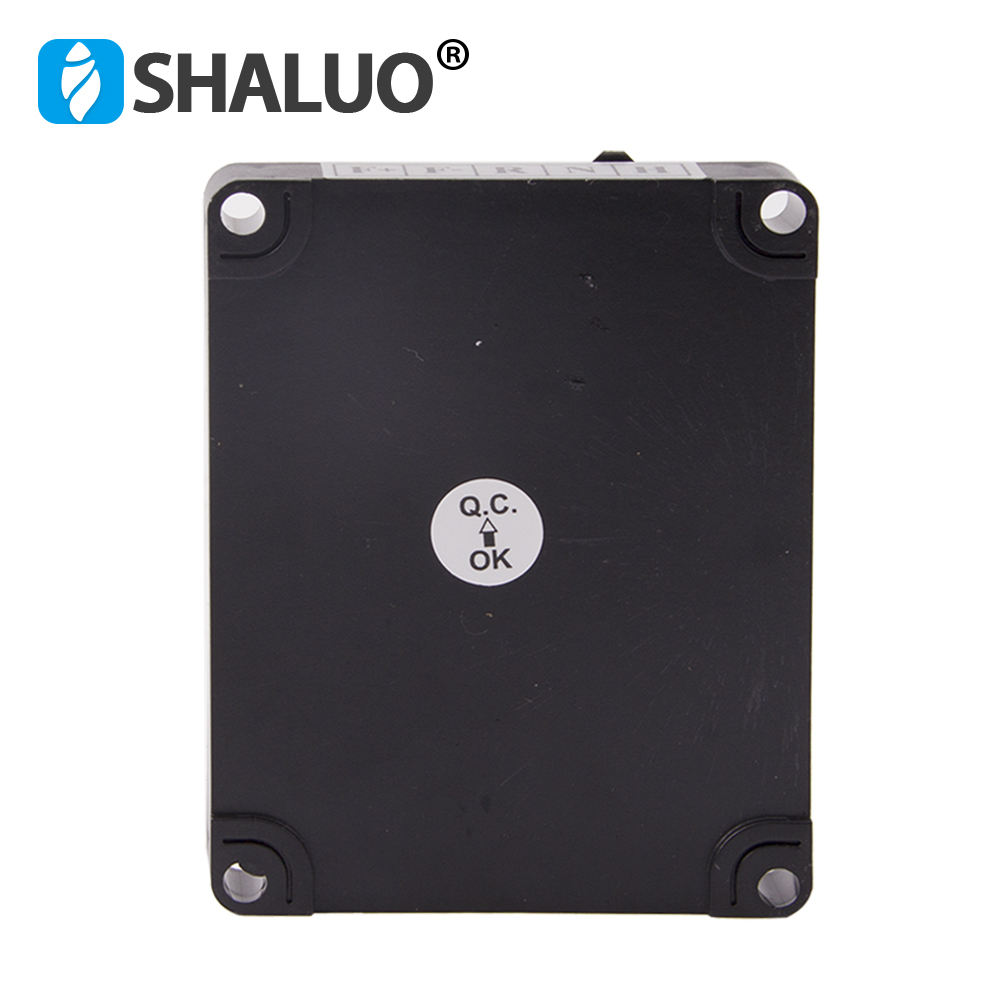

Product Description
| Sensing input Voltage | 110/220/400VAC , 1 phase 2 wire |
| Power Input voltage | 100-260VAC , 1 phase 2 wire |
| Output voltage | max 90 VDC at 240VAC input |
| Current | Continuous 3 A , intermittent 5A for 10secs |
| Resistance | Min.15 ohm , Max 100ohm |
| Voltage Build-up | residual voltage at avr terminal >5VAC |
| Voltage Regulation | <±1% with 4% engine governing |
| Operating Temperature | (-40°C to +60°C |
| Storage Temperatue | (-65°C to +85°C |
| External Volts Adjutment | ±7% with 1k ohm 1 watt trimmer |
| EMI Suppression | Internal electromagnetic interference filtering |
| Unit Power Dissipation | Max.8 watt |
| Under Frequency Protection | 60Hz system presets knee point at 55Hz |
| 50Hz system presets knee point at 45Hz | |
| Dimensions | 107mmL*82mmW*50mmH |
