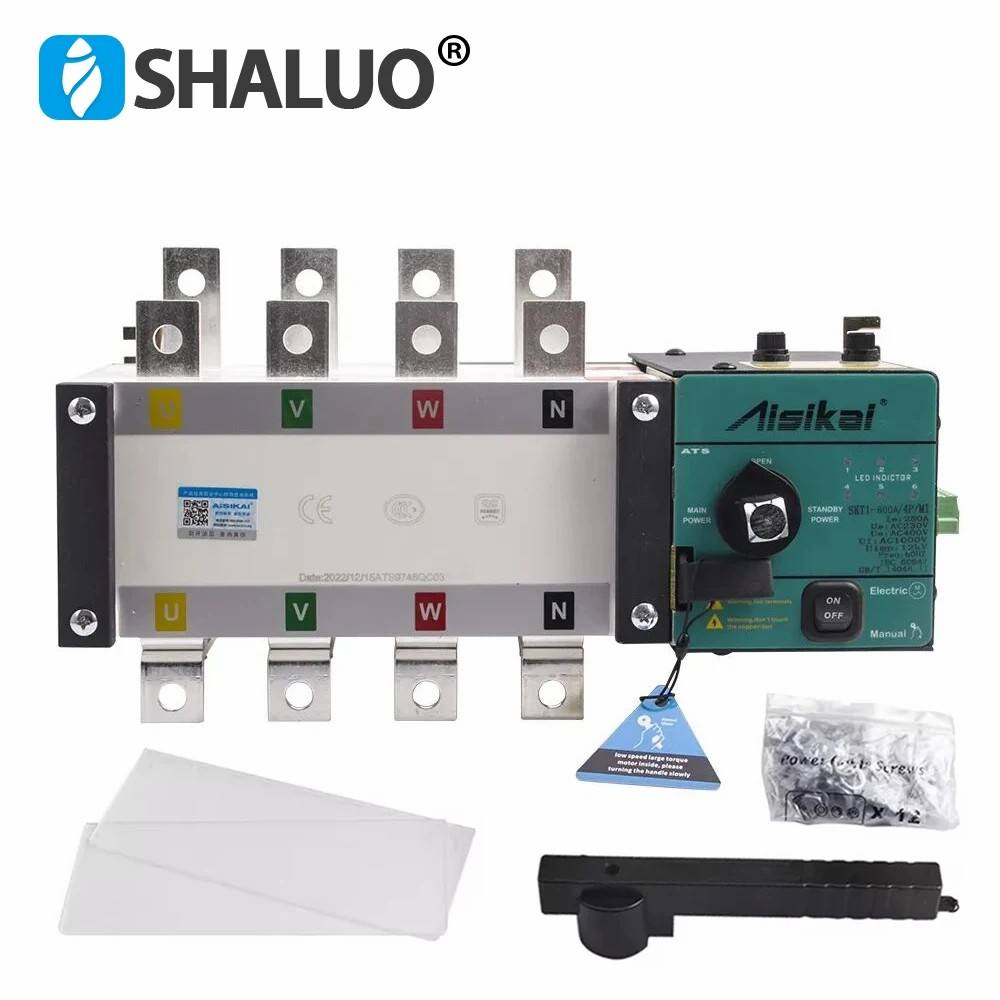

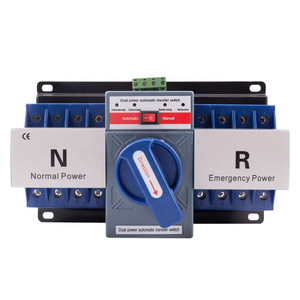

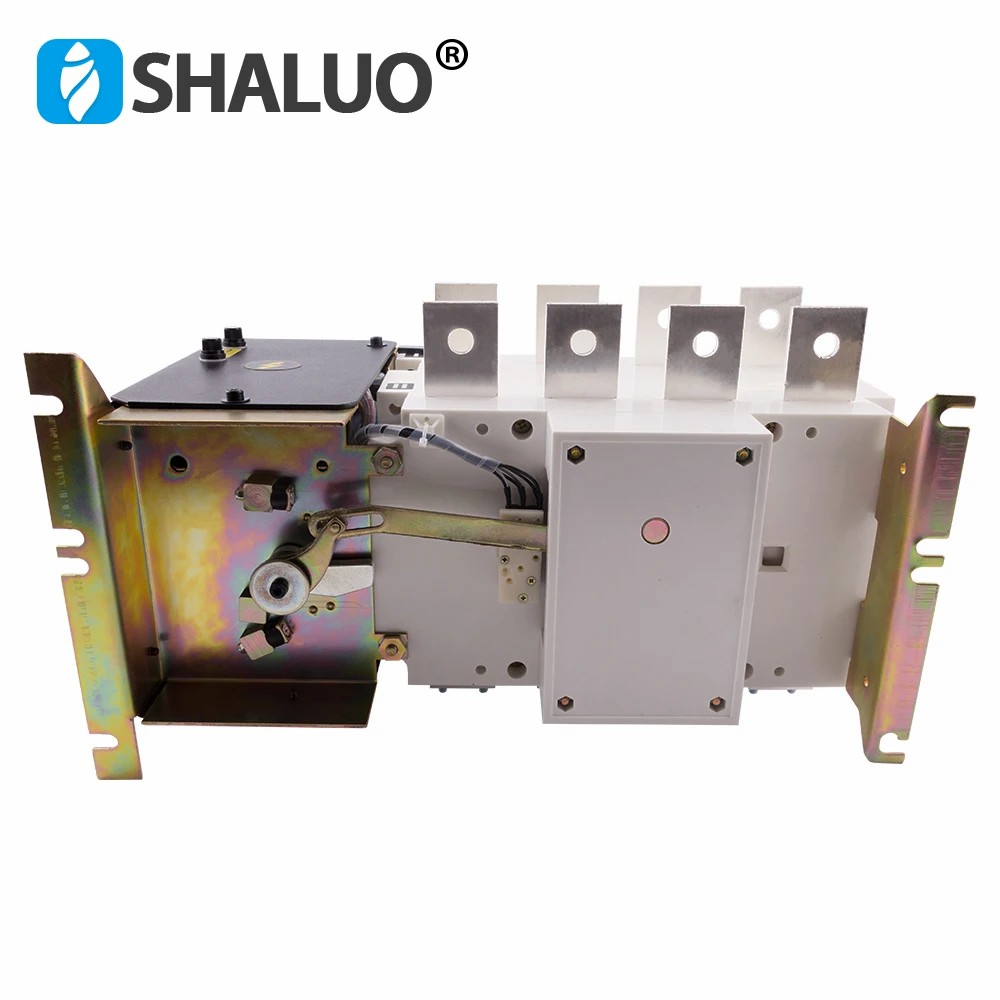

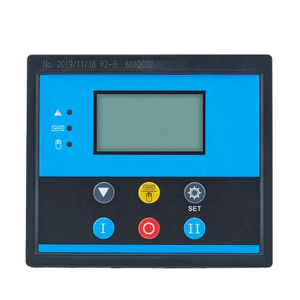

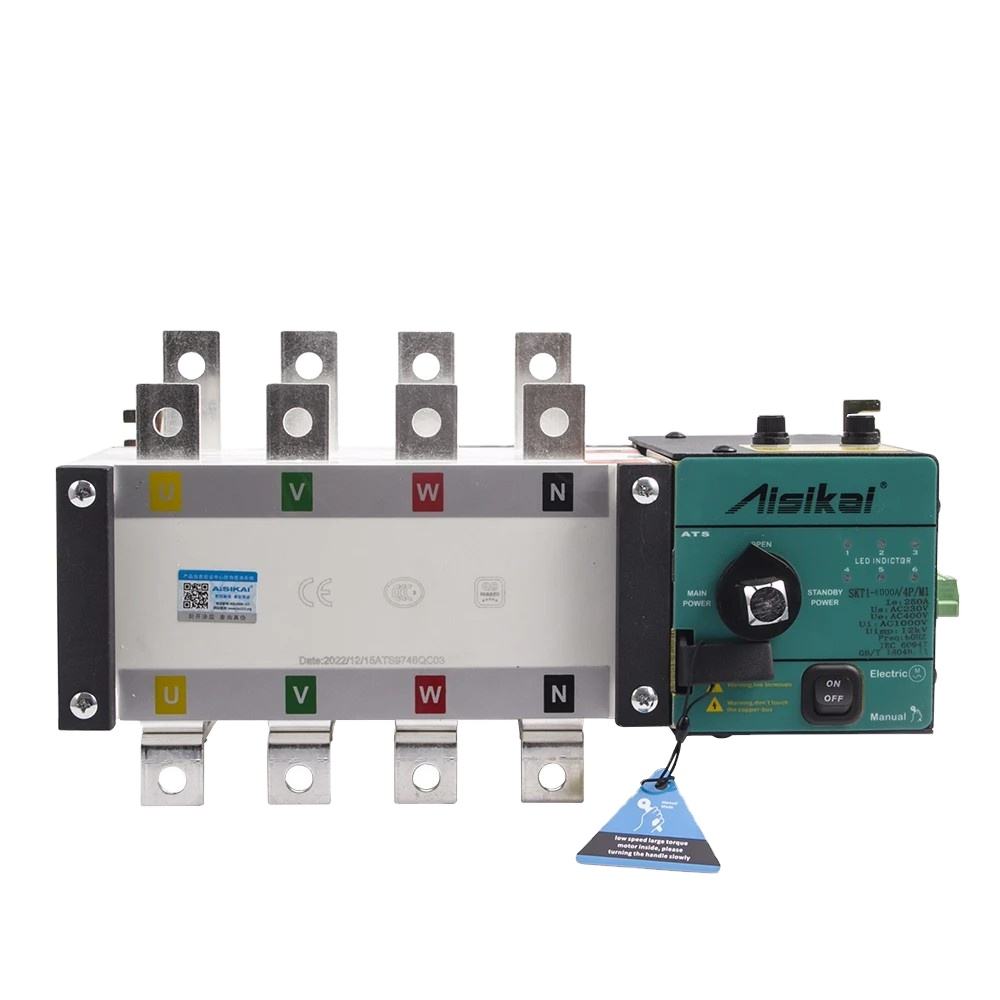

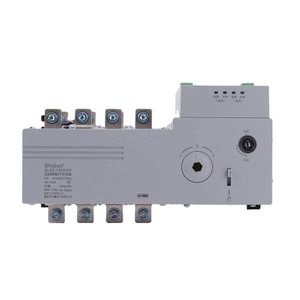

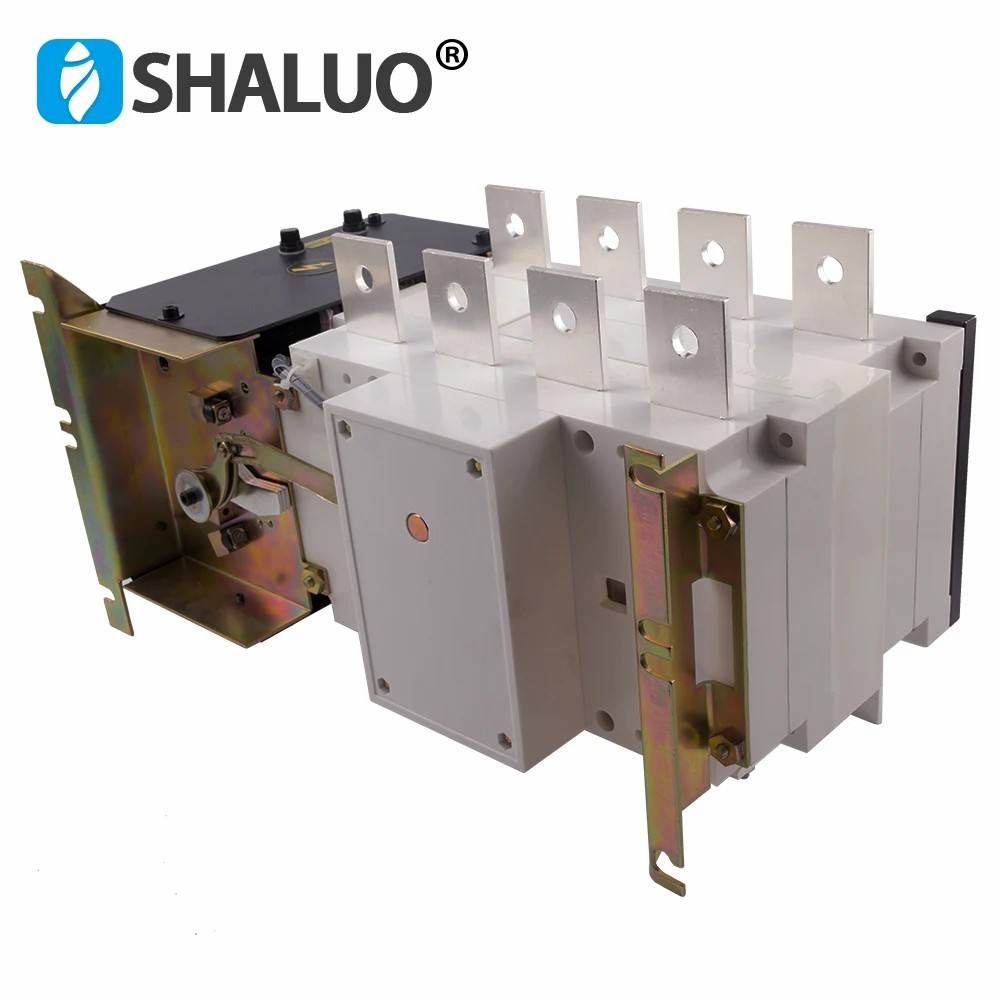

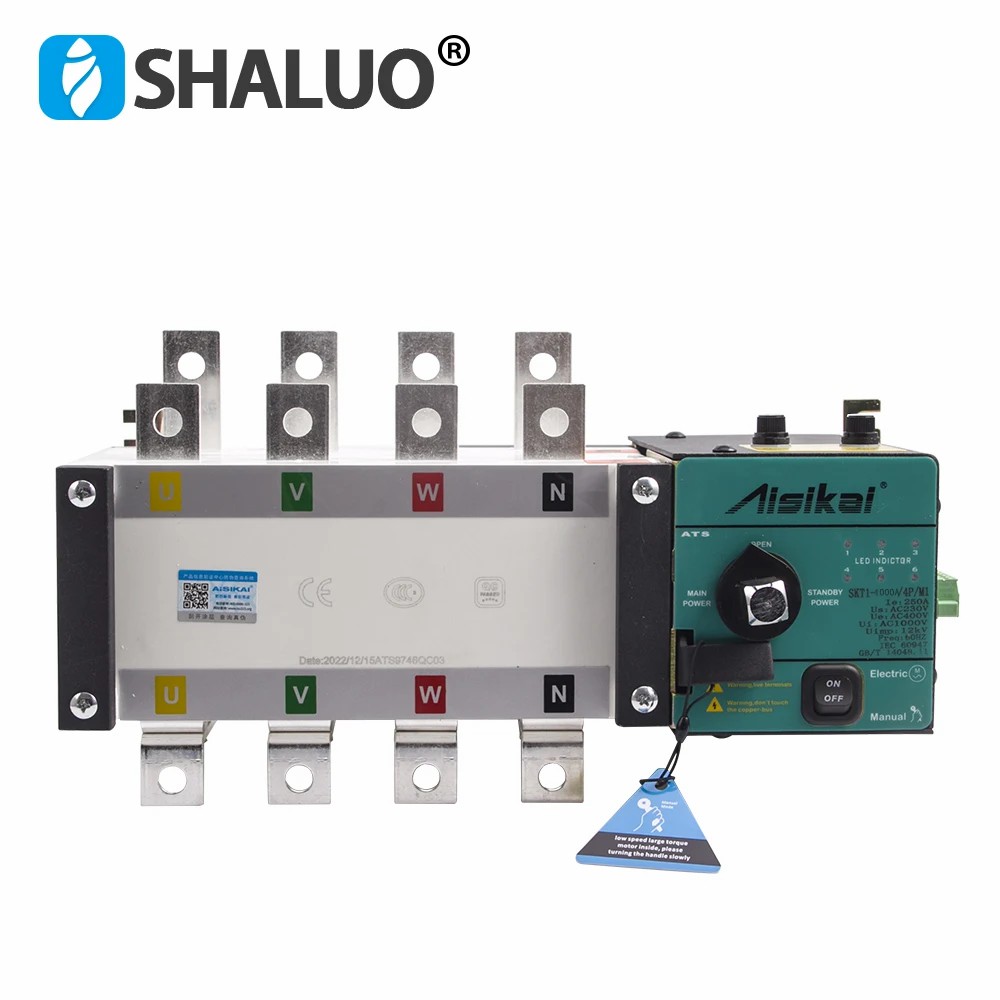

Aisikai Generator ATS Switch Automatic Transfer Switching Panel 300A Ats Controller Change Over Switches For Generators

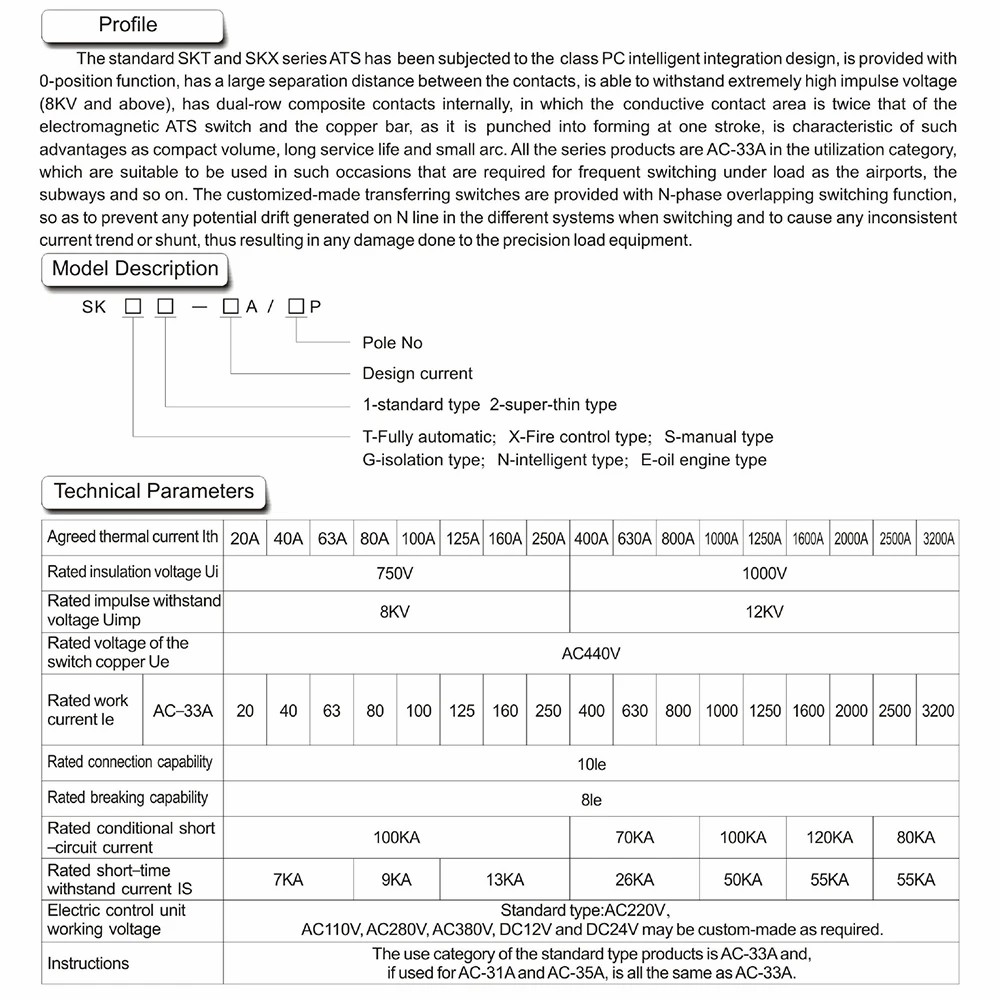

The standard SKTand SKXseriesATS has been subjected to the class PC intelligent integration design, is provided with0-position function, has a large separation distance between the contacts, is able to withstand extremely high impulse voltage(8KV and above), has dual-row composite contacts internally, in which the conductive contact area is twice that of theelectromagnetic ATS switch and the copper bar, as it is punched into forming at one stroke, is characteristic of suchadvantages as compact volume , long service life and small arc.All the series products are AC-33A in the utilization category.which are suitable to be used in such occasions that are required for frequent switching under load as the airports, thesubways and so on.The customized-made transferring switches are provided with N-phase overlapping switching function,so as to prevent any potential driftgenerated on N line in the different systems when switching and to cause any inconsistentcurrent trend or shunt, thus resulting in any damage done to the precision load equipment.
