Auto Controller AMF DSE6020 replacement Original DSE 6020 MK2 DSE6020MK2 for Genset Generator

Auto ControllerAMF DSE6020MK2DSE6020MK2

AUTO START CONTROL MODULES
The Brands mentioned here are for reference only, our parts can exactly replace the original ones.

How to choose a suitable Genset Auto Controller?
1.CheapGenerator Controller : DSE501K, DSE701, DSE702, DSE704, DSE3110, DSE4520, DSE4620 (for low cost small power generators)
2.More FunctionsGenset Controller: DSE5110, DSE5220, DSE6020, DSE6120, DSE7210, DSE7220, DSE7310, DSE7320, MRS-10, MRS-16, AMF-20,
AMF-25 (for high power generator)
3.More LanguagesGenerator Controller: DSE6120, DSE7210, DSE7220, DSE7310, DSE7320, MRS-10, MRS-16, AMF-20, AMF-25 (Avaliable
Languages: English, Spanish, Portuguese, French, German, Russian, Chinese and etc.)
4.AMF ControllerModules: DSE704, DSE720, DSE5220, DSE6020, DSE6120, DSE7220, DSE7320; AMF-20, AMF-25 (Auto Mains Failure Generator
Control Modules)
5.Synchronising and Load ShareController: DSE8610, DSE8620, DSE8660, ICNT-MINT, ICNT-MCNT, ICNT-SPTM
6.Canbus ECU CommunicationsGenerator Control Panel: MRS-16, AMF-25, DSE7210, DSE7220, DSE7310, DSE7320, DSE3110 ECU, DSE4520,
DSE7320 MKII

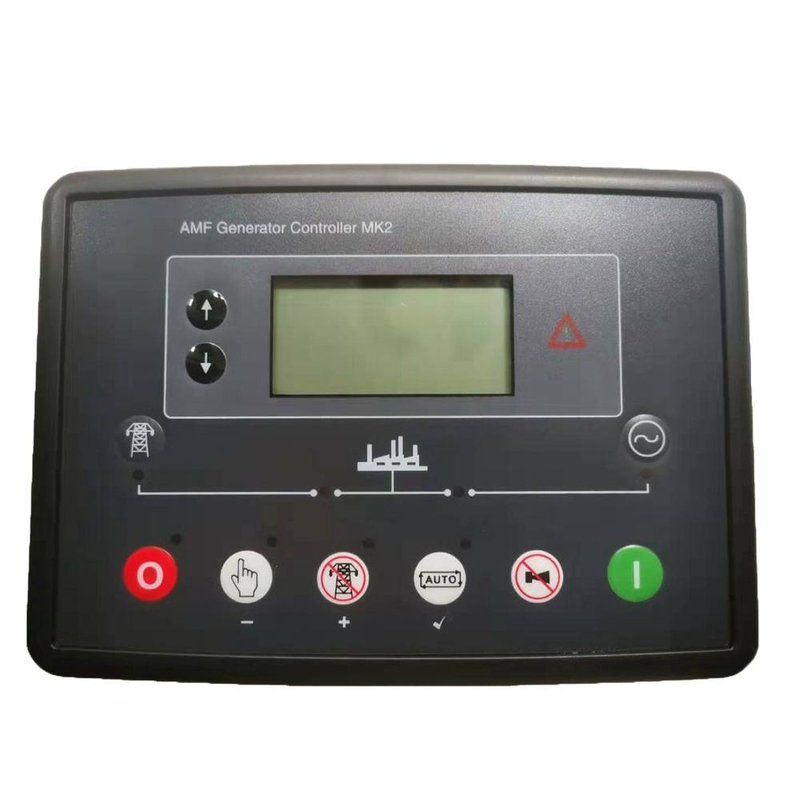

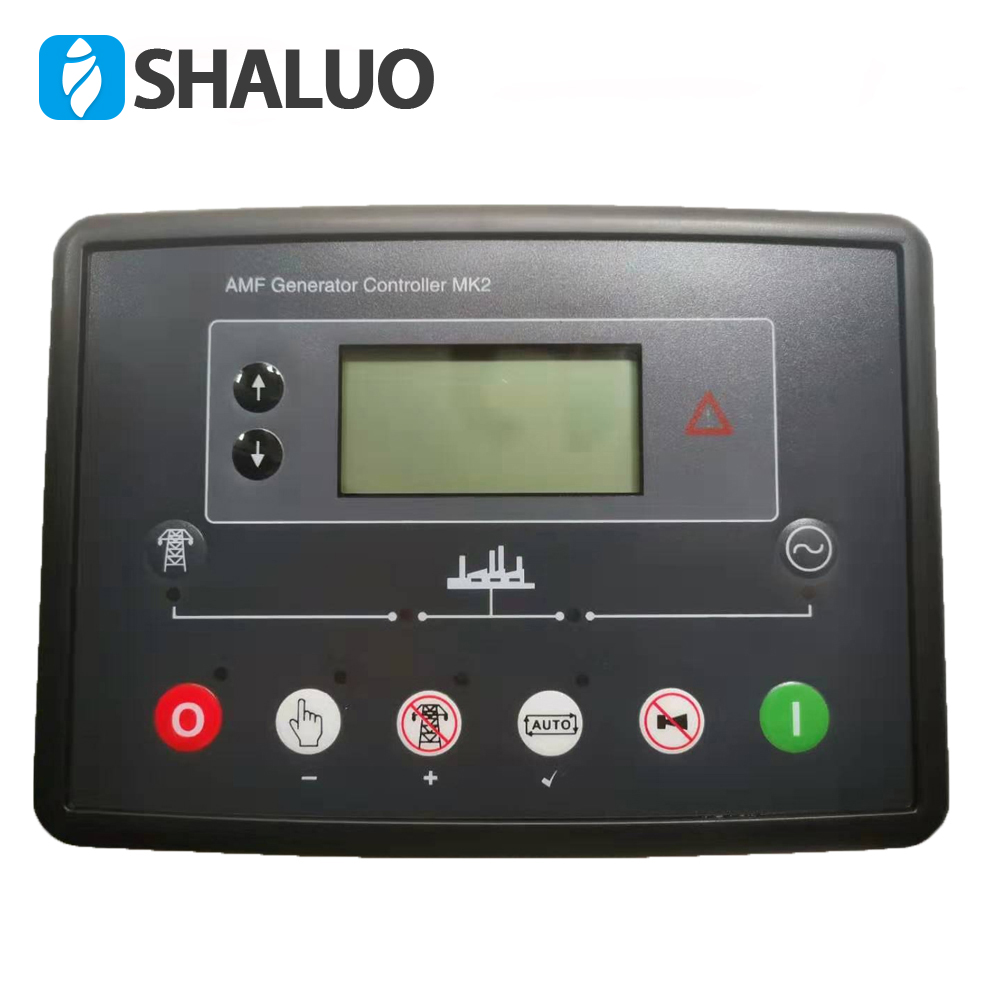

DSE6020
AUTO MAINS FAILURE GENERATOR CONTROL MODULE

FEATURES
The 6020 Generator Controller is an Auto Start Control Module and the DSE6020 Generator Controller is an Auto Mains Failure
Control Module suitable for a wide variety of single, diesel or gas, gen-set applications.
Monitoring speed, frequency, voltage, current, oil pressure, coolant temperature and fuel level, the modules will display
warnings, shutdown and engine status information on the back-lit LCD screen and illuminated LED.
Generator Controller DSE6020 offers electronic (CAN) and non-electronic (magnetic pick-up/alternator sensing) engine versions and
offer a number of flexible inputs, outputs and engine protections so the system can be easily adapted to suit a wide range of
application demands.
The modules can be easily configured using the DSE Configuration Suite PC software. Selected front panel editing is also
available.

KEY FEATURES
• Back-lit icon LCD display
• Front panel editing
• LED and LCD alarm indication
• Power Save mode
• CAN and Magnetic Pick-up/Alt. versions available (specify on ordering)
• PC and front panel configuration
• 4 Digital inputs
• 3 Analogue inputs
• 6 Outputs (4 configurable on Magnetic Pick-up/Alt., 6 configurable on CAN version)
• Configurable timers and alarms
• Alternative configuration
• Event Log (5)
• Remote Start input
• 3 Phase generator monitoring
• Current monitoring and protection
• Power monitoring (kW, kV A, kV Ar)
• 3 Phase Mains (Utility) monitoring (DSE6020 only)
• Test button (DSE6020 only)
• Battery Voltage monitoring
• Engine pre-heat
• Hours counter
• Comprehensive shutdown or warning on fault condition

KEY BENEFITS
• Automatically transfers between mains (utility) and generator power (DSE6020 only)
• Hours counter provides accurate information for monitoring and maintenance periods
• User-friendly set-up and button layout
• Multiple engine parameters are monitored simultaneously
• Module can be configured to suit individual applications
• Compatible with a wide range of CAN engines
• Uses DSE Configuration Suite PC software for simplified configuration
• IP65 rating (with optional gasket) offers increased resistance to water ingress
• Licence-free PC software
