Generator parts Automatic Voltage Regulator POW50A

Share to:

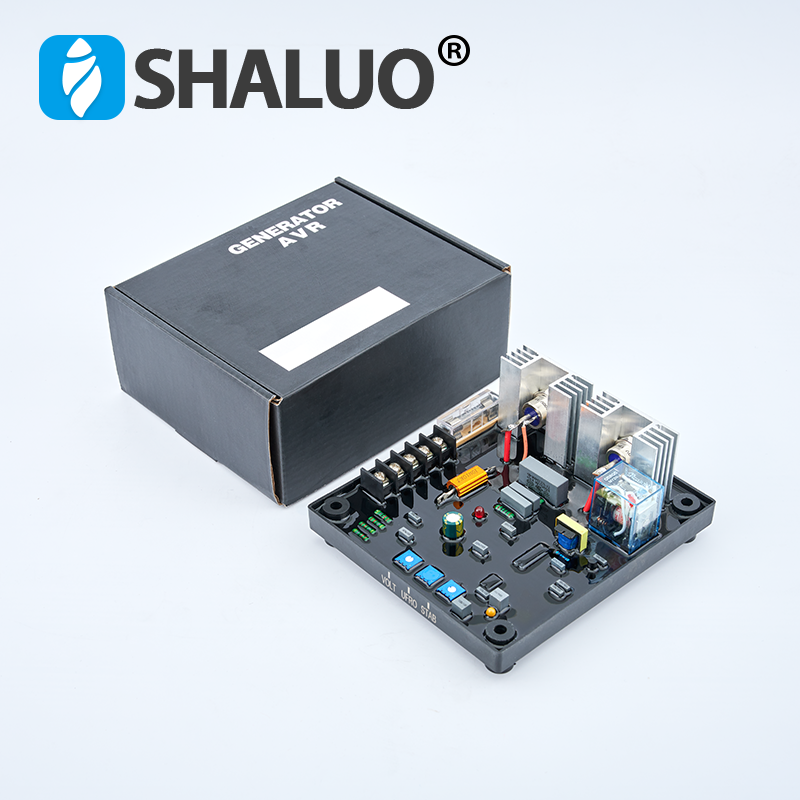

Avr Generator Parts Automatic Voltage Regulator Stabilizer 220v Voltage Protector POW50A

Availability:

Quantity:



Inquire Add to Basket

Product Description

Product Description

New Generator parts of Universal voltage regulator AVR POW50A with CE certifications

Other Universalmodels:
Brushless: GAVR-8A, GAVR-12A,GVAR-15A,GAVR-20A , AVR-704,AVR-703
Universal Brush & Brushless: AVR-701,AVR-35A,POW50A,POW50B, AVR-100A
60Hz system presets knee point at 57Hz
50Hz system presets knee point at 47Hz

Specifications

UniversalAVR50AAutomatic voltage regulatorPOW50Aforbrush and brushlessgenerator
Input
Voltage	195-265 Volts min
Frequency	50Hz nominal
Output
Voltage	0-115 volts-DC at 230volts
Current Continuous	30A
Intermittent Current	max 50 A-DC (for 10s)
Regulation	+/- 2% typical.
Soft star	2 sec
Under frequency protection	40-50 Hz
ENVIRONMENTAL
Operating temperature	-20 to +70 °C
Maximum humidity	95% non-condensing
Storage temperature	-30 to +80 °C

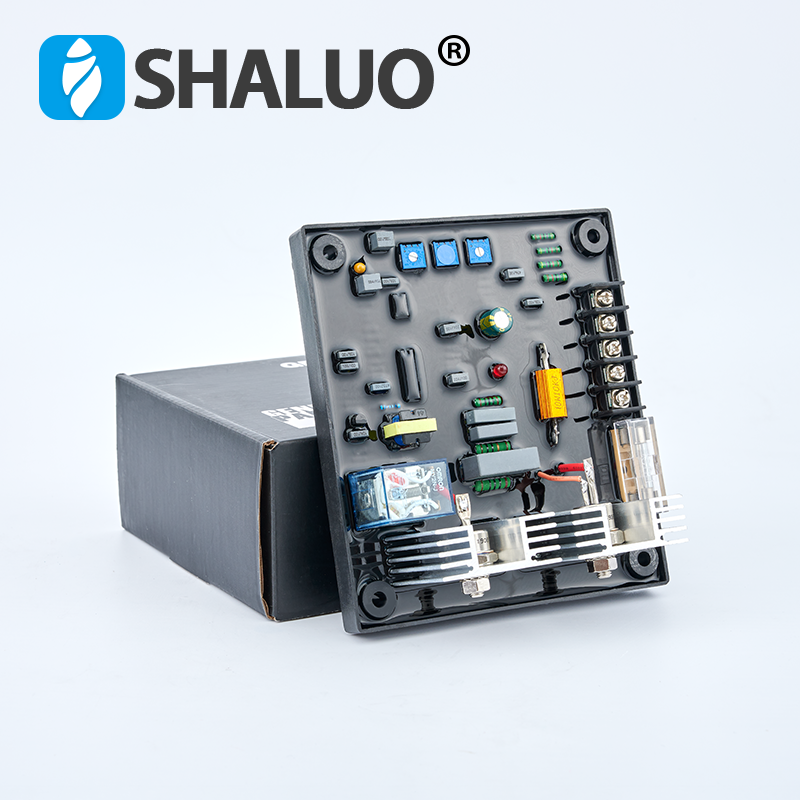

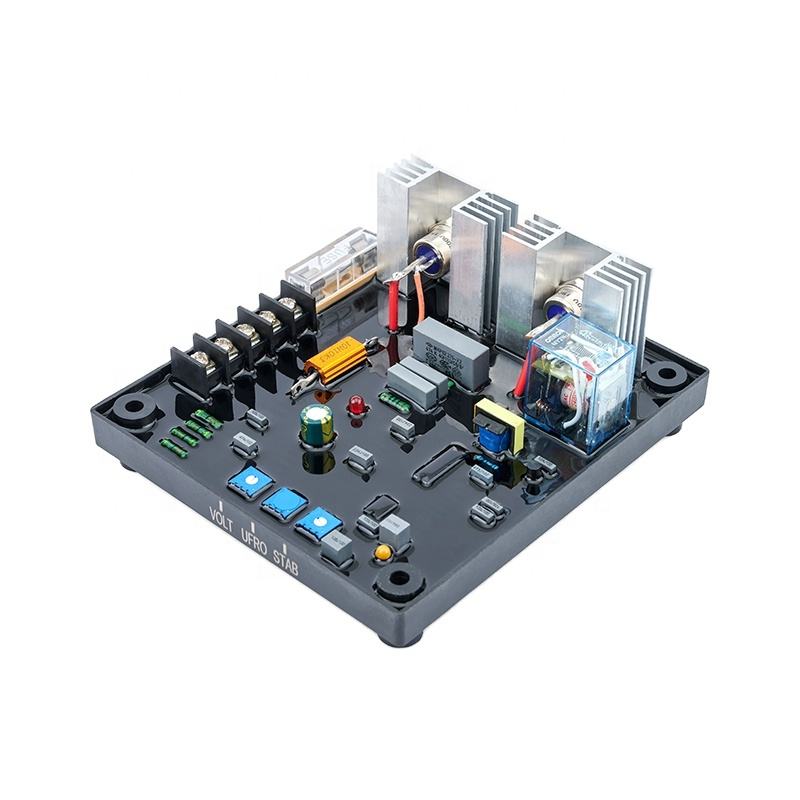

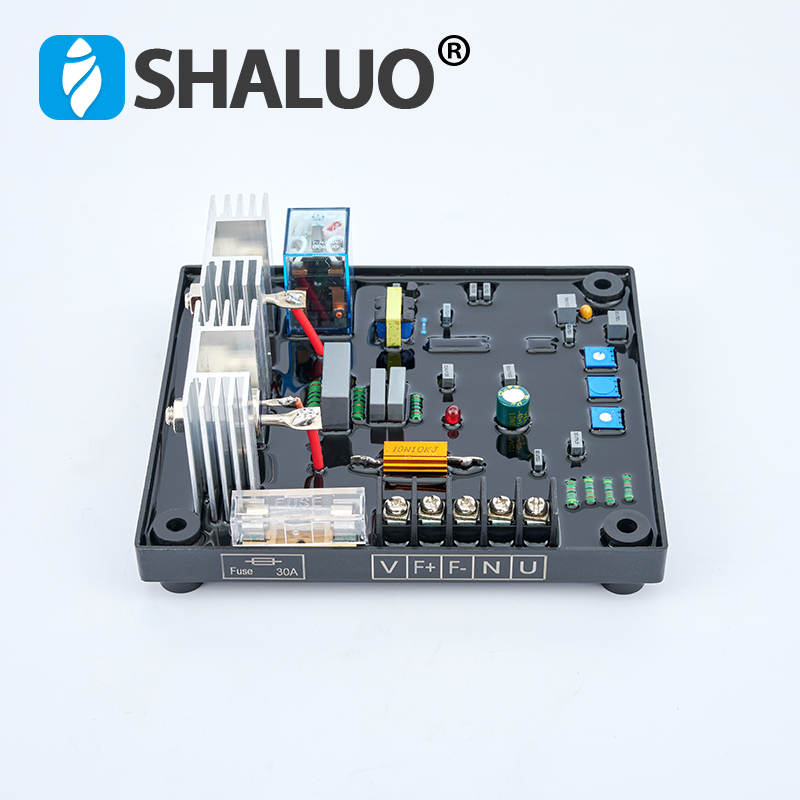

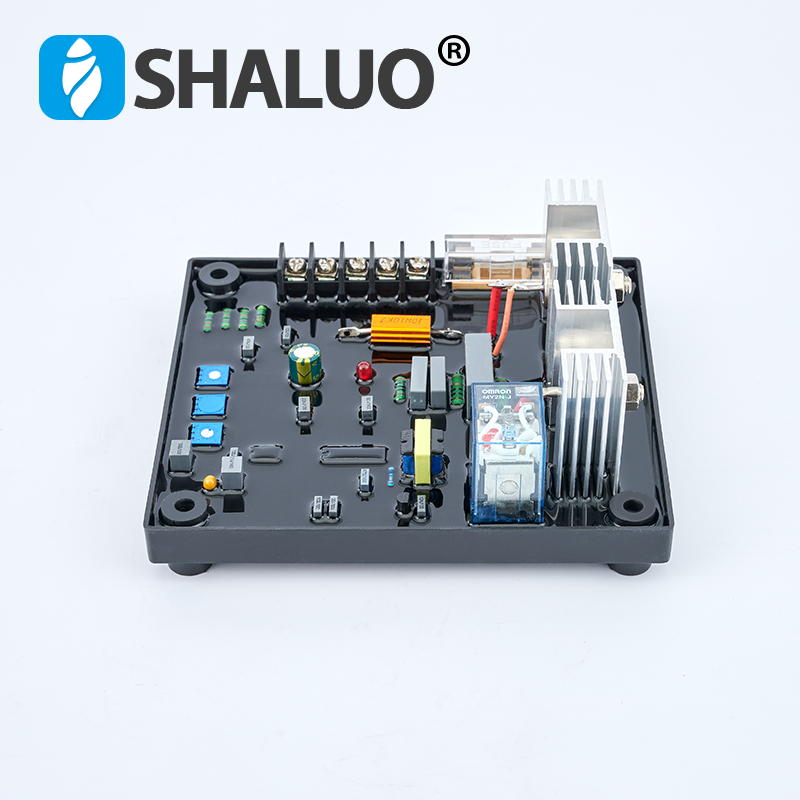

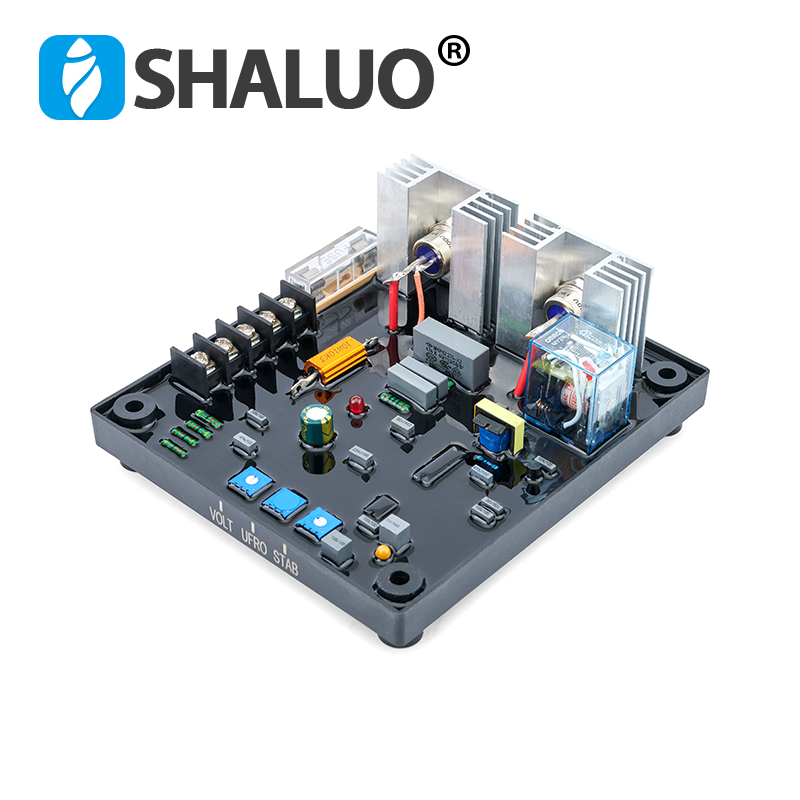

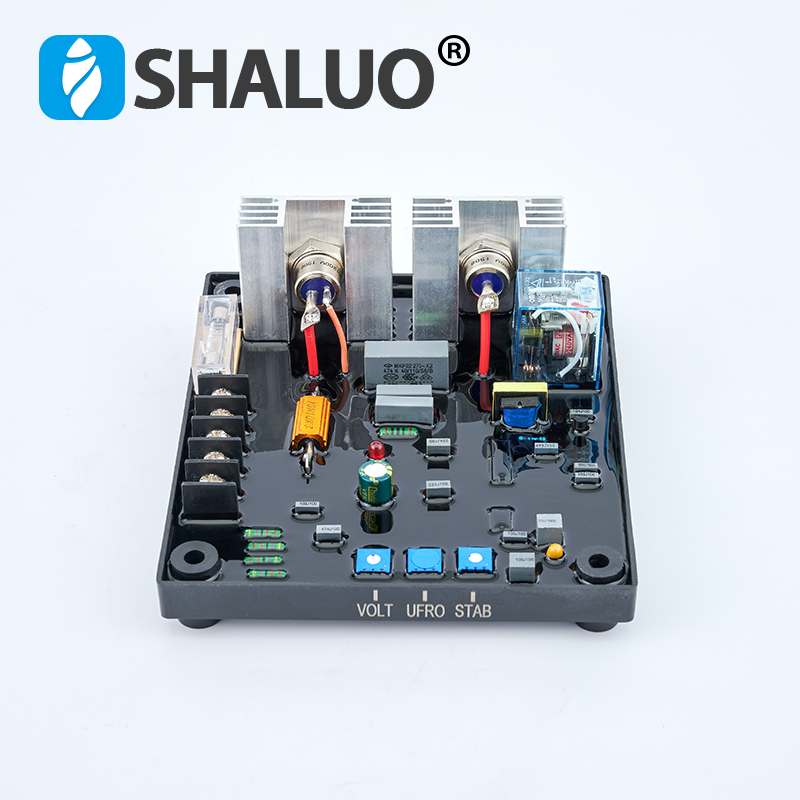

Detailed Images

Our Certifications

Our Factory

About the company

7.1-详情_10

Payment & Delivery
