Product Description

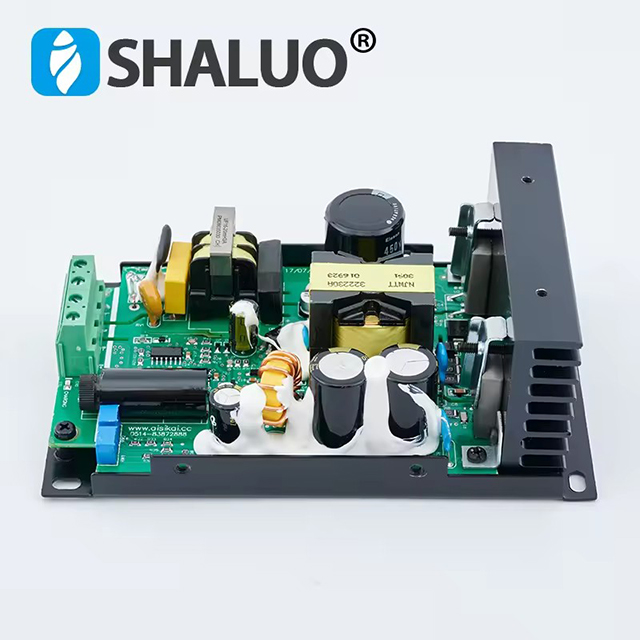

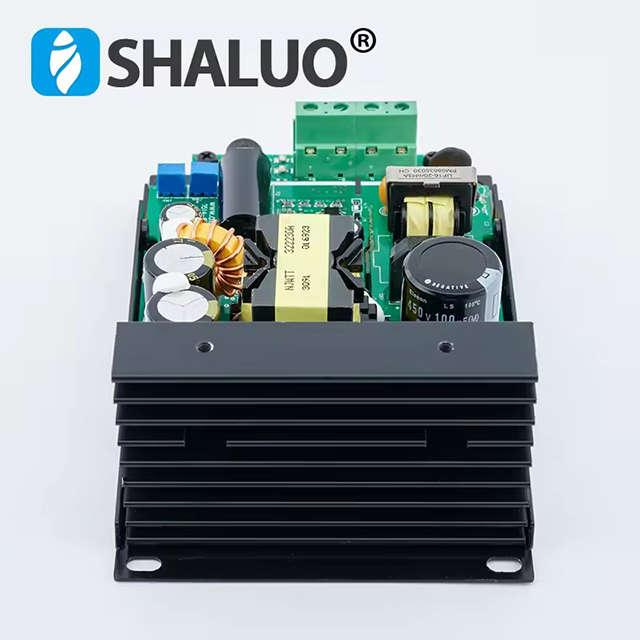

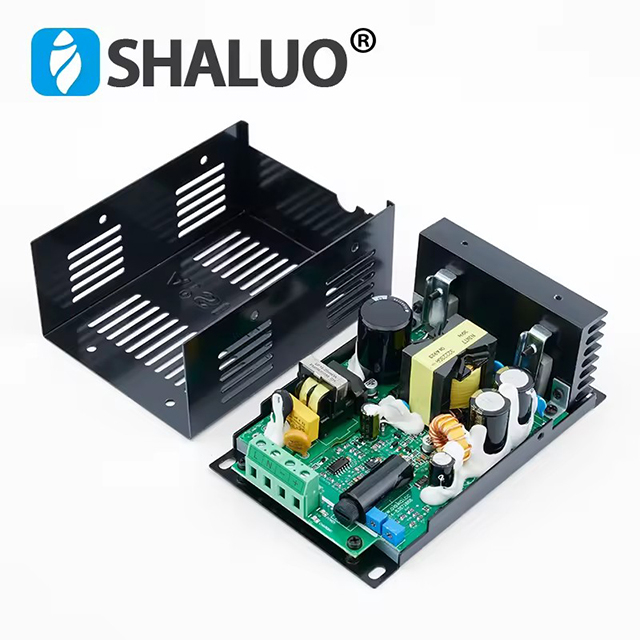

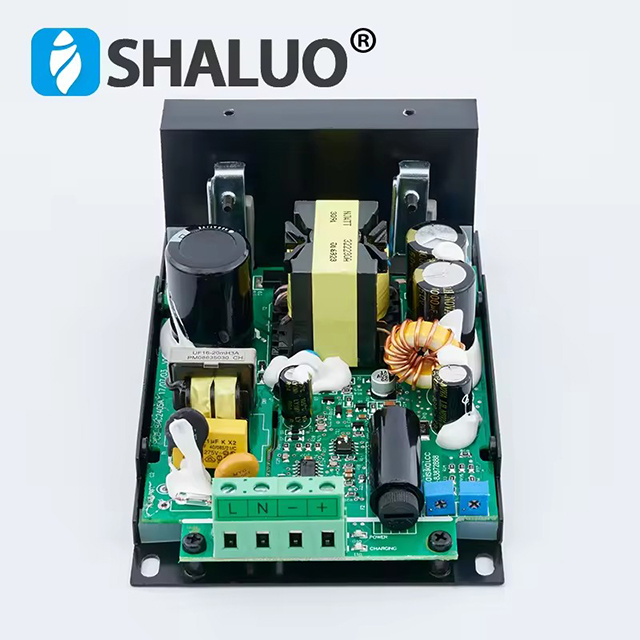

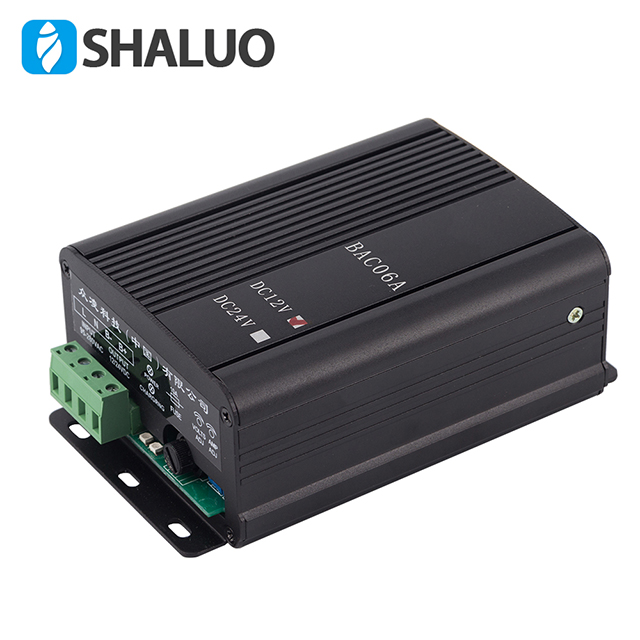

BAC06A switching battery charger adopts the latest switch power components, which is designed for charging lead-acid starting battery according to its property. The charger is suitable for lead-acid battery float charge. The maximum charge current for 12V charger is 6A; the maximum charge current for 24V charger is 3A.
Battery Voltage | 12V | 24V |
Max. Charge Current | 6A | 3A |
Charge Voltage Range | (13~14.5)V | (26~29)V |
Charge Current Range | (3~7)A | (1.5~3.5)A |
AC Voltage | (95~280)VAC | |
AC Frequency | 50 Hz/60Hz | |
Power Consumption | 120W | 115W |
No-Load Power Consumption | Less than 3W | |
Efficiency | More than 80% | More than 85% |
Working Temperature | (-40~60)°C | |
Storage Temperature | (-40~85)°C | |
Weight | 0.65kg | |
Case Dimensions | 143 mm×92 mm×52mm | |
