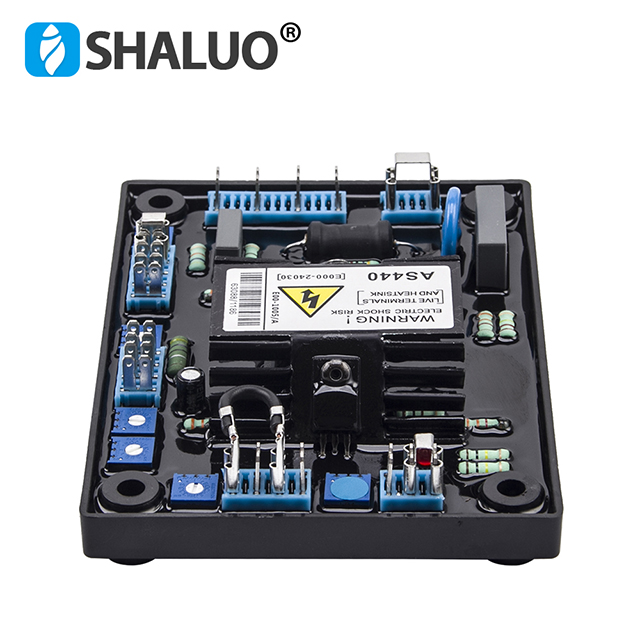

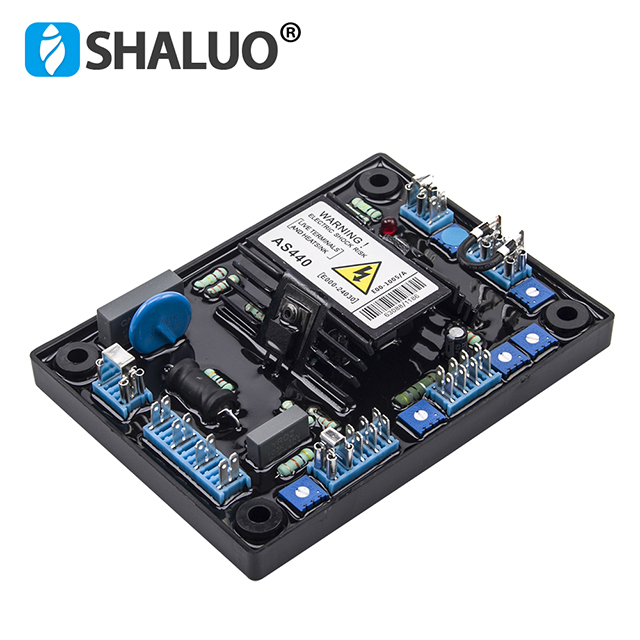

KERUI Generator Avr 3kw Voltage Regulator 3 Phases Automatic Voltage Stabilizer 220v AS440 Avr Generator

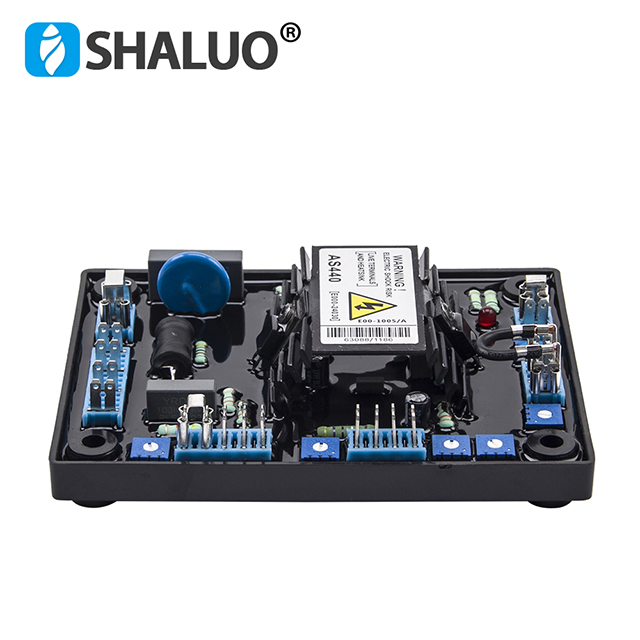

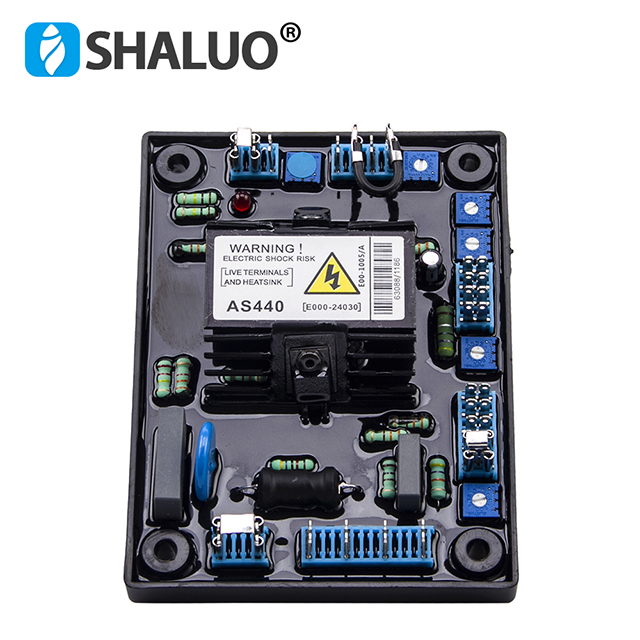

AS440 is a half wave phase controlled thyristor type AVR and forms part of the excitation system for a brushless generator. The design employs Surface Mount Technology (SMT) for high integration of features in a small footprint AVR. Positive voltage build up from residual levels is ensured by the use of efficient semiconductors in the power circuitry of the AVR. The power and voltage sensing circuits have separate terminals, allowing the excitation power to be derived directly from the stator winding for basic applications or from an auxiliary winding if sustained short circuit performance is required.

AVR AS440 adjustable alternator voltage regulator is a half-wave phase controlled thyristor type Automatic Voltage Regulator and forms part of the excitation system for a brushless generator. In addition to regulating the generator voltage, the AVR circuitry includes under speed and sensing loss protection to ensure safe, reliable control of the generator.

Positive voltage build up from residual levels is ensured by the use of proficient semiconductors in the power circuitry of the AVR. Which is linked with the main stator windings and the exciter field windings to offer closed loop control of the output voltage with load regulations of +/- 1.5%

Notes

1. De-rate by 12% if mounted in portrait orientation.

2. With 4% engine governing.

3. After 2 minutes.

4. Generator de-rate may apply. Check with factory.

5. Factory set, semi-sealed, jumper selectable.

6. Any device connected to the analogue input must be fully floating(galvanically isolated form ground), with an insulation strength of 500V ac

7. De-rate output current by 5% per degree C above 60C.

8. Non condensing
