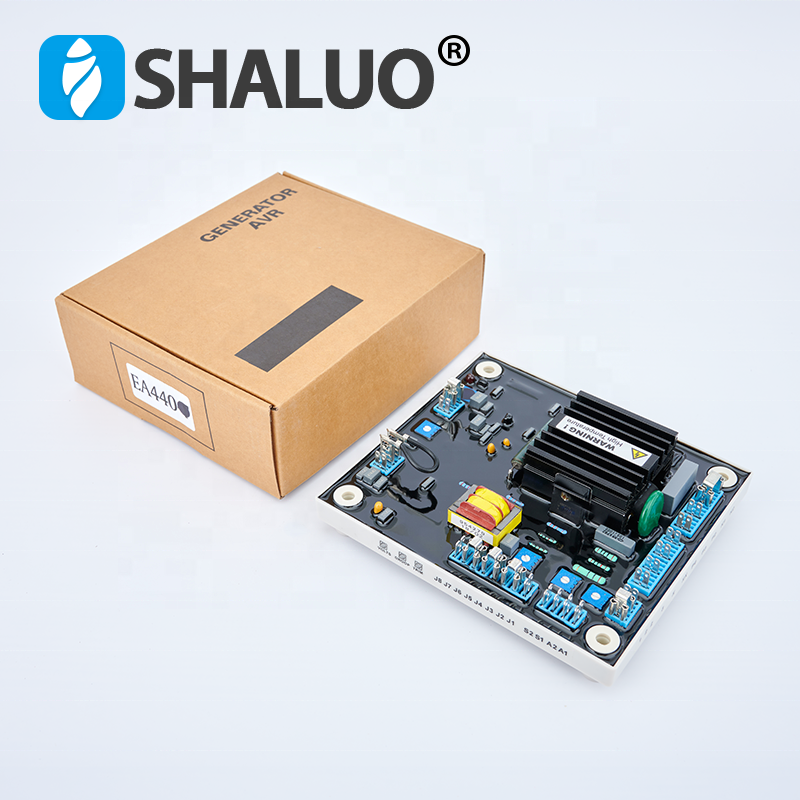

EA440T Stamford 500kva Generator Avr Price 220v Voltage Protector Automatic Voltage Stabilizer

Availability:

Quantity:



Inquire Add to Basket

Product Description

Product Description

EA440 self excited brushless type genset voltage regulator can compatible replacement for Newage SX440 and 305-0824.

Sensing Input	Voltage 190~ 264VAC 1 phase 2 wire Frequency : 50/60 Hz selectable Voltage Max.90 Vdc at 207VAC
Output	Current Continuous 4A Intermittent 10A for 10 sec. Frequency Min.15 ohm
Voltage Regulation	< +1 % (with 4% engine governing)
Build Up Voltage	Residual volts at AVR terminal> 5 VAC
External Volts Adjustment	+8% with 1 KQ 1 watt trimmer
Unit Power Dissipation	Max.12 watts
