Product Description

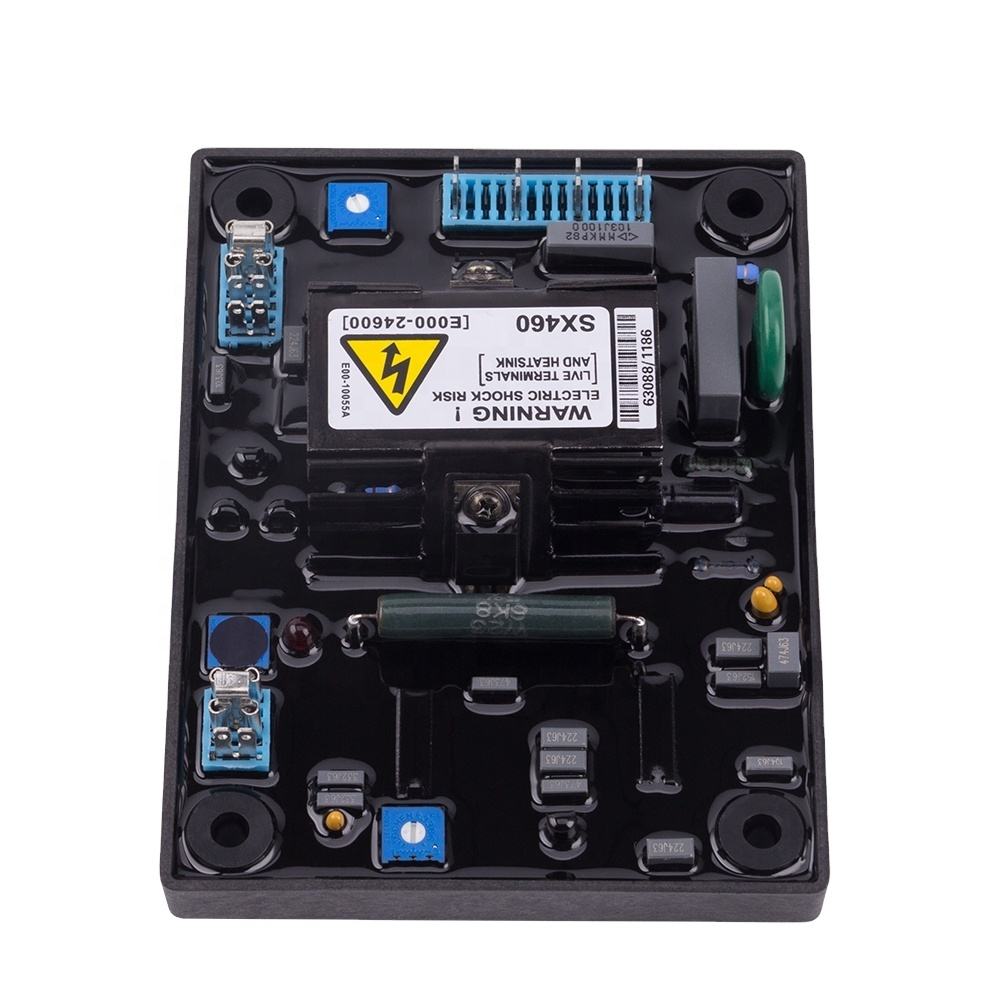

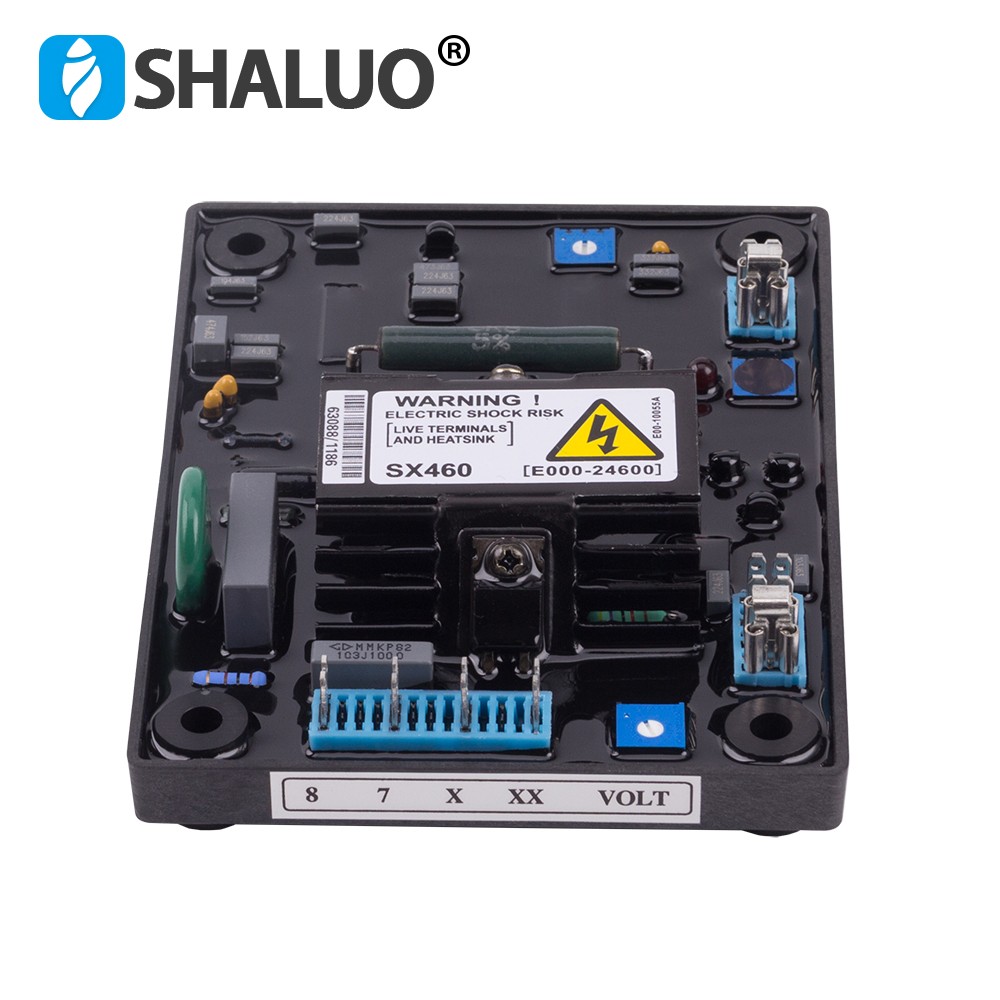

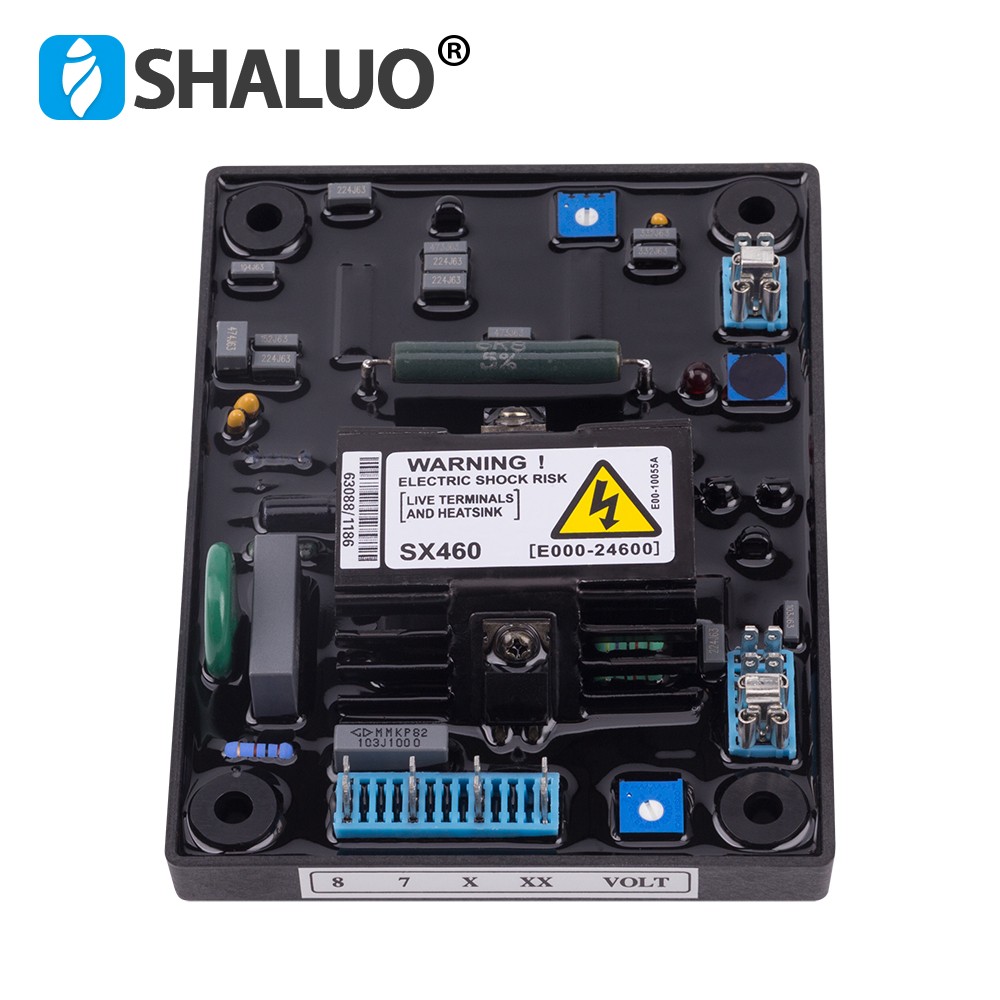

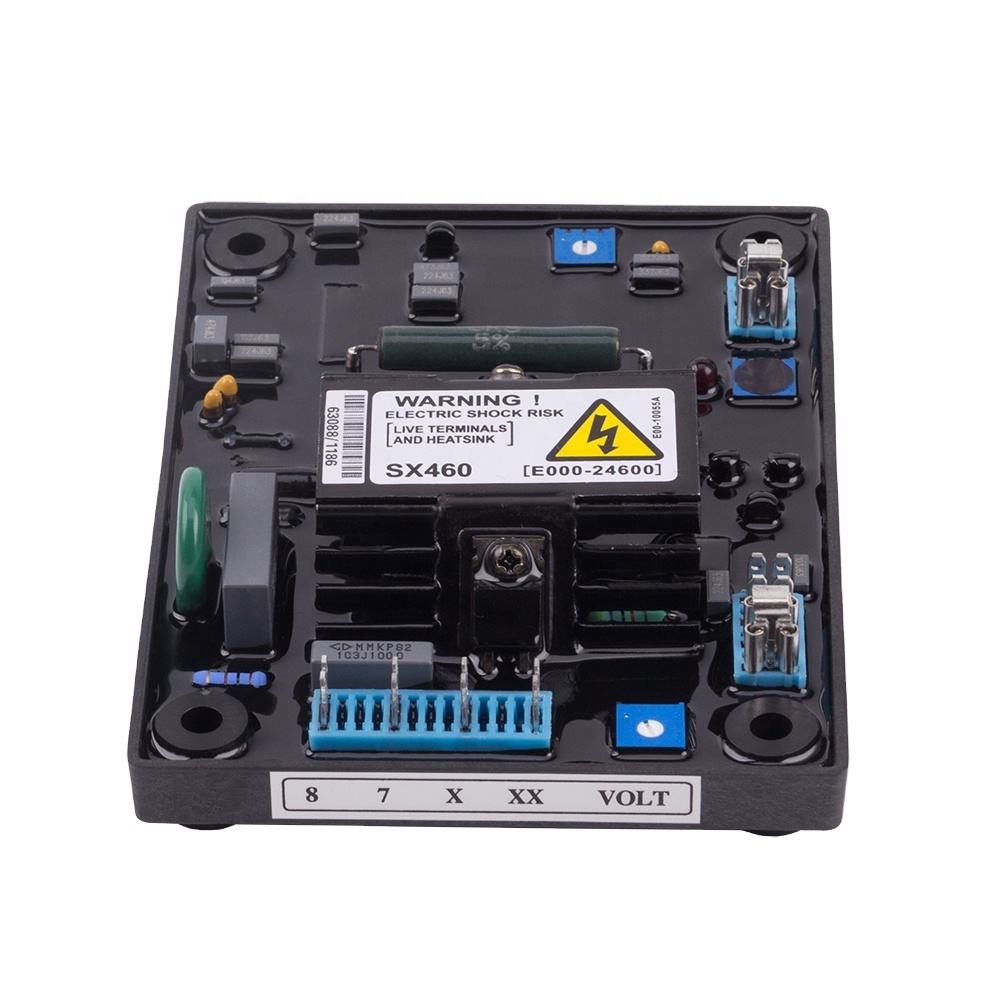

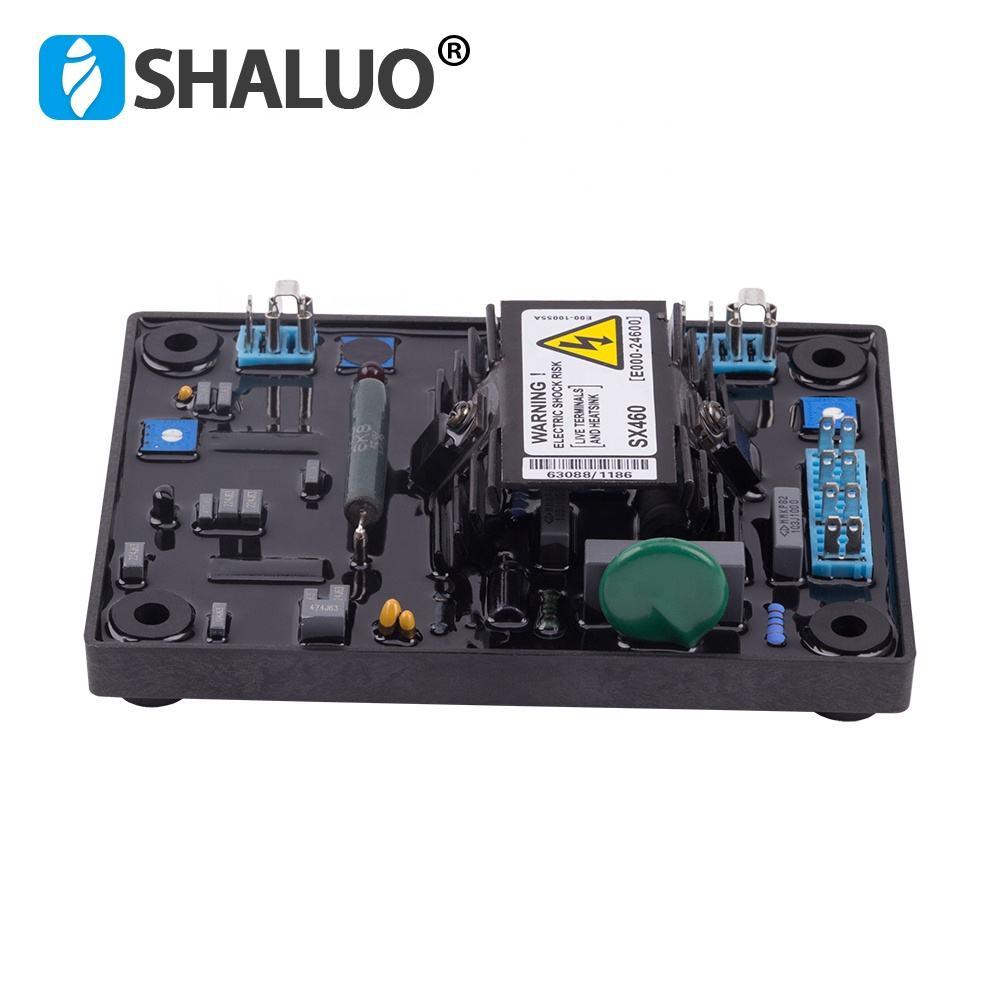

GENERATOR AVR SX460 is a half-wave phase controlled thyristor type Automatic Voltage Regulator and
forms part of the excitation system for a brushless generator. In addition to regulating the generator voltage, the AVR circuitry includes under speed and sensing loss protection to ensure safe, reliable control of the generator.
Positive voltage build up from residual levels is ensured by the use of proficient semiconductors in the power circuitry of the AVR. Which is linked with the main stator windings and the exciter field windings to offer closed loop control of the output voltage with load regulations of +/- 1.5%
Sensing/Power input
Voltage 120 (95-132VAC) or 240(190-264VAC)
1 phase,2 wires, with copper jumper options
Magnetic Field Output
Voltage Max 90VDC at 207VAC input
Current Continuous 4A Intermittent 10A within 10 seconds
Pressure Regulating Accuracy
<±1% RMS with 4% engine governing
