Product Description

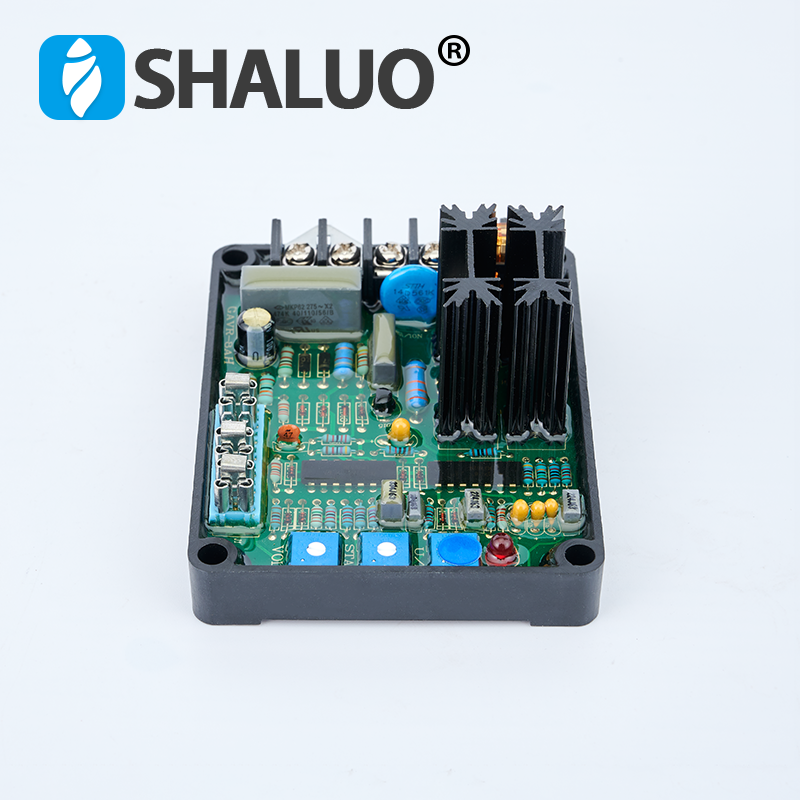

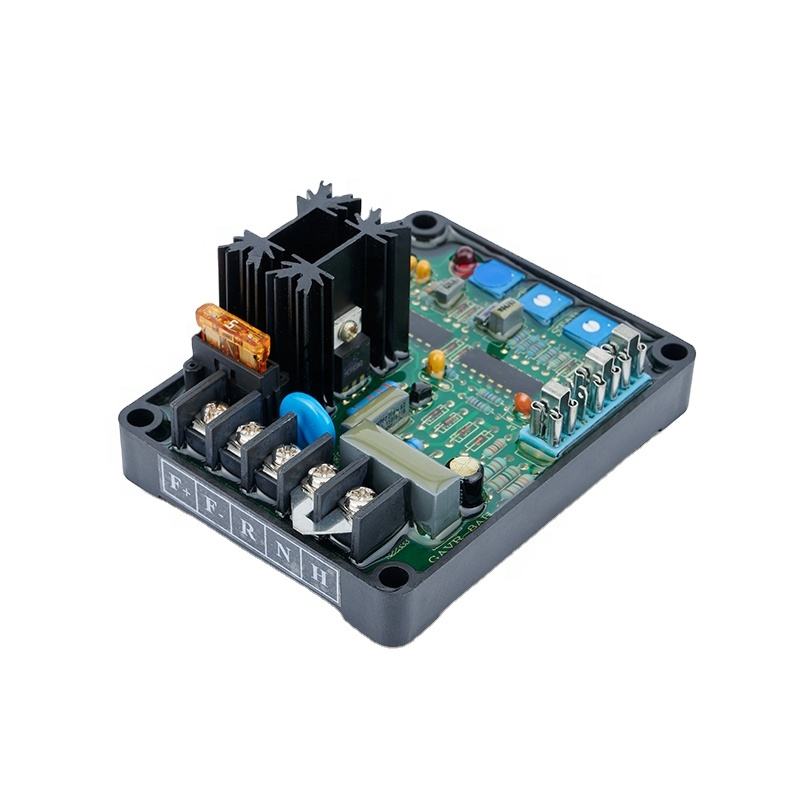

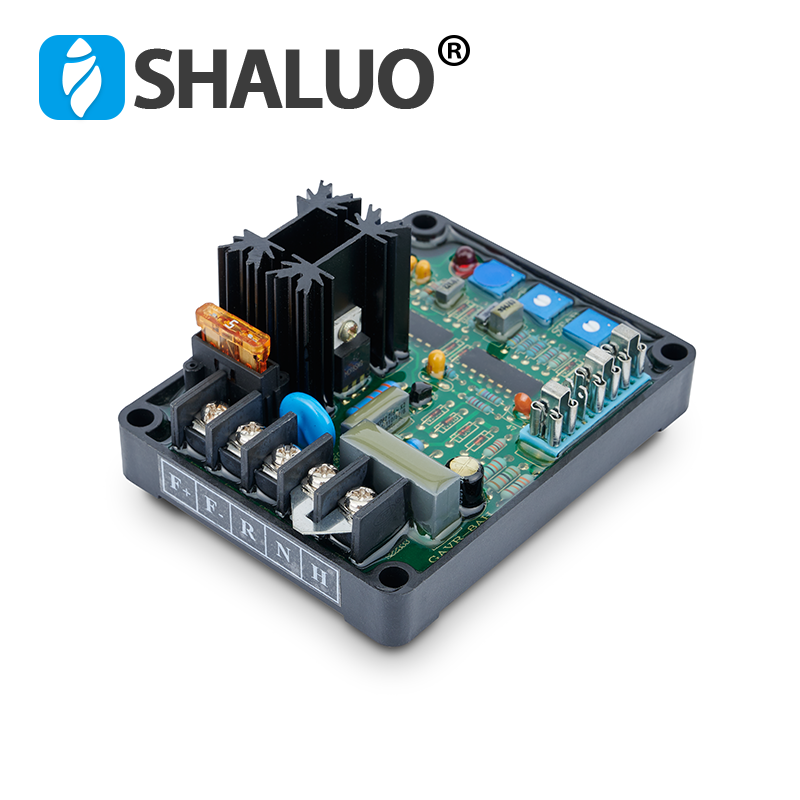

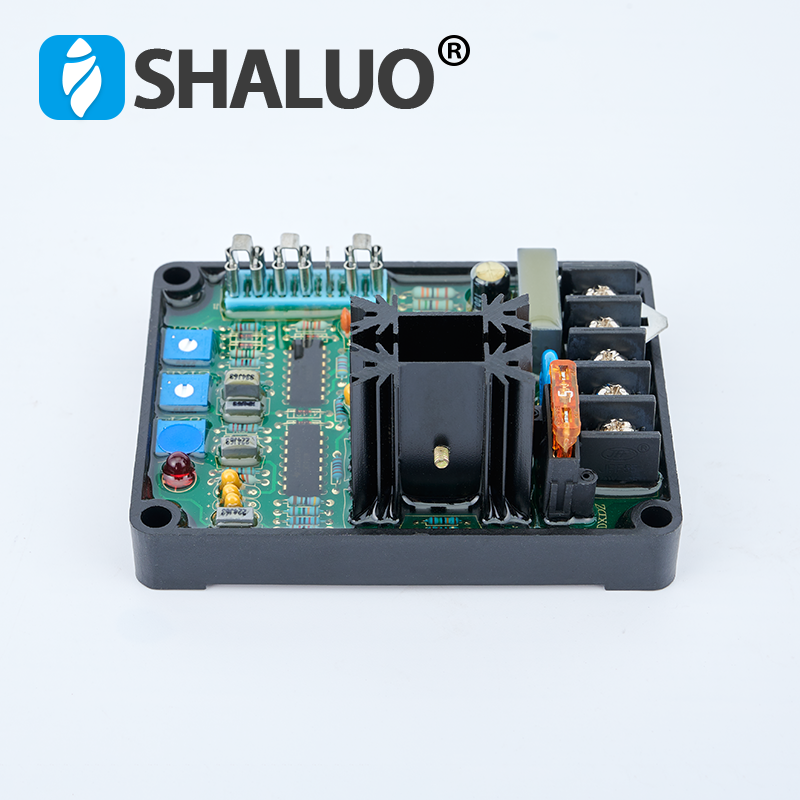

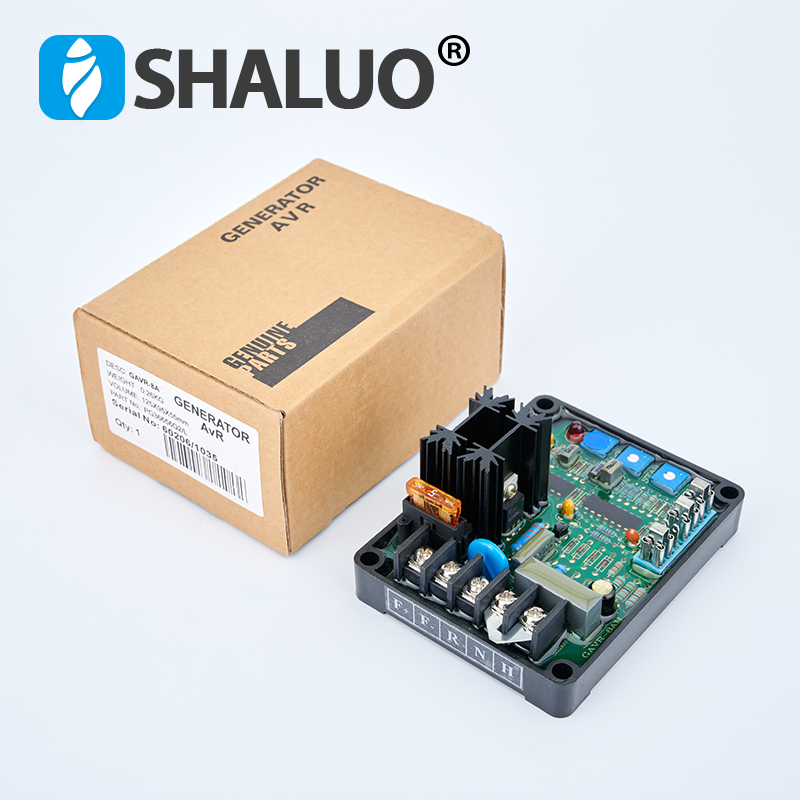

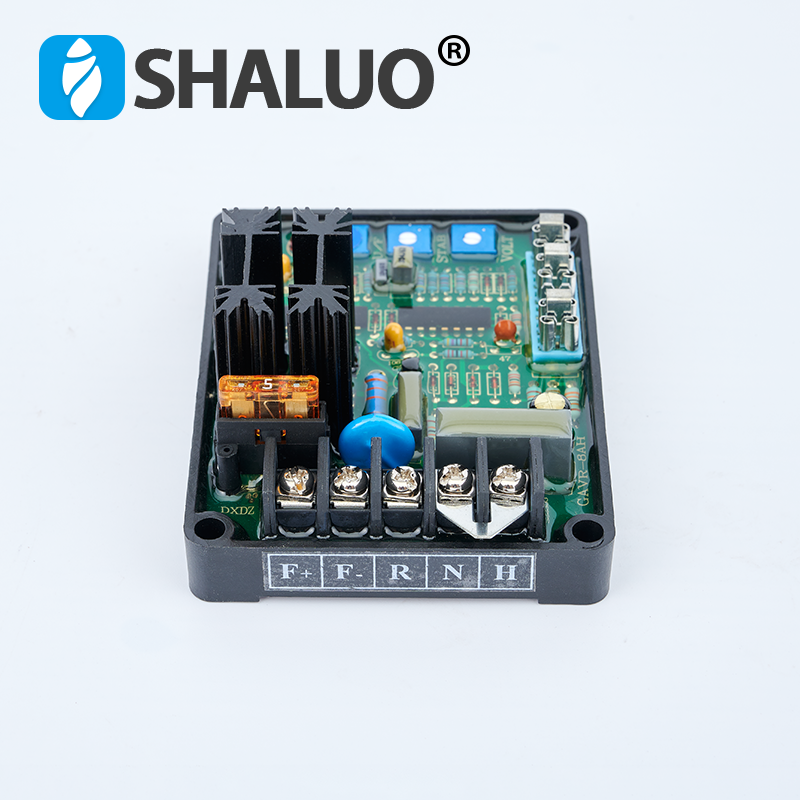

Universal 8 Amp 1/2 Wave Self Excited Dip-Switch Programmalbe Automatic Voltage Regulator
| Sensinglnput Voltage | 180~260VAC,1 phase 2 wire |
| Power Input Voltage | 180~260VAC,1 phase 2 wire |
| Output Voltage | Max.90VDC@ 240VACinput |
| Current | Continuous 4A |
| Intermittent | 7 A for 10SEB. |
| Resistance | Min.12 Ω Max.100 Ω |
| VoltageBuild-up | Residualvolts at A VR teminal>5VAC |
| External Volts Adjustment | + 7%with lK Ω 1 watt trimmer |
| Sotf Start Ramp time | 2sec. |
| Unit Power Dissipation | Max.8Watt |
| EMI Suppression | Internal Electromagnetic Jnterference Filtering |
| Thermal.Drift | 0.03%per °C chage in AVR ambient |
| Under Frequency Protection | 60Hz system presets knee point at 55Hz |
| (Factory Settings) | 50Hzsystem presets knee point at 45Hz |
| Volts Regulation | <+ 1 %(with 4%engine governing) |
Fu'an Shaluo Electronics co.Ltd is a manufacturer of generator accessories, Our company has established a long term and stable business relationship with a number of domestic agents and retailers.
The professional person responsible for the quality of supervision and control in the entire process.
In order to get the superior quality we only use selected good element.
Aimed at enabling the production department to manufacture and assemble the product as efficiently as possible.
