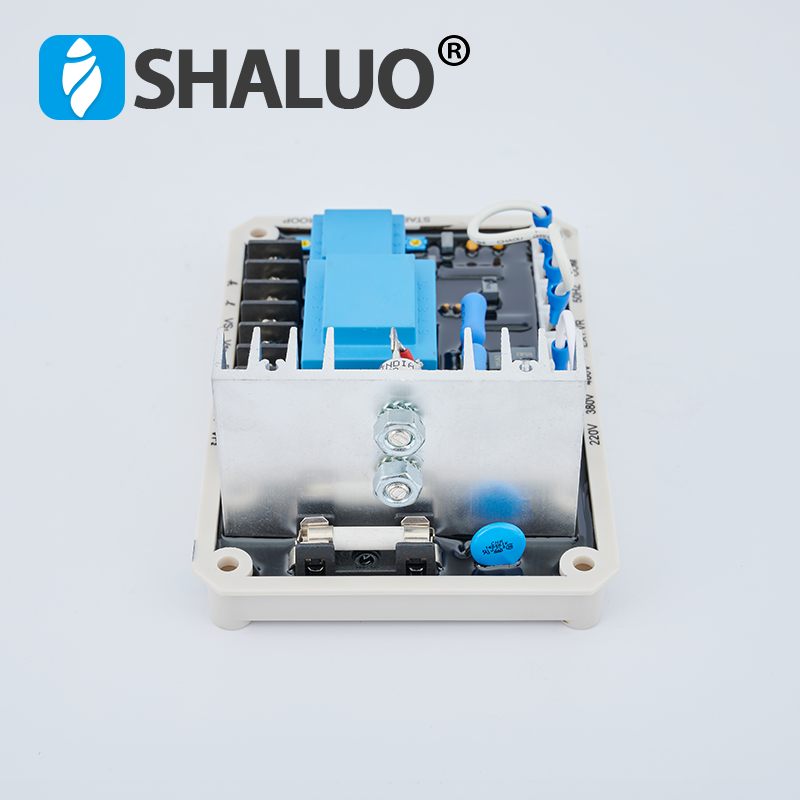

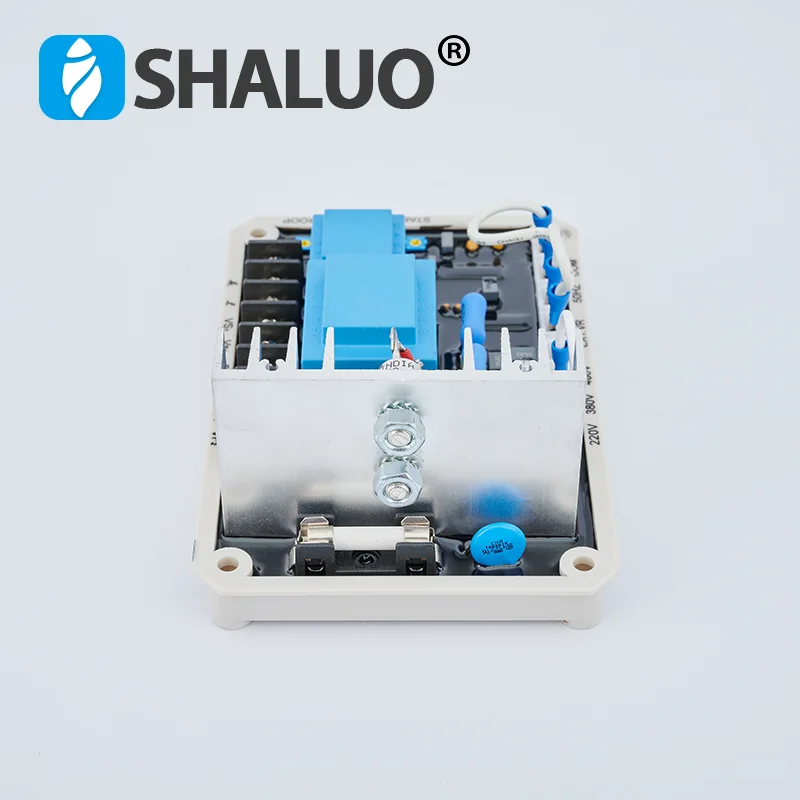

Generator AVR Power Supplies EA15A-2 Automatic Voltage Regulator for Brushless Generator

Availability:
Quantity:
Inquire Add to Basket

Product Description

Product Description

Features:
1. With low frequency protection and slow voltage build function
2. This voltage regulator has LED indicating power and frequency is too low function
3. Can adjust voltage, stability and low frequency protection settings
4. The maximum magnetic field output voltage can be up to 170VDC
5. Can be used for generator parallel

Specification:
Condition: 100% Brand new
Voltage Regulation: <±1%
Maximum Magnetic Field Output Voltage: 170VDC
EA15A:

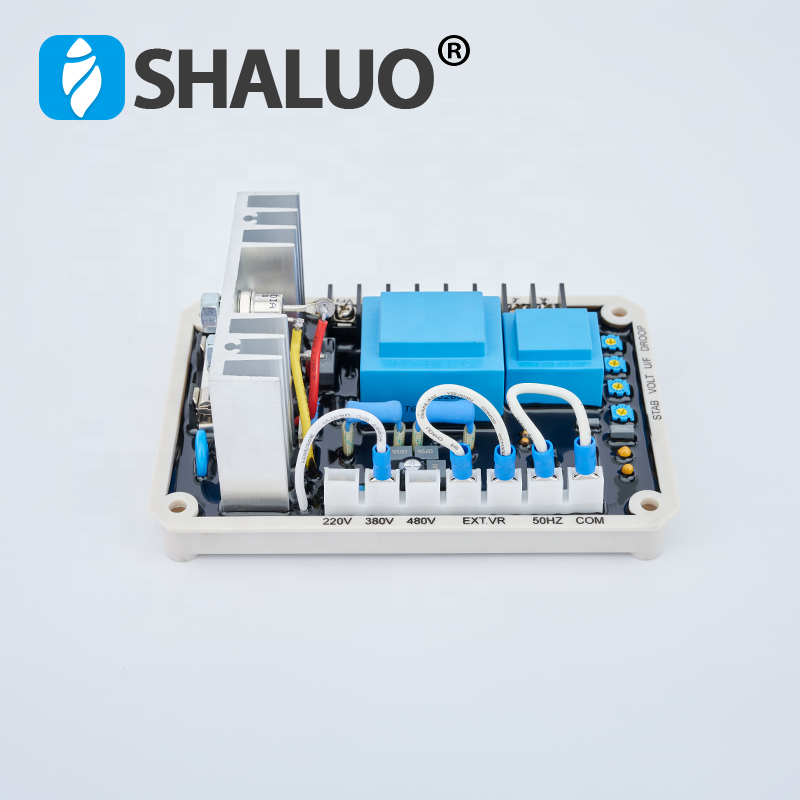

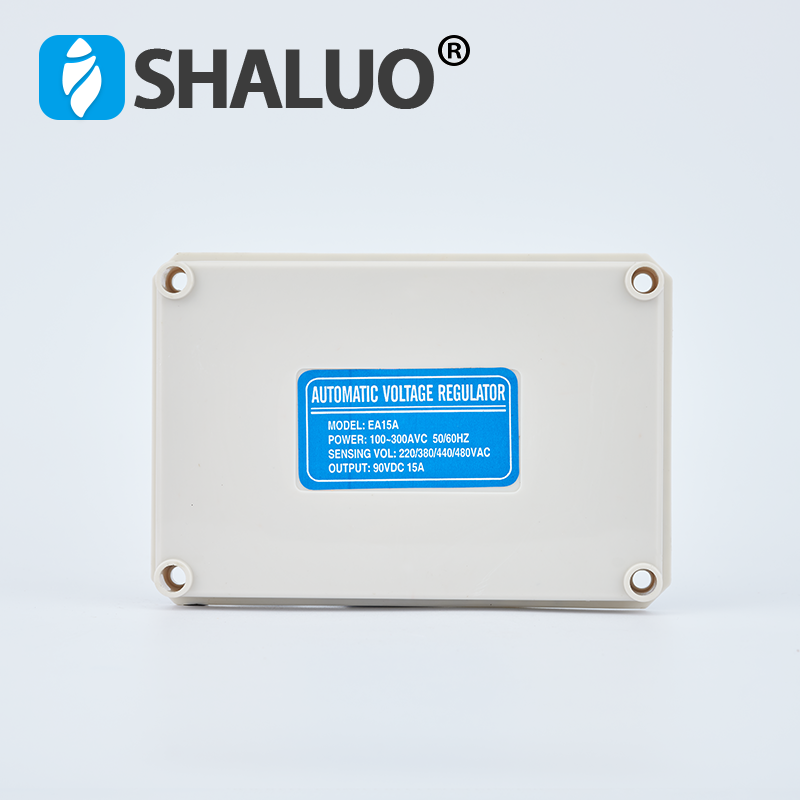

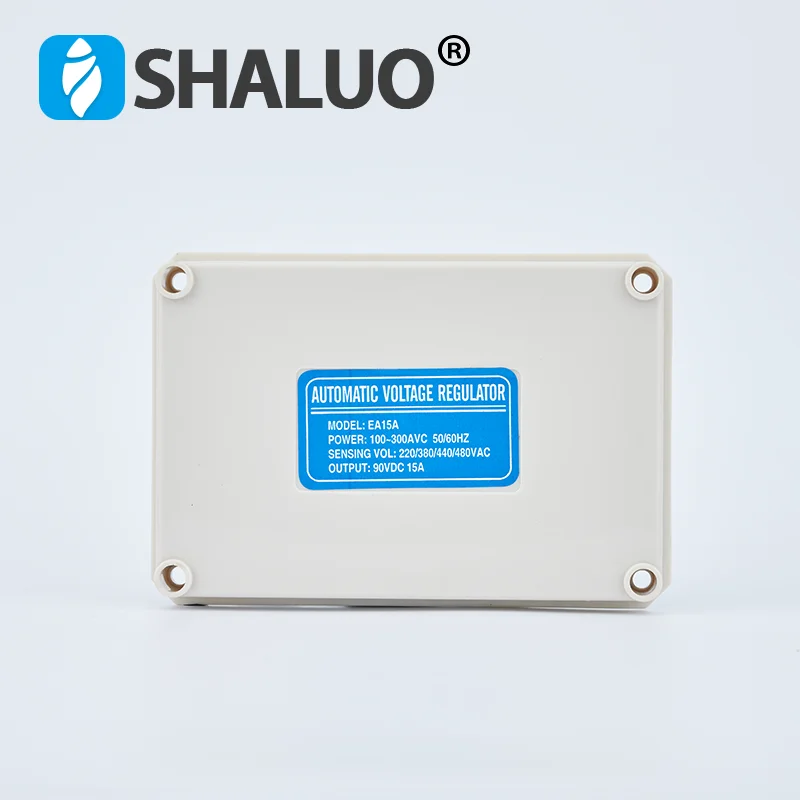

Voltage: 220/380/440/480VAC single-phase two-wire with jumper selection
Frequency: 50/60Hz with jumper selection
Voltage: 100~300VAC single phase two line
Voltage: Maximum 90VDC current at 240VAC input: 15A continuous, non-continuous for 10 seconds 20A resistance: minimum 9Ω at 35VDC
Pressure Regulation Accuracy: <±0.5% (engine speed changes within 4%)
Voltage Establishment: Remaining magnetic voltage of 5VAC or more at the AVR input terminal
External Voltage Regulation:±15% with 5KΩ, 1Watt potentiometer
Power Consumption: up to 10Watt
Temperature Stability: every℃ change, voltage drift 0.03%
Low Frequency Protection: 60Hz system turning point is 55Hz (turning point is the factory setting)
50Hz system turning point is 45Hz (turning point is the factory setting)
Slow Voltage Settling Time: 2 seconds
Operating Temperature: -40~70℃
Storage Temperature: -40~85℃
Relative Humidity: 95% or less
Vibration: 3.3G at 100~2KHz

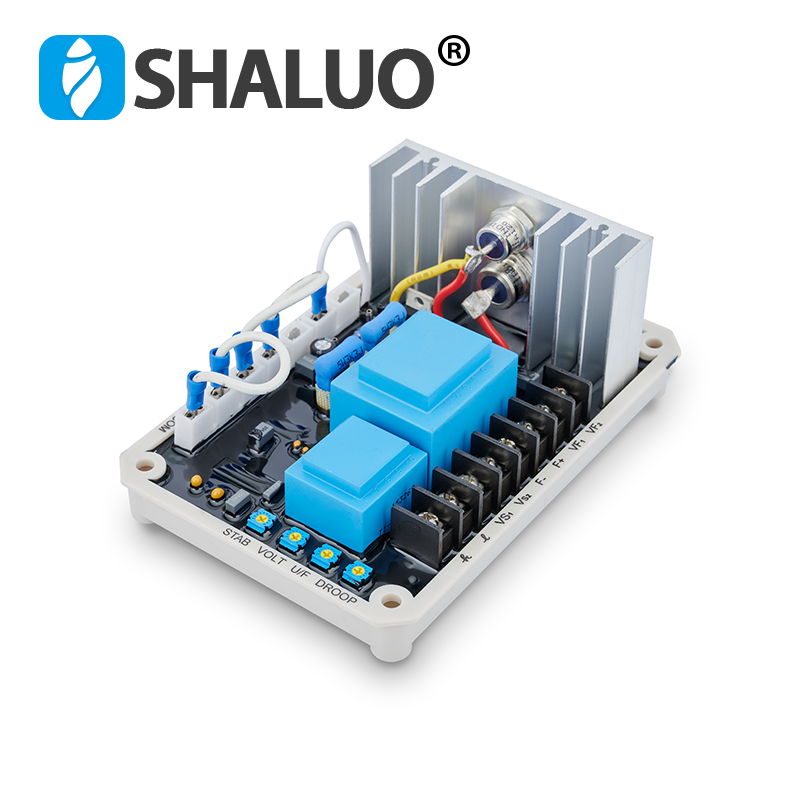

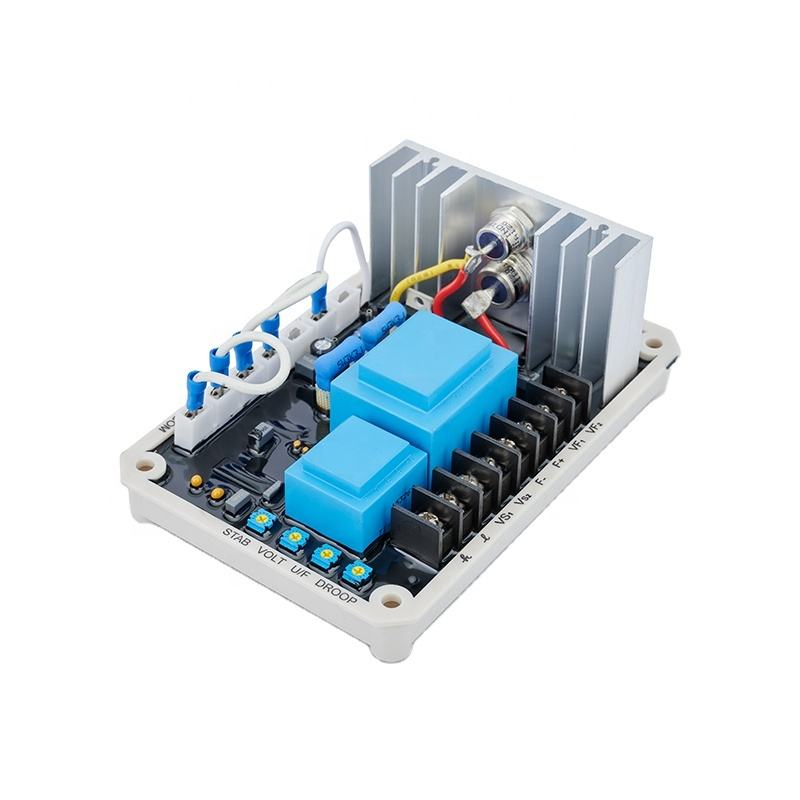

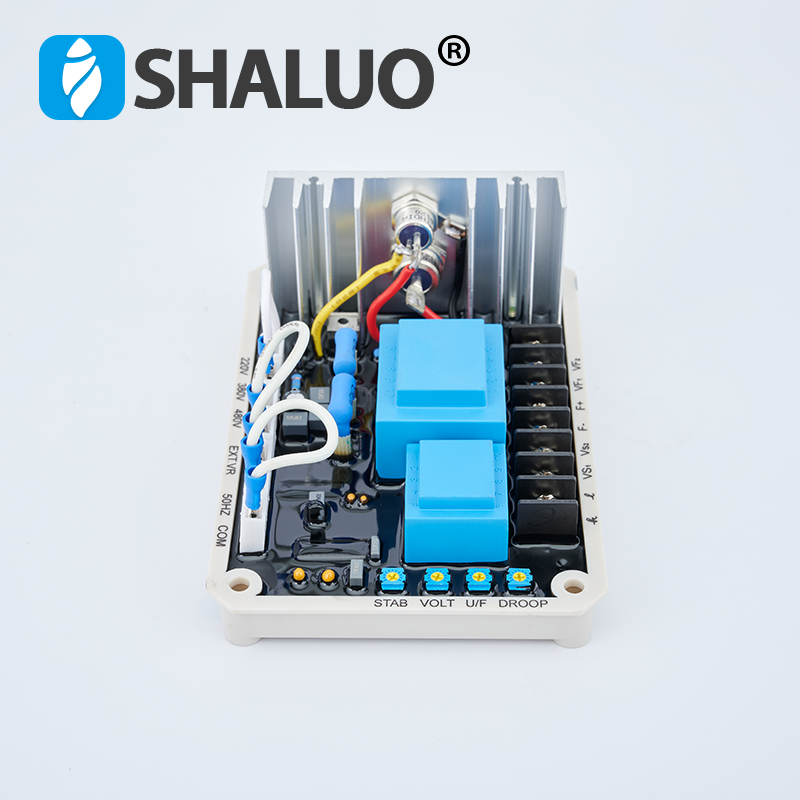

VOLT: Adjust voltage
STAB: Adjusting stability
U/F: Adjust the low frequency protection turning point
DROOP: Adjusting the pressure drop

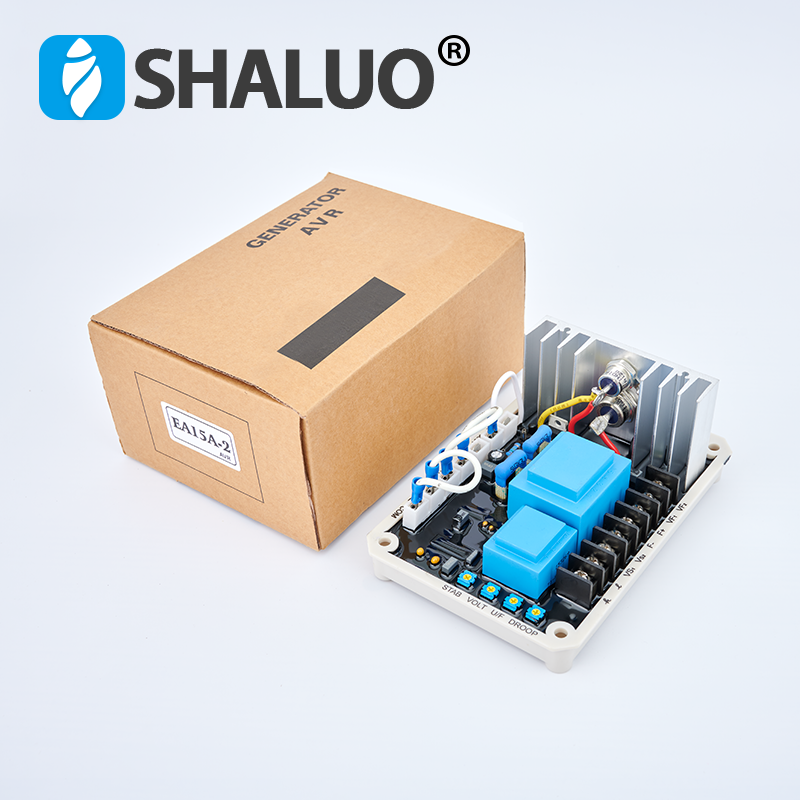

Package List:
1 x Voltage Regulator
Detailed Images
