Generator Battery Charger CH2806 24v battery charger

Availability:
Quantity:

Product Description

Product Description

12V 24V 6A Generator Set Intelligent Battery Charger

    Intelligent Charger is specially designed for starting or working of storage battery (especially suited for full-sealed solid wide-temperature storage battery) in diesel engine. It is a intelligent mode of switch structure. It is the only one charger in market which can automatic identify charging voltage, current and can automatic switch over corresponding output voltage. It features in constant pressure, constant current, tricking current, resistance of short circuit, and fully automated function.

Battery Charger
POWER INPUT
Frequency 40~80Hz
Voltage 160~265 VAC
Current:6A ±0.1
DC OUTPUT
Voltage 13.8 VDC, Current 5A--when battery group=12V
Voltage 27.6 VDC, Current 3A--when battery group=24V
Charge Mode
Float charge
DC Voltage Regulation
< ±1%
Efficiency
> 85% @ Full load
Contact Capacity
0.5A @ 120 VAC
Protection
Reverse polarity, over-voltage, short circuit, current limiting
Environment
Operating Temperature : -20~50 °C
Storage Temperature : -30~85 °C
Relative Humidity : Maximum 90%
Vibration : 1.5G @ 5~30 Hz / 5.0G @ 30~500 Hz
Dimensions
180(L) x 160(W) x 60 (H) mm

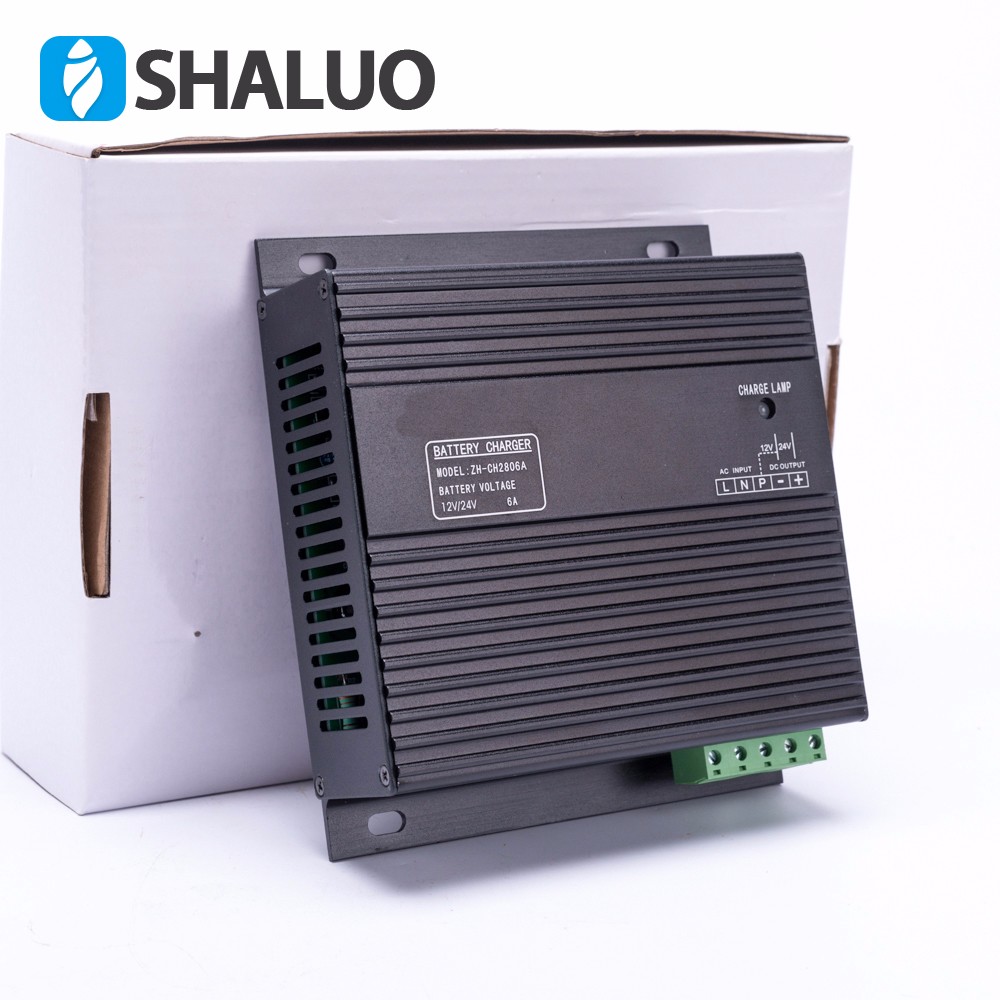

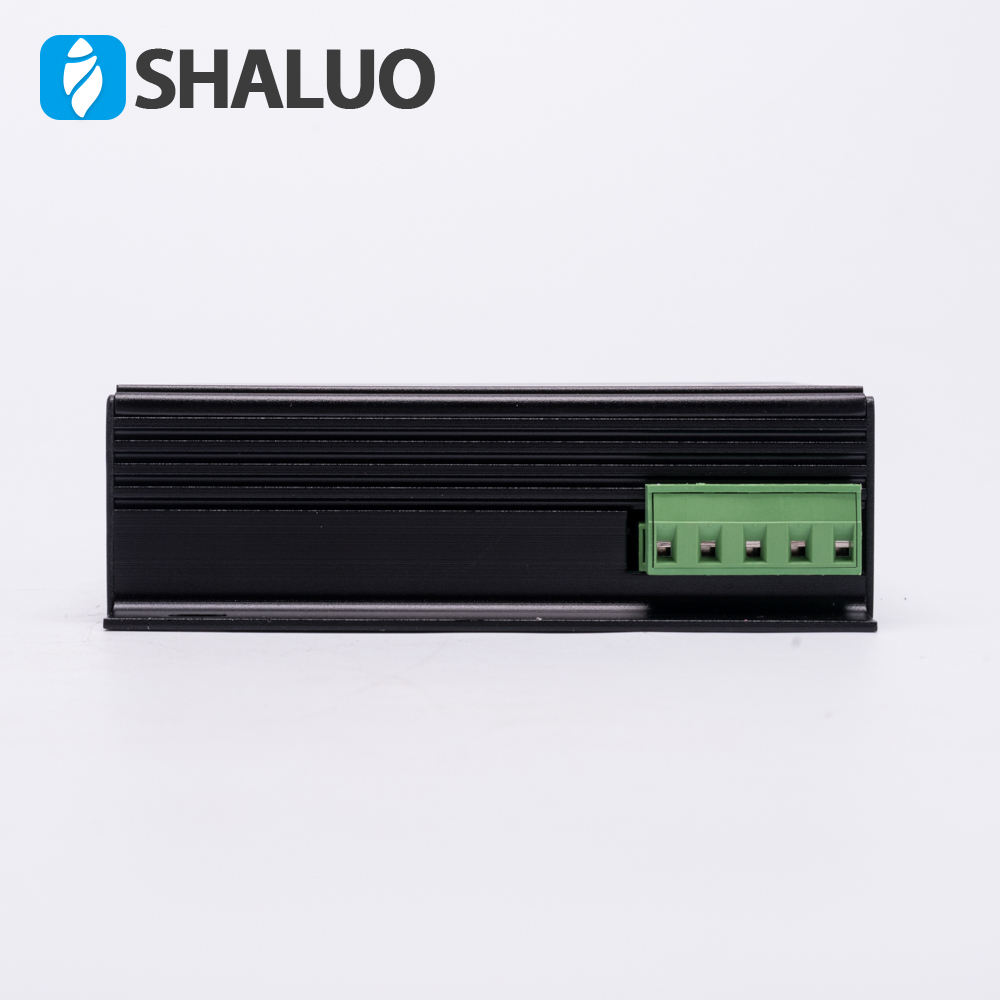

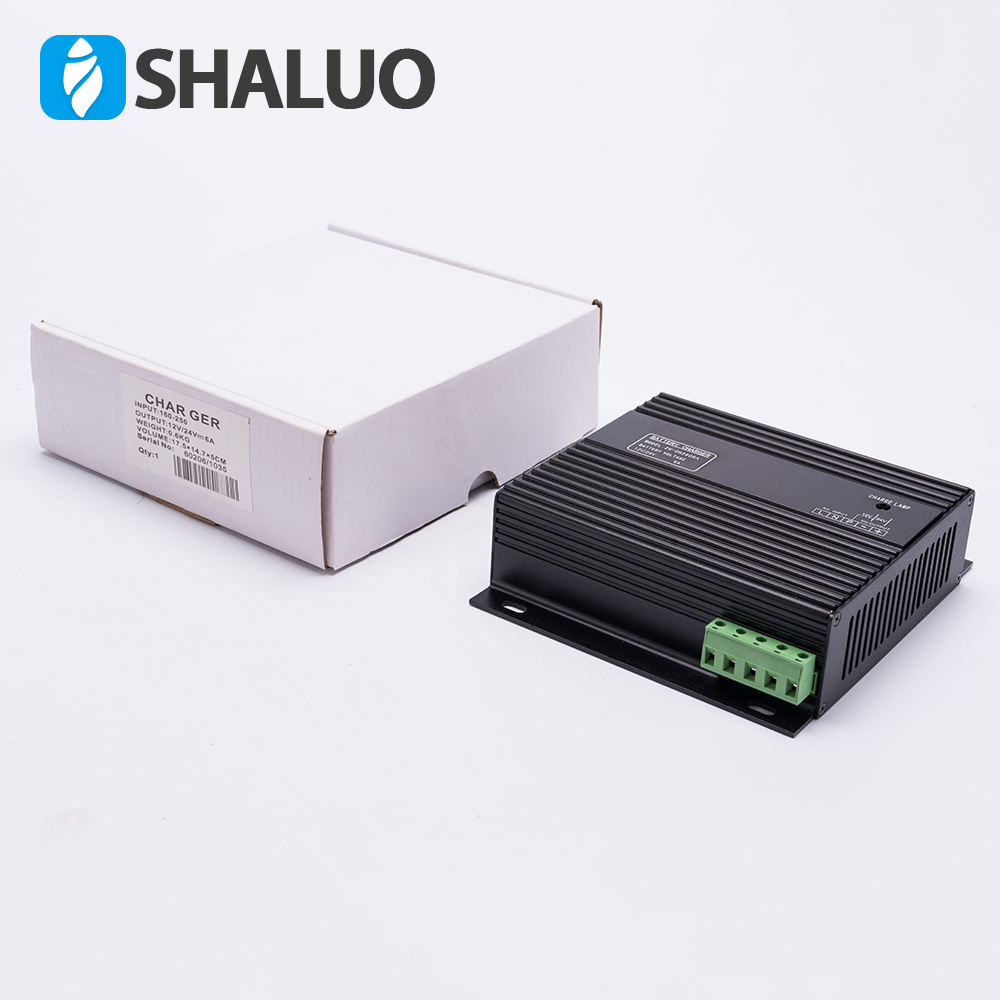

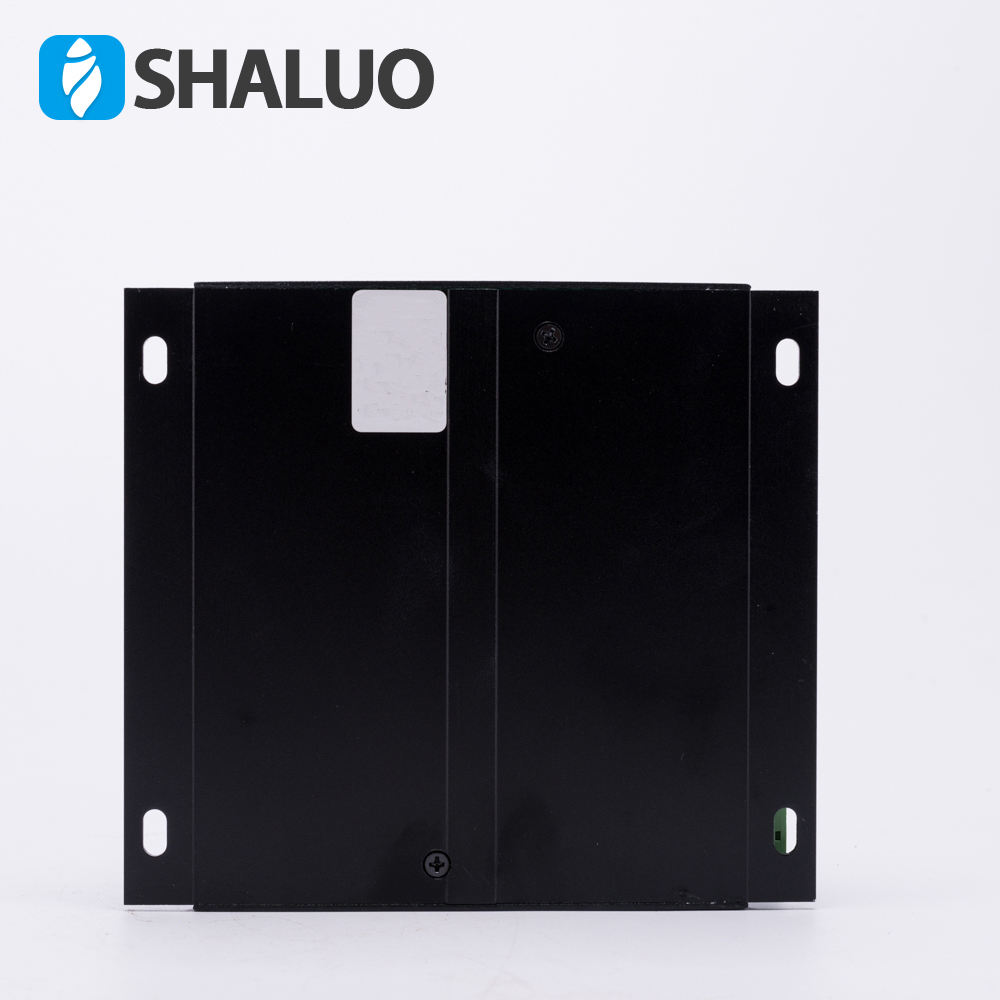

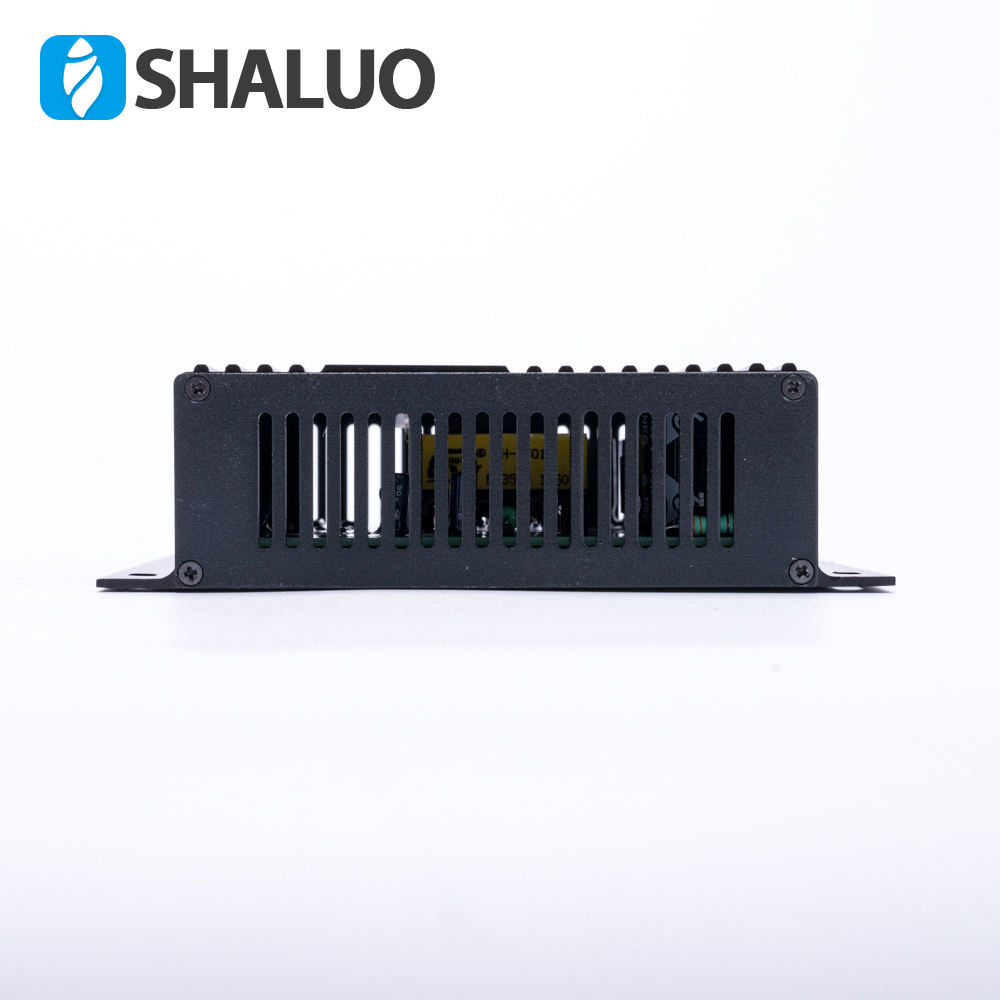

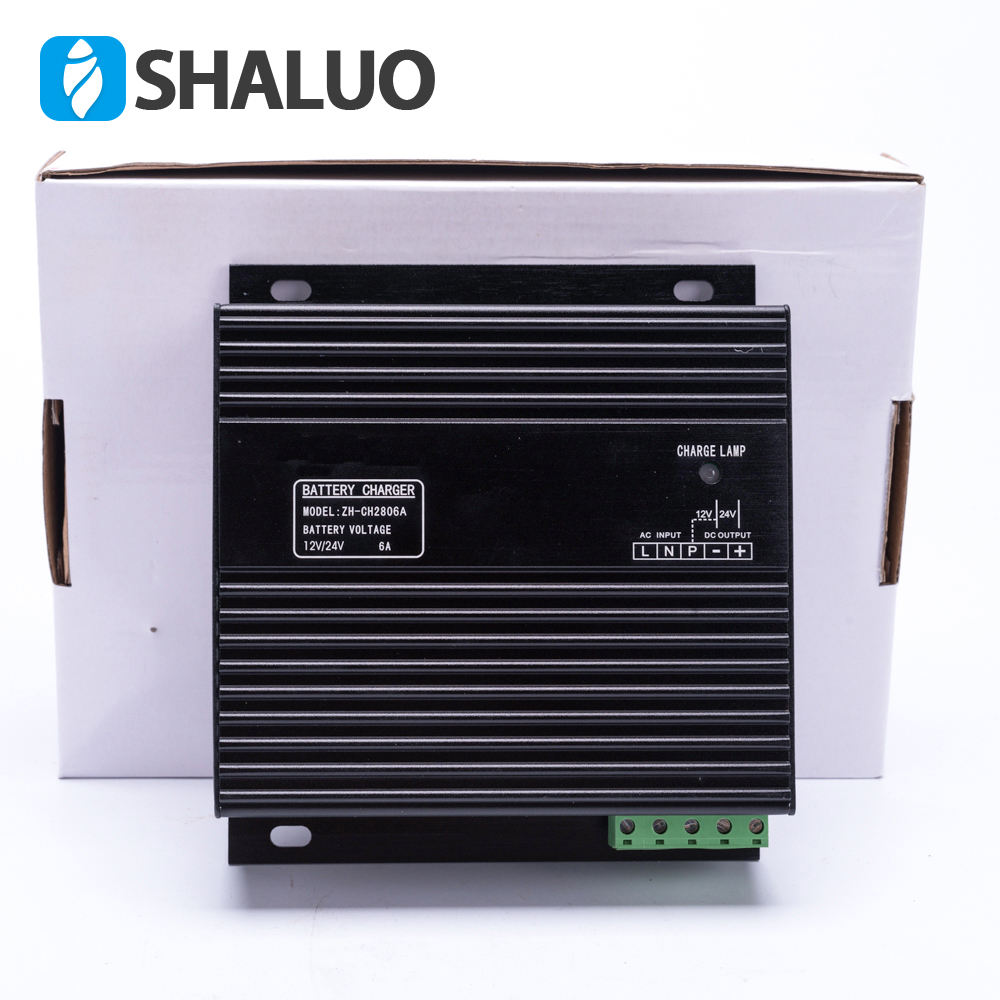

Detailed Images



Other Products












Packing

Our Factory


About the company

   Fu’an Shaluo Electronics co.Ltd is a manufacturer of generator accessories, Our company has established a long term and stable business relationship with a number of domestic agents and retailers.

Factory inspection

The professional person responsible for the quality of supervision and control in the entire process.

Element testing

In order to get the superior quality we only use selected good element.

Assembles products

Aimed at enabling the production department to manufacture and assemble the product as efficiently as possible.
