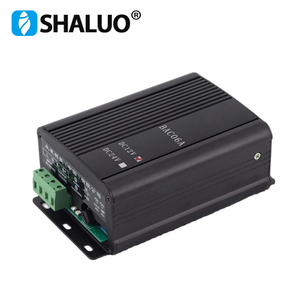

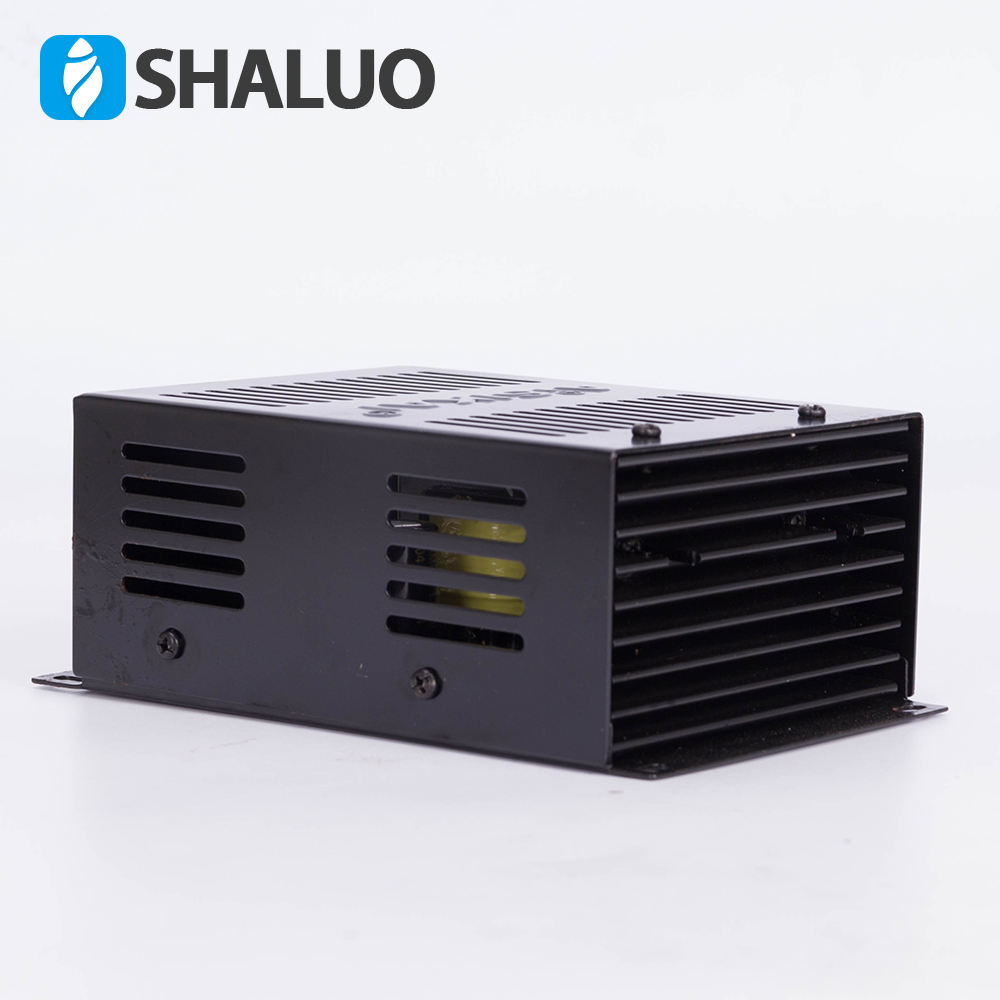

generator automatic 24v battery charger circuit board BAC06A

Availability:
Quantity:
Inquire Add to Basket

Product Description

Product Description

12V 24V 6A Generator Battery Charger BAC06A

 BAC06A switching battery charger adopts the latest switch power components, which is designed for charging lead-acid starting battery according to its property. The charger is suitable for lead-acid battery float charge. The maximum charge current for 12V charger is 6A; the maximum charge current for 24V charger is 3A.

Battery Charger BAC06A
Battery Voltage
12V
24V
Max. Charge Current
6A
3A
Charge Voltage Range
(13~14.5)V
(26~29)V
Charge Current Range
(3~7)A
(1.5~3.5)A
AC Voltage
(95~280)VAC
AC Frequency
50 Hz/60Hz
Power Consumption
120W
115W
No-Load Power Consumption
Less than 3W
Efficiency
More than 80%
More than 85%
Working Temperature
(-40~60)°C
Storage Temperature
(-40~85)°C
Weight
0.65kg
Case Dimensions
143 mm×92 mm×52mm

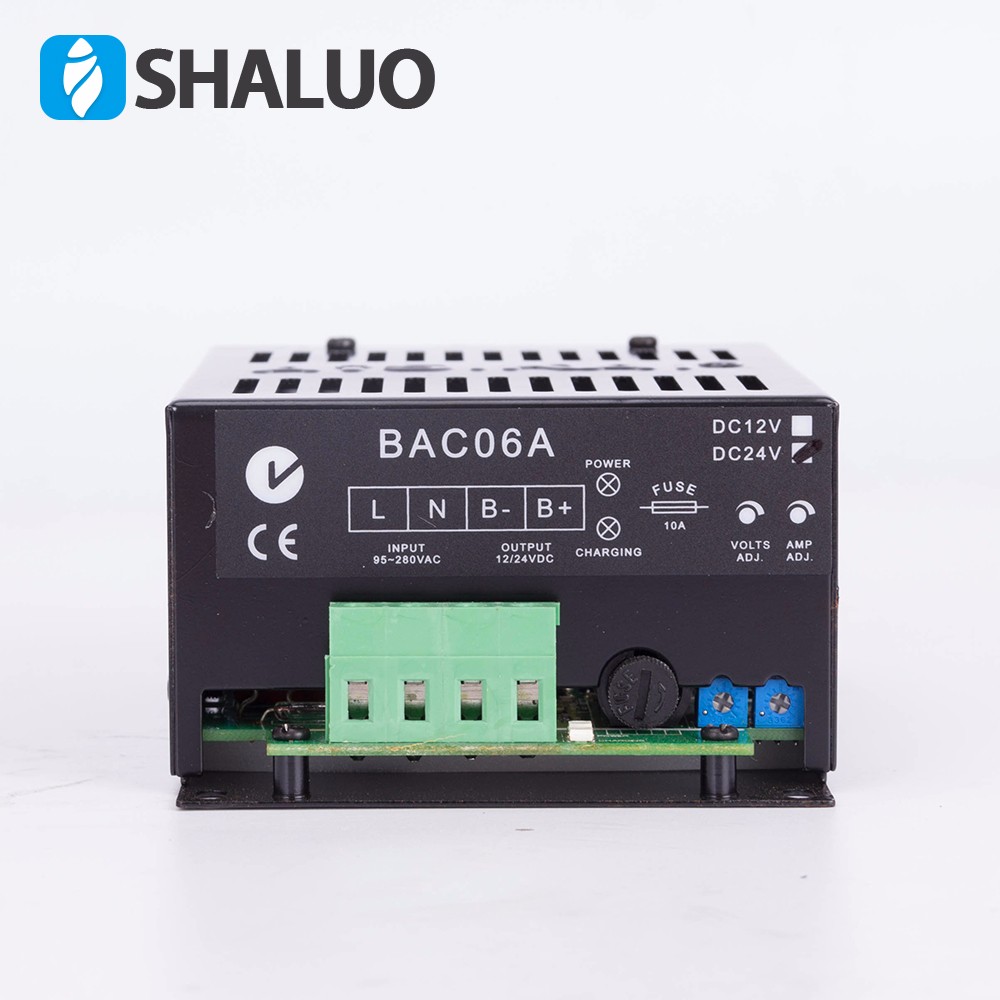

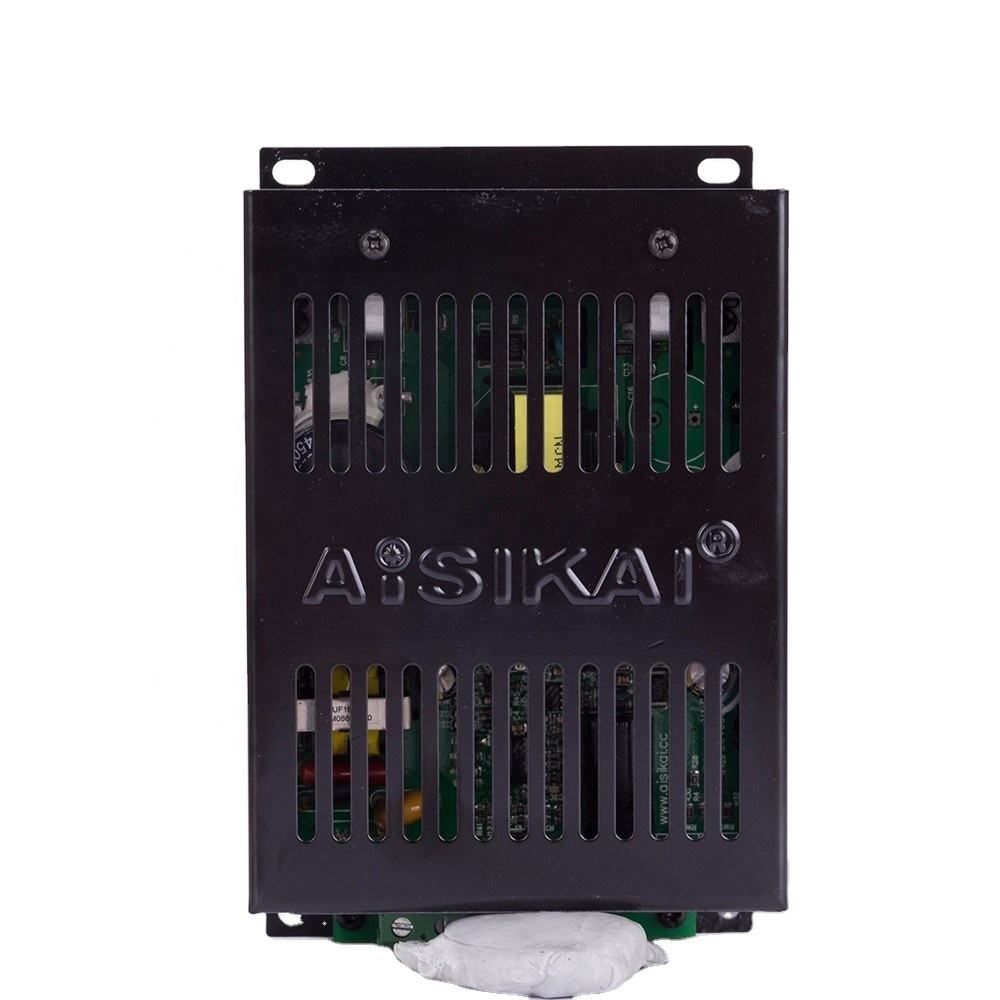

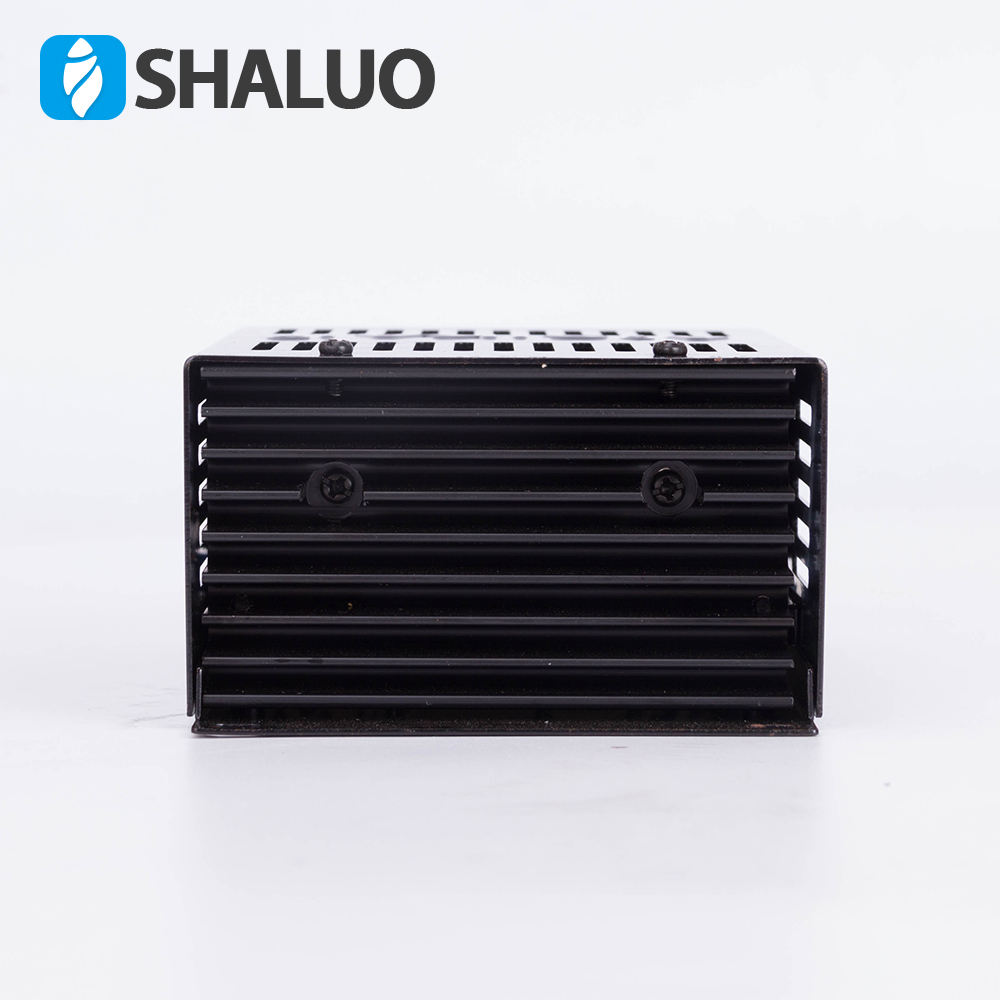

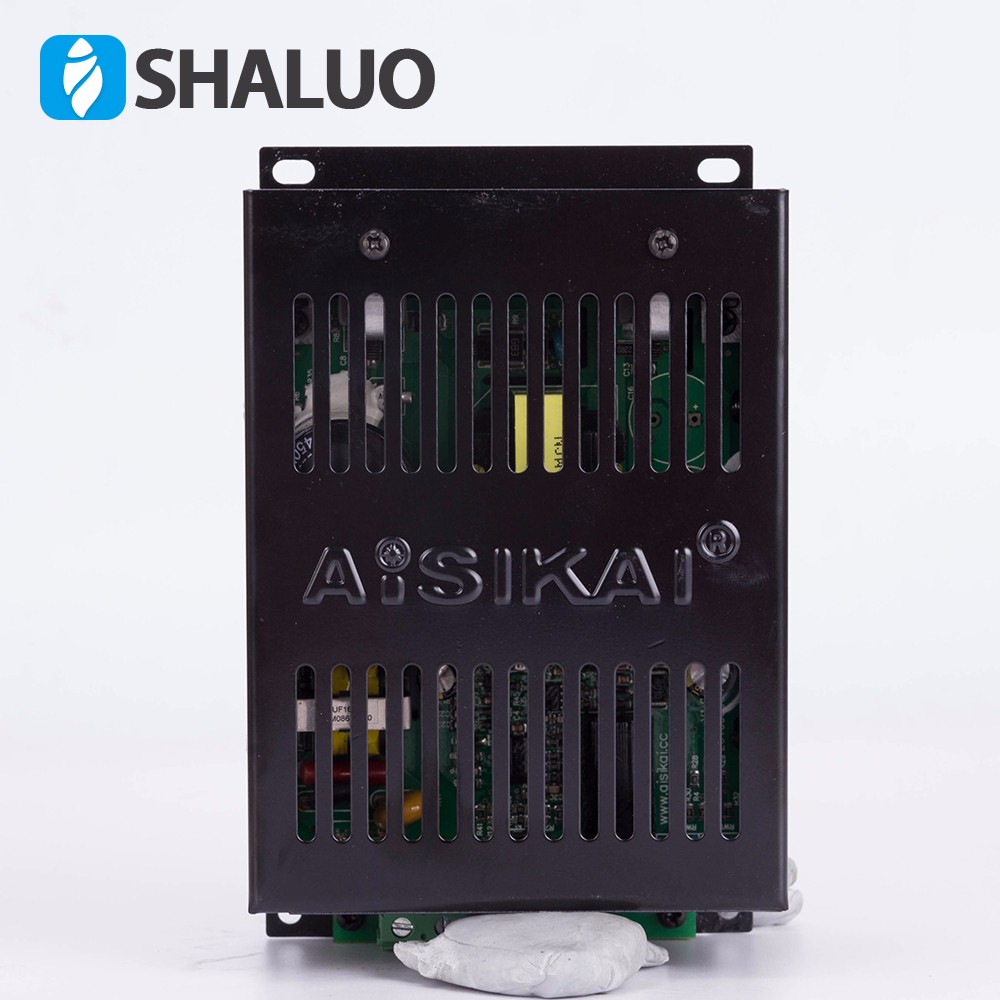

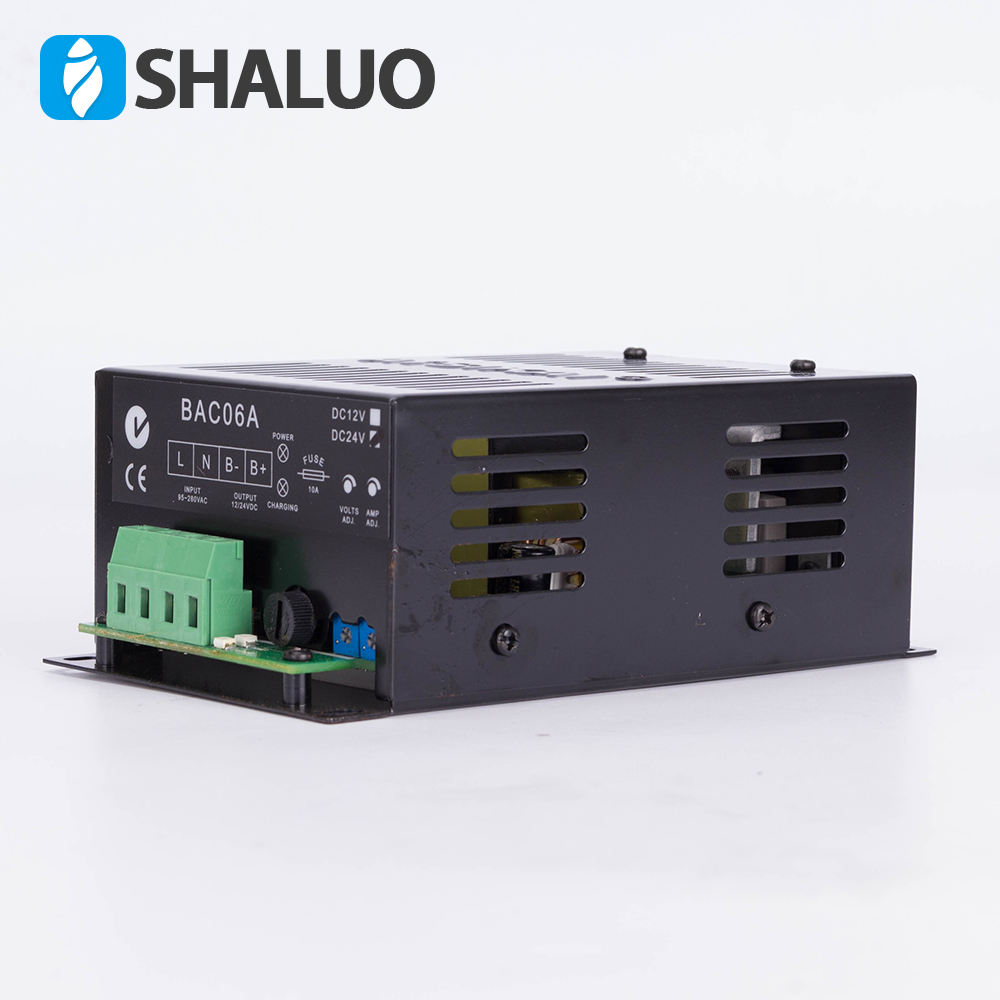

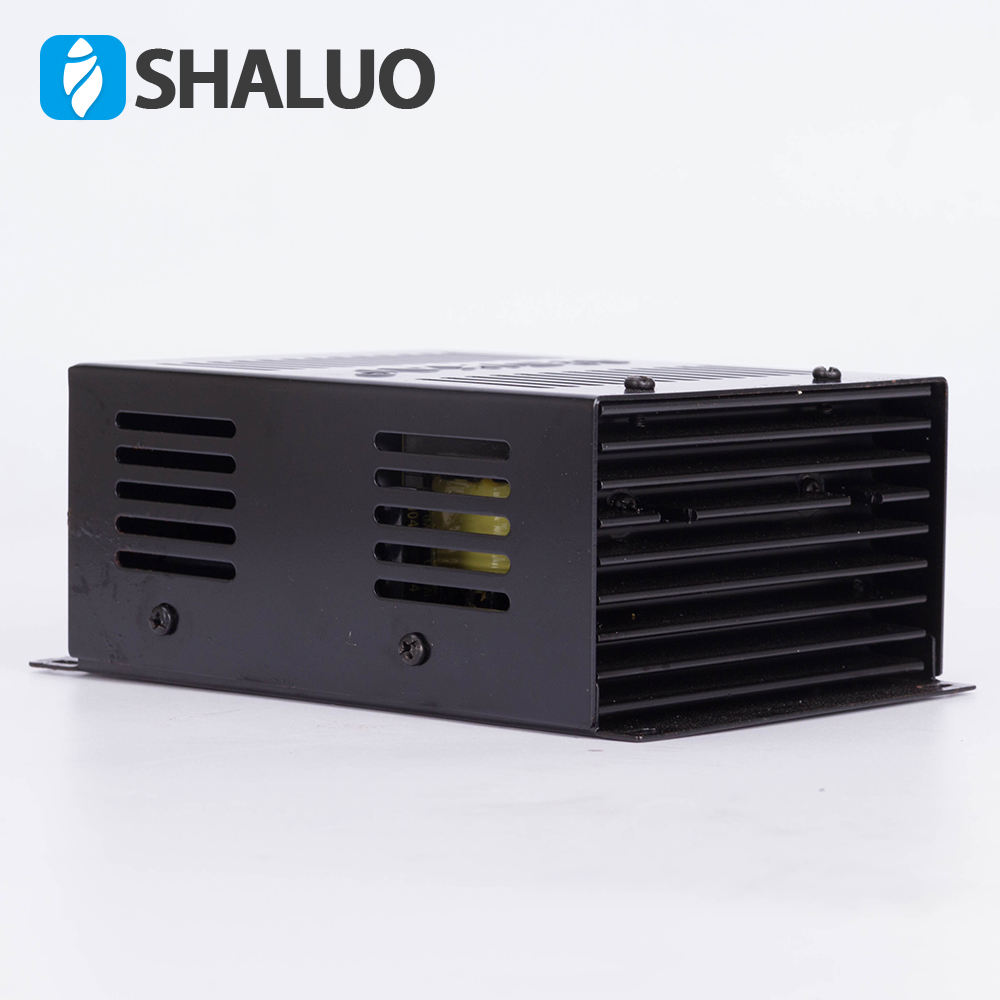

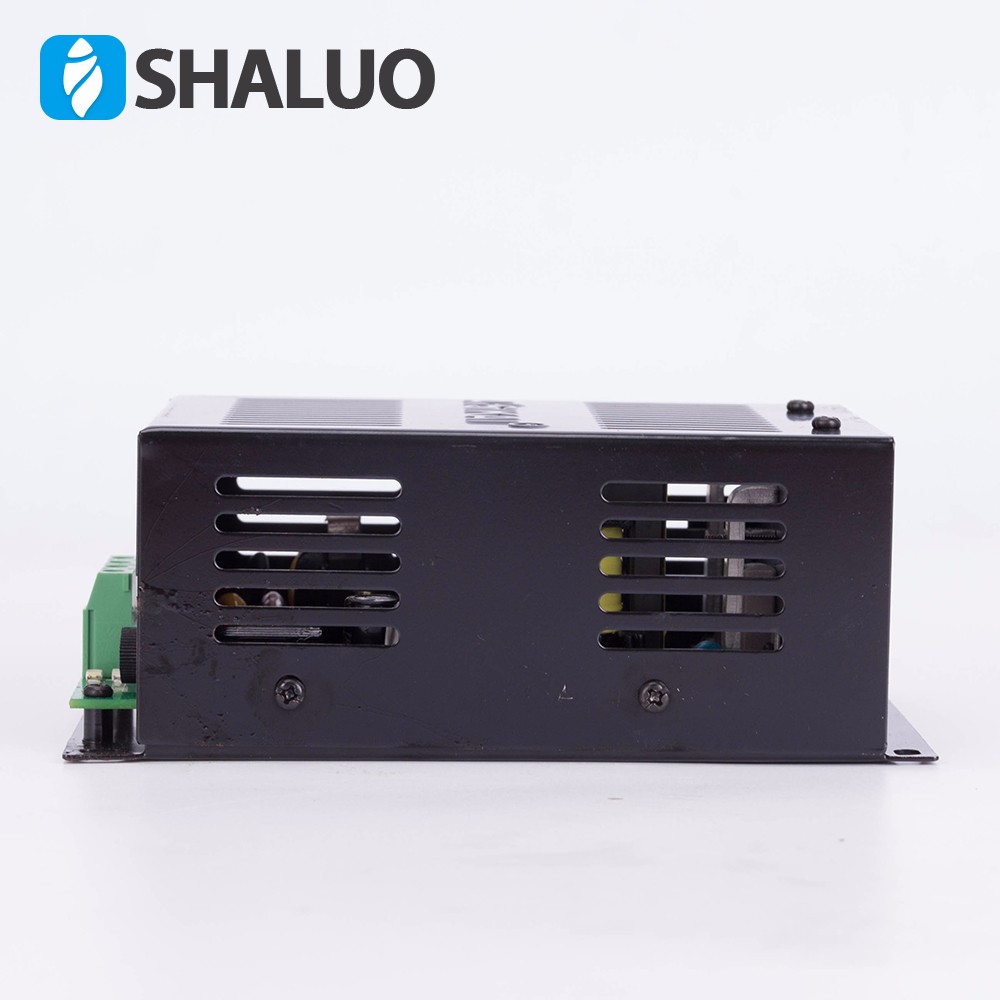

Detailed Images



Why do you choose us

Our Certifications




Our Factory


About the company

   Fu'an Shaluo Electronics co.Ltd is a manufacturer of generator accessories, Our company has established a long term and stable business relationship with a number of domestic agents and retailers.

Factory inspection

The professional person responsible for the quality of supervision and control in the entire process.

Element testing

In order to get the superior quality we only use selected good element.

Assembles products

Aimed at enabling the production department to manufacture and assemble the product as efficiently as possible.

Payment & Delivery

Related Products








Previous:
Next:
Battery Charger 24v Automatic Battery Charger Bac06a Battery Charger

CATEGORIES

Related Products

DC 12V 7A Auto Intelligent Battery Charger Module Motorcycle Car Charger with Ampere Meter Cooling Fan Circuit Design Adapter
DC 12V 7A Auto Intelligent Battery Charger Module Motorcycle Car Charger with Ampere Meter Cooling Fan Circuit Design Adapter
186F 178F Oplader 12V 5KW Diesel Generator Set battery charger
186F 178F Oplader 12V 5KW Diesel Generator Set battery charger
12V 24V lead acid Battery Charger Module 5A Switch power Generator float Chargers Pcb Circuit Adapter module
12V 24V lead acid Battery Charger Module 5A Switch power Generator float Chargers Pcb Circuit Adapter module
24v 5a battery charger module generator spare parts switch power adapter AC to DC
24v 5a battery charger module generator spare parts switch power adapter AC to DC

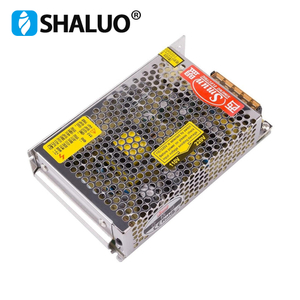

12V 20A power switch adapter battery charger module generator spare parts 220V to 12V
12V 20A power switch adapter battery charger module generator spare parts 220V to 12V
12V 24V lead acid Battery Charger Module 5A Switch power Generator float Chargers Pcb Circuit Adapter module
12V 24V lead acid Battery Charger Module 5A Switch power Generator float Chargers Pcb Circuit Adapter module

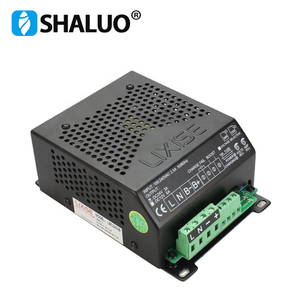

Diesel genset Generator LIXISE Intelligent Power supply automatic battery float charger 12 and 24VDC LBC2403-1206
Diesel genset Generator LIXISE Intelligent Power supply automatic battery float charger 12 and 24VDC LBC2403-1206

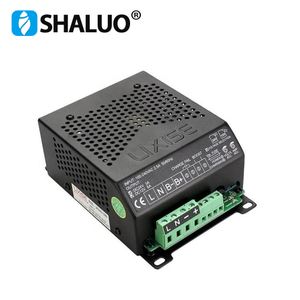

Diesel Generator Genset 24v 3a Automatic 3 Stage Intelligaent Battery Charger LIXiSE LBC2403
Diesel Generator Genset 24v 3a Automatic 3 Stage Intelligaent Battery Charger LIXiSE LBC2403
diesel generator Auto battery float charger 12V 3A
diesel generator Auto battery float charger 12V 3A
Generator Intelligent Power Supply LIXiSE 12v 6a battery charger LBC1206B
Generator Intelligent Power Supply LIXiSE 12v 6a battery charger LBC1206B
Generator Battery Charger CH2806 24v battery charger
Generator Battery Charger CH2806 24v battery charger

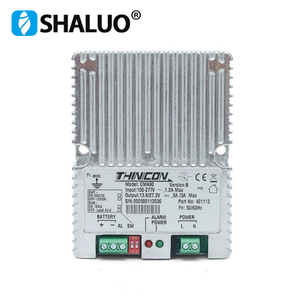

CMA90 Thinicon intelligent charger for generator engine 3A
CMA90 Thinicon intelligent charger for generator engine 3A
auto electronic power battery 12v charger transformer module BAC06A
auto electronic power battery 12v charger transformer module BAC06A

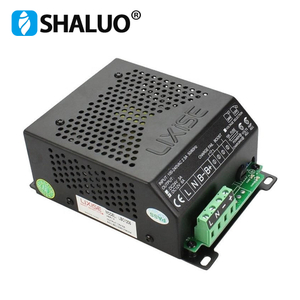

Diesel Generator Lixise Intelligent 12v 6a battery charger LBC1206
Diesel Generator Lixise Intelligent 12v 6a battery charger LBC1206
diesel generator engine dual voltage power supply 12v/24v battery charger LBC2403-1206B
diesel generator engine dual voltage power supply 12v/24v battery charger LBC2403-1206B
Diesel generator Intelligent battery charger 24v 3a LIXiSE LBC2403B power supply
Diesel generator Intelligent battery charger 24v 3a LIXiSE LBC2403B power supply
60W Diesel Generator Battery Charger 12V 5A AC Change over DC
60W Diesel Generator Battery Charger 12V 5A AC Change over DC

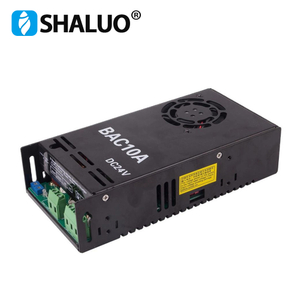

Diesel generator set automatic float charger intelligent charger 24V lead acid battery charger BAC10A
Diesel generator set automatic float charger intelligent charger 24V lead acid battery charger BAC10A

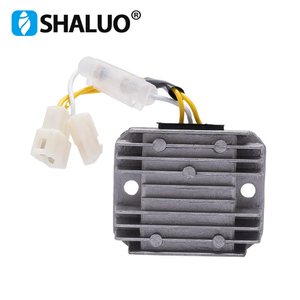

186F 178F generator battery charger 14V 10A battery charger generator
186F 178F generator battery charger 14V 10A battery charger generator

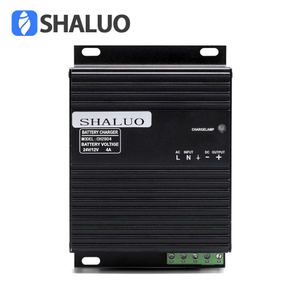

4A Generator 12v 24v automatic battery charger CH2804
