DC60D Generator Set Controller

Product Description
original Product for Diesel/Gasoline/Gas Genset Parameters Monitor DC60D Generator Set Controller

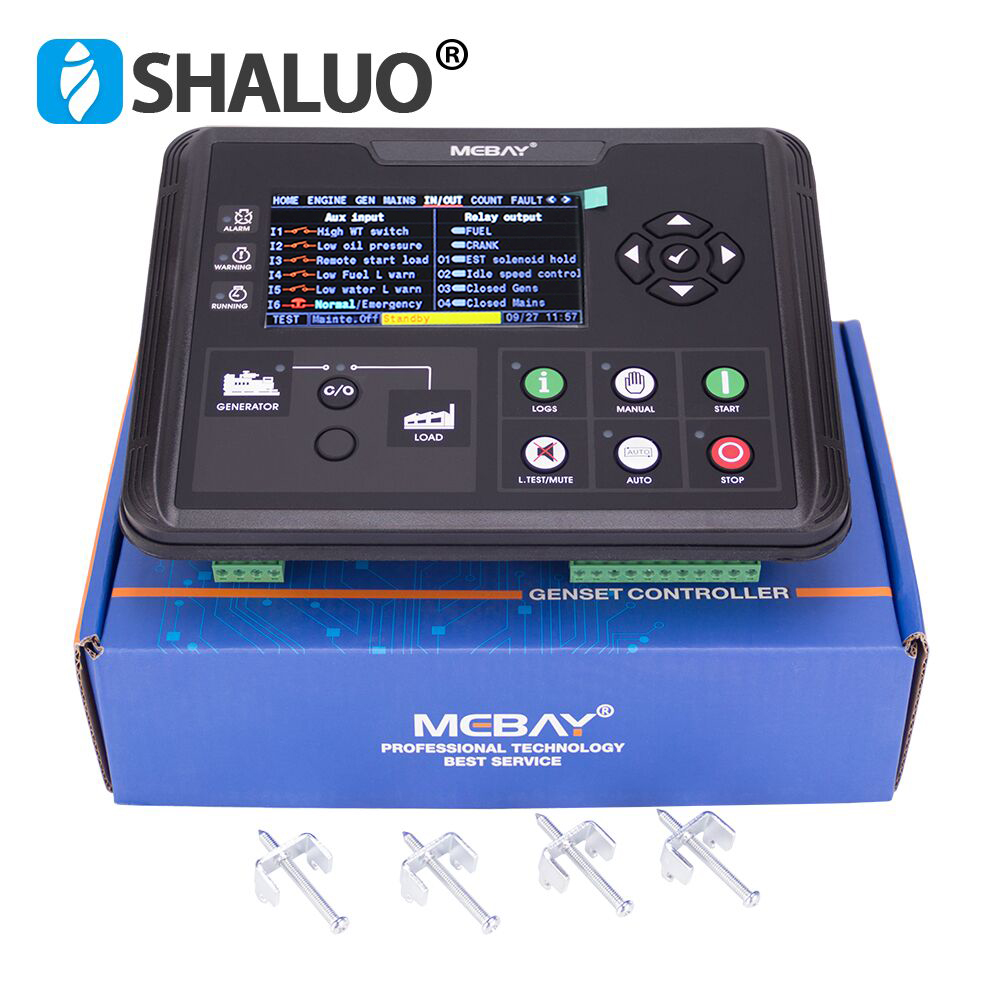

Genset Controller DC60D Series
- This series controller is specialized for Diesel / Gasoline / Gas Genset Start, Stop,Parameters monitoring, faults-checking as well as data setting.

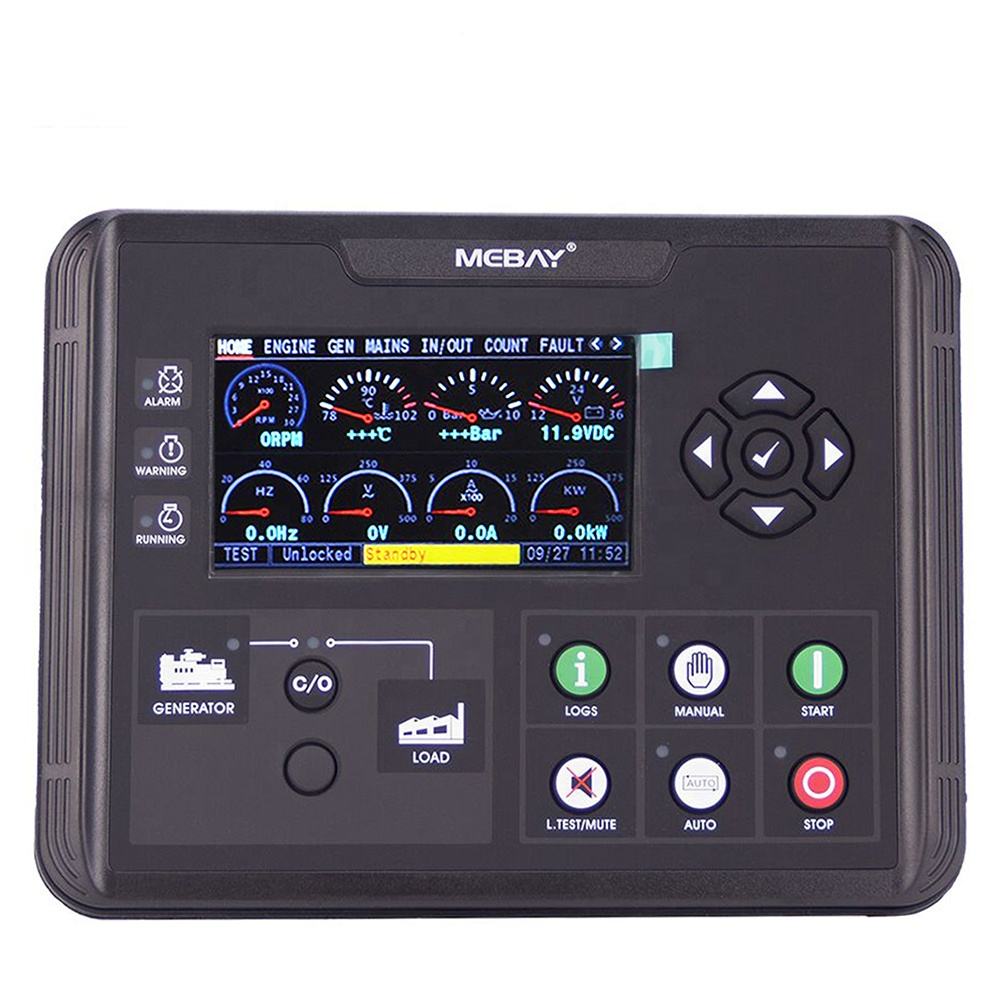

- 4.3 inch colorful LCD screen display with brand new UI design is adapted in this controller that the relative failures can be displayed directly. All the parameters can be displayed by simulated indicators and words.Besides, LCD screen can display various faults in the same time that the genset will be stopped once it can not work smoothly.

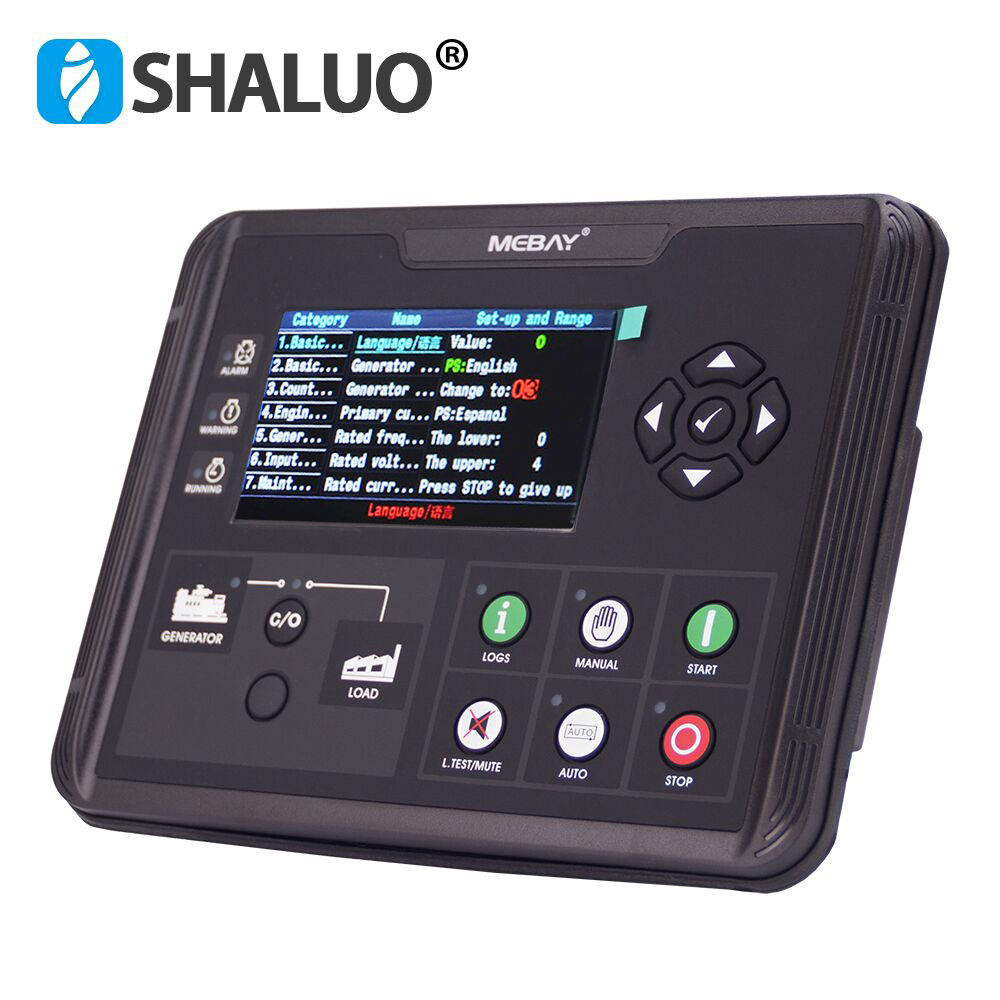

- There are Chinese/English interface options, more language can be set according to user's request. All the parameters can be configured through the front face buttons or use programmable interface by RS485 or USB to adjust via PC.It can be widely applied for all kinds of auto control system of gensets.

Main Features:
- 32 units Micro-procession technology is used.
- 4.3 inch TFT colorful big screen LCD, option language interface(Chinese/English), user's language set if necessary.
- Indicator and number display through UI surface.
- Acrylic material is adapted to protect the screen.
- Silicone panels;
- USB Port: parameters can be set even without power through USD port to monitor in real time.
- Various kinds of parameters display.
- Input/output function, status can be shown directly.
- More categories of surface setting.
- Real time clock inside: preset time operate and auto maintenance is available. Genset working plan can be set as per week or month.
- Three class protection countdown function, which can set the maintenance time or date.
- Records function: relative faults shall be recorded in real time.
- Totally 6 relay's output, among which 4 relay output can be self-configurable, each relay can be set as max 25 functions, besides, there are 4 groups as non-contact terminals.
- 5 switch value input, and each can be set as max 30 functions.
- 3 sensor simulation input connectors, 6 input types is configurable and various kinds of units can be set.
- Battery charging control function,which can protect the battery according to battery voltage status.
- Sensor can be self-defined by front face button or PC software.
- Adapt to 3P4W,1P2W,2P3W(120V/240V,50/60HZ)
- Various of crank conditions(RPM,Frequency, Oil Pressure) can be chosen
- Control Protection:Auto Start/Stop of genset,load transfer (ATS control) and perfect failure display and protection.
- Standard water-proof rubber gasket. The waterproof can reach IP54

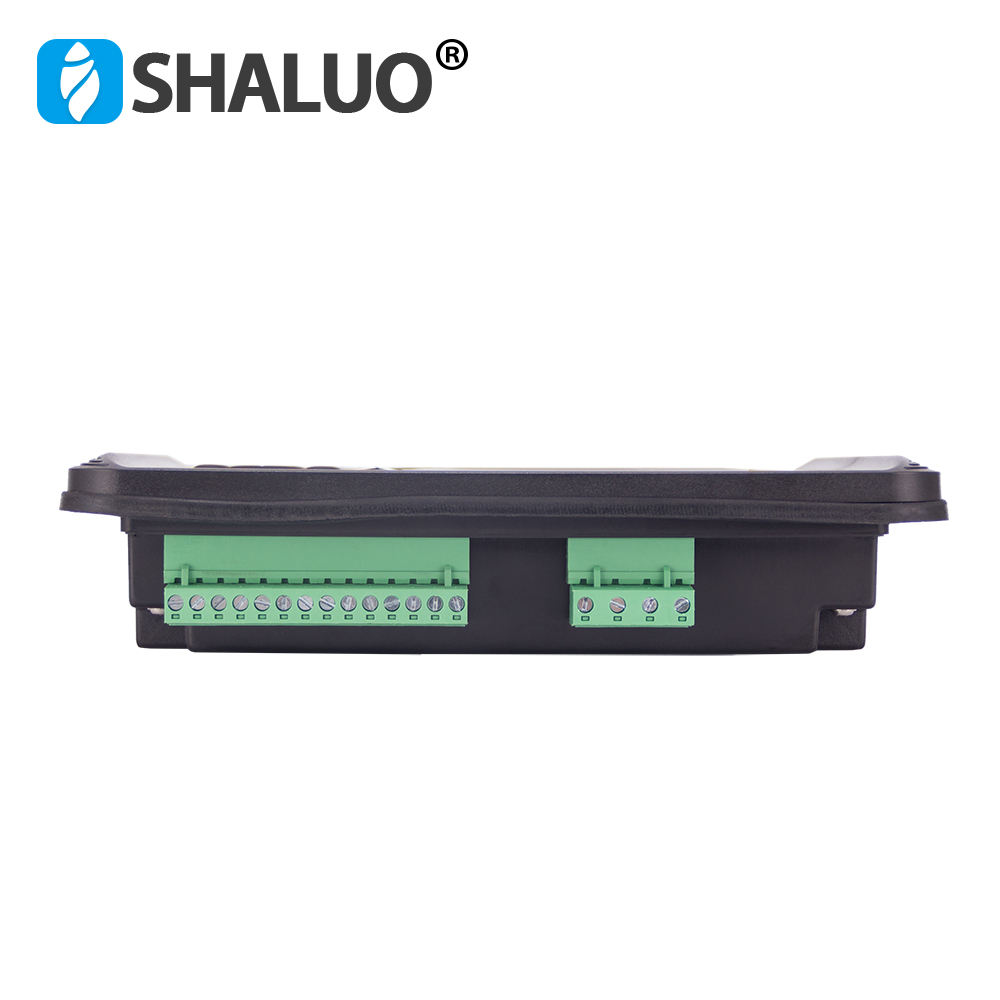

- Module design: All the connections are adapted with European connectors so that installation, connection, repair and replacement can be more easily.

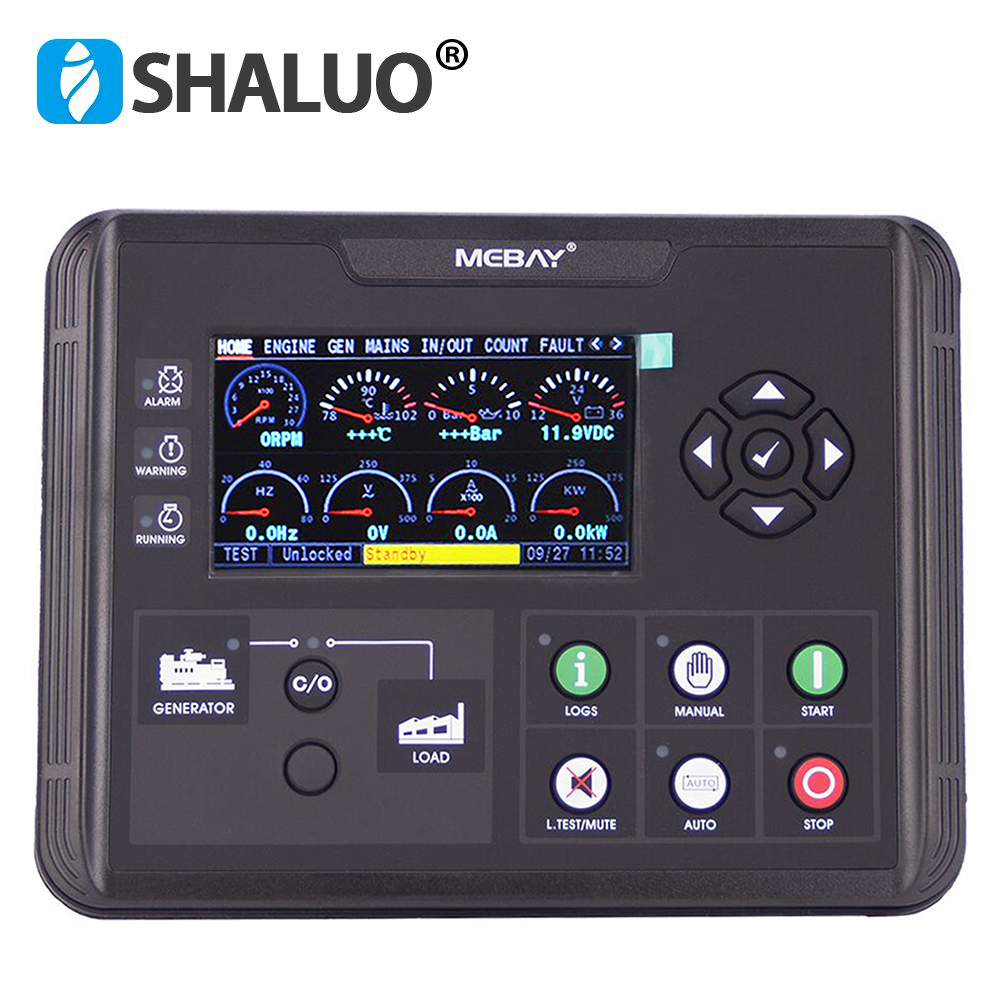

Parameters Display:
Engine RPM
Engine oil pressure
Engine water temperature
Engine fuel temperature
Engine cylinder temperature
Engine Tank temperature
Engine fuel level
Engine battery voltage
Charging voltage
Mains Frequency (only for DC62D)
Mains phase voltage L-N(only for DC62D)
Mains phase voltage L-L(only for DC62D)
Generator 3 Phase voltage L-N
Generator 3 Phase voltage L-L
Generator 3 phase current A
Generator Frequency Hz
Generator Power Factor COSφ
Generator active power KW
Generator apparent power KVA
Generator reactive power KVar
Current loading rate %
Total average loading rate %
Current consumption KWH
Total consumption Kwh
Total Crank times
Current running time
Total running time
Three classes maintenance notice

Protection:
Over speed
Under speed
Low oil pressure
High water temperature
High Oil temperature
High Cylinder Temperature
High Tank temperature
Low fuel level
Low oil level
External emergency alarm
D+ Opened
RPM Lost
Sensor Open
Over Frequency
Under Frequency
Over voltage
under voltage
over current
Non-balance of current
Over power
Lack of Phase
reverse phase sequence
Gen load failure
Gen unload failure
Mains Load failure
Mains unload failure
Primary maintenance expire
Secondary maintenance expire
Maintenance expire
Low water level alarm
Emergency Stop
Crank failure
Over battery voltage
Under Battery voltage
Charging failure
Battery Charging failure
Stop Failure

Options:Parameters
Working voltage:DC8V----36V Continuous
Power consumption:Standby:24V:MAX 1W
Working:24V:MAX 5W
AC Voltage Input:1P2W 30VAC-276VAC(ph-N)
2P3W 30VAC-276VAC(ph-N)
3P4W 30VAC-276VAC(ph-N)
Rotate speed sensor Frequency:200-10000Hz
MAX Accumulating Time:99999.9Hours(Min Store time:6min)
Fuel Relay Output:16Amp DC+VE Supply voltage
Start Relay Output:16Amp DC+VE Supply voltage
Programmable Relay output 1:5Amp DC+VE Supply voltage
Programmable Relay output 2:5AMP Non-contact-Normal open--Normal close output
Programmable Relay output 3:5AMP Non-contact Normal Open output
Programmable Relay output 4:5AMP Non-contact normal open output
Excitation output:Max 1AMP DC+VE supply voltage
Switch value input:Available if connecting with Battery -
Working condition:-20-65℃
Storage condition:-40-85℃
Protection Level:IP54:when waterproof rubber gasket is added between controller and its panel

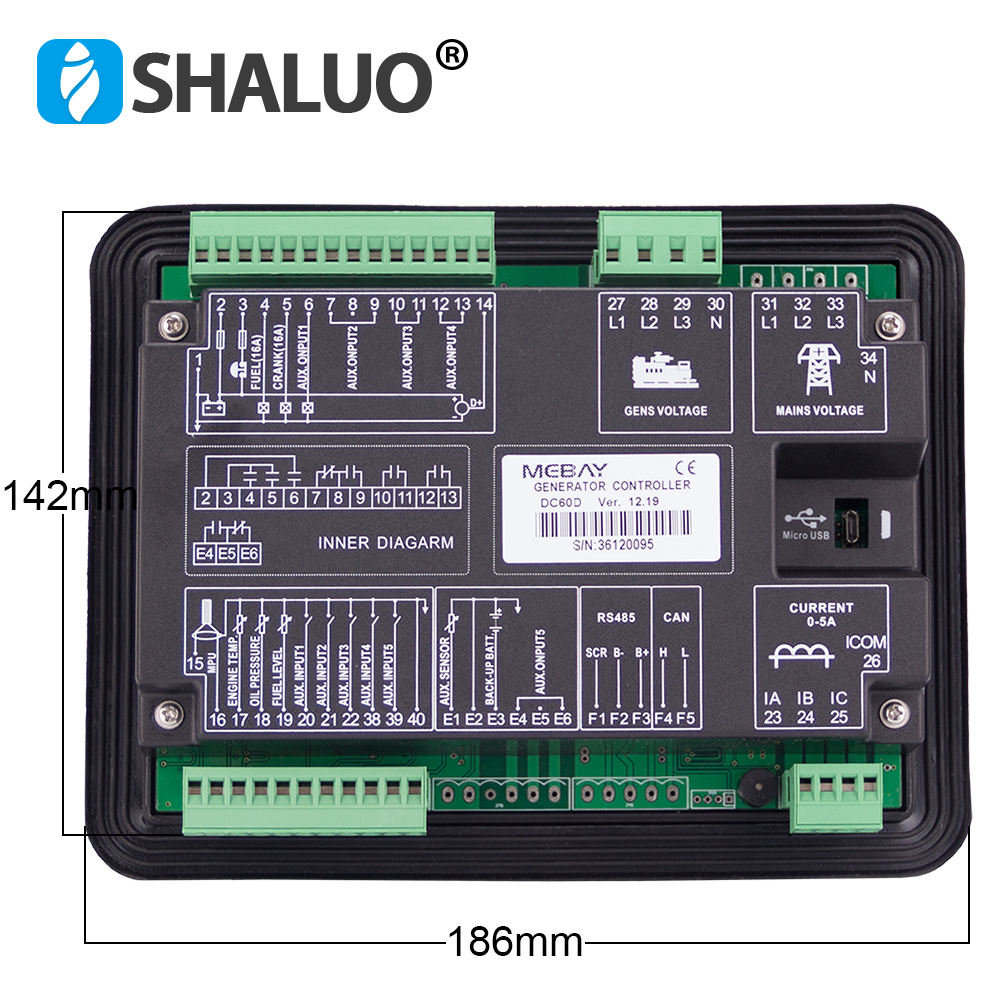

Overall dimension:210mm*160mm*50mm
Panel cutout:186mm*142mm
Weight:0.88Kg
