Product Description
SUMMARY

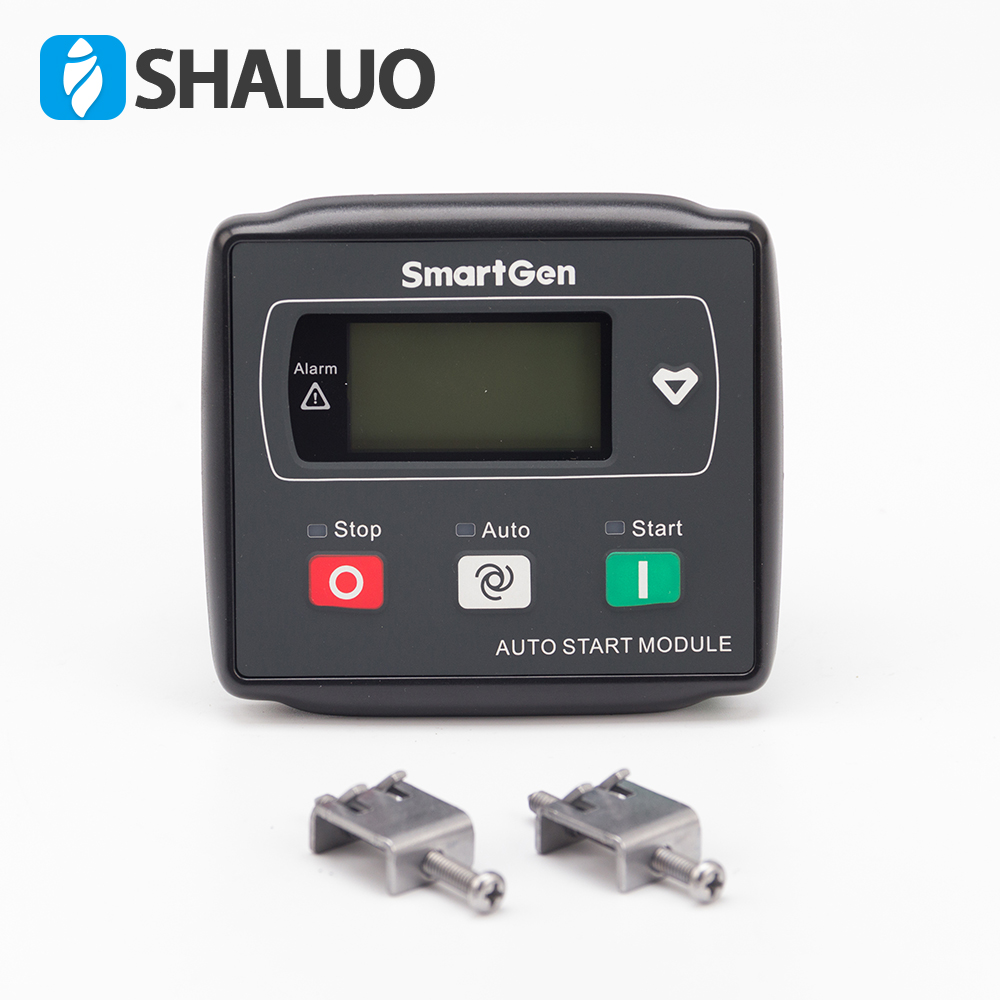

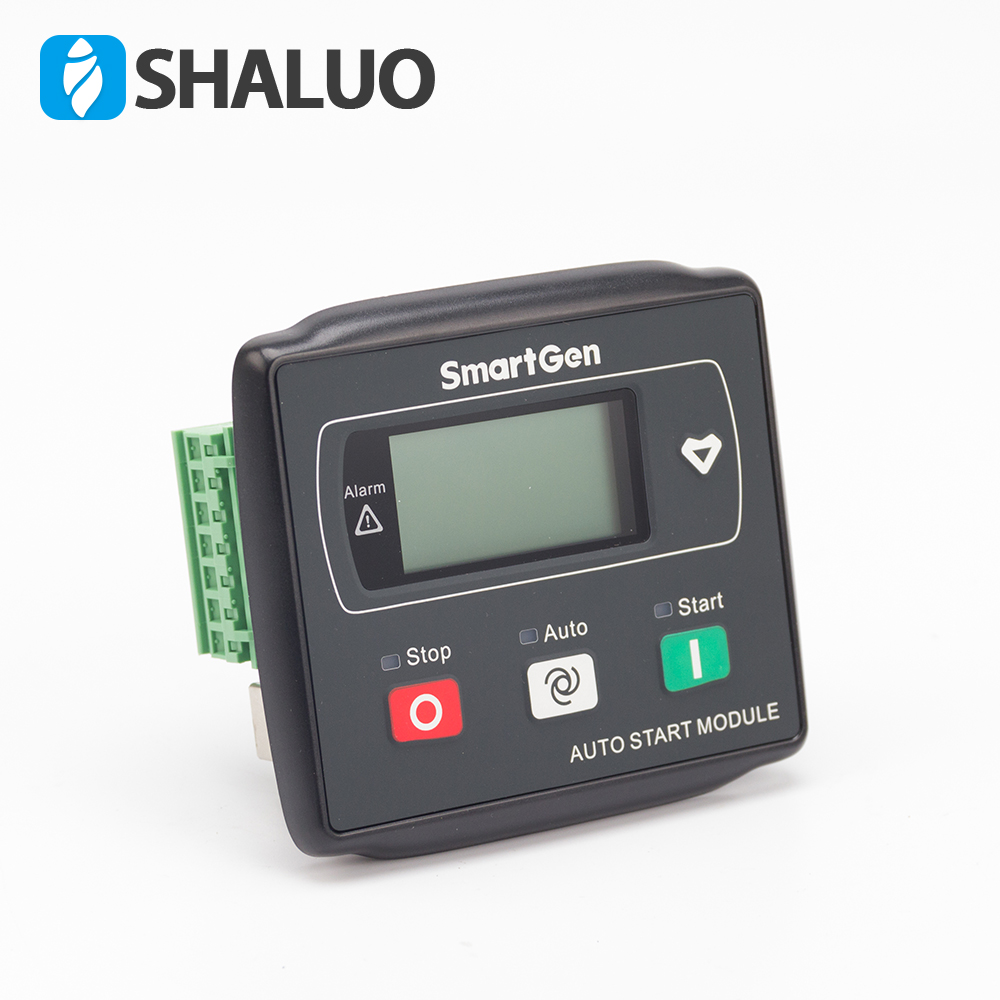

HGM1790N Series generator controller integrating digital, intelligent and network techniques is used for automatic control system of diesel generator. It can carry out functions including automatic start/stop, data measure and alarming. The controller uses LCD display.
| Item | Content | ||||
| Operating Voltage | DC8. 0V to 35. 0V, Continuous Power Supply | ||||
| Power Consumption | Standby, 12V-0.3W, 24V-0.4W Working, 12V-1W, 24V-1.1W | ||||
| Alternator voltage Input | 1P2L 15V AC ~ 360 V AC (ph-N) | ||||
| Alternator Frequency | 1V to 24V (active value) | ||||
| Speed sensor Frequency | Max. 10kHz | ||||
| Max. accumulative running time | 99999.9 hours (it is 1/10 hour after decimal point, means changing/6 min.) | ||||
| Start Relay Output | 1Amp DC28V DC B+ power on to output | ||||
| Fuel Relay Output | 1Amp DC28V DC B+ power on to output | ||||
| 1Amp DC28V DC B+ power on to output | 1Amp DC28V DC B+ power on to output | ||||
| Idle Relay Output | 1Amp DC28V DC B+ power on to output | ||||
| Configured Relay Output | 1Amp DC28V DC B+ power on to output | ||||
| Switching value input port | Active when connected with B- | ||||

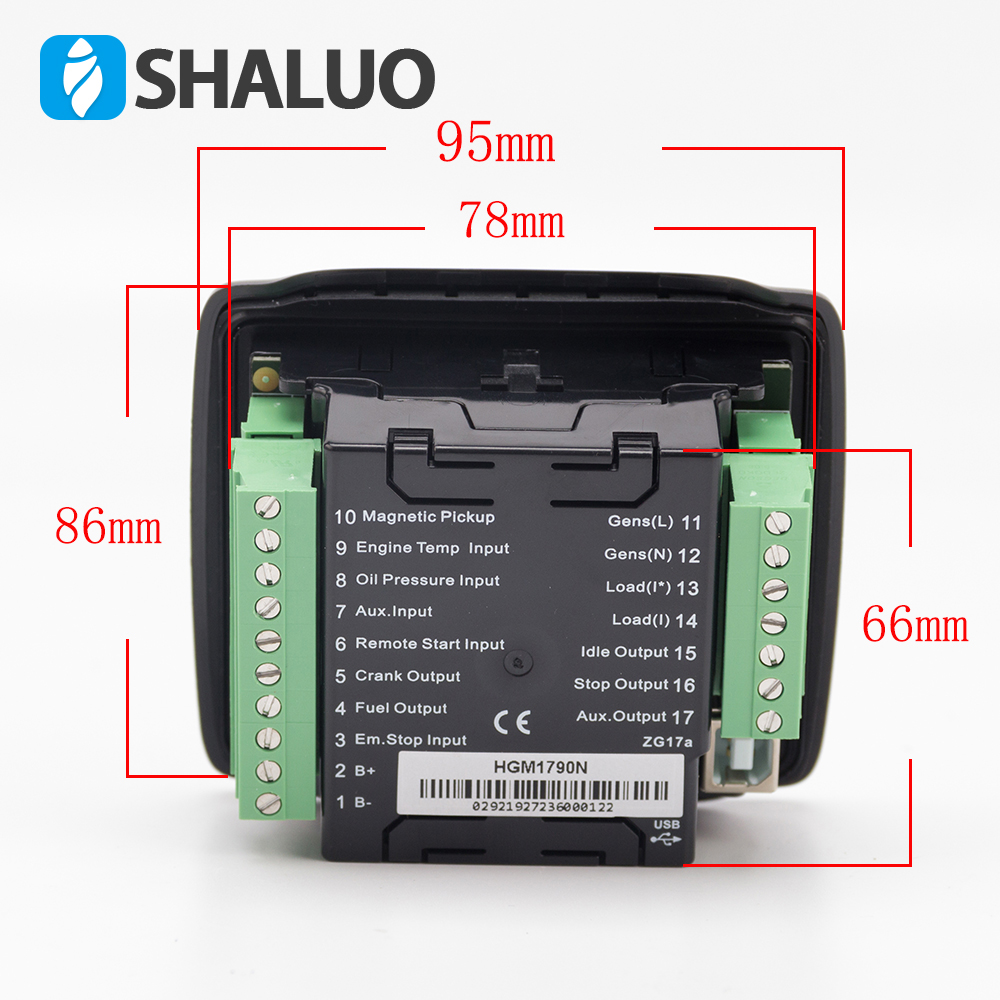

| Overall dimensions | 88mm x 76mm x 44mm | ||||
| Panel cut off | 78x66mm | ||||
| Working conditions | Temperature, (-25~+70)ºC Humidity, (20~90)% without condensation | ||||
| Storage Condition | Temperature, (-30~+80)ºC | ||||
| Protective Level | IP55, when waterproof rubber ring added between controller and its panel. IP42, when waterproof rubber ring not have between controller and its panel. | ||||
| Insulation Intensity | Object: among in input/output/power Quote standard: IEC688-1992 Test way: AC1.5kV/1min 1mA leakage current | ||||
| Weight | 0.15kg | ||||
