Product Description

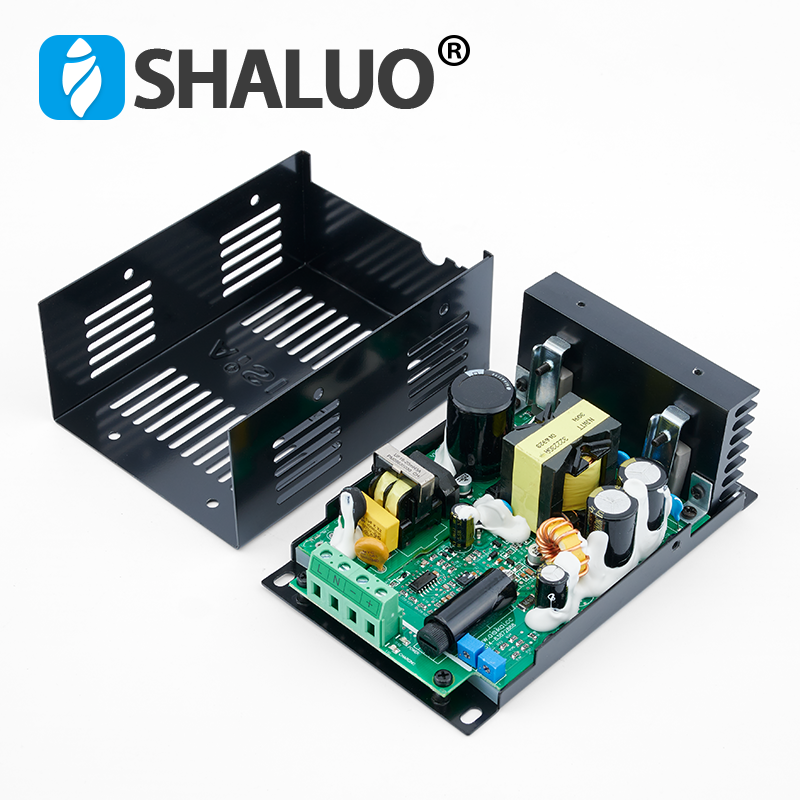

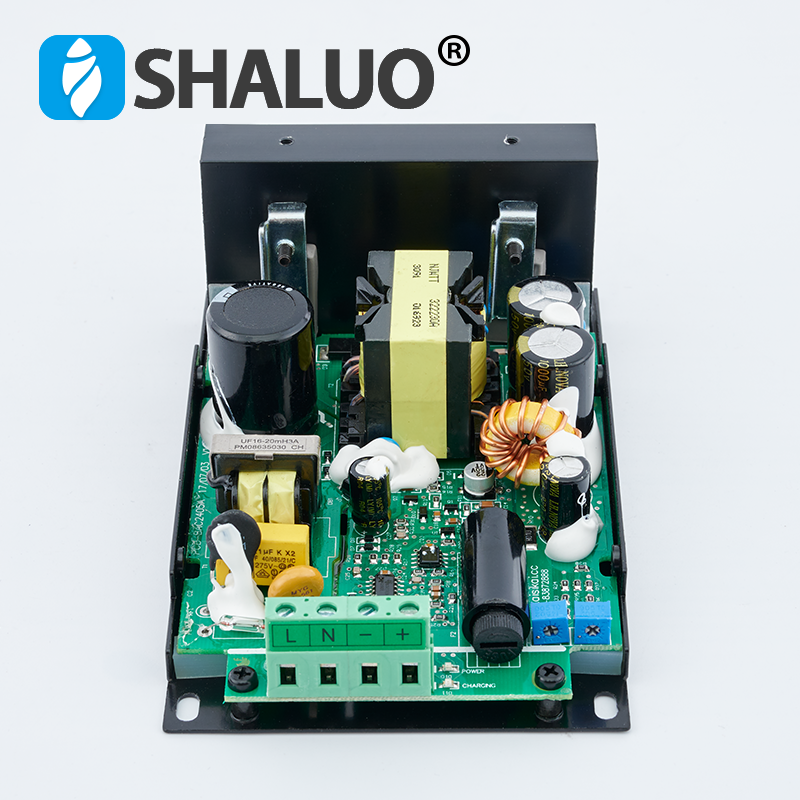

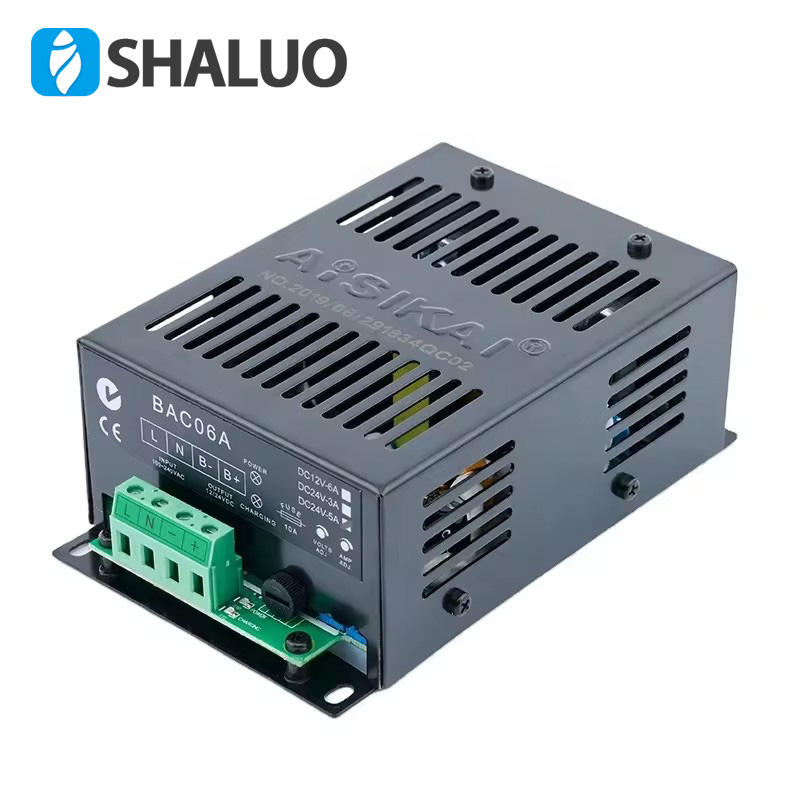

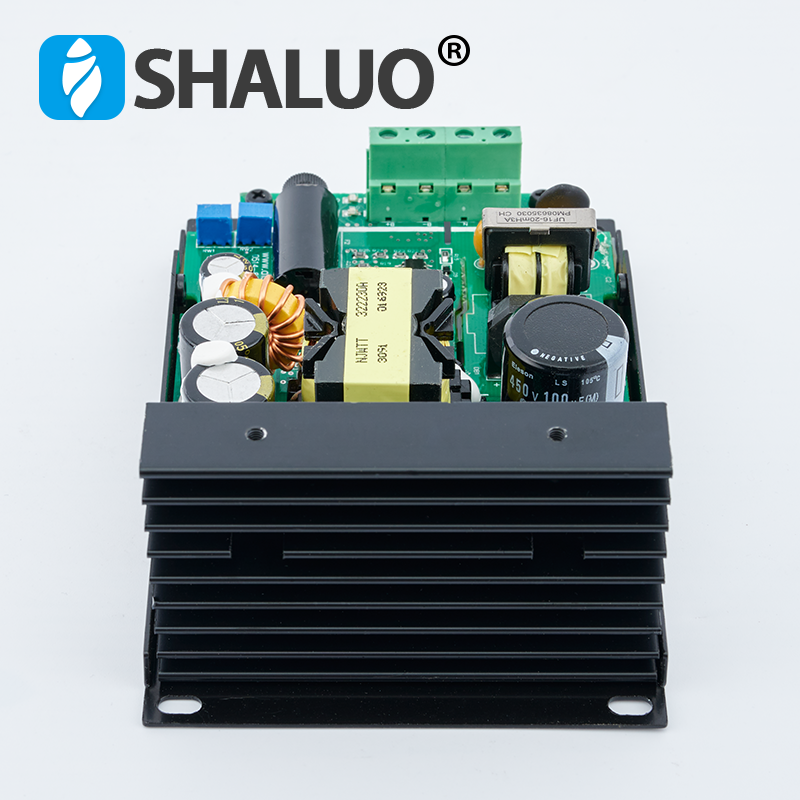

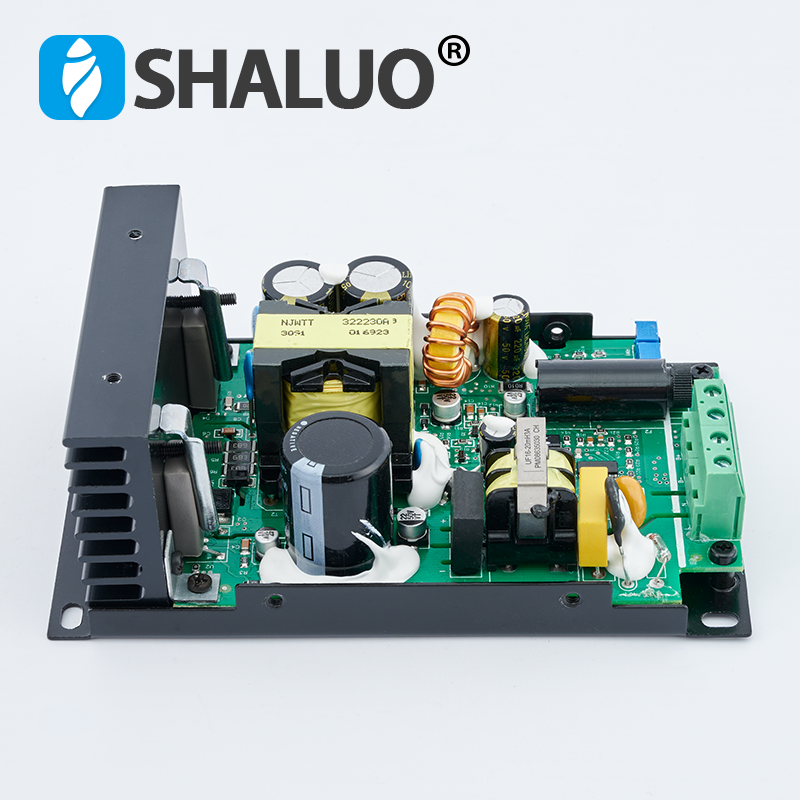

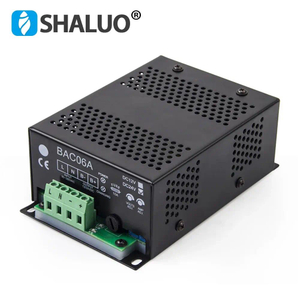

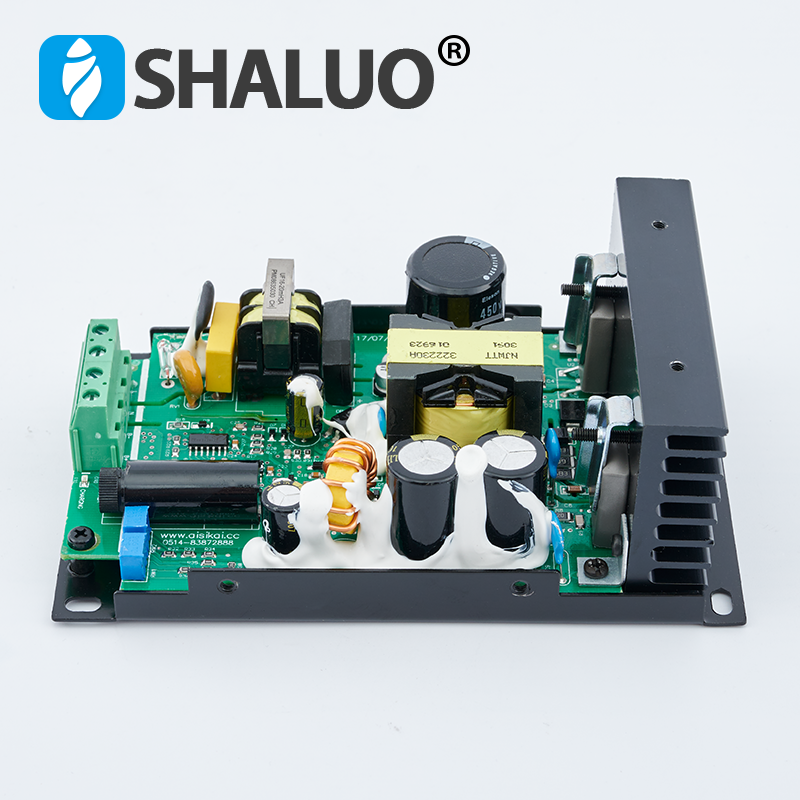

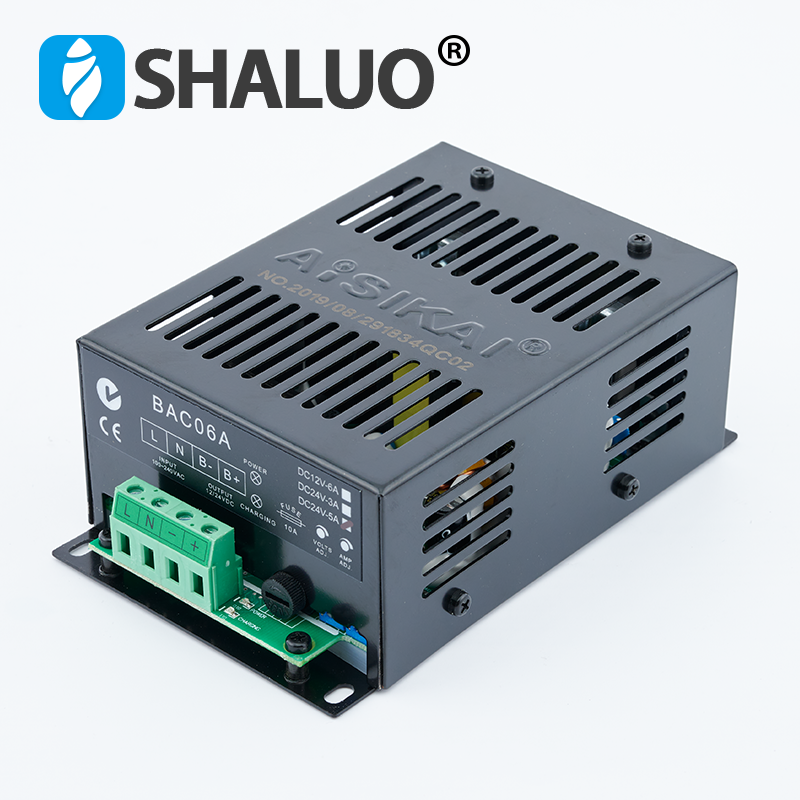

BAC06A switching battery charger adopts the latest switch power components, which is designed for charging lead-acid starting battery according to its property. The charger is suitable for lead-acid battery float charge. The maximum charge current for 12V charger is 6A; the maximum charge current for 24V charger is 3A.
| Battery Charger BAC06A | ||||
| Battery Voltage | 12V | 24V | ||
| Max. Charge Current | 6A | 3A | ||
| Charge Voltage Range | (13~14.5)V | (26~29)V | ||
| Charge Current Range | (3~7)A | (1.5~3.5)A | ||
| AC Voltage | (95~280)VAC | |||
| AC Frequency | 50 Hz/60Hz | |||
| Power Consumption | 120W | 115W | ||
| No-Load Power Consumption | Less than 3W | |||
| Efficiency | More than 80% | More than 85% | ||
| Working Temperature | (-40~60)°C | |||
| Storage Temperature | (-40~85)°C | |||
| Weight | 0.65kg | |||
| Case Dimensions | 143 mm×92 mm×52mm | |||
