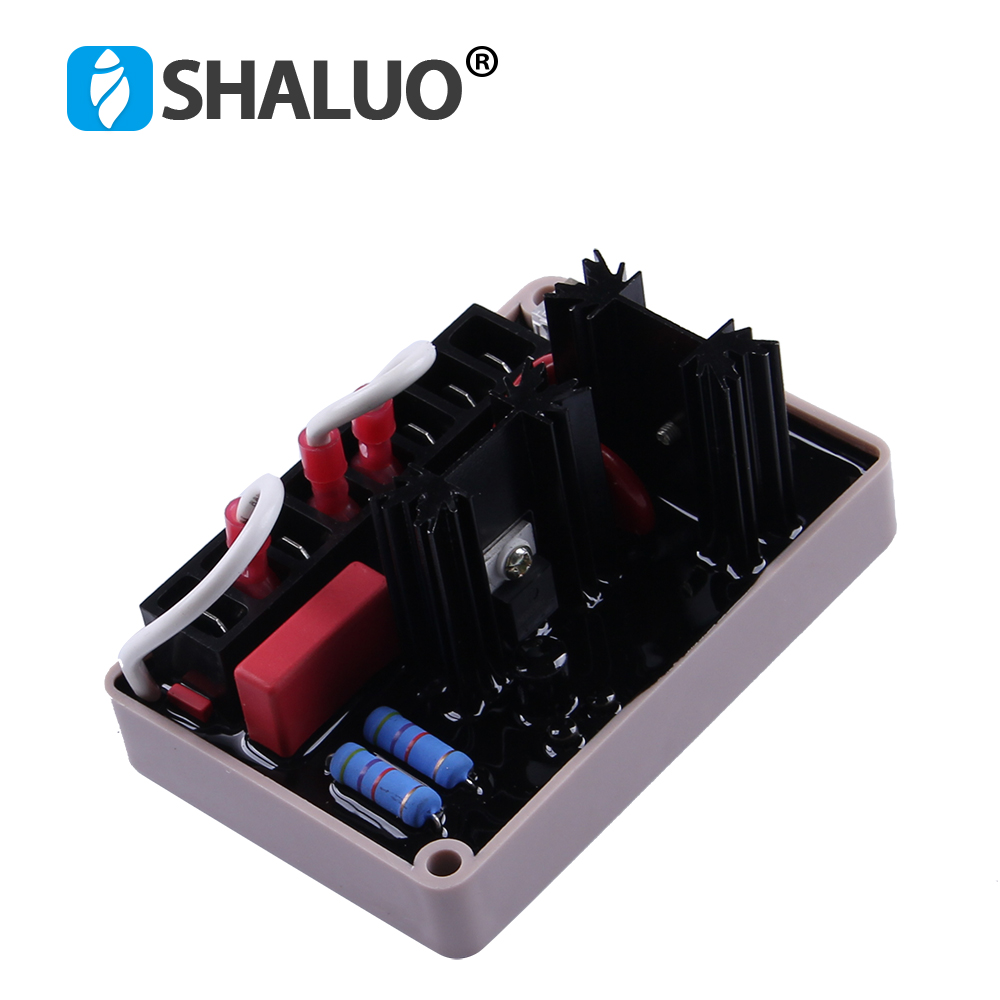

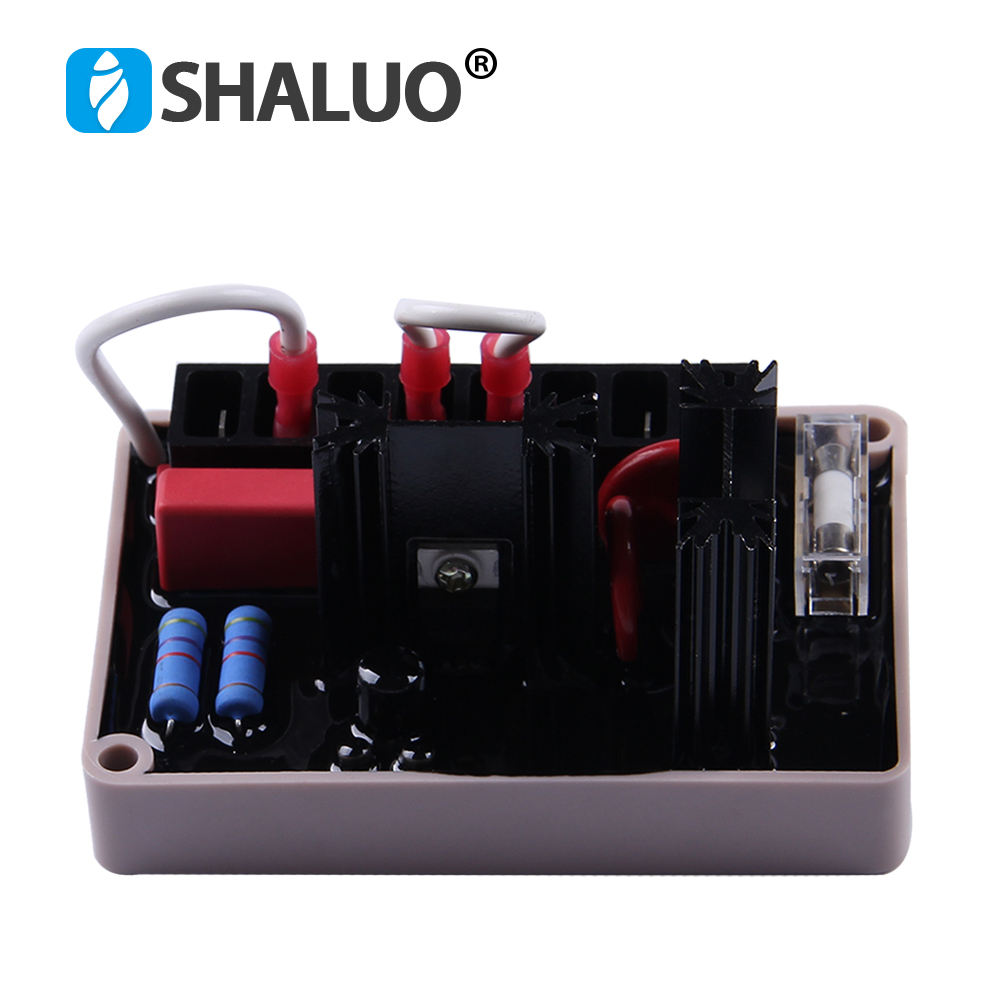

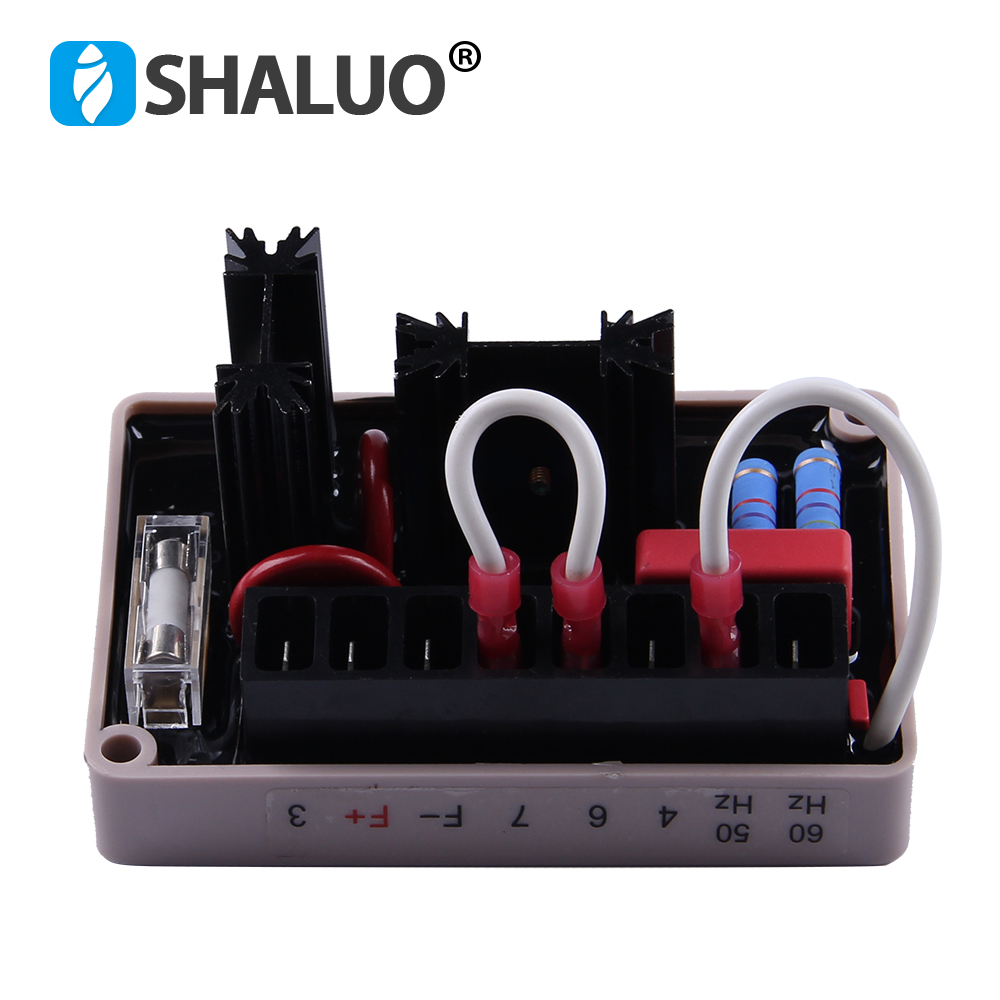

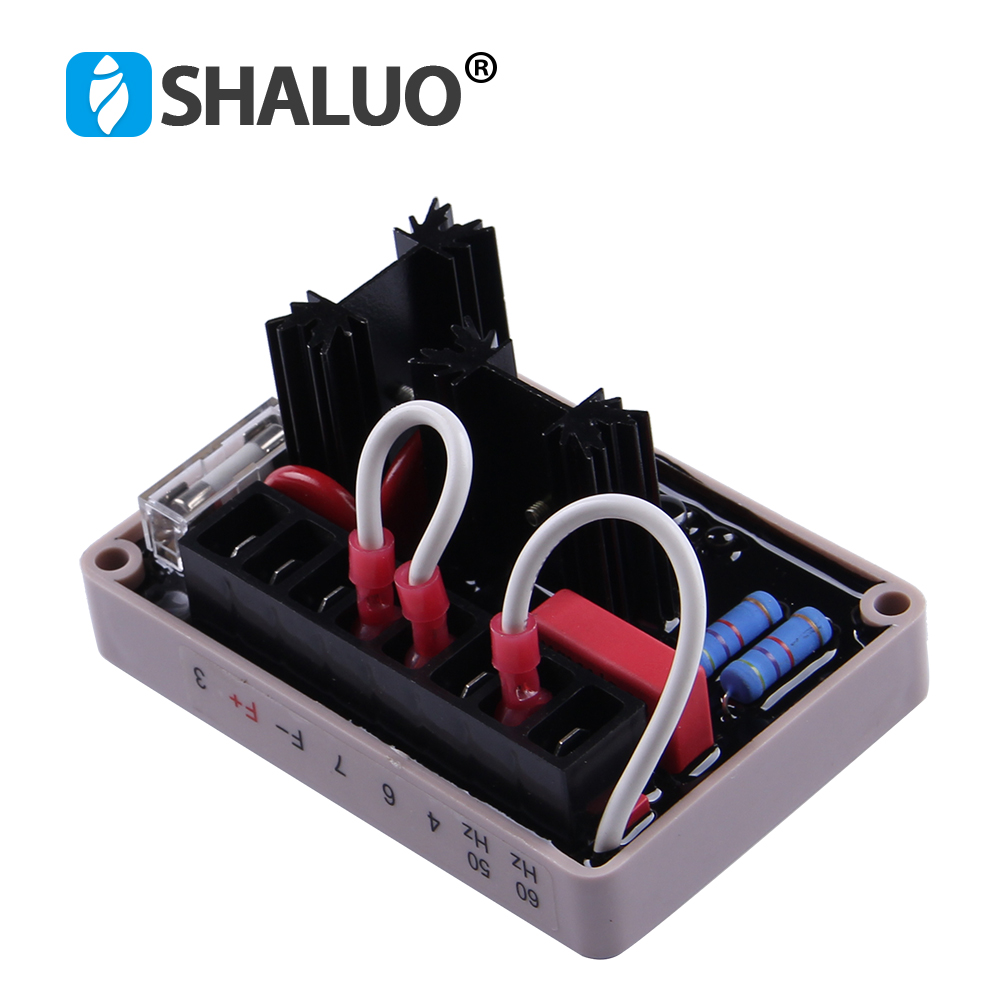

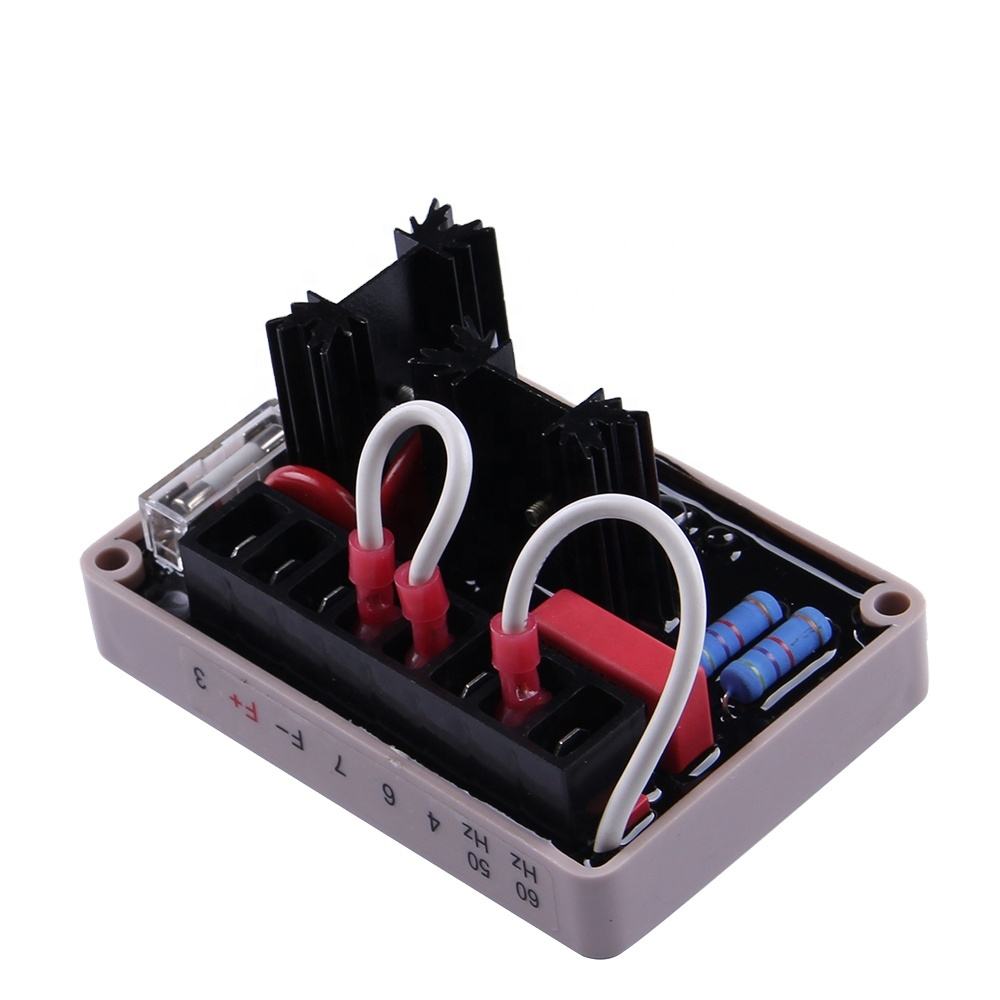

Product Description
< ± 1% Regulation
Optional 120/240 VAC Sensing Input Switch (SE350 and AVC 63-4D only fits 220 VAC Generators,and do not have fuse protection)
50/60Hz Selectable
Under Frequency Protection

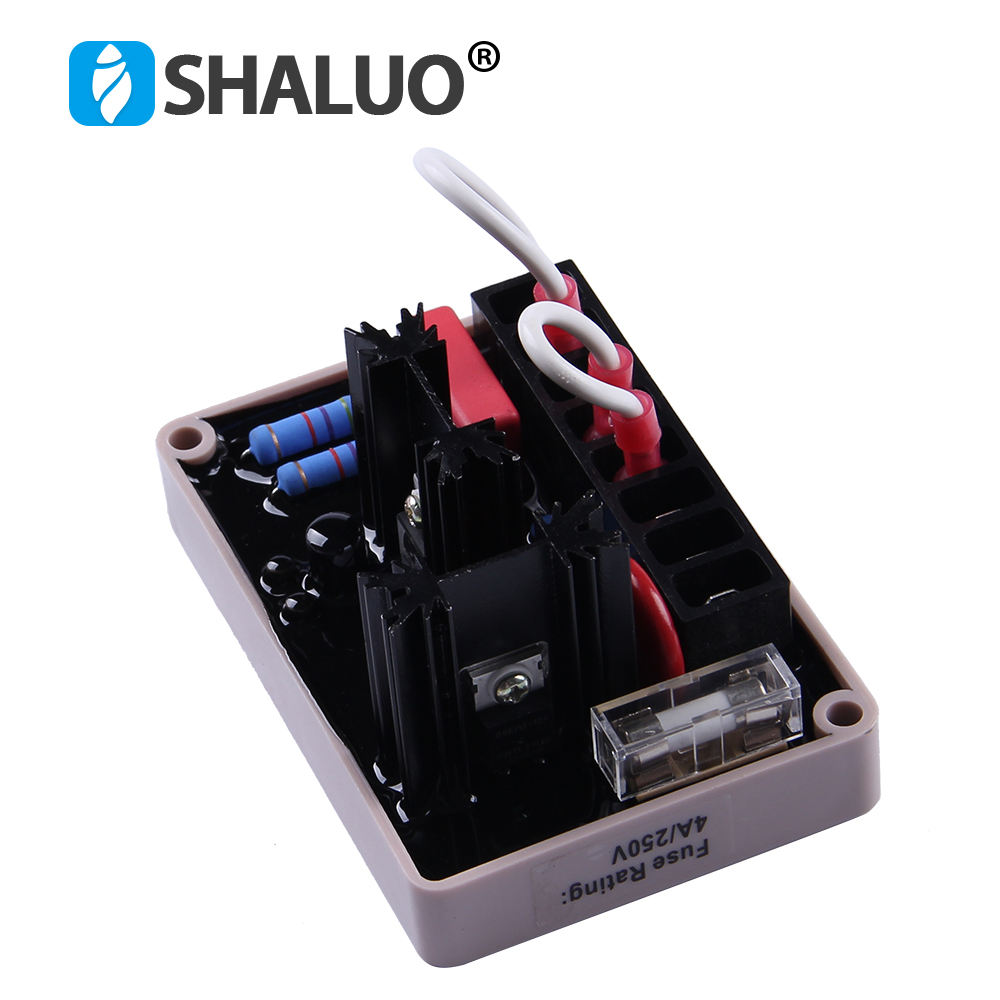

Built-in High Breaking Capacity Fuse
EMI Suppression
Sensing Input Voltage: 120(90~132) / 240(171~264) VAC, DIP Switch Selectable
Frequency: 50/60 Hz Selectable
Output Voltage: Max 37 VDC @ 120 VAC input , Max 74 VDC @ 240 VAC input
Current: Continuous 4A, Intermittent 7A for 60 sec.
Voltage Regulator Rate: < ± 1% (with 4% engine governing)
Voltage Build Residual volts at AVR termina:l > 3.5 VAC
External Voltage Adjustment :±5% @ 1 K? 1 Watt±10% @ 2 K? 1 Watt
Unit Power Dissipation :Max. 8 Watt
EMI Suppression Internal electromagnetic interference filtering
Under Frequency Protection(UFRO): 60 Hz system presets knee point at 55 Hz (Factory Setting)
50 Hz system presets knee point at 45 Hz (Factory Setting)
Environment Mechanical Vibration : 1.3 G @ 5~26 Hz , 5.0 G @ 52~1000 Hz
Relative Humidity : < 95%
Operating Temperature : -40~60 °C
Storage Temperature : -65~85 °C

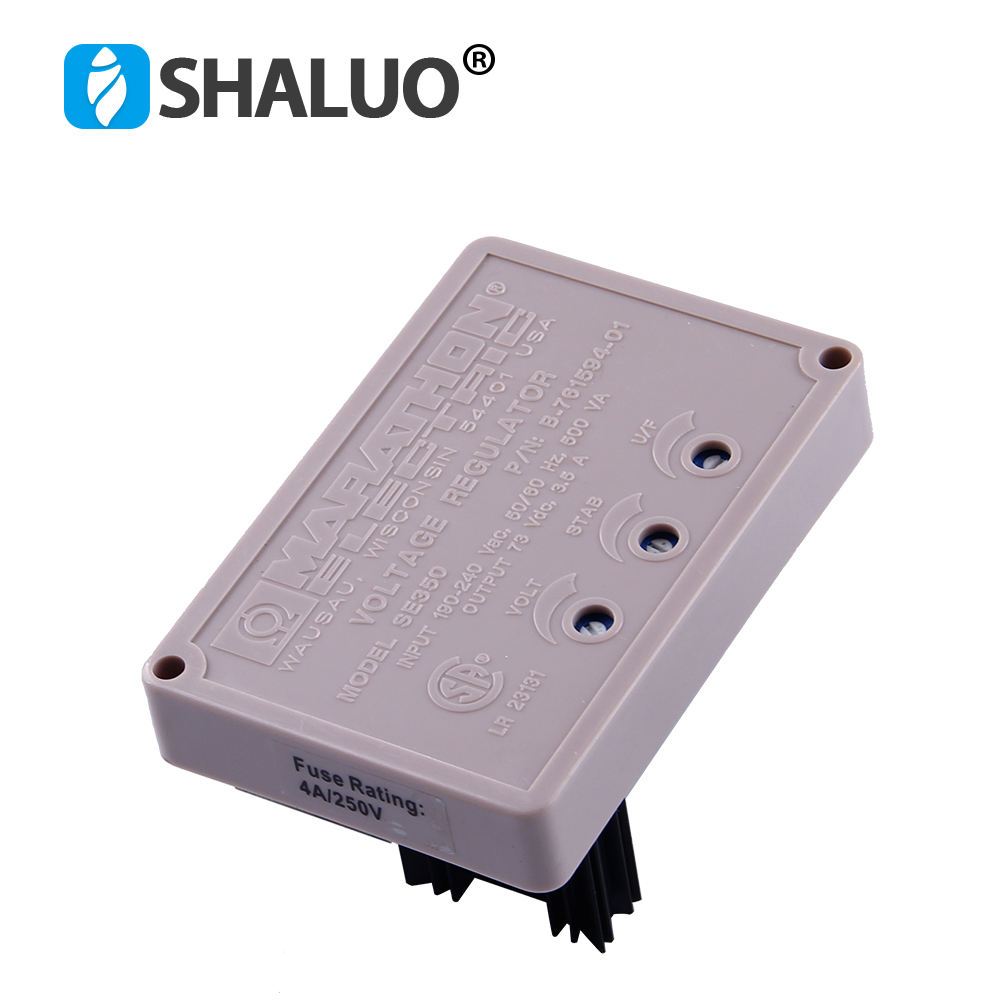

AVR Controls Functions VOLT Voltage : Adjustment
STAB : Stability Adjustment
U/F : UFRO Knee Point Set
