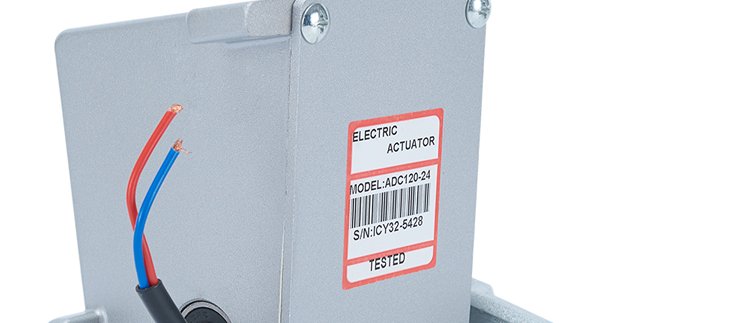

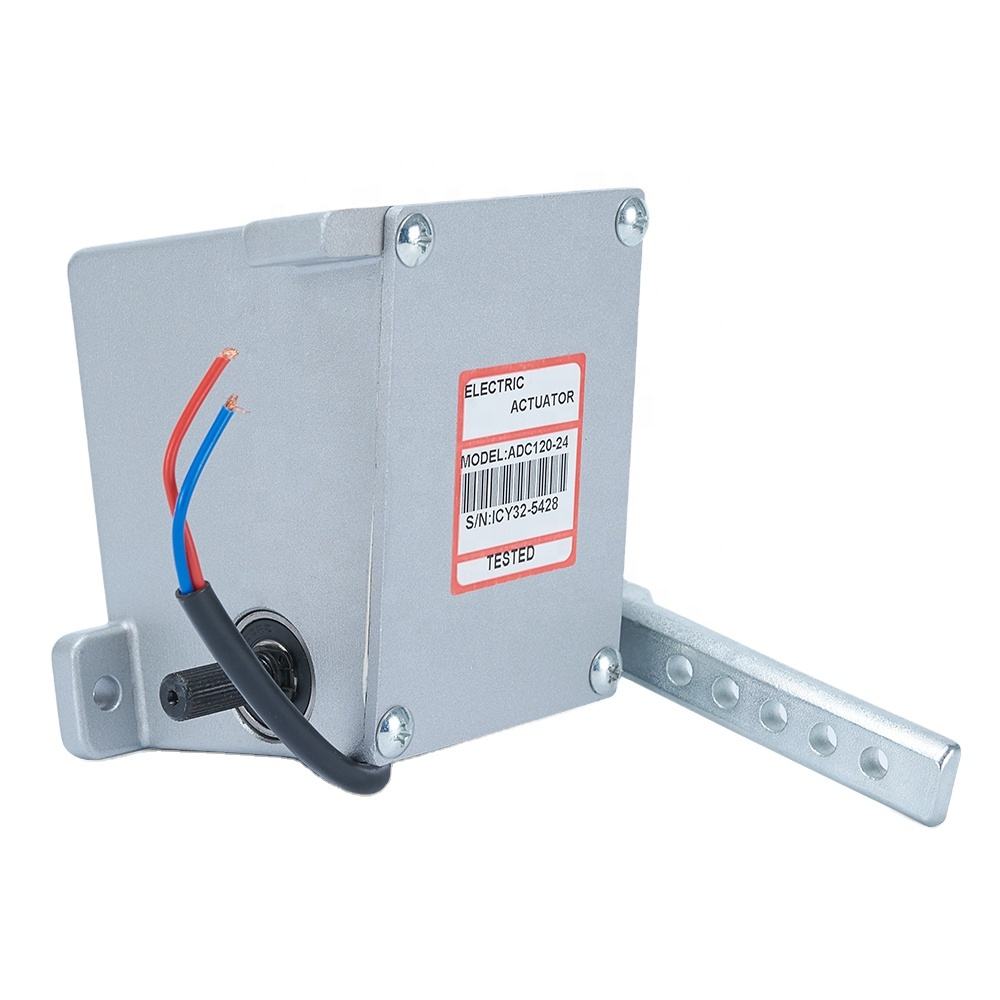

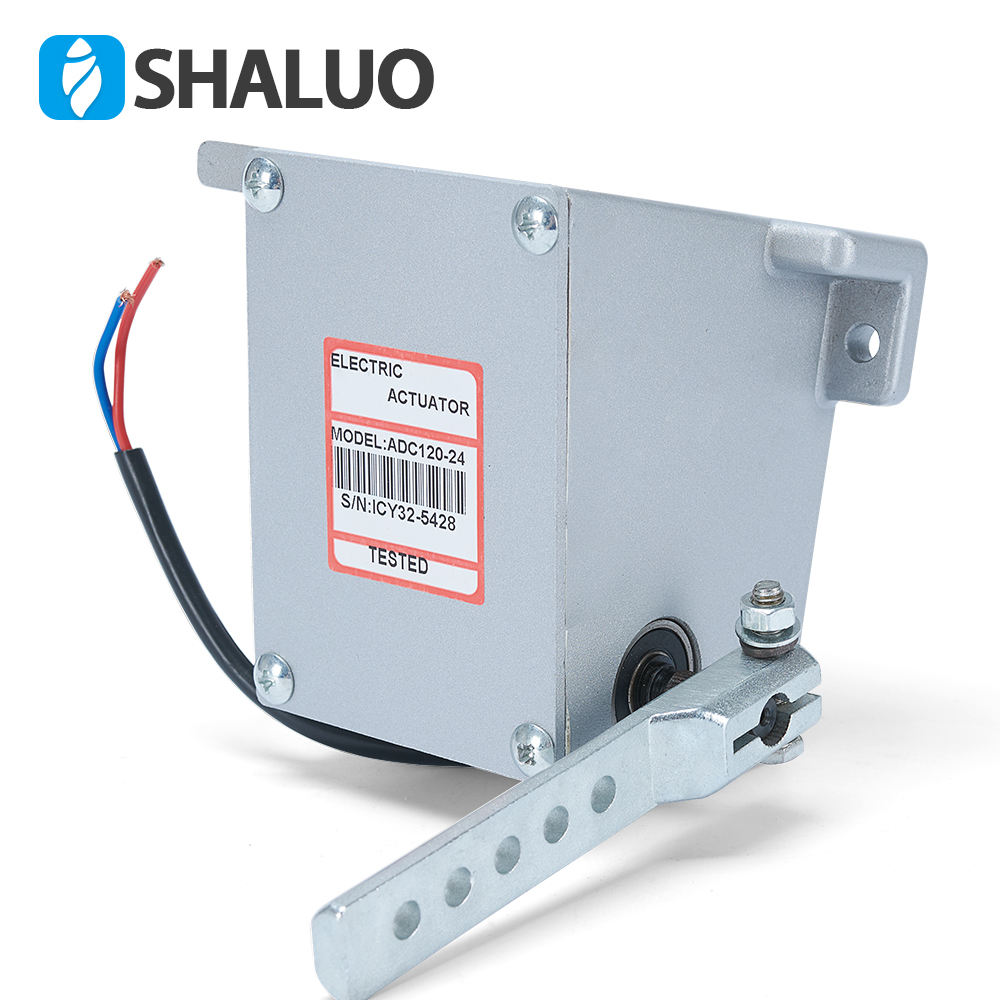

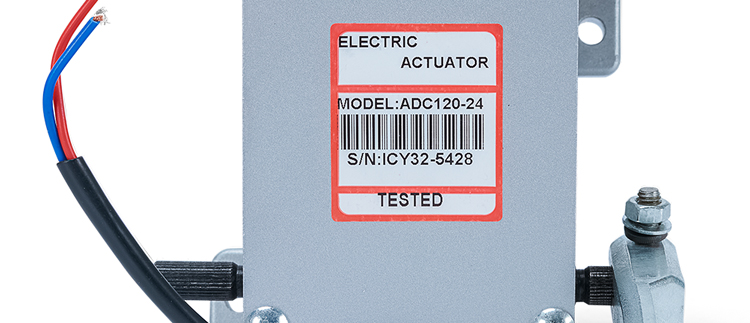

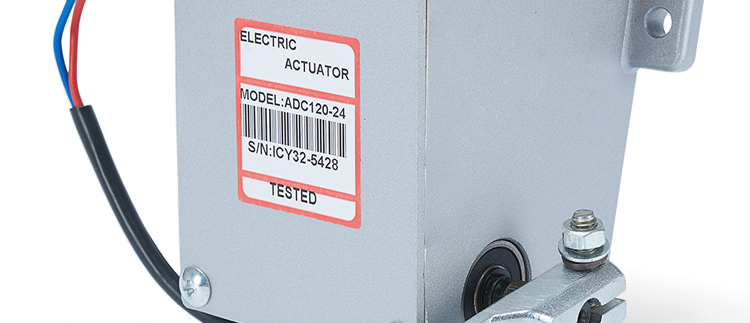

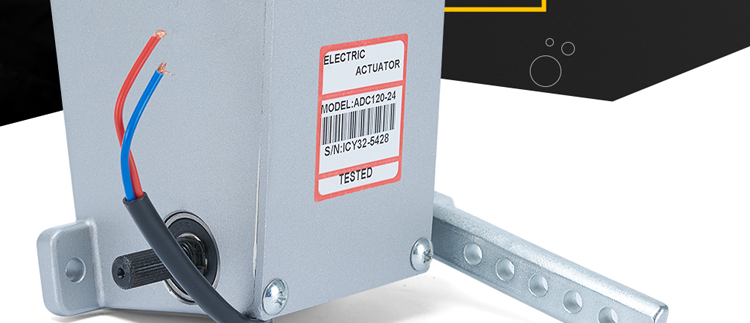

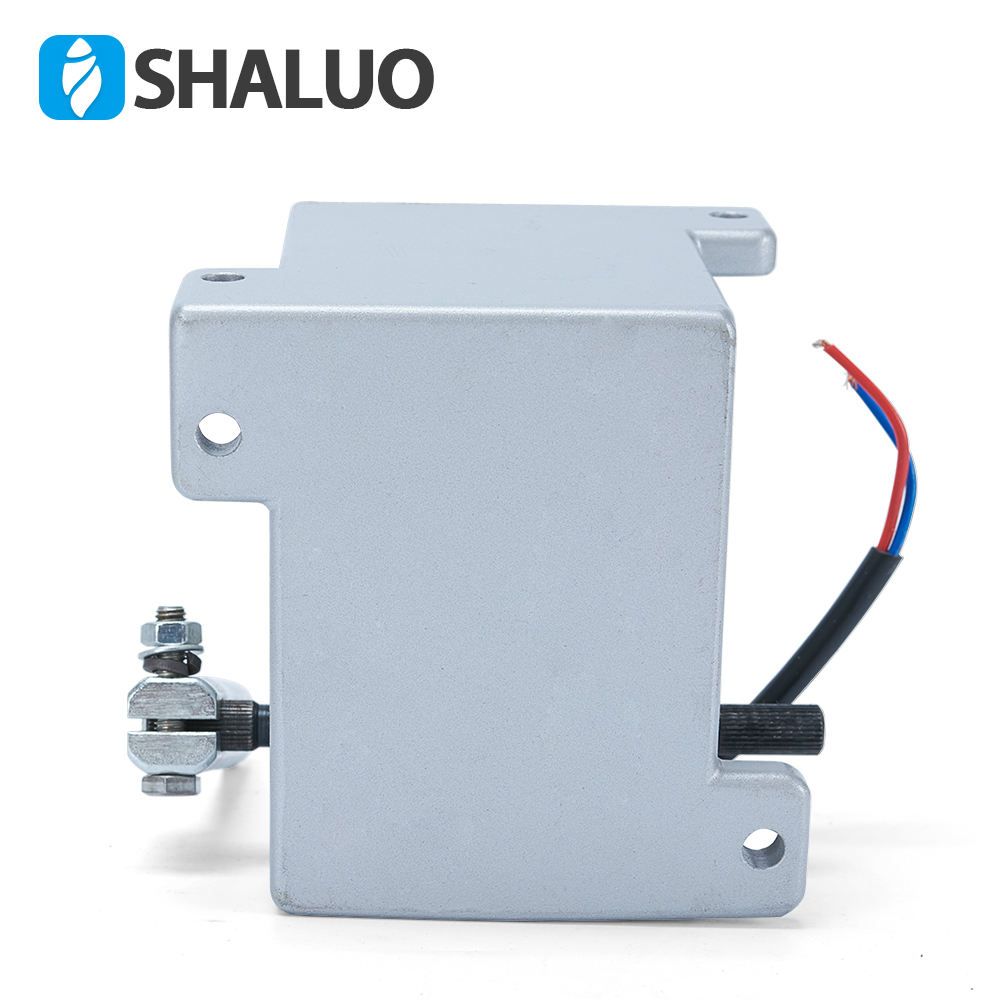

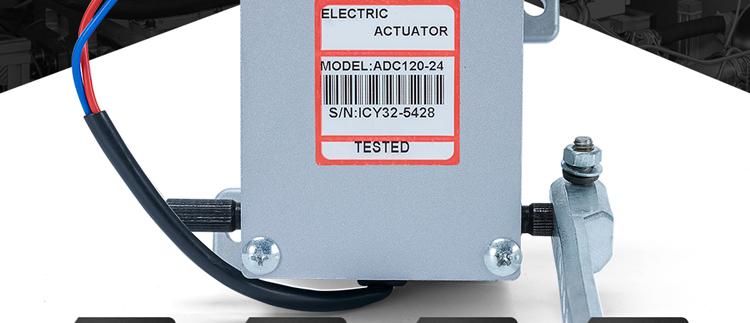

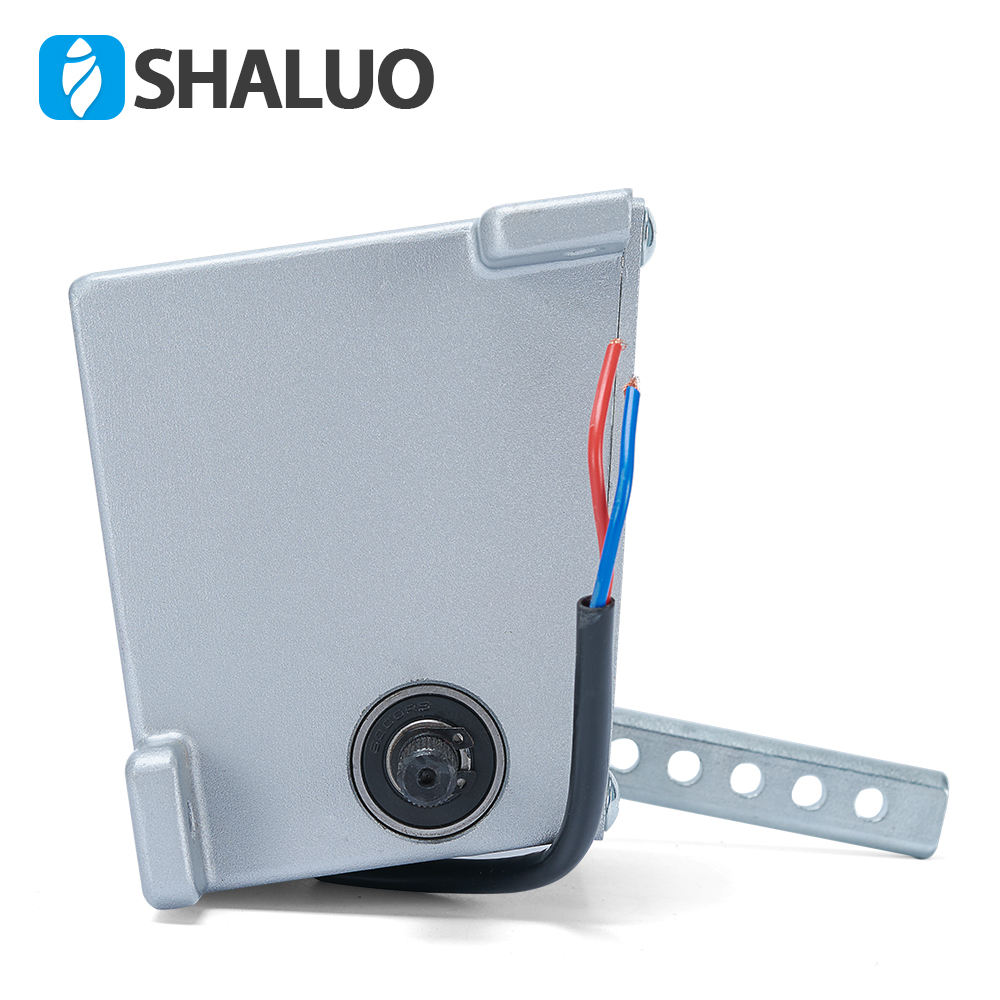

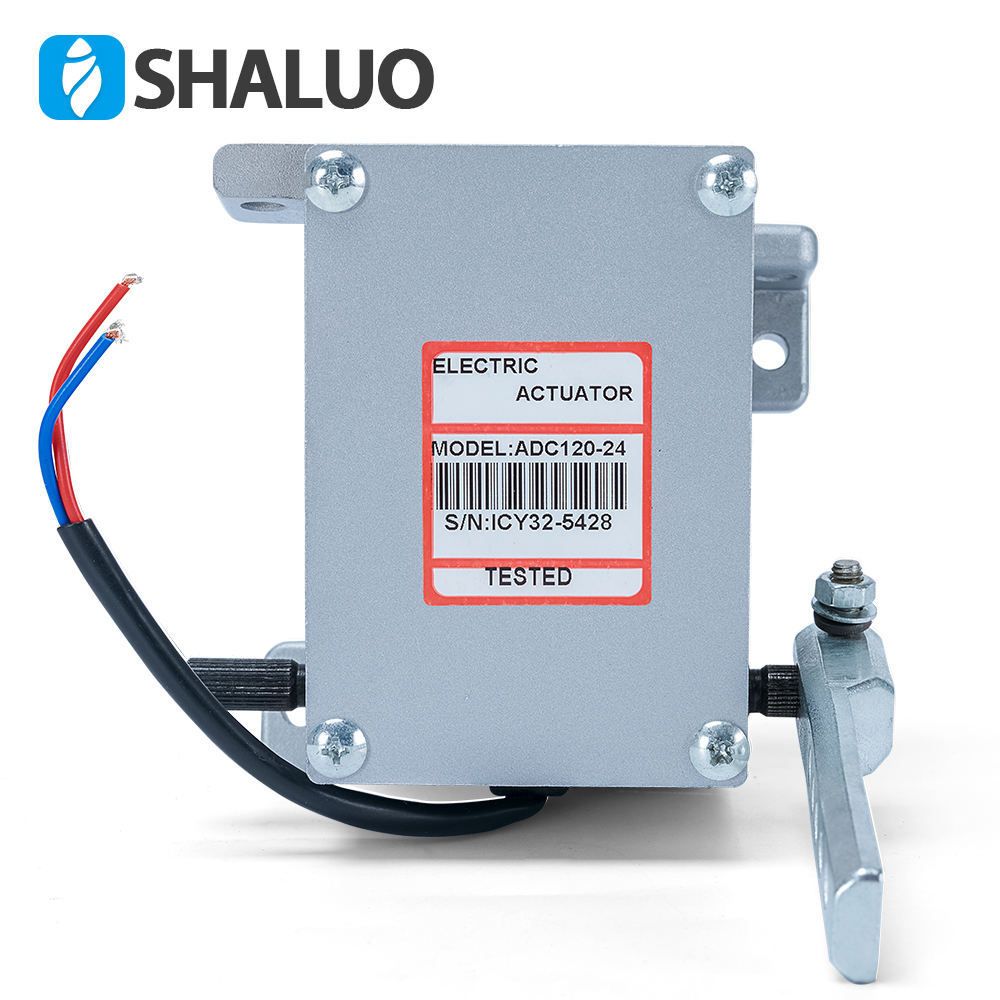

External type actuator ADC120-24v

Actuator ADC120-24v

it match ESD55000E.ESD5111 Speed gorvener to control engine speed. good universal performance.longevity.stability.

PERFORMANCE:
Available Torque Max1.0Lb-ft(1.4Nm)
Maximum Operating Shaft Angular Travel 25± 1degree CW/CCW
POWER INPUT:
Operating voltage 24VDC
Normal Operating Current 2A at 24VDC
1A at 24VDC
Maximum CurrentContinuously Rated 6A at 12VDC
3 A at 24VDC
ENVIROMENTAL:
Temperature Range -54 to 95
Relative Humidity up to 100%
All Surface finishes Fungus proof and corrosion resistant
PHISICAL:
Weight 2.3 kg
Mounting Any position, electrical connector at the top preferred
RELIABILITY:
Vibration up to 20G @50-500 Hz
Testing 100% Tested
MATING HARDWARE
Connector Supplied With Actuator

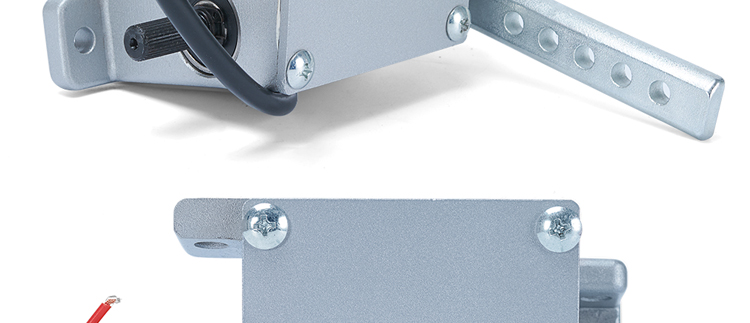

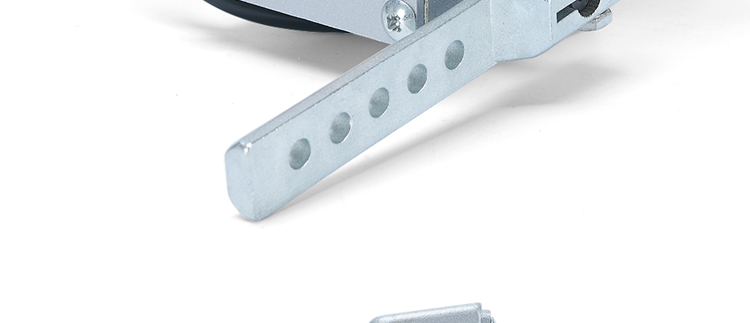

Lever LE1500-2
Rod End Bearings(to attach a 12#20 HD linkage rod to lever) BR100(Right Hand)
BR101(Left Hand)
Wiring Harness ADC120 4ft. Harness supplied with actuator, other length available from Actuator
