Intelligent Generator Controller Generator Set Protection Module Fully remote Automatic load Controller dc60dR

Overview:
This series of controllers are designed for start-up, stop, parameter monitoring and fault monitoring of diesel, gasoline and gas generator sets and have parameter setting functions.

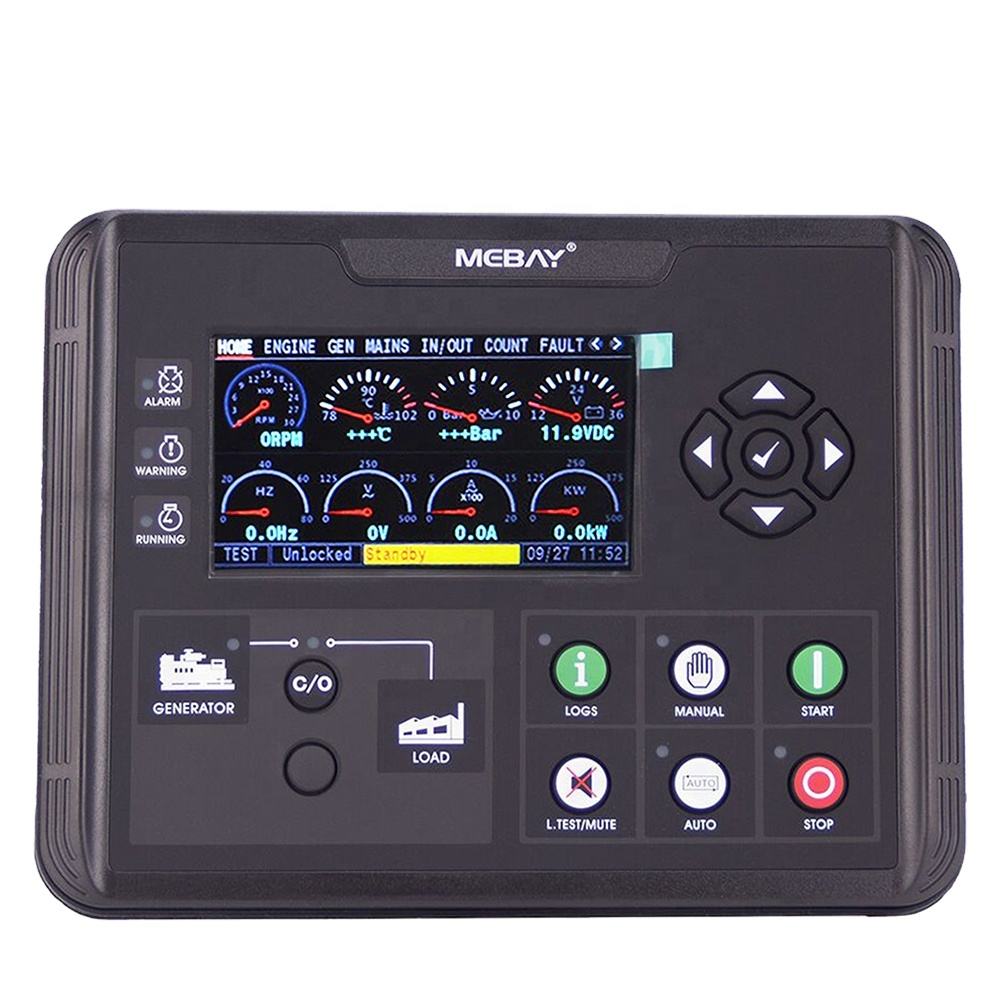

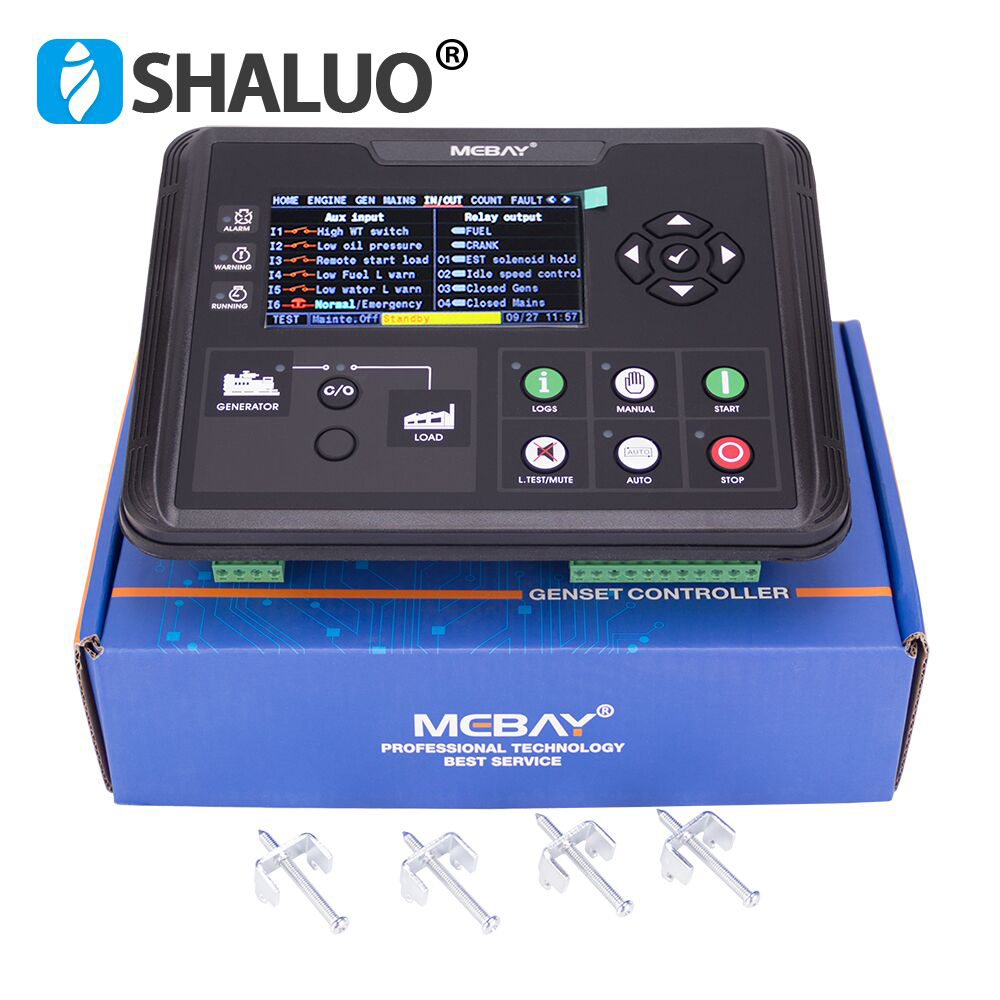

The controller adopts 4.3-inch TFT color large-screen liquid crystal display generator set related parameters, a new original UI design, parameters through analog pointers and digital display. The LCD screen can simultaneously display a variety of current fault conditions, and can effectively implement protection parking when the generator set is not working properly.

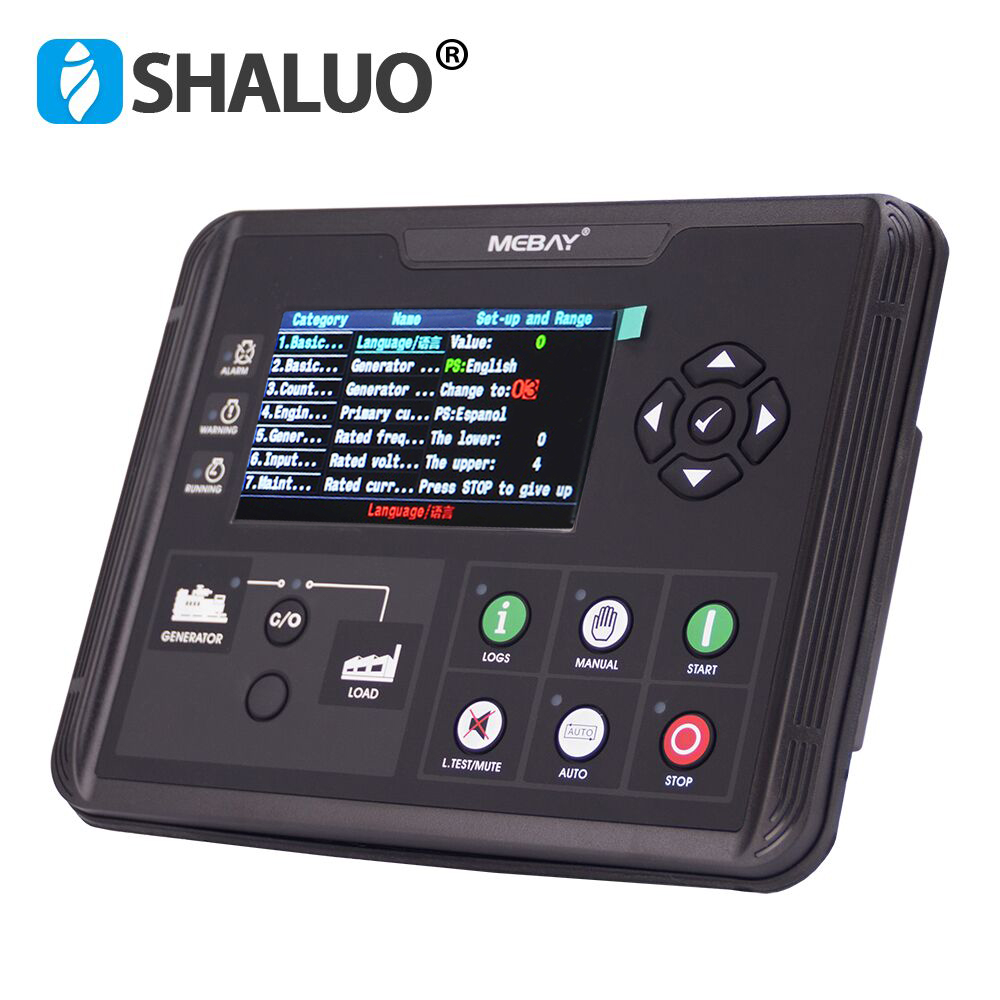

The controller has built-in Simplified Chinese, English and other display interfaces to choose from, and can customize any language interface according to customer requirements. All parameters of the controller can be adjusted through the controller panel buttons, or adjusted and monitored by the PC through the USB port or RS485 interface. It can be widely applied to various types of generator set automation systems.
Performance and characteristics
The DC6xD series is available in four models:
DC60D: used for stand-alone automation, which controls the automatic start and stop of the generator set by remote start signal;
DC62D: Adding the mains monitoring and mains/generation automatic switching control (AMF) function on the basis of DC60D, it is applicable to the single-machine automation system consisting of one generator unit.
DC60DR: Add RS485 interface based on DC60D;
DC62DR: Add RS485 interface based on DC62D;

The main features are as follows:
is controlled by 32-bit imported high-performance single-chip microcomputer;
4.3 inch TFT color large screen LCD screen, with Chinese and English can be switched, can be customized according to customer needs in a variety of languages;

pointer meter plus digital display UI interface, new original design, set dynamic and precise as one;

Screen protection adopts hard-screen acrylic material, which is wear-resistant and scratch-resistant;

uses silicone panel, which is effective in waterproof, oil proof and UV protection. It has good operation and long service life.
has a USB interface, can set parameters through the USB interface, monitor real-time, and can set parameters when the controller is not connected to the power supply;
has RS485 interface, can realize "three remote" function by using MODBUS protocol;
collect and display a variety of engine and generator parameters;

input and output port function, status display, at a glance;
setting interface adopts multi-level menu type classification design, which is convenient and quick;
Built-in real-time clock with on-duty planning and maintenance planning function: By setting up the monthly or weekly duty schedule of the generator set, the monthly or weekly maintenance plan of the generator can be realized, so that the power generation can be more flexibly used. unit;
maintenance countdown function, can set maintenance time or date;
has the function of black box, saves the relevant parameters of the unit when the fault alarm occurs in real time, and is convenient for finding the cause of the unit failure;
has 6 relay outputs, of which 4 outputs can be configured, each channel has more than 20 kinds of functions to choose from, and 3 sets of outputs are passive contacts;
has 5 configurable switch inputs, with up to 30 functions available per channel;
has 3 channels of sensor analog input, 6 kinds of sensor input types can be freely combined configuration, a variety of display units can be configured, more suitable for dual oil pressure, dual water temperature units;
The first battery charging control can control the charger according to the battery voltage, effectively preventing the problem of overcharging and losing electricity of the battery;
can customize the sensor curve through panel buttons and PC software;
Suitable for three-phase four-wire, three-phase three-wire, single-phase two-wire, two-phase three-wire (120V/240V) power supply 50/60HZ system;
A variety of starting conditions (speed, frequency, oil pressure, charging) combination can be selected;
control protection function: realize automatic start/stop of genset, ATS switching and perfect fault display and protection function;
comes standard with waterproof ring, and the protection performance of the rear panel is IP54.

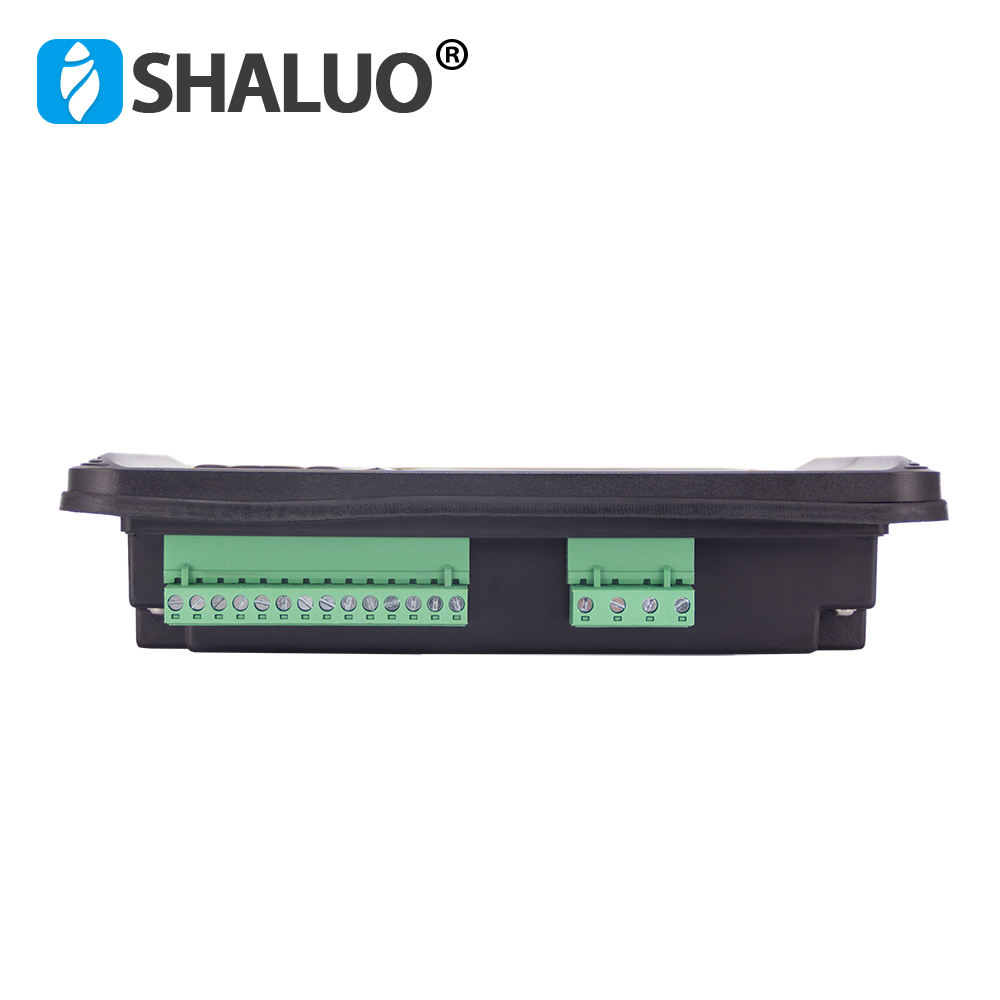

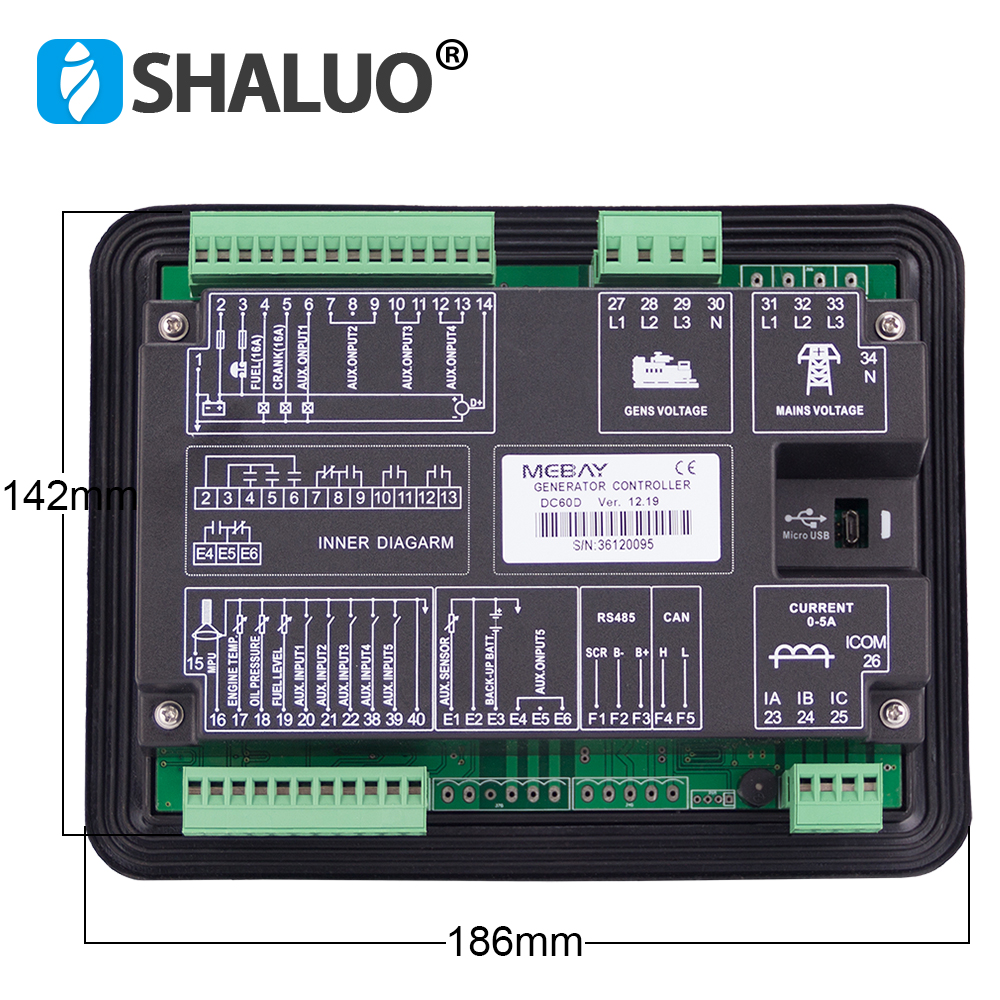

Modular design: All wiring is completed through European-style terminal blocks. It is very easy and convenient to assemble, connect, repair and replace the equipment.
Parameter display
engine speed;
engine oil pressure;
engine cooling water temperature;
engine oil temperature;
engine block temperature;
unit chassis temperature;

engine fuel level;
engine battery voltage;
Engine charging voltage
Mains frequency (only available in DC62D series);
Mains phase voltage L-N (only available in DC62D series);
City wire voltage L-L (only available in DC62D series);
Low oil pressure
Low fuel level
ow oil level

External instant alarm
D+ open circuit
Speed signal loss
sensor open circuit
overclocking

underfrequency
Power generation overvoltage
generating undervoltage
overcurrent
Current imbalance
over power
Power generation phase loss Power failure failed

Power failure failed

The mains fails to open
The mains fails to close
Maintenance expires
Low water level alarm
Emergency stop
failed to start
Battery overvoltage
Battery undervoltage
Charger failed to charge
Charger failed to charge
Downtime failure
