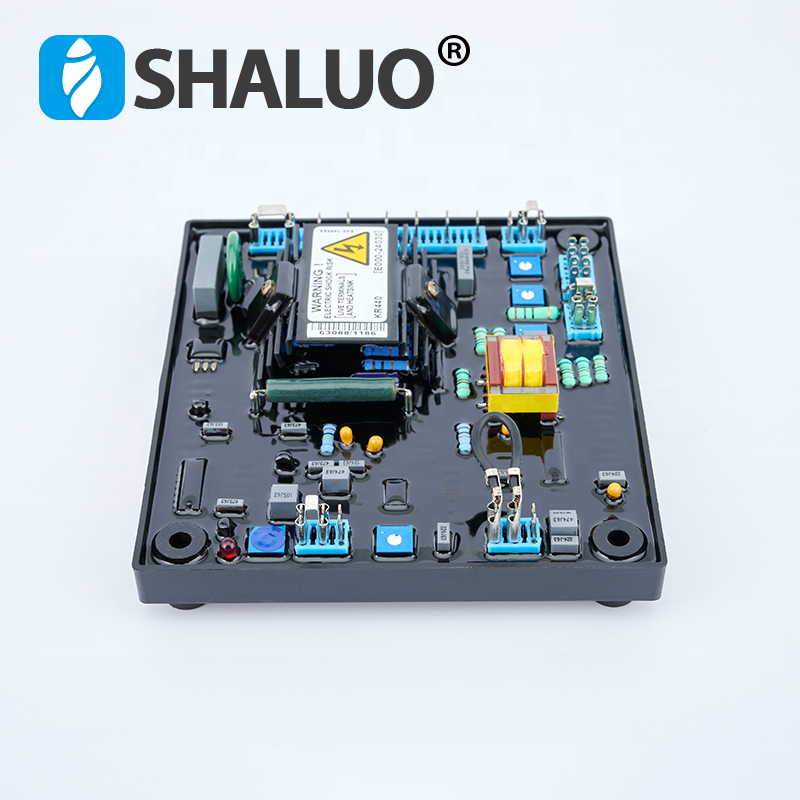

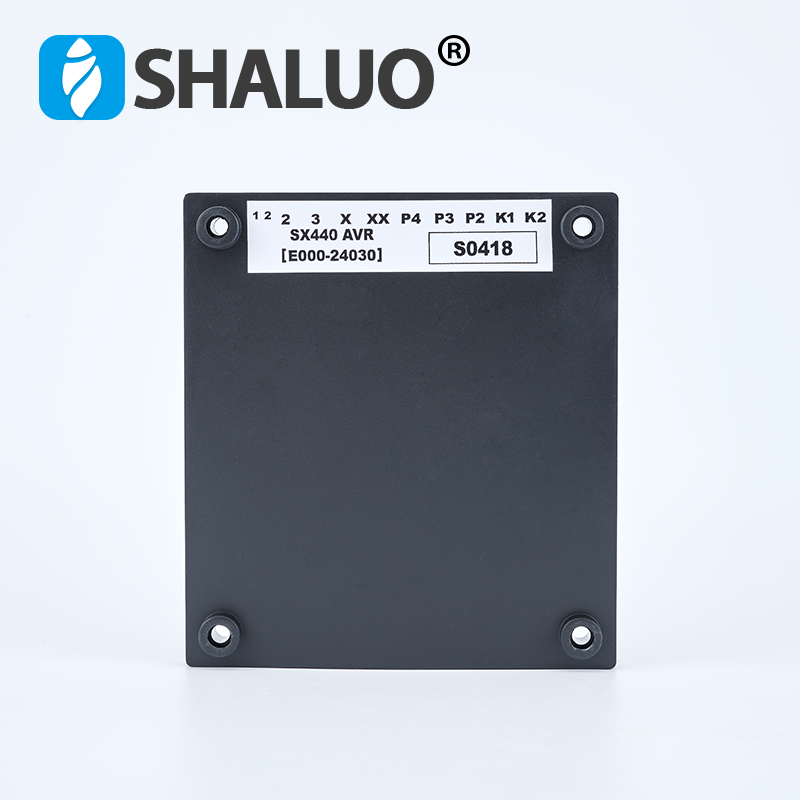

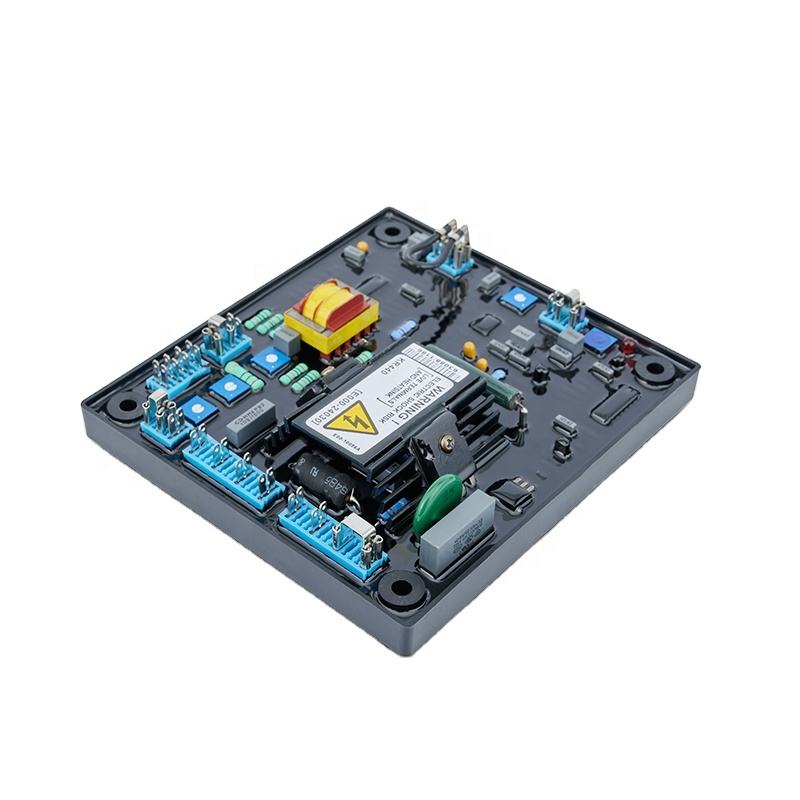

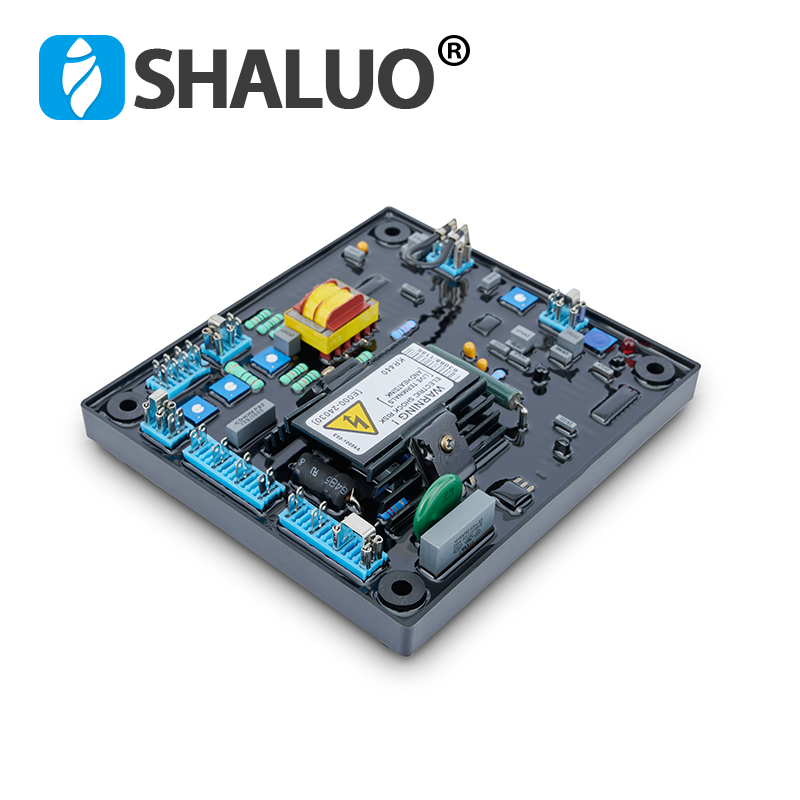

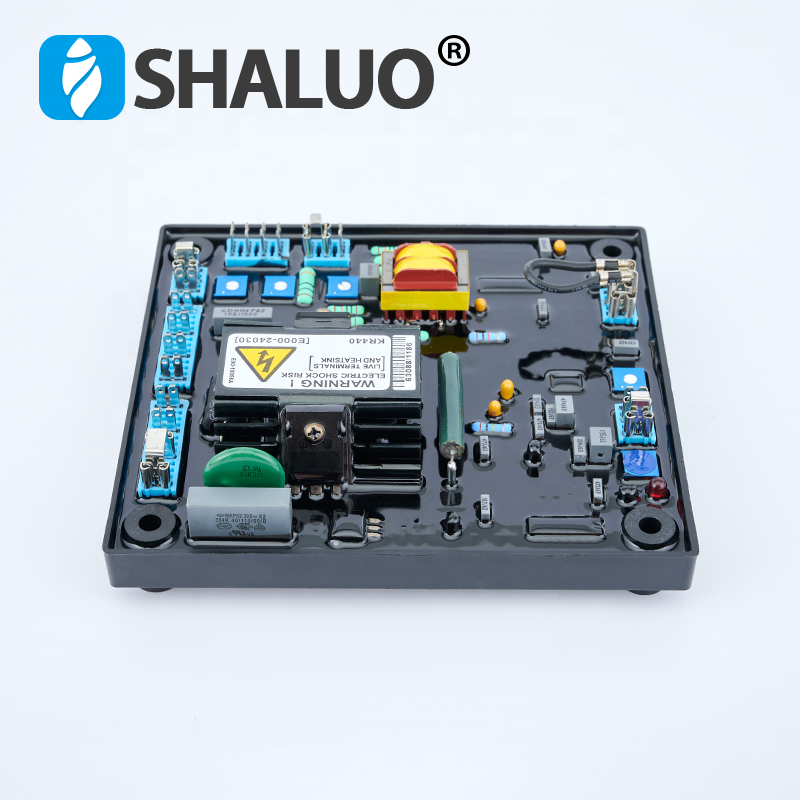

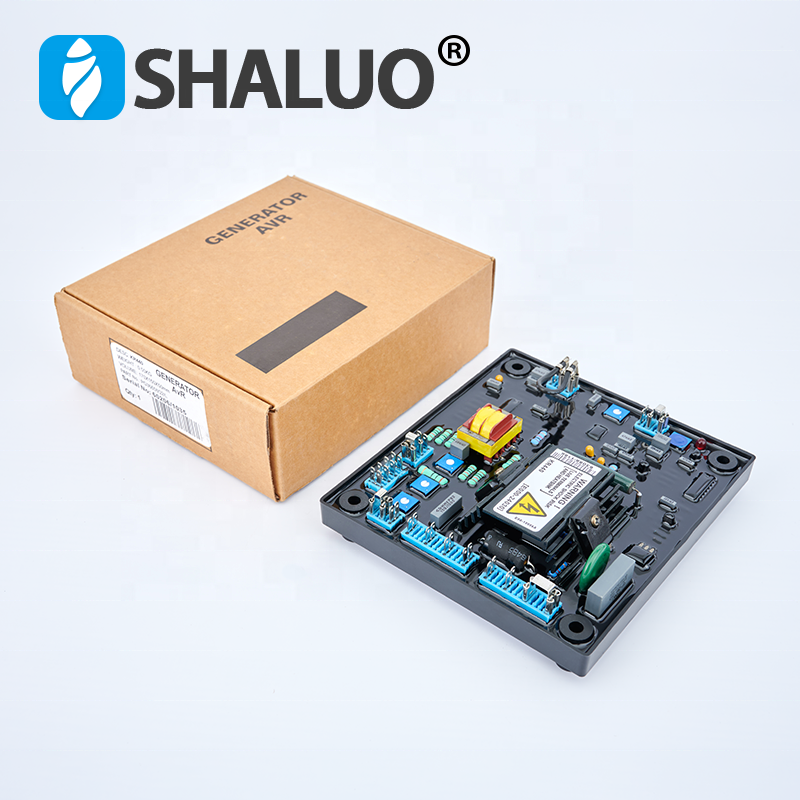

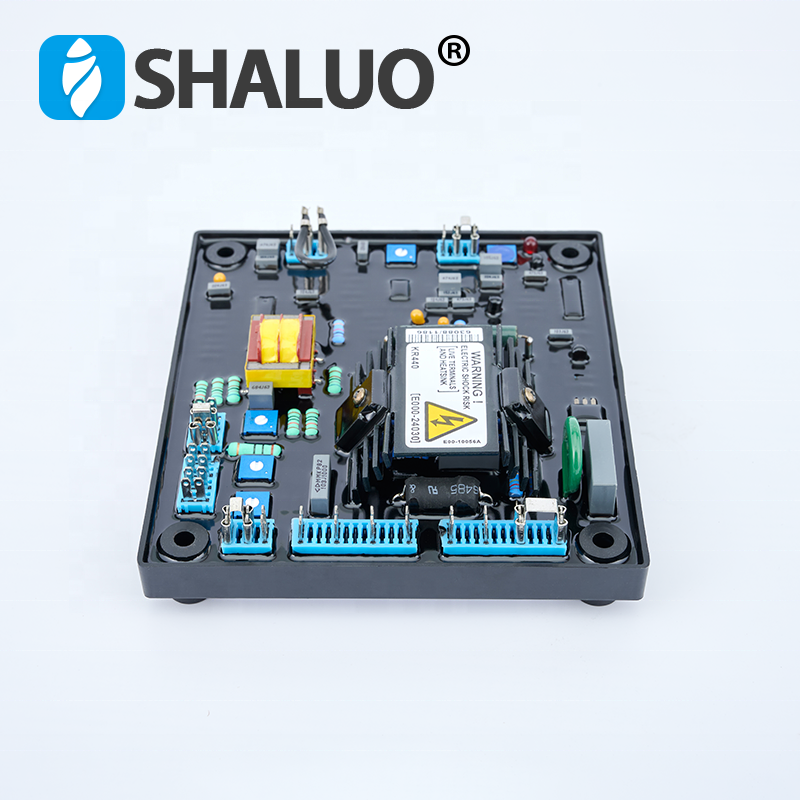

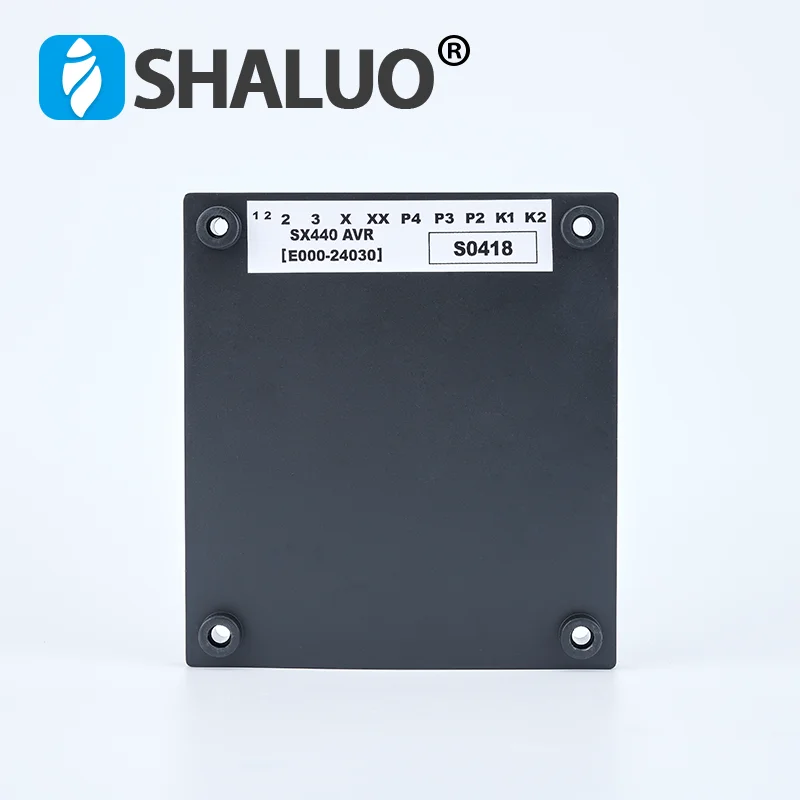

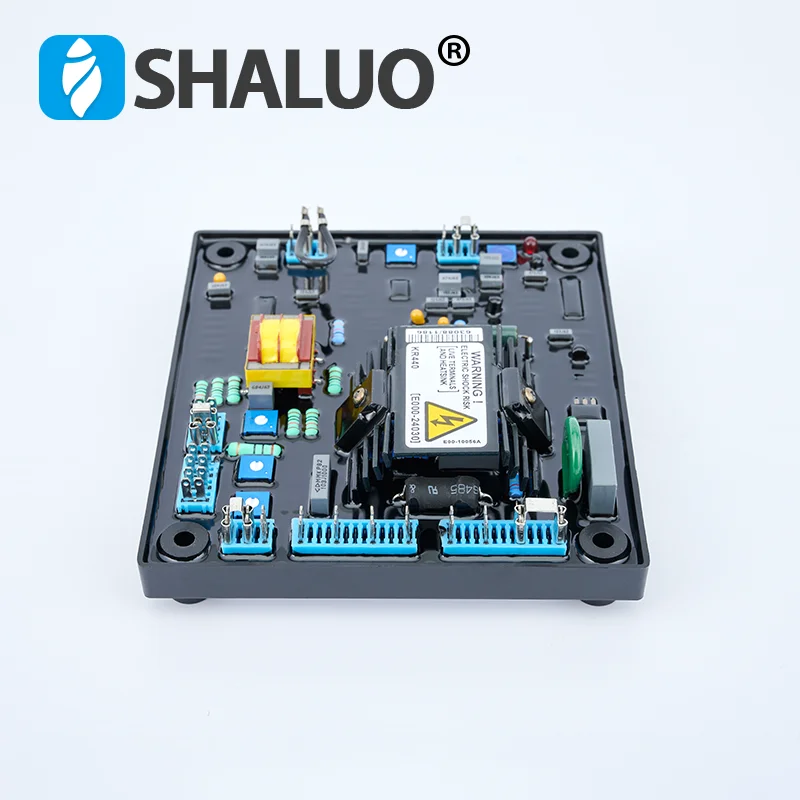

Product Description
| Input | Sensing Input | voltage | 100-130V AC,170-264V AC | |
| Frequency | 50-60Hz common | |||
| Phase | 2 | |||
| Power Input | voltage | 100-264V AC | ||
| Frequency | 50-60Hz | |||
| Phase | 1 | |||
| Output | Voltage | Max.82V DC@200VAC Input | ||
| Current | Continuous 4A,Transient 7.5A for 10secs | |||
| Field Resistance | Min.15Ω(Min.10Ωwhen input voltage is less than 175V AC) | |||
| Quadrature Droop Input | load | 10Ω | ||
| Max Sensitivity | 0.07A for 5% droop (PF=0) | |||
| Max Input | 0.33A | |||
| Analog Input | Max Input | ±5V DC | ||
| Sensitivity | ±1V for 5% Generator Volts | |||
| Input Resistance | 1KΩ | |||
