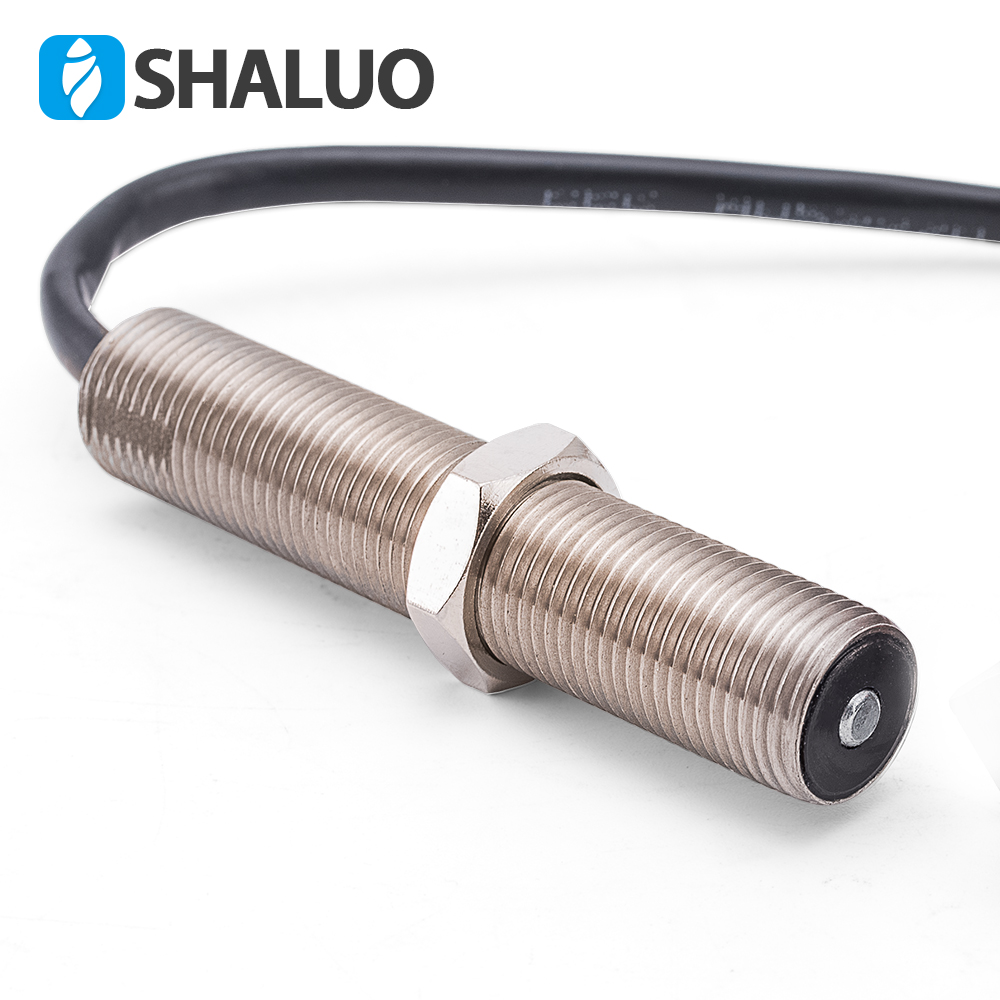

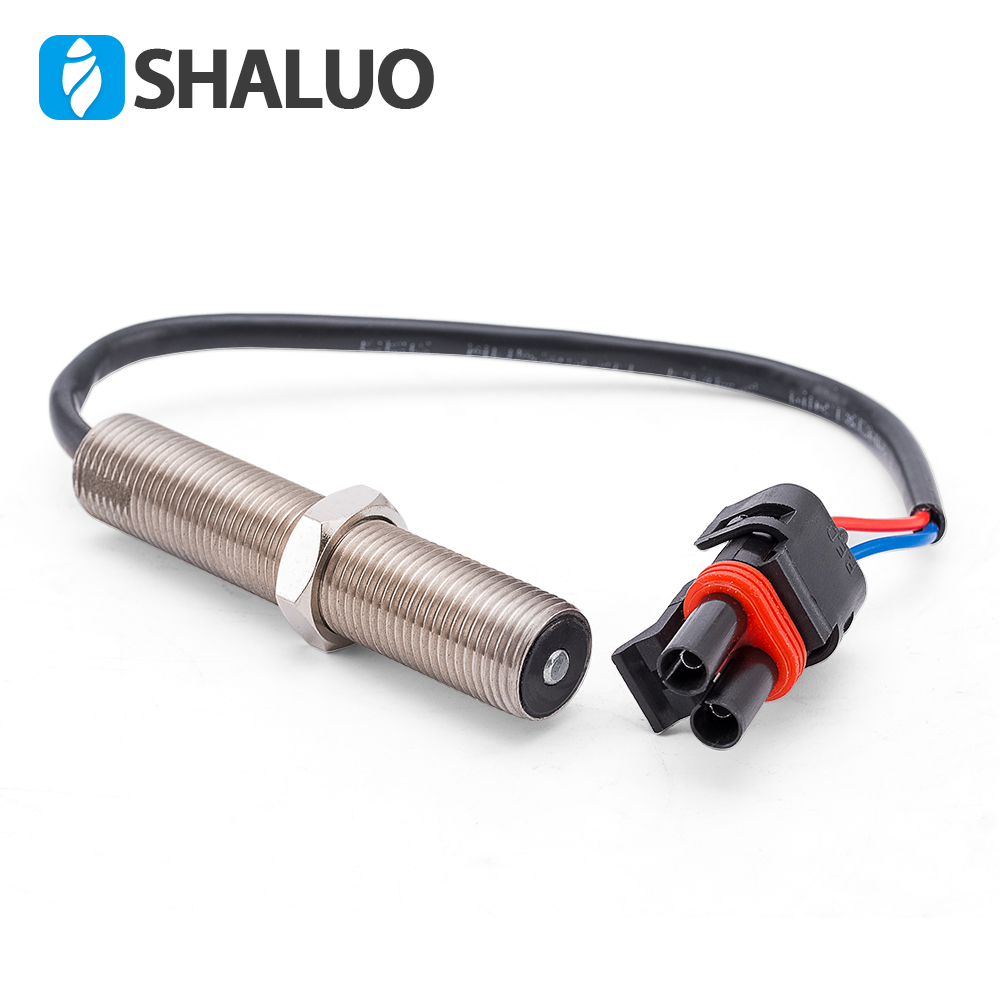

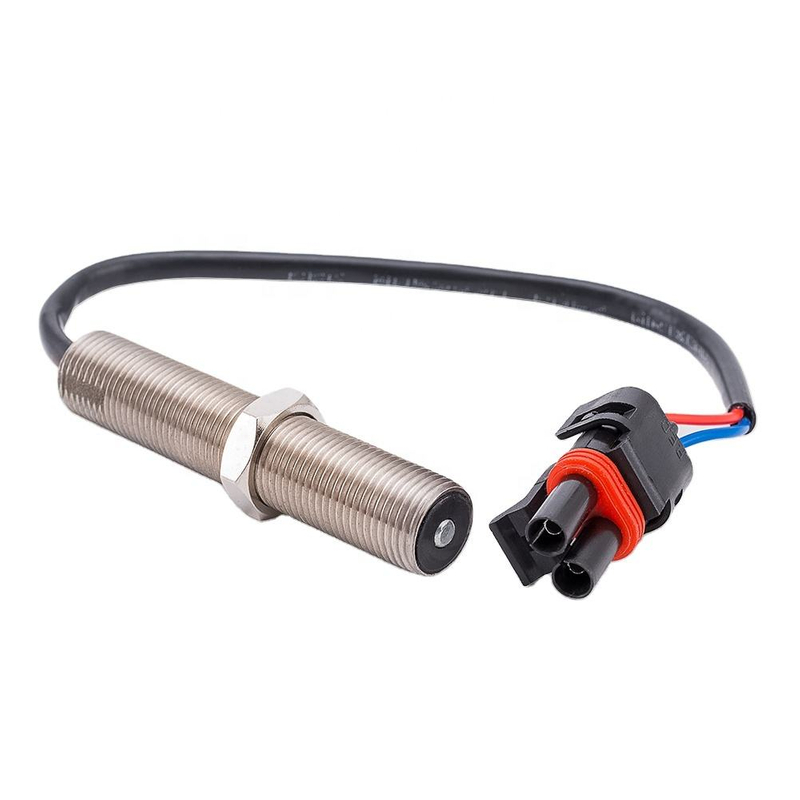

M16 Vdo Magnetic Pickup MPU 3655944 diesel generator part engine running transmission RPM alarm ohm switch Speed Sensor

Measure Range

50-5000 Hz

Inductance

142MH+25%

Thread Size

3/4-16 UNF-100mm

Proximity to Gear Teeth

.028 in min. - .042 in max.(Approximately 1/2 to 3/4
turn)

Temperature Range

-55 °C to 105 °C

Output at Cranking Speed

1.5 volts AC minimum

Maximum Output

30 volts AC

Coil Resistance

300 ohms maximum
