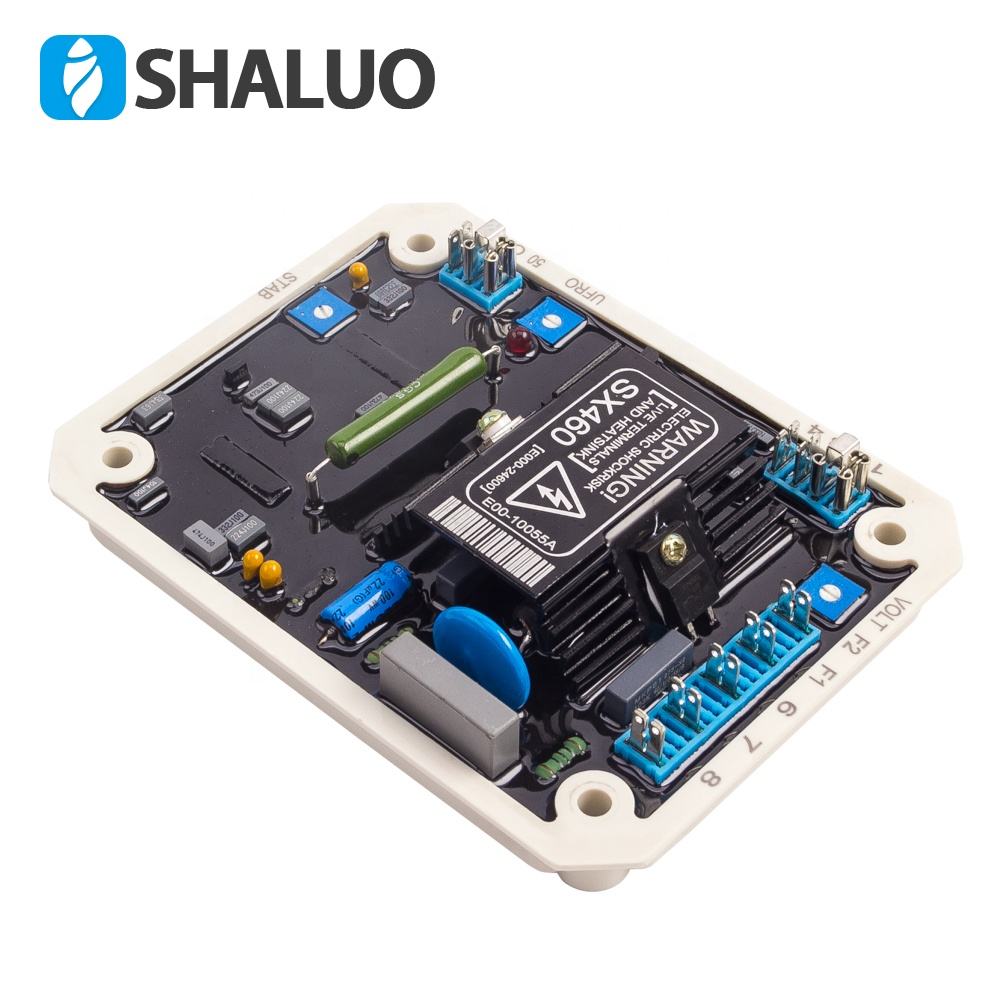

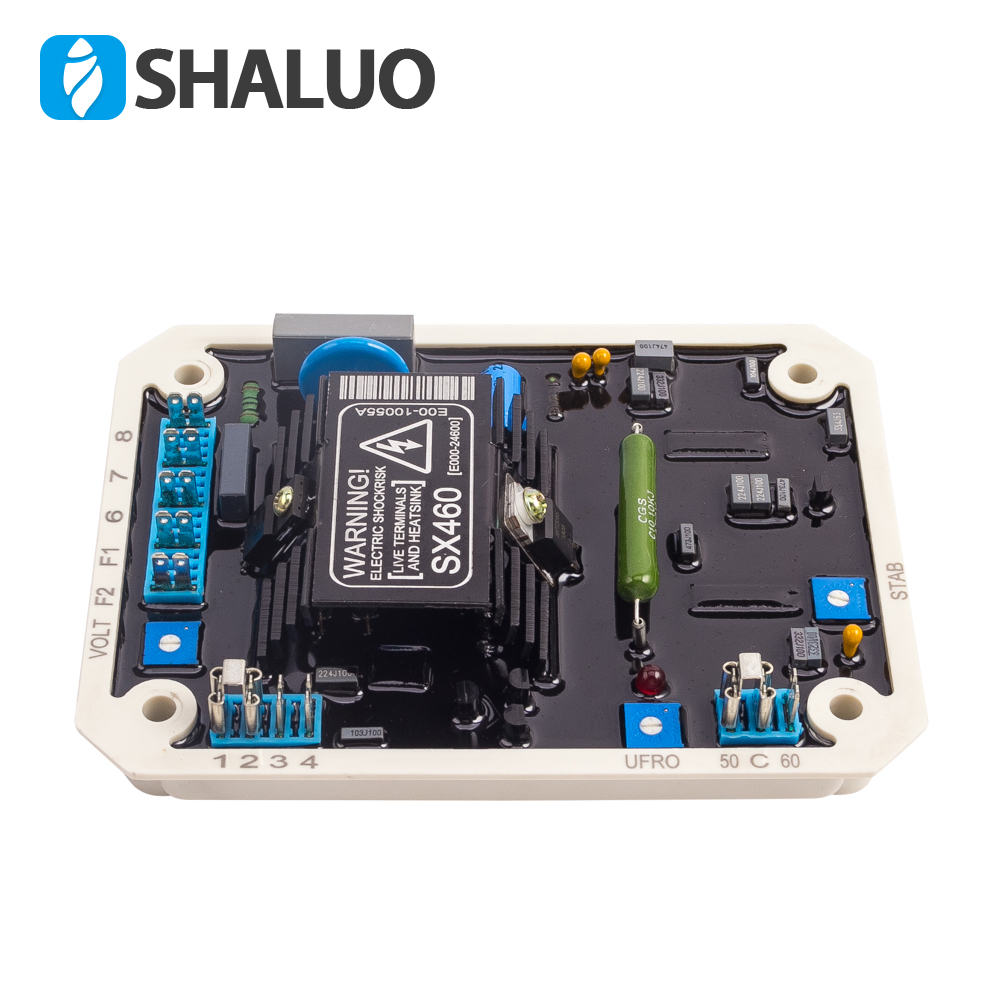

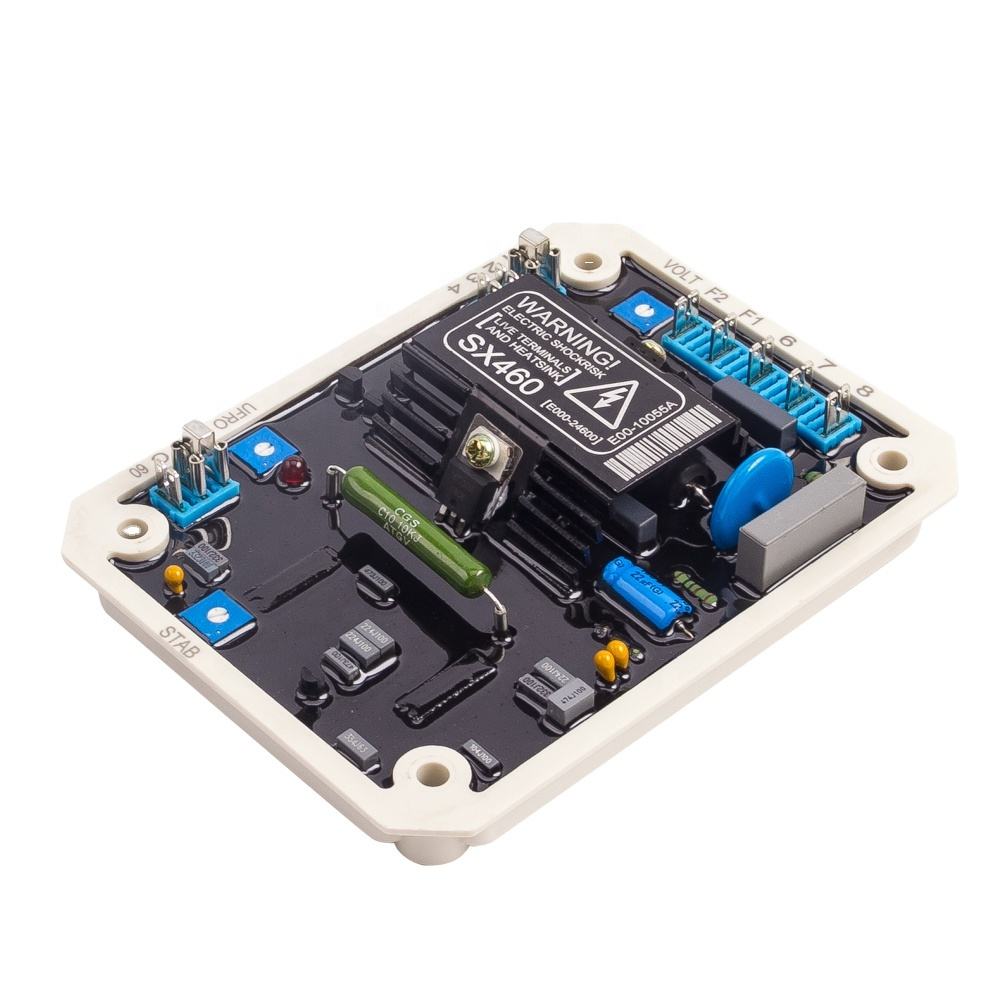

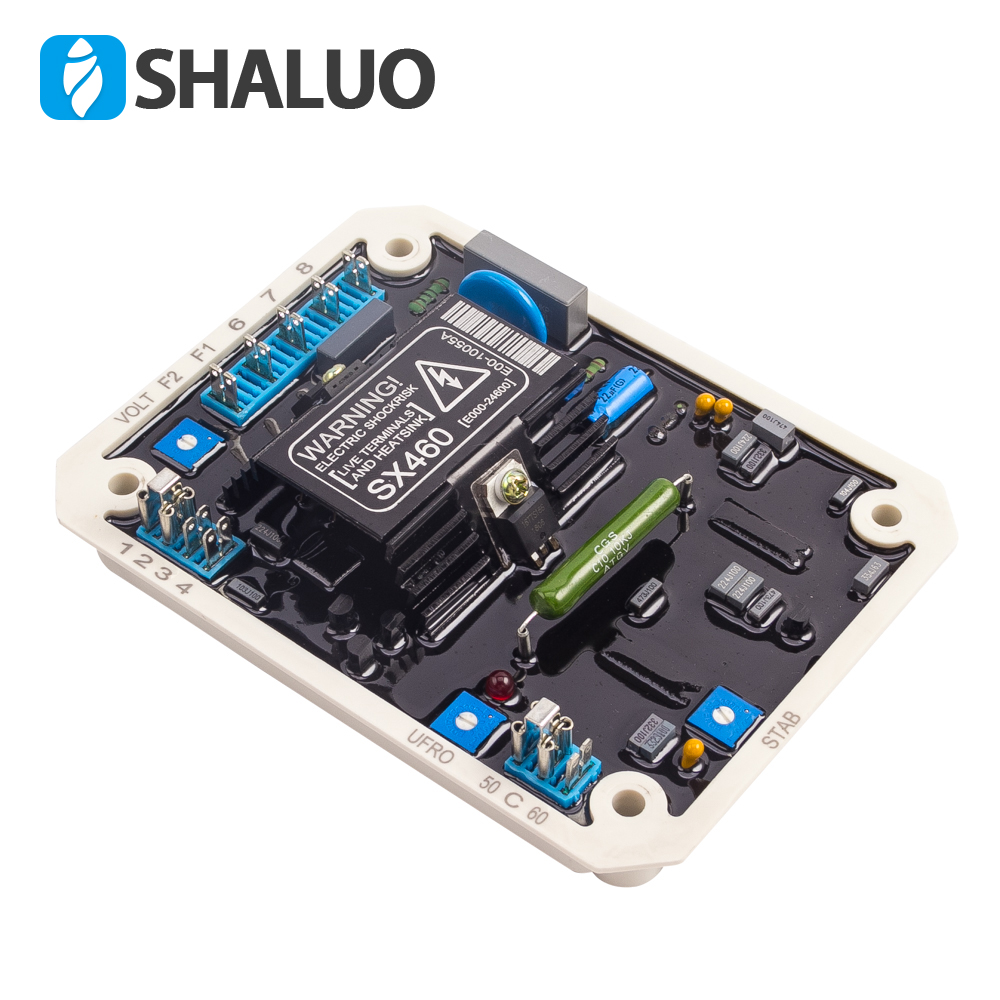

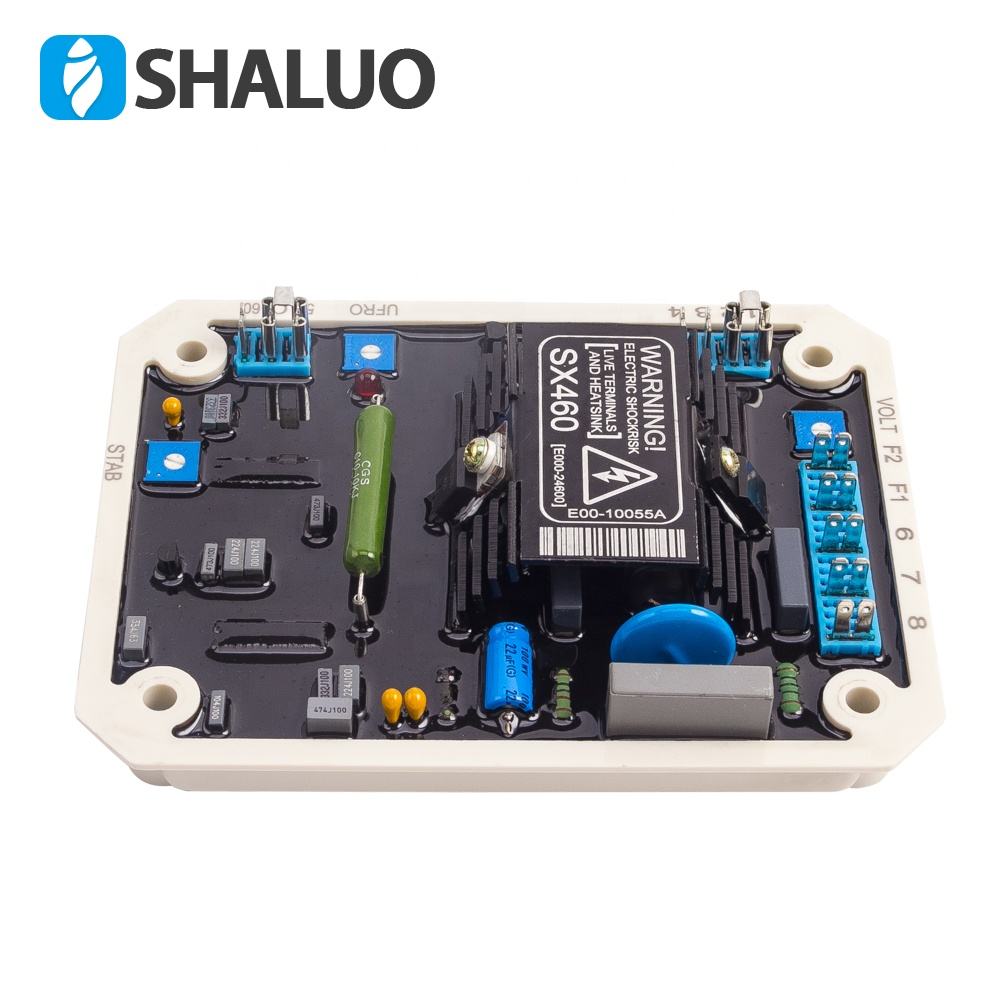

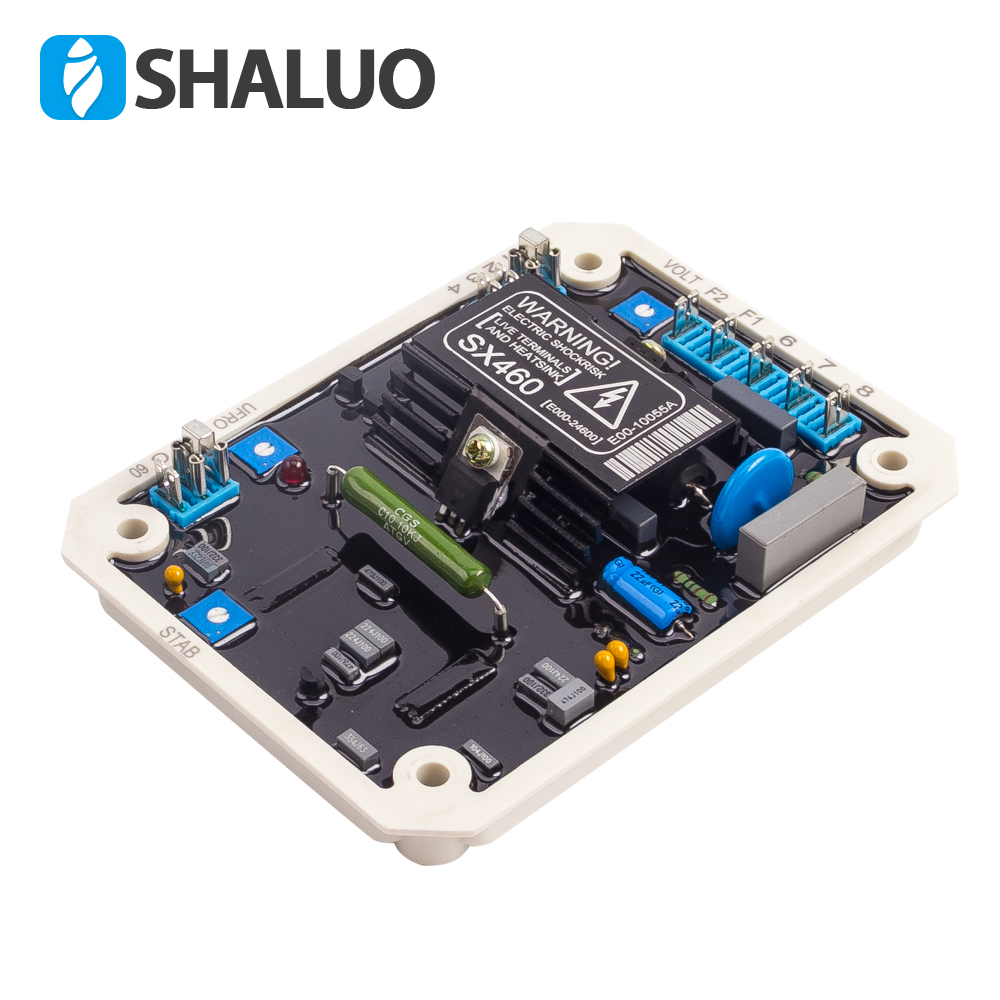

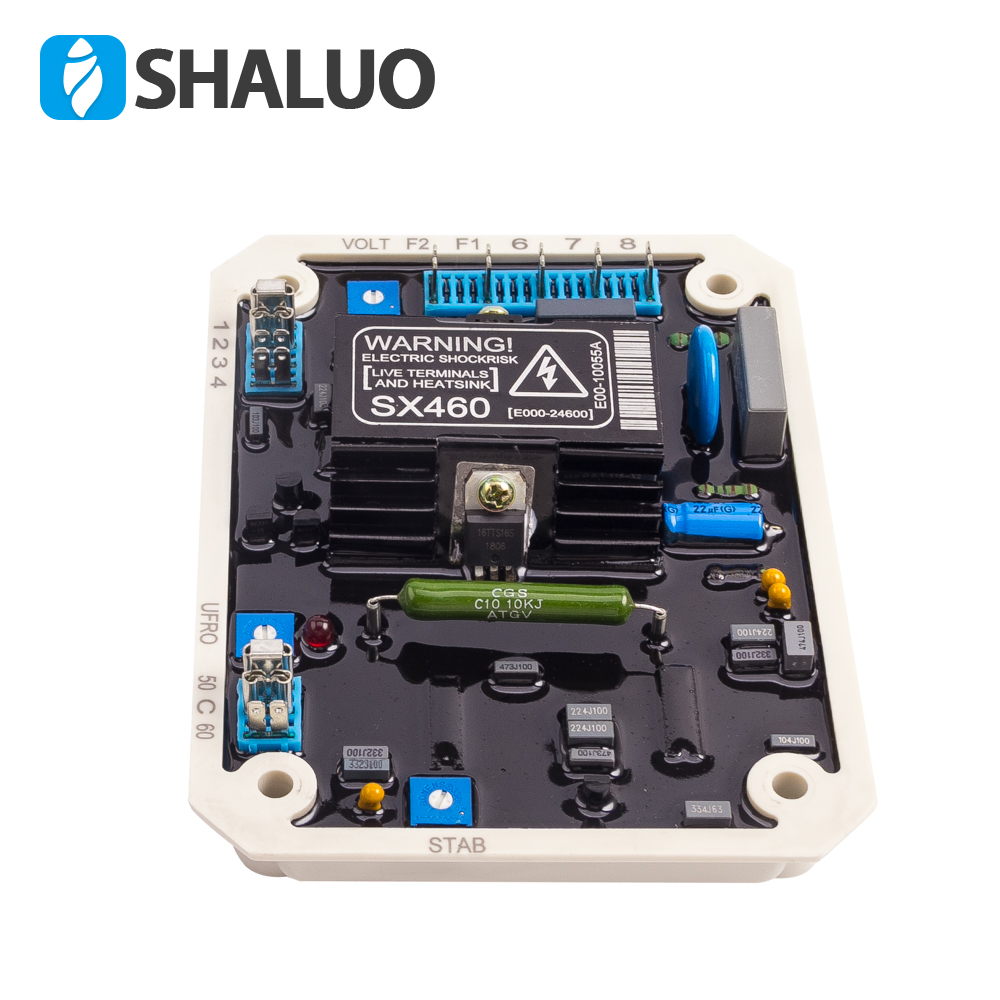

NEW AVR SX460 Power Generator Automatic Voltage Regulator Stabilizer Control Unit Alternator Diesel Genset Parts Accessories

Availability:
Quantity:
Inquire Add to Basket

Product Description

Product Description

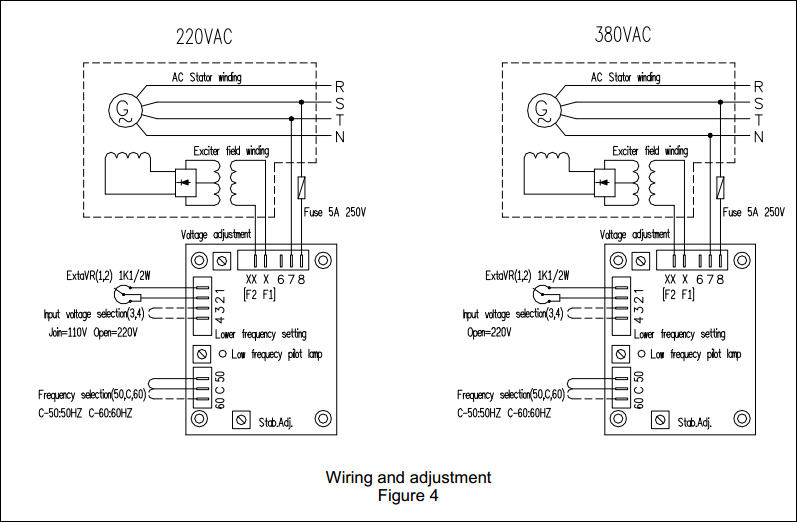

1. INTRODUCTIO NSensing Input Voltage:95~132VACor190~264VAC1 phase, jumper selectable Frequency：50160 Hz, selectable Output Voltage：Max. 90 VDC @ 207 VAC Current：Continuous 4A ，Intermittent 10A for 10 sec. Resistance：Min.15 ohm Voltage Regulation <+ 1.5% ( with 4% engine governing ) Voltage Build-up：Residual voltage at AVR terminal> 5 VAC Thermal Drift：0.05% per C change in AVR ambient External Volts Adjustment：7% with 1K ohm 1 watt trimmer Unit Power Dissipationt：Max.10 watt Under Frequency Protection：Set point ，95% Hz ( UFRO )： Slope 170% down to 30 Hz Soft Start Ramp Time：2 sec. Dimensions：135mmL*100mmW*49mmH Weight：243g t 2% WIRING (Refer to wiring diagram) 1. ConnectF1, F2 to DC output port. 2. Connect the sensing port at 7, 8 (the factory setupis 220V, if 110V is required, please join 3, 4) 3. External voltage regulator is as Figure 4. 4. Connect a jumper from COM to the 50Hz terminal for 50Hz operation. Note : please install 5A 250V fuse at power input portas Figure 4
Detailed Images
