Original ComAp InteliNano NT Plus Updated Controller Panel IN-NT-MRS3 Genset Generator Control Module Mains Power Accessory

Availability:
Quantity:
Inquire Add to Basket

Product Description

Product Description
1. The same points between IN-NT-MRS3 and IN-NT-PLUS:
The holes are the same and the software is the same.
2. The difference between IN-NT-MRS3 and IN-NT-PLUS:
1. IN-NT-PLUS has mains power detection and mains power closing and opening control. IN-NT-MRS3 has no mains power detection.
2. IN-NT-PLUS has only one generator current detection, and IN-NT-MRS3 has three current detections.
3.IN-NT-PLUS does not have a rotational speed signal detection function, while IN-NT-MRS has a rotational speed signal detection
function.
2. Backup power and main power are applied to the same module
1/3 phase generator set voltage detection (when 3/3 phase is used as MRS controller)
1-phase generator current detection
3-phase mains voltage detection
Automatic detection of wiring method and voltage
Multiple generator and engine protection
Largest LCD screen in its class
Icon menu, non-text
Automatic or manual MCB and GCB control
Zero power mode
Battery voltage, service time and run time indication
All set points and I/O are programmable via the front panel
Ability to take over a running engine (can only be used with manually started engines)
Support lighthouse mode
Event log (10 events)
Up to 3 analog inputs (shared with binary inputs)
Up to 6 binary inputs (1 binary input shared with binary output)
2 high levels - high current output
4 high level binary outputs
D+ pre-excitation terminal
ECU support (CAN J1939)
USB single wire power and programming
License-free PC configuration software (NanoEdit)
Standard cutout size 96x96
External dimensions 110x100
IP 65 (if using optional gasket)

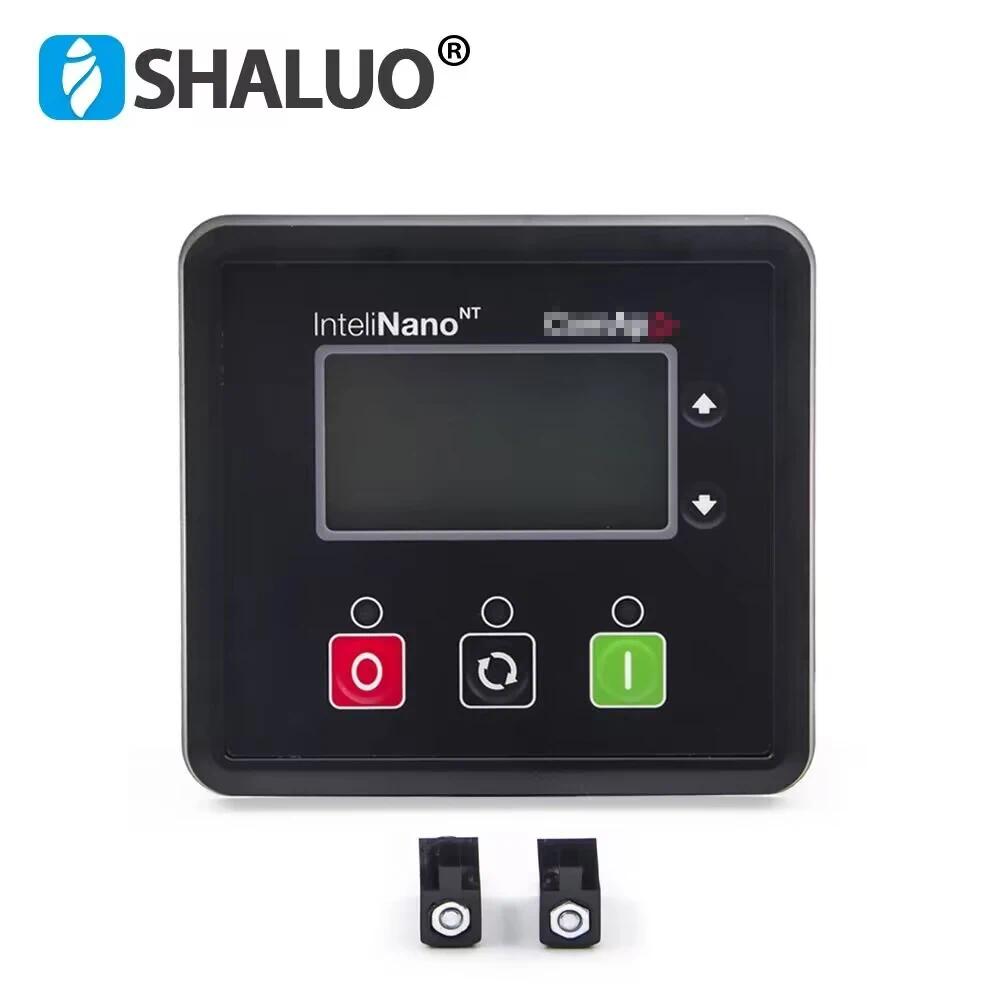

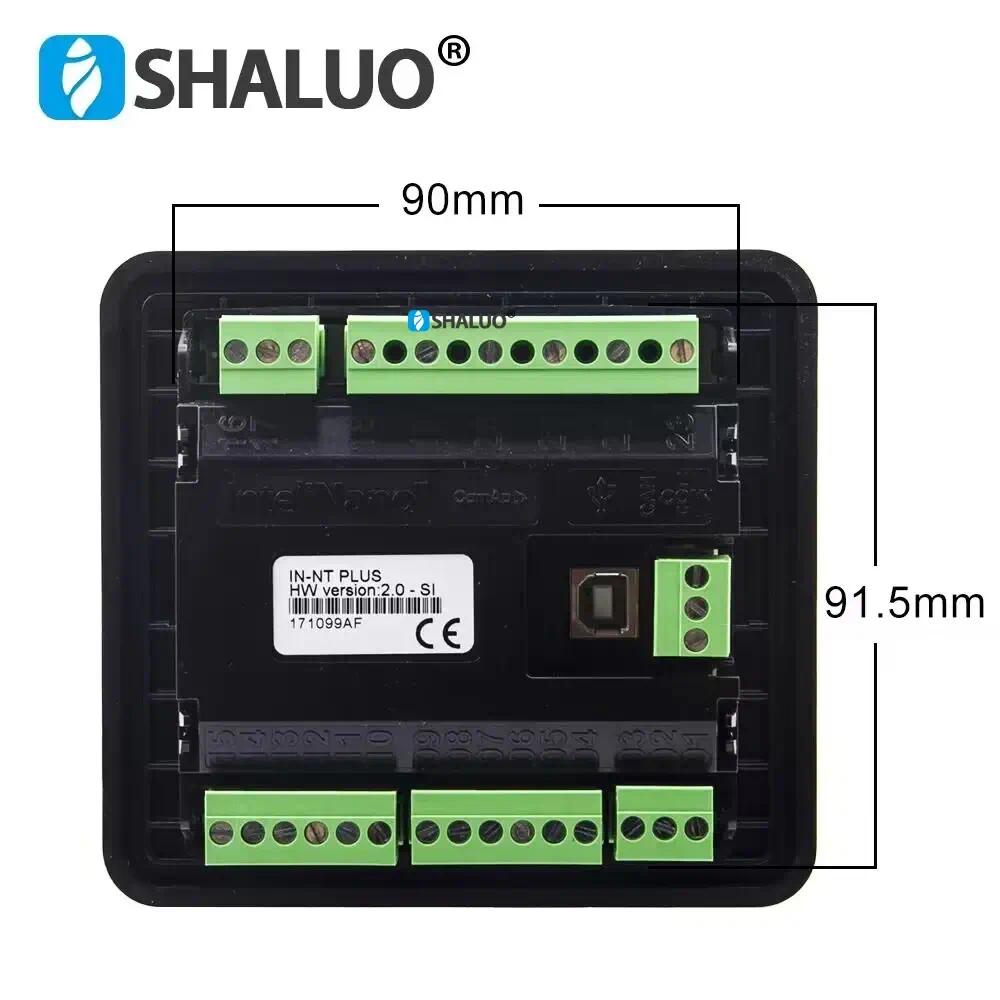

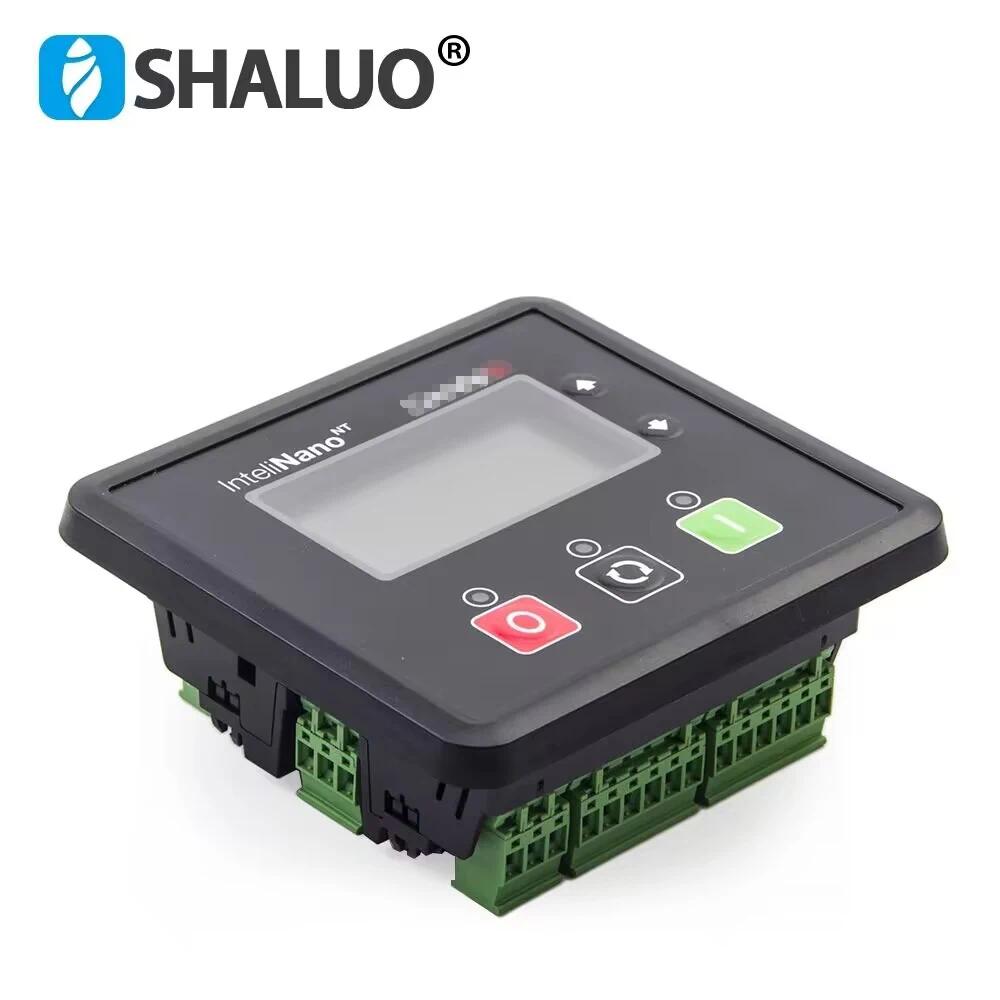

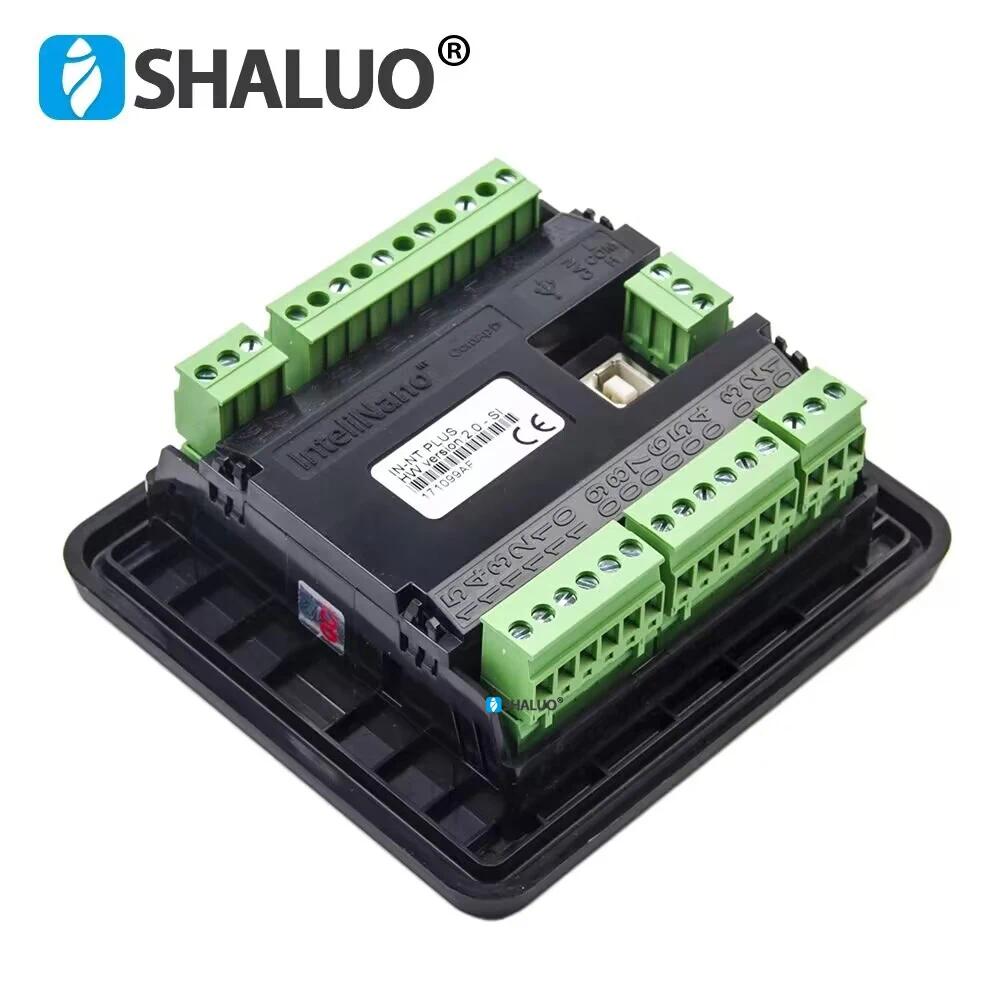

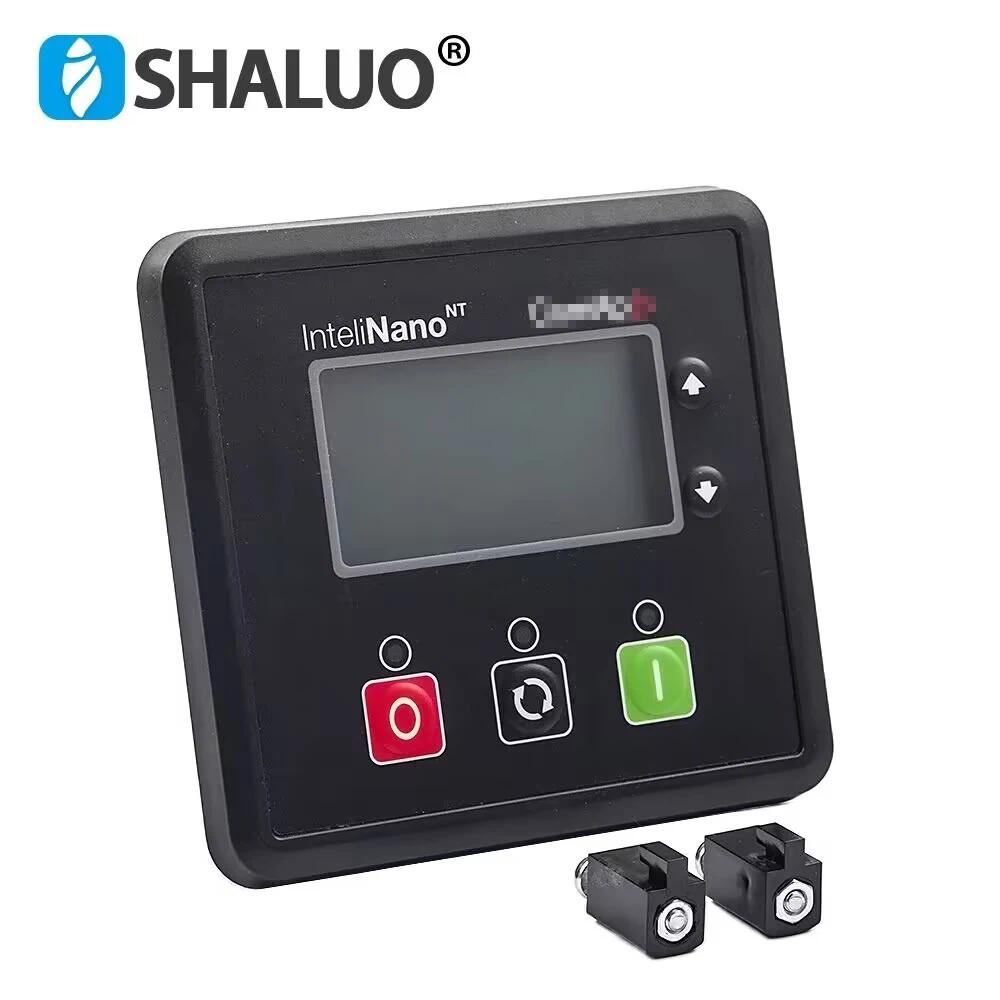

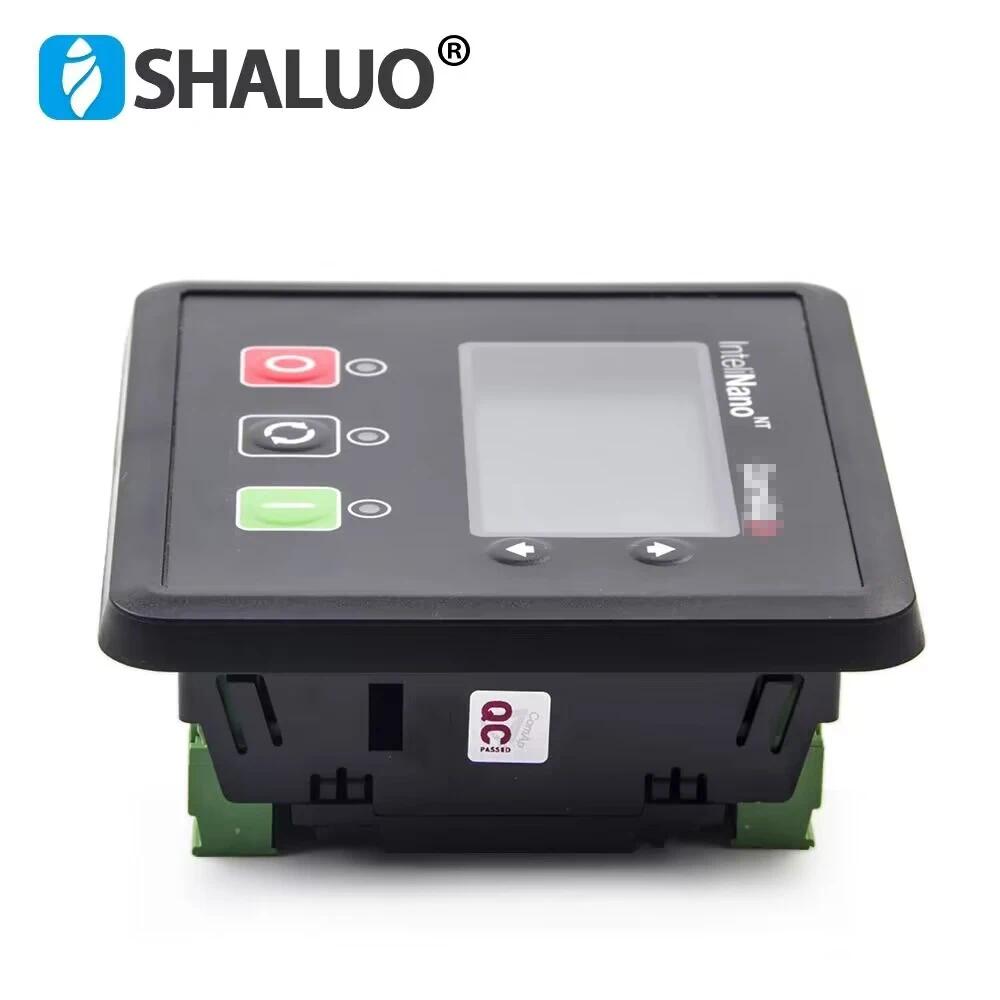

Detailed Images
