Product Description
The 3110 can be utilised as a Manual or Auto Start Module for single gen-set applications or engine only applications. The module has been designed to work with electronic and non-electronic engines, providing advanced engine monitoring and protection features.
The 3110 includes a back-lit icon LCD display which clearly shows the status of the engine at all times.
The module has been designed to combine a maximum of 16 generators and 16mains (utility) supplies up to a maximum of 20 in one system, e.g. 16 generators and 4mains (utility) supplies (5560 required to synchronise with the mains).

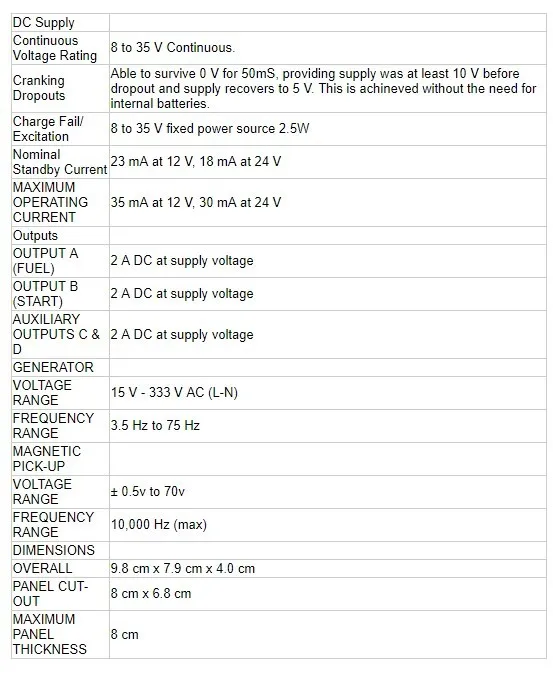

Specification
• Back-lit icon LCD display
• Front panel editing
• LED and LCD alarm indication
• Power Save mode
• CAN and Magnetic Pick-up/Alt. versions available (specify on ordering)
• PC configurable
• 6 Digital inputs
• 4 Outputs (2 configurable on Magnetic Pick up/Alt., 4 configurable on CAN version)
Alternative configuration
• Configurable timers and alarms
• Remote Start input
• Generator voltage display
• Generator frequency display
• Battery voltage display
• Engine speed display
• Hours counter
• Engine pre-heat
• Comprehensive shutdown or warning on fault condition
BENEFITS
• Tamper-proof hours counter provides accurate information for monitoring and maintenance periods
• Multiple engine parameters are monitored simultaneously
• Module can be configured to suit individual applications
• Suitable for engine only applications
• Compatible with a wide range of CAN engines
• Uses DSE Configuration Suite PC software for simplified configuration
• IP65 rating (with optional gasket) offers increased resistance to water ingress
• Licence-free PC software
